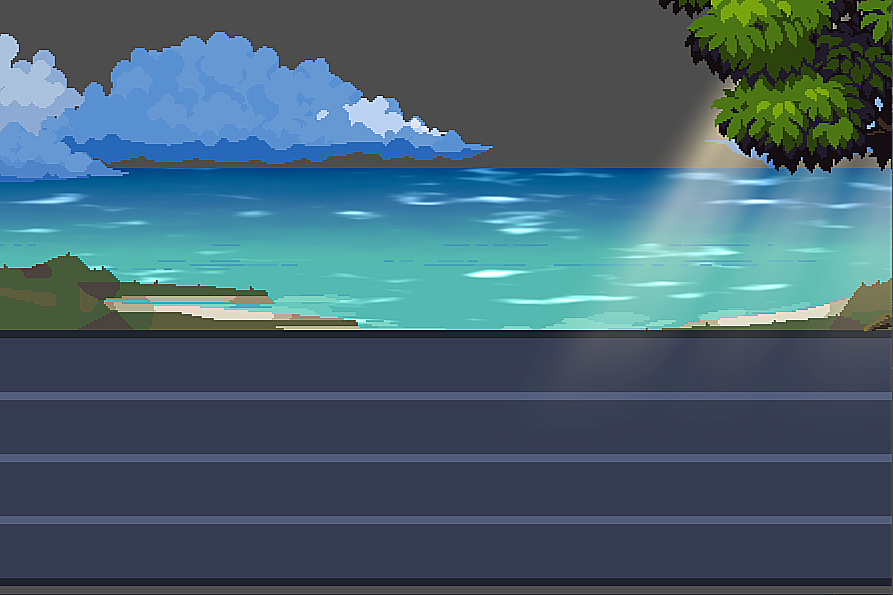

far distance water shader (sea shader)

  • It is better to use a gradient (in the tone_color field) to highlight the depth of the water, then change the sprite size according to the place size
  • Changing the volume of the noise makes the light reflecting off the water appear farther away.
Shader code
shader_type canvas_item;

uniform sampler2D noise1 ;
uniform sampler2D noise2 ;
uniform vec2 scroll1 = vec2(0.05, 0.05);
uniform vec2 scroll2 = vec2(-0.05, -0.05);
uniform float distortion_stregth : hint_range(-1,1) = 0.2;
uniform sampler2D tone_color ;//better use gradient
uniform vec4 top_color : hint_color;
uniform float light_start: hint_range(0.0, 1.0) = 0.275;
uniform float light_end: hint_range(0.0, 1.0) = 0.4;

void fragment() {
	float depth = texture(noise1, UV + scroll1 * TIME).r
		* texture(noise2, UV + scroll2 * TIME).r;
	vec4 water_col = texture(tone_color, UV + distortion_stregth * vec2(depth));
	vec4 top_light = smoothstep(light_start, light_end, depth) * top_color;
	COLOR = water_col + top_light;
	COLOR.a = 1.0;
	}
Tags
Distance, far, sea, shader, water
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
