Fire effect

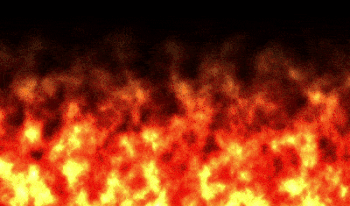

A realistic fire effect. Add to a CanvasItem for example a Sprite or a ColorRect.

This shader is made and contributed by, Tsar333.

Shader code
// Fire shader

shader_type canvas_item;

uniform vec2 fireMovement = vec2(-0.01, -0.5);
uniform vec2 distortionMovement = vec2(-0.01, -0.3);
uniform float normalStrength = 40.0;
uniform float distortionStrength=0.1;


/** NOISE **/
float rand(vec2 co) {
  return fract(sin(dot(co.xy ,vec2(12.9898,78.233))) * 43758.5453);
}

vec2 hash( vec2 p ) {
	p = vec2( dot(p,vec2(127.1,311.7)),
			  dot(p,vec2(269.5,183.3)) );

	return -1.0 + 2.0*fract(sin(p)*43758.5453123);
}

float noise( in vec2 p ) {
   float K1 = 0.366025404; // (sqrt(3)-1)/2;
   float K2 = 0.211324865; // (3-sqrt(3))/6;

	vec2 i = floor( p + (p.x+p.y)*K1 );

    vec2 a = p - i + (i.x+i.y)*K2;
    vec2 o = step(a.yx,a.xy);
    vec2 b = a - o + K2;
	vec2 c = a - 1.0 + 2.0*K2;

    vec3 h = max( 0.5-vec3(dot(a,a), dot(b,b), dot(c,c) ), 0.0 );

	vec3 n = h*h*h*h*vec3( dot(a,hash(i+0.0)), dot(b,hash(i+o)), dot(c,hash(i+1.0)));

    return dot( n, vec3(70.0) );
}

float fbm ( in vec2 p ) {
    float f = 0.0;
    mat2 m = mat2(vec2(1.6,  1.2), vec2(-1.2,  1.6 ));
    f  = 0.5000*noise(p); p = m*p;
    f += 0.2500*noise(p); p = m*p;
    f += 0.1250*noise(p); p = m*p;
    f += 0.0625*noise(p); p = m*p;
    f = 0.5 + 0.5 * f;
    return f;
}

/** DISTORTION **/
vec3 bumpMap(vec2 uv) {
	vec2 iResolution = vec2(1024,600);
    vec2 s = 1. / iResolution.xy;
    float p =  fbm(uv);
    float h1 = fbm(uv + s * vec2(1., 0));
    float v1 = fbm(uv + s * vec2(0, 1.));

   	vec2 xy = (p - vec2(h1, v1)) * normalStrength;
    return vec3(xy + .5, 1.);
}

/** MAIN **/
void fragment() {
	float timeScale = TIME * 1.0;
	vec2 iResolution = vec2(1024,600);
    vec2 uv = FRAGCOORD.xy/iResolution.xy;

    vec3 normal = bumpMap(uv * vec2(1.0, 0.3) + distortionMovement * timeScale);

    vec2 displacement = clamp((normal.xy - .5) * distortionStrength, -1., 1.);
    uv += displacement;

    vec2 uvT = (uv * vec2(1.0, 0.5)) + timeScale * fireMovement;
    float n = pow(fbm(8.0 * uvT), 1.0);

    float gradient = pow(1.0 - uv.y, 2.0) * 5.;
    float finalNoise = n * gradient;

    vec3 color = finalNoise * vec3(2.*n, 2.*n*n*n, n*n*n*n);
    COLOR = vec4(color, 1.);
}
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
