2D Fire Effect with colour banding

Semi-complex 2d shader for adding a fire effect to torches, lanterns, etc. Allows input for two different colors, chosen by input noise. Does NOT come with particles.

The Uniforms are detailed below:

  • color1 – The primary color for the fire effect
  • color2 – The secondary color for the fire effect
  • brightness – Changes the size of the flame
  • timeOffset – Gives variation to the flame (if you have more than one)
  • timeRate – The speed at which the flame changes (due to noise)
  • noiseAmmount – The noisey-ness of the flame. Adds more detail
  • offsetX – Similar to timeOffset
  • flickerT – A float between 0 and 1. Specifies the ammout the flame will flicker. Lower numbers cause more flickering.
  • noise – Input NoiseTexture for variation and flickering

Instructions

Put this shader onto a ColorRect of the size you want (16×16 recommended). Choose your colors, brightness, and add the input noise. Then, tweak the variables until it looks right!

Notes

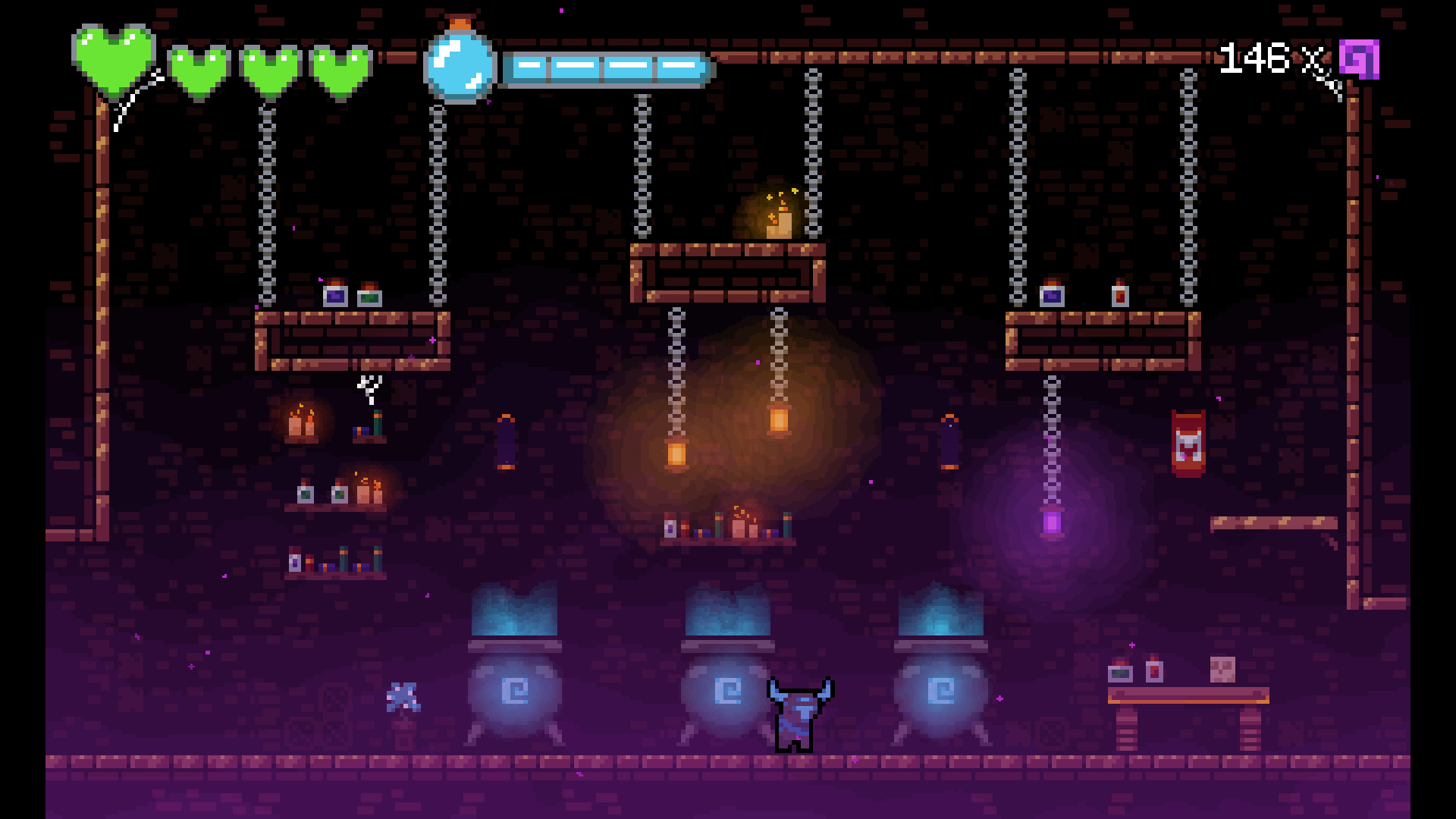

The second screenshot, (third image) was taken from a prototype of a game. The other lighting effects are variations of this shader. This lighting effect is the one around the lanterns.

Shader code
shader_type canvas_item;

uniform vec4 color1 : hint_color;
uniform vec4 color2 : hint_color;
uniform float brightness = 0.0;
uniform sampler2D noise;
uniform float timeOffset = 0.0;
uniform float timeRate = 1.0;
uniform float noiseAmmount = 0.1;

uniform float offsetX = 0.0;

uniform float flickerT = 0.6;

vec4 lerp(vec4 col1, vec4 col2, float t) {
	float r = (col2.r - col1.r) * t + col1.r;
	float g = (col2.g - col1.g) * t + col1.g;
	float b = (col2.b - col1.b) * t + col1.b;
	return vec4(r, g, b, col1.a);
}

void fragment() {
	COLOR = lerp(color1, color2, texture(noise, UV).r);
	float dist = 1.0 - sqrt(pow(UV.x - 0.5, 2.0) + pow(UV.y - 0.5, 2.0));
	float flickerValue = texture(noise, vec2(TIME + timeOffset, (TIME + timeOffset) * 0.9)).r;
	if (flickerValue > flickerT) {
		dist *= flickerValue / (1.0 - flickerT) * 0.62;
	}
	COLOR.a *= dist + cos(UV.x * 10.0 + TIME * timeRate + timeOffset + offsetX) * 0.02 + brightness + cos(TIME * timeRate * 2.0 + timeOffset * 2.0) * 0.03;
	COLOR.a = (COLOR.a * (2.0 - noiseAmmount) + texture(noise, vec2(UV.x + timeOffset * -0.1 + TIME * timeRate * -0.1 + offsetX, UV.y) + brightness * 4.0).r * noiseAmmount) / 2.0;
	COLOR.a = round(COLOR.a * 20.0) / 20.0;
	COLOR.a = clamp(COLOR.a, 0.0, 1.0);
}
Tags
2d, fire, pixel
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
