Fisheye & Anti fisheye Camera Effect

Usage

Add the following Nodes to your scene:

  • Canvas Item / Control
    • ColorRect
      • Add a Material Shader using the code below.

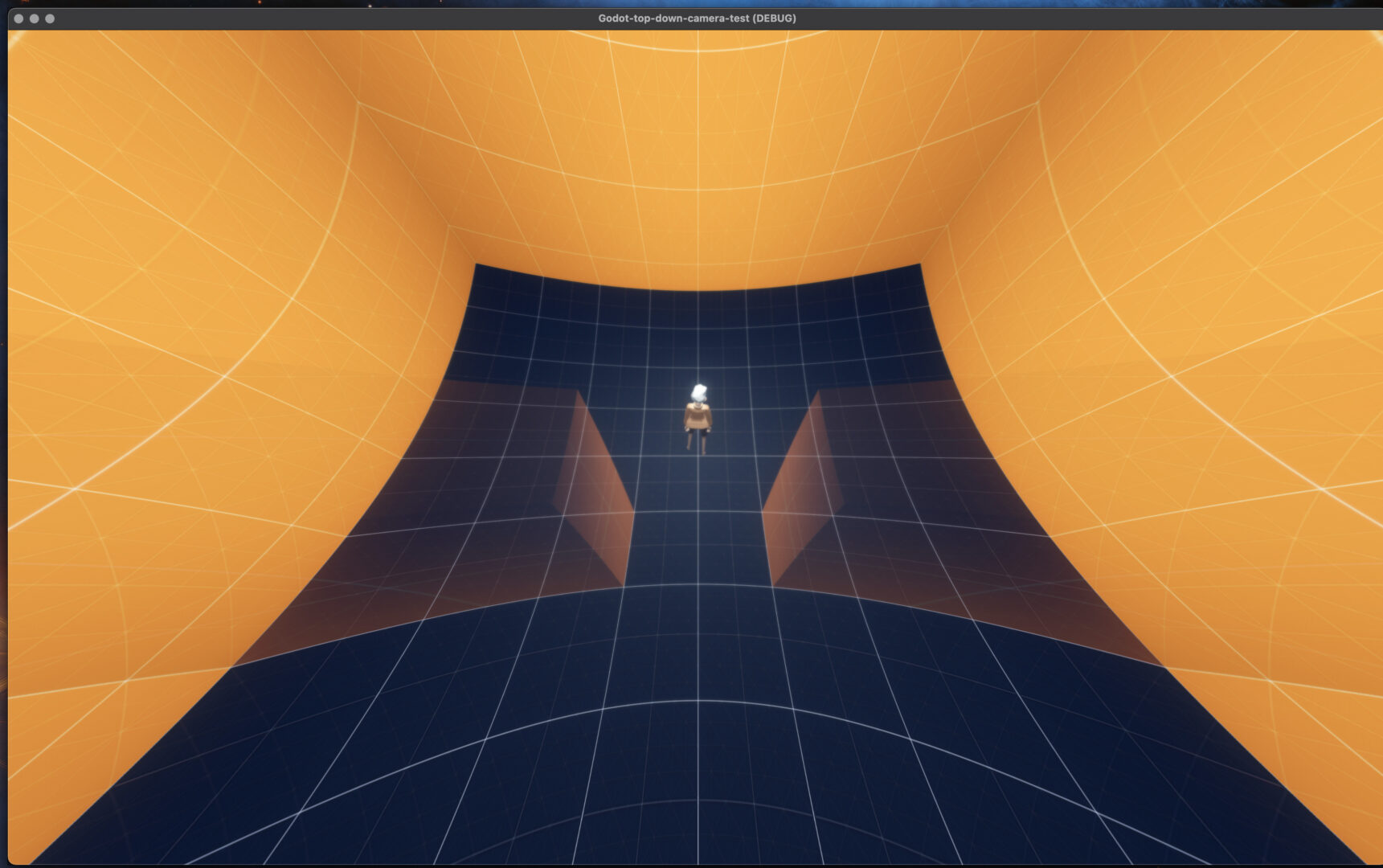

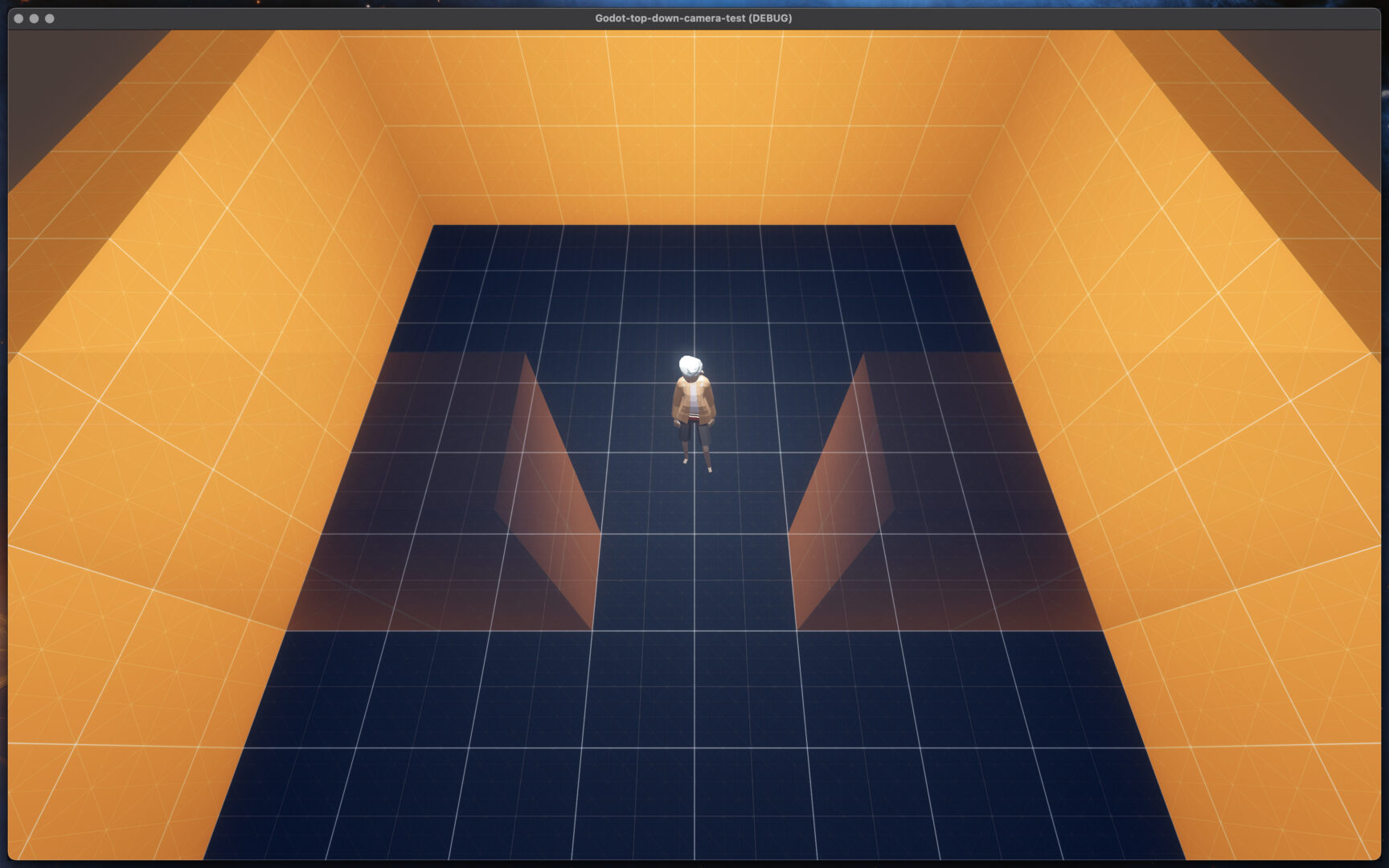

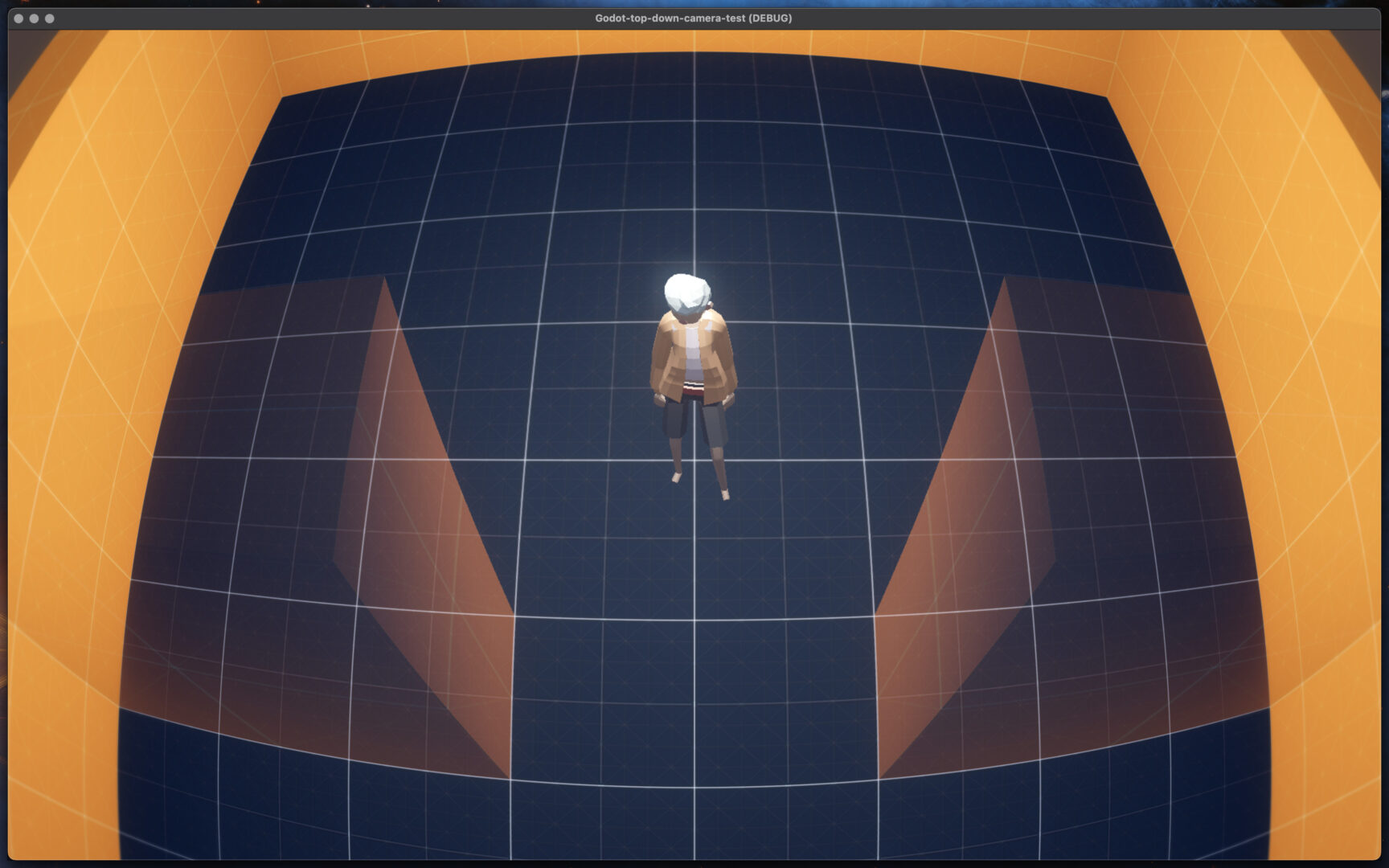

Sample

This project uses this shader: github.com/rafaeldelboni/godot-top-down-camera

Credits

Ported from this shadertoy



Shader code
// Converted from https://www.shadertoy.com/view/td2GzW
shader_type canvas_item;
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

// Anti fish eye (negative amount) / fish eye (positive)
uniform float effect_amount : hint_range(-2.5, 2.5) = 1.0;

void fragment() {
	// glsl -> godot shader
	vec2 iResolution = 1.0 / SCREEN_PIXEL_SIZE;
	vec4 fragCoord = FRAGCOORD;

	//normalized coords
	vec2 p = fragCoord.xy / iResolution.x;

	//screen proroption
	float prop = iResolution.x / iResolution.y;

	//center coords
	vec2 m = vec2(0.5, 0.5 / prop);

	//vector from center to current fragment
	vec2 d = p - m;

	// distance of pixel from center
	float r = sqrt(dot(d, d));

	float power = effect_amount;

	//radius of 1:1 effect
	float bind;

	//stick to borders
	if (power > 0.0)
		bind = sqrt(dot(m, m));
	else {
		if (prop < 1.0)
    		bind = m.x;
    	else
        	bind = m.y;
	}

	vec2 uv;
	//fisheye
	if (power > 0.0)
		uv = m + normalize(d) * tan(r * power) * bind / tan( bind * power);
	//antifisheye
	else if (power < 0.0)
		uv = m + normalize(d) * atan(r * -power * 10.0) * bind / atan(-power * bind * 10.0);
	//no effect for power = 1.0
	else
		uv = p;
    uv.y *= prop;

	vec3 col = texture(SCREEN_TEXTURE, uv).rgb;

	COLOR = vec4(col, 1.0);
}
Tags
anti fisheye, camera effect, canvas item, fisheye
This shader is a port from an existing Shadertoy project. Shadertoy shaders are by default protected under a Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported (CC BY-NC-SA 3.0) license unless anything else has been stated by the author. For more info, see our License terms.
