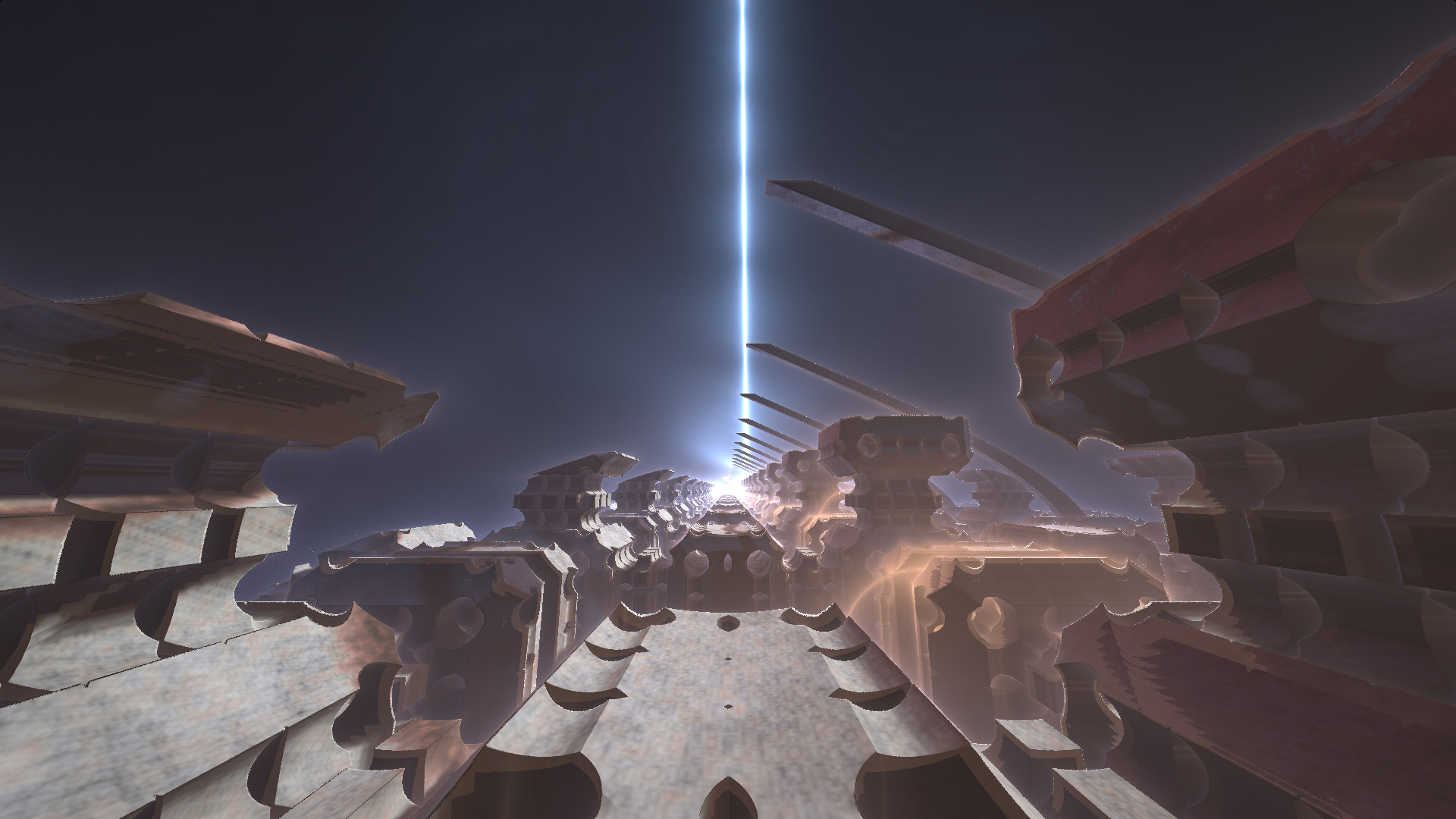

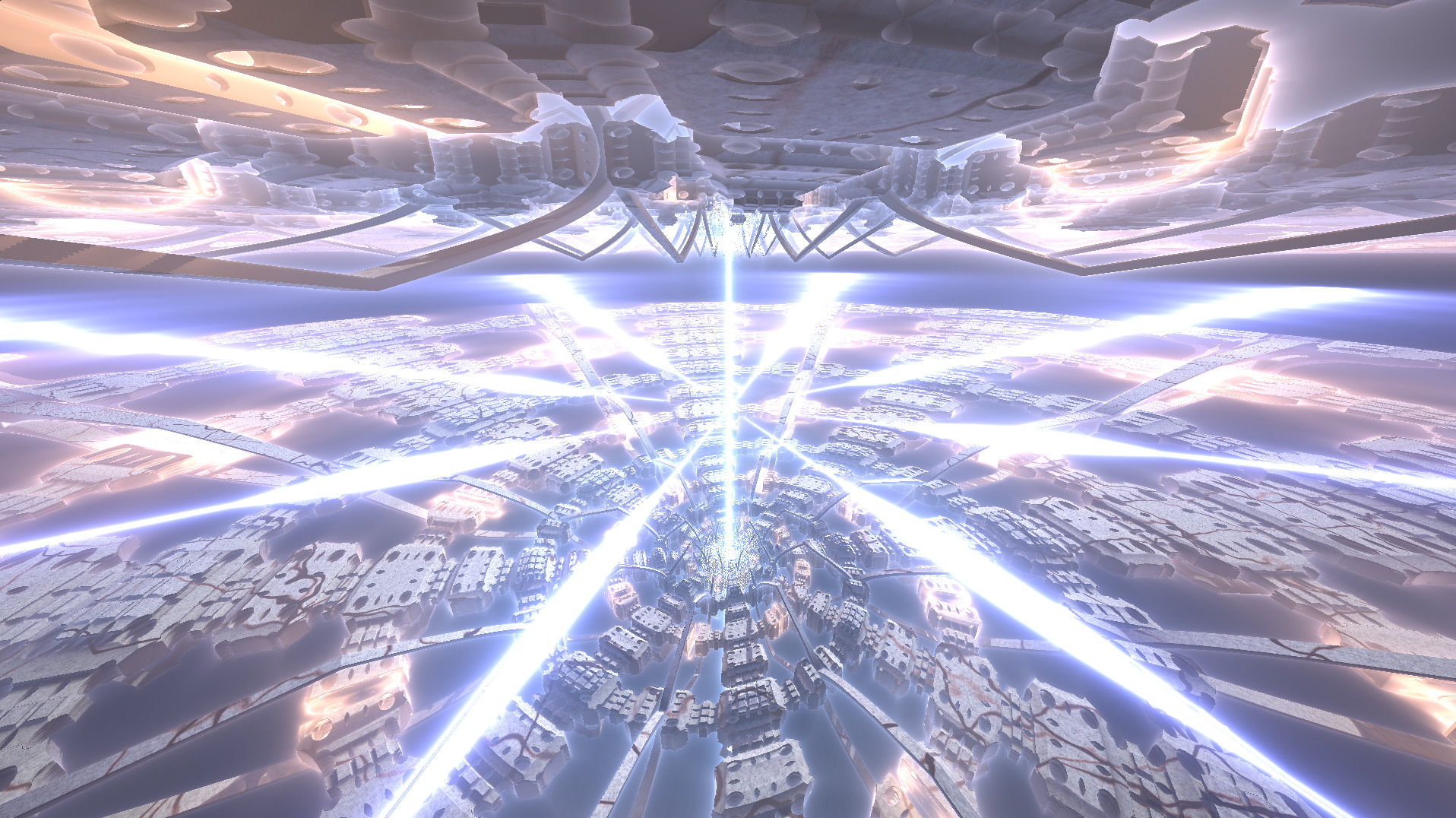

Flux Core
Shader ported from shadertoy.com to use as card illustration in Fragment Forge.
Feed it iTime variable from gdscript
Shader code
shader_type canvas_item;
// Using code from
// otaviogood for the Flux Core shader
// https://www.shadertoy.com/view/ltlSWf
// Ported to Godot and customized for FragmentForge by Db0
// Licence: CC0
uniform bool is_card = true;
uniform float iTime;
uniform int iFrame;
uniform sampler2D iChannel0;
uniform sampler2D iChannel1;
uniform vec2 iChannelResolution1;
//vec2 iResolution = 1.0 / SCREEN_PIXEL_SIZE; // for copy-paste
/*--------------------------------------------------------------------------------------
License CC0 - http://creativecommons.org/publicdomain/zero/1.0/
To the extent possible under law, the author(s) have dedicated all copyright and related and neighboring rights to this software to the public domain worldwide. This software is distributed without any warranty.
----------------------------------------------------------------------------------------
^ This means do ANYTHING YOU WANT with this code. Because we are programmers, not lawyers.
-Otavio Good
*/
// ---------------- Config ----------------
// This is an option that lets you render high quality frames for screenshots. It enables
// stochastic antialiasing and motion blur automatically for any shader.
//#define NON_REALTIME_HQ_RENDER
const float frameToRenderHQ = 20.0; // Time in seconds of frame to render
const float antialiasingSamples = 16.0; // 16x antialiasing - too much might make the shader compiler angry.
//#define MANUAL_CAMERA
//#define ZERO_TRICK max(0, -iFrame)
// --------------------------------------------------------
// These variables are for the non-realtime block renderer.
//float localTime = 0.0;
//float seed = 1.0;
// Animation variables
//float animStructure = 1.0;
//float fade = 1.0;
// ---- noise functions ----
float v31(vec3 a)
{
return a.x + a.y * 37.0 + a.z * 521.0;
}
float v21(vec2 a)
{
return a.x + a.y * 37.0;
}
float Hash11(float a)
{
return fract(sin(a)*10403.9);
}
float Hash21(vec2 uv)
{
float f = uv.x + uv.y * 37.0;
return fract(sin(f)*104003.9);
}
vec2 Hash22(vec2 uv)
{
float f = uv.x + uv.y * 37.0;
return fract(cos(f)*vec2(10003.579, 37049.7));
}
vec2 Hash12(float f)
{
return fract(cos(f)*vec2(10003.579, 37049.7));
}
float Hash1d(float u)
{
return fract(sin(u)*143.9); // scale this down to kill the jitters
}
float Hash2d(vec2 uv)
{
float f = uv.x + uv.y * 37.0;
return fract(sin(f)*104003.9);
}
float Hash3d(vec3 uv)
{
float f = uv.x + uv.y * 37.0 + uv.z * 521.0;
return fract(sin(f)*110003.9);
}
float mixP(float f0, float f1, float a)
{
return mix(f0, f1, a*a*(3.0-2.0*a));
}
const vec2 zeroOne = vec2(0.0, 1.0);
float noise2d(vec2 uv)
{
vec2 fr = fract(uv.xy);
vec2 fl = floor(uv.xy);
float h00 = Hash2d(fl);
float h10 = Hash2d(fl + zeroOne.yx);
float h01 = Hash2d(fl + zeroOne);
float h11 = Hash2d(fl + zeroOne.yy);
return mixP(mixP(h00, h10, fr.x), mixP(h01, h11, fr.x), fr.y);
}
float noise(vec3 uv)
{
vec3 fr = fract(uv.xyz);
vec3 fl = floor(uv.xyz);
float h000 = Hash3d(fl);
float h100 = Hash3d(fl + zeroOne.yxx);
float h010 = Hash3d(fl + zeroOne.xyx);
float h110 = Hash3d(fl + zeroOne.yyx);
float h001 = Hash3d(fl + zeroOne.xxy);
float h101 = Hash3d(fl + zeroOne.yxy);
float h011 = Hash3d(fl + zeroOne.xyy);
float h111 = Hash3d(fl + zeroOne.yyy);
return mixP(
mixP(mixP(h000, h100, fr.x),
mixP(h010, h110, fr.x), fr.y),
mixP(mixP(h001, h101, fr.x),
mixP(h011, h111, fr.x), fr.y)
, fr.z);
}
const float PI=3.14159265;
vec3 saturate(vec3 a) { return clamp(a, 0.0, 1.0); }
vec2 saturate2(vec2 a) { return clamp(a, 0.0, 1.0); }
float saturate3(float a) { return clamp(a, 0.0, 1.0); }
vec3 RotateX(vec3 v, float rad)
{
float cos = cos(rad);
float sin = sin(rad);
return vec3(v.x, cos * v.y + sin * v.z, -sin * v.y + cos * v.z);
}
vec3 RotateY(vec3 v, float rad)
{
float cos = cos(rad);
float sin = sin(rad);
return vec3(cos * v.x - sin * v.z, v.y, sin * v.x + cos * v.z);
}
vec3 RotateZ(vec3 v, float rad)
{
float cos = cos(rad);
float sin = sin(rad);
return vec3(cos * v.x + sin * v.y, -sin * v.x + cos * v.y, v.z);
}
// This spiral noise works by successively adding and rotating sin waves while increasing frequency.
// It should work the same on all computers since it's not based on a hash function like some other noises.
// It can be much faster than other noise functions if you're ok with some repetition.
const float nudge = 0.71; // size of perpendicular vector
const float normalizer = 1.0 / sqrt(1.0 + nudge*nudge); // pythagorean theorem on that perpendicular to maintain scale
// Total hack of the spiral noise function to get a rust look
float RustNoise3D(vec3 p)
{
float n = 0.0;
float iter = 1.0;
float pn = noise(p*0.125);
pn += noise(p*0.25)*0.5;
pn += noise(p*0.5)*0.25;
pn += noise(p*1.0)*0.125;
for (int i = max(0, -iFrame); i < 7; i++)
{
//n += (sin(p.y*iter) + cos(p.x*iter)) / iter;
float wave = saturate3(cos(p.y*0.25 + pn) - 0.998);
wave *= noise(p * 0.125)*1016.0;
n += wave;
p.xy += vec2(p.y, -p.x) * nudge;
p.xy *= normalizer;
p.xz += vec2(p.z, -p.x) * nudge;
p.xz *= normalizer;
iter *= 1.4733;
}
return n;
}
// ---- functions to remap / warp space ----
float repsDouble(float a)
{
return abs(a * 2.0 - 1.0);
}
vec2 repsDouble2(vec2 a)
{
return abs(a * 2.0 - 1.0);
}
vec2 mapSpiralMirror(vec2 uv)
{
float len = length(uv);
float at = atan(uv.x, uv.y);
at = at / PI;
float dist = (fract(log(len)+at*0.5)-0.5) * 2.0;
at = repsDouble(at);
at = repsDouble(at);
return vec2(abs(dist), abs(at));
}
vec2 mapSpiral(vec2 uv)
{
float len = length(uv);
float at = atan(uv.x, uv.y);
at = at / PI;
float dist = (fract(log(len)+at*0.5)-0.5) * 2.0;
//dist += sin(at*32.0)*0.05;
// at is [-1..1]
// dist is [-1..1]
at = repsDouble(at);
at = repsDouble(at);
return vec2(dist, at);
}
vec2 mapCircleInvert(vec2 uv)
{
float len = length(uv);
float at = atan(uv.x, uv.y);
//at = at / PI;
//return uv;
len = 1.0 / len;
return vec2(sin(at)*len, cos(at)*len);
}
vec3 mapSphereInvert(vec3 uv)
{
float len = length(uv);
vec3 dir = normalize(uv);
len = 1.0 / len;
return dir * len;
}
// ---- shapes defined by distance fields ----
// See this site for a reference to more distance functions...
// http://iquilezles.org/www/articles/distfunctions/distfunctions.htm
float length8(vec2 v)
{
return pow(pow(abs(v.x),8.0) + pow(abs(v.y), 8.0), 1.0/8.0);
}
// box distance field
float sdBox(vec3 p, vec3 radius)
{
vec3 dist = abs(p) - radius;
return min(max(dist.x, max(dist.y, dist.z)), 0.0) + length(max(dist, 0.0));
}
// Makes a warped torus that rotates around
float sdTorusWobble( vec3 p, vec2 t, float offset, inout float localTime)
{
float a = atan(p.x, p.z);
float subs = 2.0;
a = sin(a*subs+localTime*4.0+offset*3.234567);
vec2 q = vec2(length(p.xz)-t.x-a*0.1,p.y);
return length8(q)-t.y;
}
// simple cylinder distance field
float cyl(vec2 p, float r)
{
return length(p) - r;
}
// This is the big money function that makes the crazy fractally shape
// The input is a position in space.
// The output is the distance to the nearest surface.
float DistanceToObject(vec3 p,
inout float animStructure,
inout float localTime,
inout float pulse,
inout float glow,
inout float glow2,
inout float glow3
)
{
vec3 orig = p;
// Magically remap space to be in a spiral
p.yz = mapSpiralMirror(p.yz);
// Mix between spiral space and unwarped space. This changes the scene
// from the tunnel to the spiral.
p = mix(orig, p, animStructure);
// p = mix(p, orig, cos(localTime)*0.5+0.5);
// Cut out stuff outside of outer radius
const float outerRad = 3.5;
float lenXY = length(p.xy);
float final = lenXY - outerRad;
// Carve out inner radius
final = max(final, -(lenXY - (outerRad-0.65)));
// Slice the object in a 3d grid
float slice = 0.04;
vec3 grid = -abs(fract(p)-0.5) + slice;
//final = max(final, grid.x);
//final = max(final, grid.y);
final = max(final, grid.z);
// Carve out cylinders from the object on all 3 axis, scaled 3 times
// This gives it the fractal look.
vec3 rep = fract(p)-0.5;
float scale = 1.0;
float mult = 0.32;
for (int i = max(0, -iFrame); i < 3; i++)
{
float uglyDivider = max(1.0, float(i)); // wtf is this? My math sucks :(
// carve out 3 cylinders
float dist = cyl(rep.xz/scale, mult/scale)/uglyDivider;
final = max(final, -dist);
dist = cyl(rep.xy/scale, mult/scale)/uglyDivider;
final = max(final, -dist);
dist = cyl(rep.yz/scale, mult/scale)/uglyDivider;
final = max(final, -dist);
// Scale and repeat.
scale *= 1.14+1.0;// + sin(localTime)*0.995;
rep = fract(rep*scale) - 0.5;
}
// Make radial struts that poke into the center of the spiral
vec3 sp = p;
sp.x = abs(sp.x)-5.4;
sp.z = fract(sp.z) - 0.5;
// Bad distance field on these makes them sometimes disappear. Math. :(
float struts = sdBox(sp+vec3(2.95, 0.1-sin(sp.x*2.0)*1.1, 0.0), vec3(1.5, 0.05, 0.02))*0.5;
//glow3 += (0.00005)/max(0.01, struts);
final = min(final, struts);
// Make spiral glows that rotate and pulse energy to the center
rep.yz = (fract(p.yz)-0.5);
rep.x = p.x;
scale = 1.14+1.0;
float jolt = max(0.0, sin(length(orig.yz) + localTime*20.0))*0.94;
jolt *= saturate3(0.3-pulse);
float spiral = sdBox(RotateX(rep+vec3(-0.05,0.0,0.0), pulse), vec3(0.01+jolt,1.06, mult*0.01)/scale );
glow3 += (0.0018)/max(0.0025,spiral);
final = min(final, spiral + (1.0-animStructure) * 100.0);
// Make a warped torus that rotates around and glows orange
vec3 rp = p.xzy;
rp.x = -abs(rp.x);
rp.y = fract(rp.y) - 0.5;
float torus = sdTorusWobble(rp + vec3(3.0, 0.0, 0.0), vec2(0.2, 0.0003), p.z, localTime);
glow2 += 0.0015 / max(0.03, torus);
final = min(final, torus);
// Make the glowing tower in the center.
// This also gives a bit of a glow to everything.
glow += (0.02+abs(sin(orig.x-localTime*3.0)*0.15)*jolt )/length(orig.yz);
return final;
}
// Input is UV coordinate of pixel to render.
// Output is RGB color.
vec3 RayTrace(in vec2 fragCoord, inout float localTime, vec2 iResolution)
{
float glow = 0.0;
float glow2 = 0.0;
float glow3 = 0.0;
float fade = 1.0;
// -------------------------------- animate ---------------------------------------
// Default to spiral shape
float animStructure = 1.0;
// Make a cycling, clamped sin wave to animate the glow-spiral rotation.
float slt = sin(localTime);
float stepLike = pow(abs(slt), 0.75)*sign(slt);
stepLike = max(-1.0, min(1.0, stepLike*1.5));
float pulse = stepLike*PI/4.0 + PI/4.0;
vec3 camPos, camUp, camLookat;
// ------------------- Set up the camera rays for ray marching --------------------
// Map uv to [-1.0..1.0]
// vec2 uv = fragCoord.xy/iResolution.xy * 2.0 - 1.0;
vec2 uv = fragCoord.xy;
// Do the camera fly-by animation and different scenes.
// Time variables for start and end of each scene
const float t0 = 0.0;
const float t1 = 9.0;
const float t2 = 16.0;
const float t3 = 24.0;
const float t4 = 40.0;
const float t5 = 48.0;
const float t6 = 70.0;
// Repeat the animation after time t6
localTime = fract(localTime / t6) * t6;
/*const float t0 = 0.0;
const float t1 = 0.0;
const float t2 = 0.0;
const float t3 = 0.0;
const float t4 = 0.0;
const float t5 = 0.0;
const float t6 = 18.0;*/
if (localTime < t1)
{
animStructure = 0.0;
float time = localTime - t0;
float alpha = time / (t1 - t0);
fade = saturate3(time);
fade *= saturate3(t1 - localTime);
camPos = vec3(56.0, -2.5, 1.5);
camPos.x -= alpha * 6.8;
camUp=vec3(0,1,0);
camLookat=vec3(50,0.0,0);
} else if (localTime < t2)
{
animStructure = 0.0;
float time = localTime - t1;
float alpha = time / (t2 - t1);
fade = saturate3(time);
fade *= saturate3(t2 - localTime);
camPos = vec3(12.0, 3.3, -0.5);
camPos.x -= smoothstep(0.0, 1.0, alpha) * 4.8;
camUp=vec3(0,1,0);
camLookat=vec3(0,5.5,-0.5);
} else if (localTime < t3)
{
animStructure = 1.0;
float time = localTime - t2;
float alpha = time / (t3 - t2);
fade = saturate3(time);
fade *= saturate3(t3 - localTime);
camPos = vec3(12.0, 6.3, -0.5);
camPos.y -= alpha * 1.8;
camPos.x = cos(alpha*1.0) * 6.3;
camPos.z = sin(alpha*1.0) * 6.3;
camUp=normalize(vec3(0,1,-0.3 - alpha * 0.5));
camLookat=vec3(0,0.0,-0.5);
} else if (localTime < t4)
{
animStructure = 1.0;
float time = localTime - t3;
float alpha = time / (t4 - t3);
fade = saturate3(time);
fade *= saturate3(t4 - localTime);
camPos = vec3(12.0, 3.0, -2.6);
camPos.y -= alpha * 1.8;
camPos.x = cos(alpha*1.0) * 6.5-alpha*0.25;
camPos.z += sin(alpha*1.0) * 6.5-alpha*0.25;
camUp=normalize(vec3(0,1,0.0));
camLookat=vec3(0,0.0,-0.0);
} else if (localTime < t5)
{
animStructure = 1.0;
float time = localTime - t4;
float alpha = time / (t5 - t4);
fade = saturate3(time);
fade *= saturate3(t5 - localTime);
camPos = vec3(0.0, -7.0, -0.9);
camPos.y -= alpha * 1.8;
camPos.x = cos(alpha*1.0) * 1.5-alpha*1.5;
camPos.z += sin(alpha*1.0) * 1.5-alpha*1.5;
camUp=normalize(vec3(0,1,0.0));
camLookat=vec3(0,-3.0,-0.0);
} else if (localTime < t6)
{
float time = localTime - t5;
float alpha = time / (t6 - t5);
float smoothv = smoothstep(0.0, 1.0, saturate3(alpha*1.8-0.1));
animStructure = 1.0-smoothv;
fade = saturate3(time);
fade *= saturate3(t6 - localTime);
camPos = vec3(10.0, -0.95+smoothv*1.0, 0.0);
camPos.x -= alpha * 6.8;
camUp=normalize(vec3(0,1.0-smoothv,0.0+smoothv));
camLookat=vec3(0,-0.0,-0.0);
}
// Camera setup.
vec3 camVec=normalize(camLookat - camPos);
vec3 sideNorm=normalize(cross(camUp, camVec));
vec3 upNorm=cross(camVec, sideNorm);
vec3 worldFacing=(camPos + camVec);
vec3 worldPix = worldFacing + uv.x * sideNorm * (iResolution.x/iResolution.y) + uv.y * upNorm;
vec3 rayVec = normalize(worldPix - camPos);
// ----------------------------- Ray march the scene ------------------------------
float dist = 1.0;
float t = 0.1 + Hash2d(uv)*0.1; // random dither-fade things close to the camera
const float maxDepth = 45.0; // farthest distance rays will travel
vec3 pos = vec3(0,0,0);
const float smallVal = 0.000625;
// ray marching time
for (int i = max(0, -iFrame); i < 210; i++) // This is the count of the max times the ray actually marches.
{
// Step along the ray. Switch x, y, and z because I messed up the orientation.
pos = (camPos + rayVec * t).yzx;
// This is _the_ function that defines the "distance field".
// It's really what makes the scene geometry. The idea is that the
// distance field returns the distance to the closest object, and then
// we know we are safe to "march" along the ray by that much distance
// without hitting anything. We repeat this until we get really close
// and then break because we have effectively hit the object.
dist = DistanceToObject(pos, animStructure, localTime, pulse, glow, glow2, glow3);
// This makes the ray trace more precisely in the center so it will not miss the
// vertical glowy beam.
dist = min(dist, length(pos.yz));
t += dist;
// If we are very close to the object, let's call it a hit and exit this loop.
if ((t > maxDepth) || (abs(dist) < smallVal)) break;
}
// --------------------------------------------------------------------------------
// Now that we have done our ray marching, let's put some color on this geometry.
float glowSave = glow;
float glow2Save = glow2;
float glow3Save = glow3;
vec3 sunDir = normalize(vec3(0.93, 1.0, -1.5));
vec3 finalColor = vec3(0.0);
// If a ray actually hit the object, let's light it.
if (t <= maxDepth)
{
// calculate the normal from the distance field. The distance field is a volume, so if you
// sample the current point and neighboring points, you can use the difference to get
// the normal.
vec3 smallVec = vec3(smallVal, 0, 0);
vec3 normalU = vec3(dist - DistanceToObject(pos - smallVec.xyy, animStructure, localTime, pulse, glow, glow2, glow3),
dist - DistanceToObject(pos - smallVec.yxy, animStructure, localTime, pulse, glow, glow2, glow3),
dist - DistanceToObject(pos - smallVec.yyx, animStructure, localTime, pulse, glow, glow2, glow3));
vec3 normal = normalize(normalU);
// calculate 2 ambient occlusion values. One for global stuff and one
// for local stuff
float ambientS = 1.0;
ambientS *= saturate3(DistanceToObject(pos + normal * 0.05, animStructure, localTime, pulse, glow, glow2, glow3)*20.0);
ambientS *= saturate3(DistanceToObject(pos + normal * 0.1, animStructure, localTime, pulse, glow, glow2, glow3)*10.0);
ambientS *= saturate3(DistanceToObject(pos + normal * 0.2, animStructure, localTime, pulse, glow, glow2, glow3)*5.0);
ambientS *= saturate3(DistanceToObject(pos + normal * 0.4, animStructure, localTime, pulse, glow, glow2, glow3)*2.5);
ambientS *= saturate3(DistanceToObject(pos + normal * 0.8, animStructure, localTime, pulse, glow, glow2, glow3)*1.25);
float ambient = ambientS * saturate3(DistanceToObject(pos + normal * 1.6, animStructure, localTime, pulse, glow, glow2, glow3)*1.25*0.5);
//ambient *= saturate(DistanceToObject(pos + normal * 3.2)*1.25*0.25);
//ambient *= saturate(DistanceToObject(pos + normal * 6.4)*1.25*0.125);
//ambient = max(0.05, pow(ambient, 0.3)); // tone down ambient with a pow and min clamp it.
ambient = saturate3(ambient);
// calculate the reflection vector for highlights
//vec3 ref = reflect(rayVec, normal);
// Trace a ray toward the sun for sun shadows
float sunShadow = 1.0;
float iter = 0.01;
vec3 nudgePos = pos + normal*0.002; // don't start tracing too close or inside the object
for (int i = max(0, -iFrame); i < 30; i++)
{
float tempDist = DistanceToObject(nudgePos + sunDir * iter, animStructure, localTime, pulse, glow, glow2, glow3);
sunShadow *= saturate3(tempDist*150.0); // Shadow hardness
if (tempDist <= 0.0) break;
//iter *= 1.5; // constant is more reliable than distance-based
iter += max(0.01, tempDist)*1.0;
if (iter > 4.2) break;
}
sunShadow = saturate3(sunShadow);
// make a few frequencies of noise to give it some texture
float n =0.0;
n += noise(pos*32.0);
n += noise(pos*64.0);
n += noise(pos*128.0);
n += noise(pos*256.0);
n += noise(pos*512.0);
n *= 0.8;
normal = normalize(normal + (n-2.0)*0.1);
// ------ Calculate texture color ------
vec3 texColor = vec3(0.95, 1.0, 1.0);
vec3 rust = vec3(0.65, 0.25, 0.1) - noise(pos*128.0);
// Call the function that makes rust stripes on the texture
texColor *= smoothstep(texColor, rust, vec3(saturate3(RustNoise3D(pos*8.0))-0.2));
// apply noise
texColor *= vec3(1.0)*n*0.05;
texColor *= 0.7;
texColor = saturate(texColor);
// ------ Calculate lighting color ------
// Start with sun color, standard lighting equation, and shadow
vec3 lightColor = vec3(3.6) * saturate3(dot(sunDir, normal)) * sunShadow;
// weighted average the near ambient occlusion with the far for just the right look
float ambientAvg = (ambient*3.0 + ambientS) * 0.25;
// a red and blue light coming from different directions
lightColor += (vec3(1.0, 0.2, 0.4) * saturate3(-normal.z *0.5+0.5))*pow(ambientAvg, 0.35);
lightColor += (vec3(0.1, 0.5, 0.99) * saturate3(normal.y *0.5+0.5))*pow(ambientAvg, 0.35);
// blue glow light coming from the glow in the middle
lightColor += vec3(0.3, 0.5, 0.9) * saturate3(dot(-pos, normal))*pow(ambientS, 0.3);
lightColor *= 4.0;
// finally, apply the light to the texture.
finalColor = texColor * lightColor;
// sun reflection to make it look metal
//finalColor += vec3(1.0)*pow(n,4.0)* GetSunColorSmall(ref, sunDir) * sunShadow;// * ambientS;
// visualize length of gradient of distance field to check distance field correctness
//finalColor = vec3(0.5) * (length(normalU) / smallVec.x);
}
else
{
// Our ray trace hit nothing, so draw sky.
}
// add the ray marching glows
float center = length(pos.yz);
finalColor += vec3(0.3, 0.5, 0.9) * glowSave*1.2;
finalColor += vec3(0.9, 0.5, 0.3) * glow2*1.2;
finalColor += vec3(0.25, 0.29, 0.93) * glow3Save*2.0;
// vignette?
finalColor *= vec3(1.0) * saturate3(1.0 - length(uv/2.5));
finalColor *= 1.0;// 1.3;
// output the final color without gamma correction - will do gamma later.
return vec3(clamp(finalColor, 0.0, 1.0)*saturate3(fade+0.25));
}
void fragment()
{
vec2 iResolution = 1.0 / SCREEN_PIXEL_SIZE;
// Do a multi-pass render
vec3 finalColor = vec3(0.0);
// Regular real-time rendering
float localTime = iTime;
vec2 uv = -UV;
uv *= 1.2;
uv += 0.5 * 1.2;
if(!is_card){
uv.x *= iResolution.x/iResolution.y;
} else {
uv.x *= iResolution.y/iResolution.x;
}
finalColor = RayTrace(uv,localTime,iResolution);
COLOR = vec4(sqrt(clamp(finalColor, 0.0, 1.0)),1.0);
}
It’s fantastic!
I’d recommend that you use the built-in value
TIMErather than feeding iniTimefrom gdscript.wdym?
how to implement it?
