Fractalized 3D Models

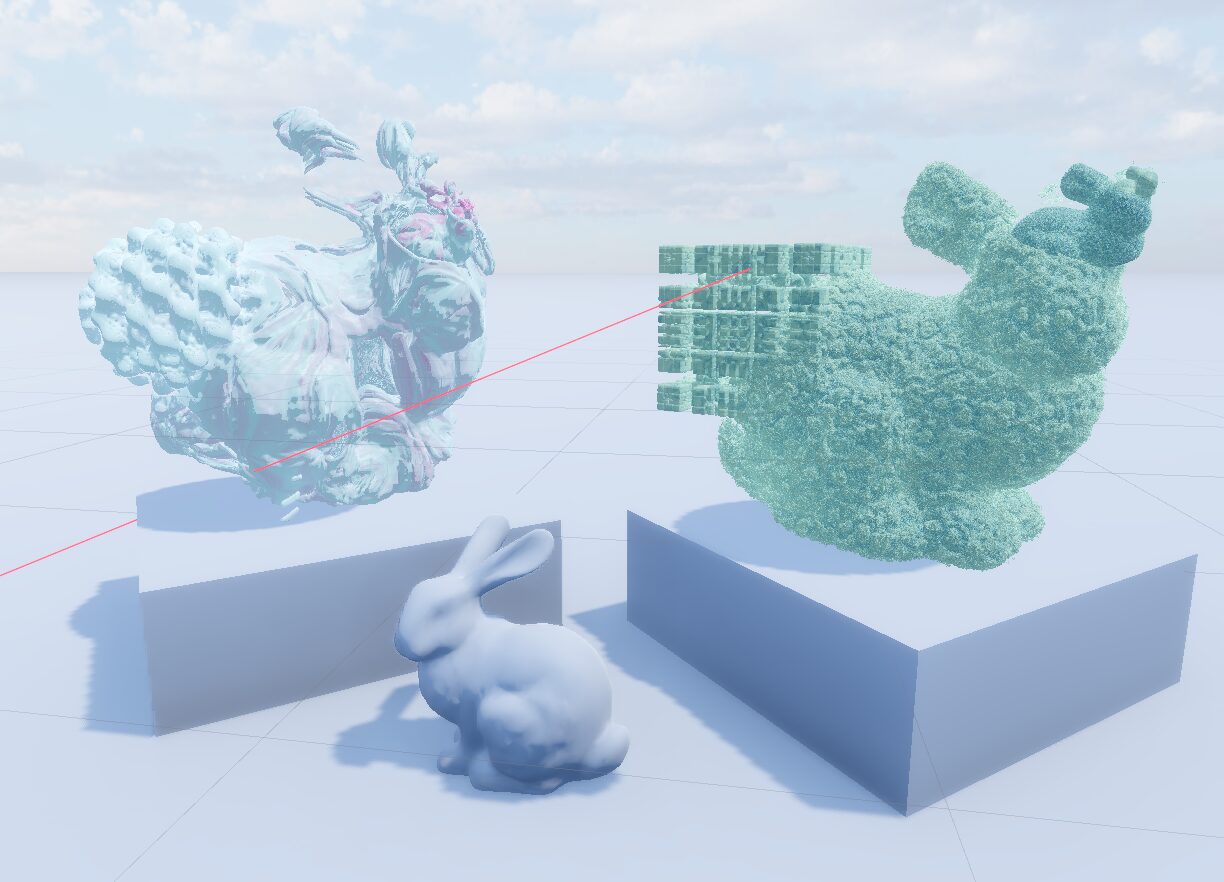

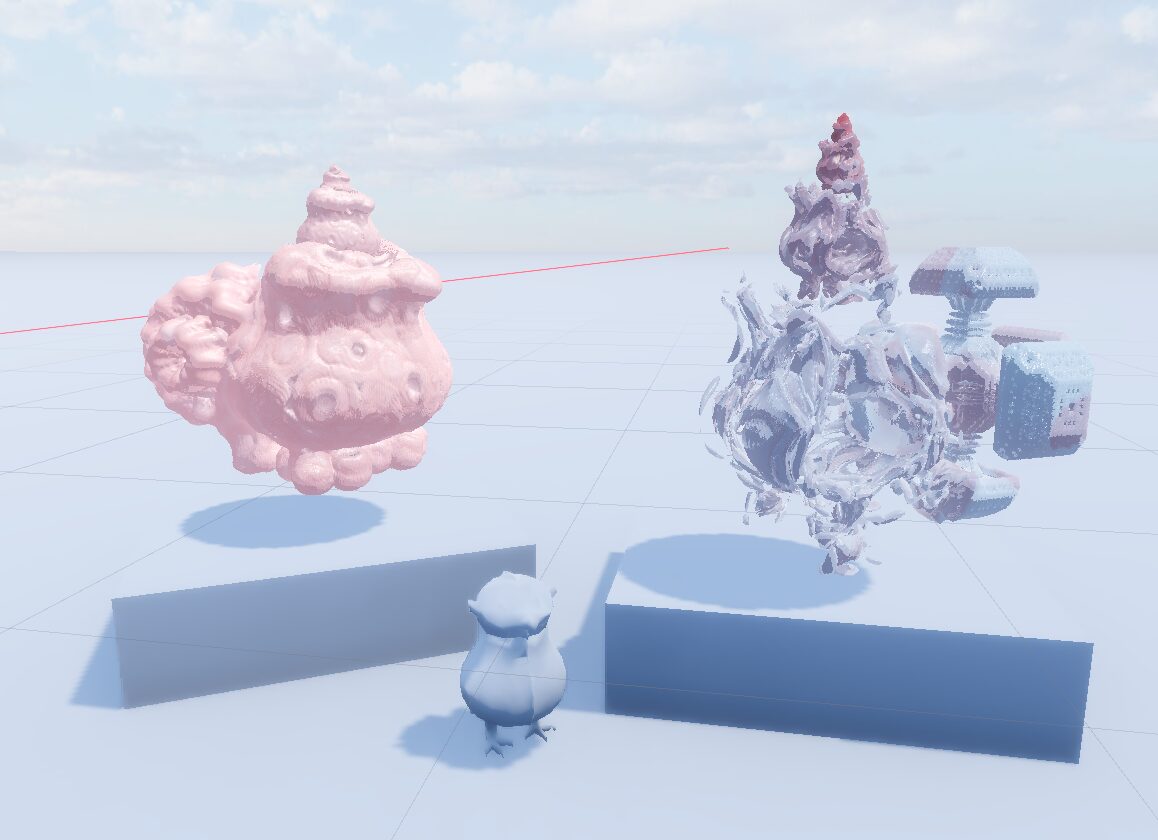

Shader to render dynamic 3D fractals based on meshes.
WARNING: Please see demo project for instructions + examples! You need the SDF converter addon (within the demo repository) to create the SDF texture input.
You can also download an SDF texture here if you would like to test the shader out quickly.
Shader code
shader_type spatial;
render_mode unshaded, depth_draw_opaque;
// Some constants that you probably don't need to change
const float MAX_DISTANCE = 10000.0; // Placeholder value for infinitely far away distances
const float SMOOTH_UNION_MULTIPLIER = 3.0; // See smooth_union(...)
const float BOUNCE_EPSILON_MULTIPLIER = 4.0; // Controls how far a ray should move away from a surface to prevent artifacts during shadows/bounces
const float SHADOW_EPSILON_MULTIPLIER = 4.0;
const float DR_MIX = 0.4;
const float DR_SCALAR = 3.0;
const int SUB_RAY_DIVIDER = 3;
const float PLANE_SCALE = 4.0;
group_uniforms raymarching;
uniform int primary_max_iterations = 128; // Max iterations any ray can march
uniform int max_bounces = 1; // Max times a ray can be reflected
uniform float collision_threshold = 0.015; // Min distance a ray can be from a surface for it to collide
uniform float normal_sample_length = 0.015; // How far along a collided surface to move when sampling for a normal
uniform float march_proportion : hint_range(0.0, 1.0) = 0.2; // Controls how far along the distance to advance the ray each step (lower = less artifacts, worse performance)
uniform float runaway_threshold = 5.0; // Distance where a ray is considered far enough to stop iteration
uniform float bounding_radius = 1.0; // Radius of the sphere bounding the entire scene (tighter = better performance)
group_uniforms fractal;
uniform int fractal_iterations = 8; // Max iterations of the fractal algoritms
uniform vec4 fractal_color_1: source_color = vec4(0.6, 0.0, 0.5, 1.0);
uniform vec4 fractal_color_2: source_color = vec4(0.0, 0.3, 0.2, 1.0);
uniform float animation_speed = 1.0;
uniform float animation_intensity = 0.3; // Strength of the animations
uniform int secondary_fractal_option: hint_enum("Mandelbulb", "Mandelbox", "Julia", "Sierpinski", "Mengersponge", "Brocolli", "Circly", "Mechanical", "Ball", "Mesh") = 0;
uniform vec3 secondary_fractal_offset = vec3(-1.2, 0.0, 0.0);
uniform vec3 secondary_fractal_scale = vec3(0.333, 0.25, 0.333);
uniform float secondary_fractal_blend_smoothness = 0.1;
group_uniforms mandelbulb;
uniform float mandelbulb_power = 8.0;
uniform float mandelbulb_runaway_threshold = 2.0;
group_uniforms mandebox;
uniform float mandelbox_scale = 3.0;
group_uniforms julia;
uniform vec4 julia_center = vec4(0.0, -0.3, 0.3, -0.6);
uniform float julia_runaway_threshold = 2.0;
group_uniforms sierpinski;
uniform float sierpinski_scale = 1.1;
group_uniforms brocolli;
uniform vec3 brocolli_offset = vec3 (2.0, 4.8, 0.0);
uniform float brocolli_runaway_threshold = 32.0;
group_uniforms shape_modulus;
uniform int versor_type : hint_enum("Noise", "Sinusoid") = 0;
uniform float color_frequency = 4.0;
uniform float alpha = 3.15; // "cutoff" value of the fractal
uniform float beta = -0.135; // "thickness" of fractal surface
uniform sampler3D noise: repeat_enable, filter_linear; // Used to give surface fractal-like detail
uniform float noise_frequency = 2.0;
uniform vec3 portal_center_1 = vec3(0.5, 0.6, 0.0); // Position of the portal
uniform vec3 portal_offset_1 = vec3(0.45, 0.6, 0.2); // Position that the portal should teleport to
uniform float portal_radius_1 = 0.3;
uniform float portal_scale_1 = 4.0;
group_uniforms mesh;
uniform sampler3D sdf_texture: repeat_disable, filter_linear; // Signed distance function
// "real" shadows are calculated by bouncing rays in the direction of the light source
// "fake" shadows are calculated by comparing normals with the light direction
// Although ideally "real" shadows are the only necessary ones, having fake shadows can
// make details in the surface show and service when there are performance constraints
group_uniforms lighting;
uniform vec3 light_direction = vec3(0.0, -1.0, 0.0); // Should be synced in GDscript to some DirectionalLight3D
uniform vec3 ambient_color: source_color = vec3(1.0);
uniform float ambient_ratio: hint_range(0.0, 1.0) = 0.5;
uniform float reflectivity = 0.25;
uniform float smoothness = 24.0;
uniform vec3 specular_color: source_color = vec3(1.0, 1.0, 1.0);
uniform float specular_ratio : hint_range(0.0, 1.0) = 1.0;
uniform bool real_shadows_enabled = true;
uniform float fake_shadow_darkness : hint_range(0.0, 1.0) = 0.75;
uniform float real_shadow_darkness : hint_range(0.0, 1.0) = 0.65;
uniform vec3 shadow_absorption = vec3(1.2, 1.1, 1.0);
uniform float shadow_softness : hint_range(0.0, 1.0) = 0.416;
group_uniforms scene;
uniform vec4 clear_color: source_color = vec4(0,0,0,0);
void vertex() {
// Billboard
MODELVIEW_MATRIX = VIEW_MATRIX * mat4(
MAIN_CAM_INV_VIEW_MATRIX[0],
MAIN_CAM_INV_VIEW_MATRIX[1],
MAIN_CAM_INV_VIEW_MATRIX[2],
MODEL_MATRIX[3]);
MODELVIEW_NORMAL_MATRIX = mat3(MODELVIEW_MATRIX);
VERTEX.xy *= PLANE_SCALE; // Multiplier to cover entire screen
}
// Combines distances of two shapes (OR)
// https://iquilezles.org/articles/distfunctions/
float smooth_union(float d1, float d2, float k) {
k *= SMOOTH_UNION_MULTIPLIER;
float h = max(k - abs(d1 - d2), 0.0);
return min(d1, d2) - h * h / SMOOTH_UNION_MULTIPLIER / k;
}
// Returns the time value that a ray intersects with a sphere
float intersect_sphere(vec3 ray_pos, vec3 ray_dir, float radius) {
float b = dot(ray_pos, ray_dir);
float c = dot(ray_pos, ray_pos) - radius * radius;
float h = b * b - c;
if (h < 0.0) {
return -1.0;
}
return -b - sqrt(h);
}
void sphere_fold(inout vec3 p, inout float dz) {
float r2 = max(0.25, p.x * p.x + p.y * p.y + p.z * p.z);
if (r2 < 0.5) {
p *= 0.5 / r2;
dz *= 0.5 / r2;
}
}
void box_fold(inout vec3 p) {
p = clamp(p, -0.5, 0.5) * 2.0 - p;
}
// https://jbaker.graphics/writings/DEC.html
float circly_DE(vec3 p0, inout vec3 collision_info){
vec4 p = vec4(p0, 1.);
for(int i = 0; i < fractal_iterations; i++){
p.xyz = mod(p.xyz - 1.0, 2.0) - 1.0;
p *= 1.4 / dot(p.xyz,p.xyz) + 0.5 * animation_intensity * sin(TIME * animation_speed);
}
return (length(p.xz / p.w) * 0.25);
}
// https://jbaker.graphics/writings/DEC.html
float mechanical_DE(vec3 p, inout vec3 collision_info){
p = abs(p) - 1.2;
if(p.x < p.z) p.xz = p.zx;
if(p.y < p.z) p.yz = p.zy;
if(p.x < p.y) p.xy = p.yx;
float s = 1.0;
for(int i = 0; i < fractal_iterations; i++) {
p = abs(p);
float r = 2.0 / clamp(dot(p,p), 0.1, 1.0);
s *= r;
p *= r;
p -= vec3(0.6, 0.6, 3.5) + 0.5 * animation_intensity * sin(TIME * animation_speed);
}
float a = 1.5;
p -= clamp(p, -a, a);
return length(p) / s;
}
// https://jbaker.graphics/writings/DEC.html
float ball_DE(vec3 p, inout vec3 collision_info){
p.xz = abs(0.5-mod(p.xz,1.)) + .01 + 0.5 * animation_intensity * sin(TIME * animation_speed);
float DEfactor = 1.0;
for (int i=0; i < fractal_iterations; i++) {
p = abs(p) - vec3(0.0, 2.0, 0.0);
float r2 = dot(p, p);
float sc= 2.0 / clamp(r2, 0.4, 1.0);
p *= sc;
DEfactor *= sc;
p = p - vec3(0.5, 1.0, 0.5);
}
return length(p) / DEfactor - .0005;
}
// http://blog.hvidtfeldts.net/index.php/2011/11/distance-estimated-3d-fractals-vi-the-mandelbox/
float mandelbox_DE(vec3 p, inout vec3 collision_info) {
float dz = 1.0;
vec3 original = p;
float scale = sin(TIME * animation_speed) * animation_intensity * mandelbox_scale + mandelbox_scale * 2.0;
for (int i = 0; i < 10; i++) {
box_fold(p);
sphere_fold(p, dz);
p = p * scale + original;
dz = dz * scale + 1.0;
}
return length(p) / dz;
}
// http://blog.hvidtfeldts.net/index.php/2011/08/distance-estimated-3d-fractals-iii-folding-space/
float tetrahedron_DE(vec3 p, inout vec3 collision_info) {
vec3 offset = vec3(1.0);
float scale = sierpinski_scale + sin(TIME * animation_speed) * animation_intensity * 0.1;
for (int i = 0; i < fractal_iterations; i++) {
if(p.x + p.y < 0.0) p.xy = -p.yx; // fold 1
if(p.x + p.z < 0.0) p.xz = -p.zx; // fold 2
if(p.y + p.z < 0.0) p.zy = -p.yz; // fold 3
p = p * scale - offset * (scale - 1.0);
}
return length(p) * pow(scale, -16.0);
}
// http://www.fractalforums.com/ifs-iterated-function-systems/revenge-of-the-half-eaten-menger-sponge/15/
float mengersponge_DE(vec3 p, inout vec3 collision_info) { // by recursively digging a box
// Center the fractal
p = p * 0.5 + 0.5;
vec3 q = abs(p - 0.5) - 0.5;
float d1 = max(q.x, max(q.y, q.z)); // distance to the box
float d = d1; // current computed distance
float scale = 1.0 ;
for (int i = 0; i < fractal_iterations; i++) {
vec3 pa = mod(p * 3.0 * scale, 3.0);
scale *= 3.0;
q = vec3(0.5) - abs(pa - 1.5);
d1 = min(max(q.x, q.z), min(max(q.x, q.y), max(q.y, q.z))) / scale; //distance inside the 3 axis-aligned square tubes
d = max(d, d1); //intersection
}
return d;
}
// Distance estimate for a mandelbulb fractal
// http://blog.hvidtfeldts.net/index.php/2011/09/distance-estimated-3d-fractals-v-the-mandelbulb-different-de-approximations/
// https://iquilezles.org/articles/ftrapsgeometric/
float mandelbulb_DE(vec3 p, inout vec3 collision_info) {
vec3 x = p;
float r = 0.0;
float dr = 1.0;
float animated_power = mandelbulb_power + animation_intensity * sin(animation_speed * TIME) * 4.0;
for (int i = 0; i < fractal_iterations; i++) {
r = length(x);
if (r > mandelbulb_runaway_threshold) {
break;
}
dr = pow(r, animated_power - 1.0) * animated_power * dr;
float theta = acos(x.z / r);
float phi = atan(x.y, x.x);
theta = theta * animated_power;
phi = phi * animated_power;
x = p + pow(r, animated_power) * vec3(sin(theta) * cos(phi), sin(phi) * sin(theta), cos(theta));
}
return 0.5 * log(r) * r / dr;
}
float julia_DE(vec3 p, inout vec3 collision_info) {
vec4 x = vec4(p.x, p.z, p.y, p.x + p.z); // This ordering is arbitrary
vec4 center = julia_center + vec4(sin(TIME * animation_speed)) * animation_intensity;
float r = 0.0;
float dr = 1.0;
for (int i = 0; i < fractal_iterations; i++) {
r = length(x);
if (r > julia_runaway_threshold) {
break;
}
dr = 2.0 * r * dr + 1.0;
// Quaternion multiplication
x = center + vec4(
pow(x.w, 2) - pow(x.x, 2) - pow(x.y, 2) - pow(x.z, 2),
2.0 * x.w * x.x,
2.0 * x.w * x.y,
2.0 * x.w * x.z
);
}
return 0.5 * r * log(r) / dr;
}
mat2 rotate(float angle) {
float s = sin(angle);
float c = cos(angle);
return mat2(vec2(c, -s), vec2(s, c));
}
// https://github.com/pedrotrschneider/shader-fractals/blob/main/3D/MengerBrocolli.glsl
float brocolli_DE(vec3 z, inout vec3 collision_info) {
float brocolli_scale = 0.7 + sin(animation_speed * TIME) * 0.1 + 0.9;
vec3 anim_brocolli_offset = brocolli_offset + animation_intensity * sin(animation_speed * TIME * 0.2) * vec3(0.2, 0.3, 0.1);
float r = length(z);
int n = 0;
for (; n < fractal_iterations; n++) {
if (r > brocolli_runaway_threshold) break;
z.x = abs (z.x);
z.y = abs (z.y);
z.z = abs (z.z);
if (z.x - z.y < 0.0) z.xy = z.yx; // fold 1
if (z.x - z.z < 0.0) z.xz = z.zx; // fold 2
if (z.y - z.z < 0.0) z.zy = z.yz; // fold 3
z.yx *= rotate(0.436332 + sin(animation_speed * TIME * 0.9) * 0.1 + 4.9);
z.x = z.x * brocolli_scale - anim_brocolli_offset.x * (brocolli_scale - 1.0);
z.y = z.y * brocolli_scale - anim_brocolli_offset.y * (brocolli_scale - 1.0);
z.z = z.z * brocolli_scale;
if (z.z > 0.25 * anim_brocolli_offset.z * (brocolli_scale - 1.0)) {
z.z -= anim_brocolli_offset.z * (brocolli_scale - 1.0);
}
r = length (z);
}
return (length(z) - 2.0) * pow(brocolli_scale, -float(n));
}
// Distance estimate read from a .sdf texture (converted to a 3D texture resource)
float mesh_DE(vec3 p, inout vec3 collision_info) {
return texture(sdf_texture, p).r * 2.0 - 1.0;
}
float mesh_fractal_DE(vec3 p, inout vec3 collision_info) {
// Center the fractal around the origin (mesh_DE is offset)
vec4 x = vec4(p + vec3(0.5), 0.0);
float r = 0.0;
float dr = 1.0;
float animated_beta = beta + animation_intensity * 0.01 * sin(animation_speed * TIME) - 0.01;
for (int i = 0; i < fractal_iterations; i++) {
r = length(x);
float dist_to_portal_1 = length(x.xyz - portal_center_1);
if (i < fractal_iterations - 2 && dist_to_portal_1 <= portal_radius_1) {
x.xyz = dist_to_portal_1 * normalize(x.xyz - portal_center_1) * portal_scale_1 + portal_offset_1;
dr *= portal_scale_1;
} else {
vec3 D;
if (versor_type == 0) {
D = normalize(texture(noise, animation_intensity * sin(animation_speed * vec3(0.2, 0.3, 0.2) * TIME) + noise_frequency * x.xyz).rgb);
} else if (versor_type == 1) {
D = normalize(
mix(x.xyz, abs(sin(animation_speed * TIME + 8.0 * x.xzy) + cos(16.0 * x.yxz)), 0.4)
);
}
vec3 _garbage;
float mesh_distance = mesh_DE(x.xyz, _garbage);
float R = exp(alpha * (mesh_distance + animated_beta));
x.xyz = D * R;
dr *= alpha * R * DR_SCALAR;
dr = mix(dr, sqrt(dr), DR_MIX); // More resistant to noise, but hacky
collision_info.r += color_frequency * exp(D.x);
}
}
return length(x) / dr;
}
// NOTE:
// You should set up this DE to contain the object you want in your scene;
// You can use collision_info as extraneous data to pass back into the main
// fragment shader; Right now, this is used for extra color information.
float world_DE(vec3 p, inout vec3 collision_info) {
// example: a mesh fractal merged with a mandelbulb fractal
// Collision info inputs
collision_info = vec3(1.0, MAX_DISTANCE, 0.0);
vec3 garbage_; // Need to pass an info variable into the mandelbulb, but we discard the results
// Collision info is updated here, and distance is calculated
float mesh_dist = mesh_fractal_DE(p, collision_info);
float secondary_fractal_dist = MAX_DISTANCE;
switch (secondary_fractal_option) {
case 0: secondary_fractal_dist = mandelbulb_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 1: secondary_fractal_dist = mandelbox_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 2: secondary_fractal_dist = julia_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 3: secondary_fractal_dist = tetrahedron_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 4: secondary_fractal_dist = mengersponge_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 5: secondary_fractal_dist = brocolli_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 6: secondary_fractal_dist = circly_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 7: secondary_fractal_dist = mechanical_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 8: secondary_fractal_dist = ball_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
case 9: secondary_fractal_dist = mesh_fractal_DE((p - secondary_fractal_offset) / secondary_fractal_scale, garbage_); break;
}
return smooth_union(mesh_dist, secondary_fractal_scale.x * secondary_fractal_dist, secondary_fractal_blend_smoothness);
}
// Advances a ray along the world distance estimate
int march(int max_iterations, inout vec3 ray_pos, vec3 ray_dir, inout vec3 collision_info) {
int iter = 0;
for (; iter < max_iterations; iter++) {
float dist = abs(world_DE(ray_pos, collision_info));
ray_pos += ray_dir * dist * march_proportion;
if (dist > runaway_threshold) {
iter = max_iterations;
break;
}
if (dist < collision_threshold) {
break;
}
}
return iter;
}
vec3 get_normal(vec3 ray_pos) {
vec3 _garbage;
return normalize(vec3(
world_DE(ray_pos + vec3(normal_sample_length, 0.0, 0.0), _garbage) - world_DE(ray_pos - vec3(normal_sample_length, 0.0, 0.0), _garbage),
world_DE(ray_pos + vec3(0.0, normal_sample_length, 0.0), _garbage) - world_DE(ray_pos - vec3(0.0, normal_sample_length, 0.0), _garbage),
world_DE(ray_pos + vec3(0.0, 0.0, normal_sample_length), _garbage) - world_DE(ray_pos - vec3(0.0, 0.0, normal_sample_length), _garbage)
));
}
void fragment() {
// Take the pixel position (UV) and convert it into a ray based on the camera's orientation and node transform
vec3 ray_pos = CAMERA_POSITION_WORLD;
vec2 uv = SCREEN_UV;
float aspect_ratio = VIEWPORT_SIZE.x / VIEWPORT_SIZE.y;
float fov = -1.0 / PROJECTION_MATRIX[1][1];
float px = aspect_ratio * (2.0 * uv.x - 1.0) * fov;
float py = (1.0 - 2.0 * uv.y) * fov;
vec3 ray_dir = vec3(px, py, -1);
ray_dir = (INV_VIEW_MATRIX * vec4(normalize(ray_dir), 0.0)).xyz;
ray_dir = normalize(inverse(MODEL_MATRIX) * vec4(ray_dir, 0.0)).xyz;
ray_pos = (inverse(MODEL_MATRIX) * vec4(ray_pos, 1.0)).xyz;
float t = intersect_sphere(ray_pos, ray_dir, bounding_radius);
bool inside_bound = length(ray_pos) < bounding_radius;
if (inside_bound || t > 0.0) {
// Project to outside of bounding sphere to reduce wasted marches far away
if (!inside_bound) {
ray_pos = ray_pos + ray_dir * t;
}
vec3 final_ray_pos;
// March through scene, bouncing at collisions to create reflections
vec4 pixel_color = vec4(0.0);
float previous_reflectance = 1.0;
for (int i = 0; i < max_bounces; i++) {
vec3 collision_info = vec3(1.0, MAX_DISTANCE, 0.0);
int iter = march(primary_max_iterations, ray_pos, ray_dir, collision_info);
if (i == 0) final_ray_pos = ray_pos;
if (iter == primary_max_iterations) {
pixel_color += clear_color * previous_reflectance;
break;
}
vec3 normal = get_normal(ray_pos);
// Shadow raymarching
float shadow_occlusion = 1.0;
if (real_shadows_enabled) {
vec3 old_ray = ray_pos;
vec3 garbage_ = vec3(1.0, MAX_DISTANCE, 0.0);
vec3 corrected_light_direction = normalize(inverse(MODEL_MATRIX) * vec4(light_direction, 0.0)).xyz;
ray_pos -= corrected_light_direction * collision_threshold * SHADOW_EPSILON_MULTIPLIER;
int shadow_iter = march(primary_max_iterations / SUB_RAY_DIVIDER, ray_pos, -corrected_light_direction, garbage_);
shadow_occlusion = (1.0 - real_shadow_darkness) + real_shadow_darkness * pow(float(shadow_iter) / float(primary_max_iterations / SUB_RAY_DIVIDER), 0.5);
ray_pos = old_ray;
}
// Reflect the ray for future bounces
ray_dir = ray_dir - 2.0 * dot(ray_dir, normal) * normal;
ray_pos += ray_dir * collision_threshold * BOUNCE_EPSILON_MULTIPLIER;
// Albedo
float fractal_mix = 0.5 + 0.5 * sin(collision_info.r); // Kinda hacky
vec4 albedo = fractal_color_1 * fractal_mix + fractal_color_2 * (1.0 - fractal_mix);
vec4 hit_color = albedo;
// Ambient occlusion
float ao = float(iter) / float(primary_max_iterations);
hit_color.rgb += ambient_ratio * ambient_color * ao;
// Shadows based on normal only
vec3 corrected_light_direction = normalize(inverse(MODEL_MATRIX) * vec4(light_direction, 0.0)).xyz;
float normal_shadow = ((1.0 - fake_shadow_darkness) + fake_shadow_darkness * pow(max(0.0, specular_ratio * dot(normal, -normalize(corrected_light_direction))), shadow_softness));
hit_color *= vec4(pow(normal_shadow, shadow_absorption.r), pow(normal_shadow, shadow_absorption.g), normal_shadow, shadow_absorption.b);
// Shadows based on geometry
hit_color *= vec4(pow(shadow_occlusion, shadow_absorption.r), pow(shadow_occlusion, shadow_absorption.g), shadow_occlusion, shadow_absorption.b);
// Specular highlights
float specular = clamp(dot(-normalize(light_direction), ray_dir), 0.0, 1.0);
float specular_power = pow(smoothness, 2.0);
hit_color += specular_ratio * vec4(specular_color.rgb, 1.0) * pow(specular, specular_power);
// Mix reflections
pixel_color += hit_color * previous_reflectance;
previous_reflectance = reflectivity;
}
ALBEDO.rgb = clamp(pixel_color.rgb, vec3(0.0), vec3(1.0));
ALPHA = clamp(pixel_color.a, 0.0, 1.0);
vec4 clip_pos = PROJECTION_MATRIX * VIEW_MATRIX * MODEL_MATRIX * vec4(final_ray_pos, 1.0);
DEPTH = clip_pos.z / clip_pos.w;
} else {
ALBEDO = clear_color.rgb;
ALPHA = clear_color.a;
}
}
