Gaussian Primitives - analytical filtering and antialiasing

Gaussian Primitives is a small library of shader functions for drawing smooth shapes in canvas_item or spatial shaders.

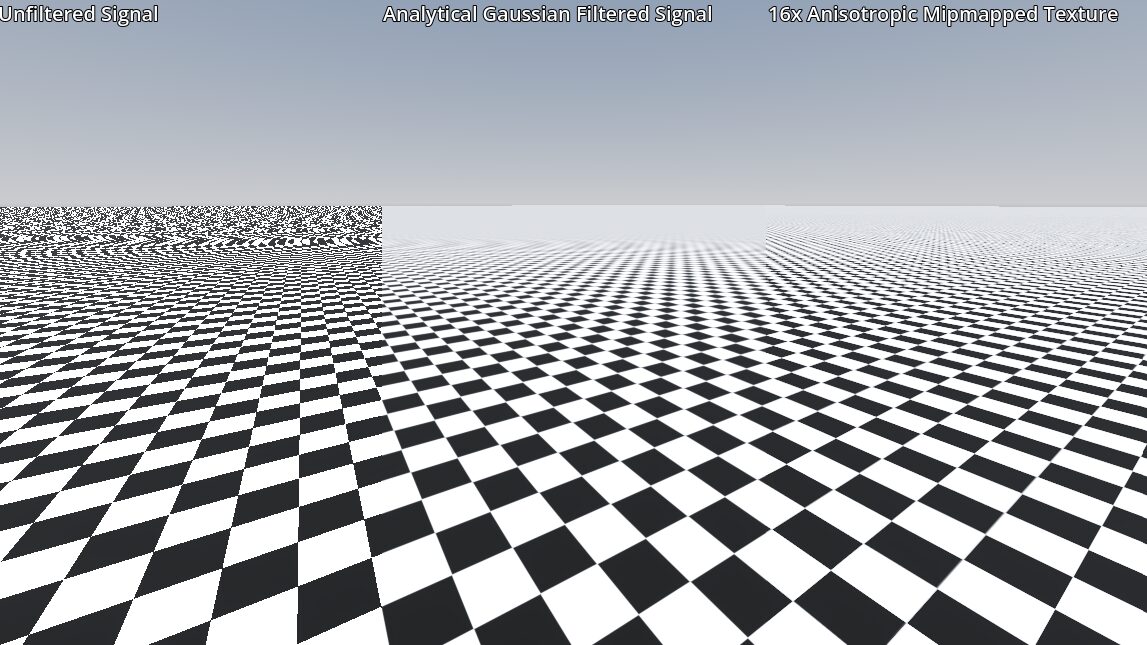

It gives you soft, antialiased version of common binary patterns. This includes steps, pulses, and repeating stripes. Hard edges can be drawn perfectly without using textures.

This file is a shader include (.gdshaderinc) and can be included using #include "res://gaussian_primitives.gdshaderinc".

Demo project and instructions

Shader code

/*
Gaussian Primitives by vilmt

* A small library of analytic, Gaussian-integrated binary primitives (step, pulse, and periodic pulsetrain)
* Designed for antialiased rendering of hard thresholds or SDF-based shapes
* Supports both implicit derivatives (`dFdx` / `dFdy`) and explicit differentiation
* Includes component-wise overloads for `float`, `vec2`, `vec3`, and `vec4`
*/

// Larger = sharper transitions, smaller = more smoothing (e.g. 0.5 removes pulsetrain aliasing)
#define SHARPNESS 1.0

// Magnitude of screen-space gradient (filter footprint w)
#define DERIV_LENGTH(dpdx, dpdy) max(sqrt(dpdx * dpdx + dpdy * dpdy), 1e-6)
//#define DERIV_LENGTH(dpdx, dpdy) max(max(abs(dpdx), abs(dpdy)), 1e-6)

// Approximate Gaussian CDF: integral from -∞ to p of exp(-PI * x * x)

// 2% max error, still negligible
#define _Z_DEFINE(type) \
type Z(type p) { \
	return 0.5 + 0.5 * tanh(2.133 * p); \
}
//#define _Z_DEFINE(type) \
//type Z(type p) { \
	//const float c = 0.280955440565; \
	//return 0.5 + 0.5 * tanh(2.0 * p * (1.0 + c * p * p)); \
//}

_Z_DEFINE(float)
_Z_DEFINE(vec2)
_Z_DEFINE(vec3)
_Z_DEFINE(vec4)

// Step: 1 when p > edge, else 0

#define _STEP_DEFINE(type) \
type step_gaussian(type edge, type p) { \
	type inv_w = SHARPNESS / DERIV_LENGTH(dFdx(p), dFdy(p)); \
	return Z(inv_w * (p - edge)); \
}

#define _STEP_DEFINE_EXPLICIT(type) \
type step_gaussian(type edge, type p, type dpdx, type dpdy) { \
	type inv_w = SHARPNESS / DERIV_LENGTH(dpdx, dpdy); \
	return Z(inv_w * (p - edge)); \
}

// Pulse: 1 when edge_a < p < edge_b, else 0

#define _PULSE_DEFINE(type) \
type pulse_gaussian(type edge_a, type edge_b, type p) { \
	type inv_w = SHARPNESS / DERIV_LENGTH(dFdx(p), dFdy(p)); \
	return Z(inv_w * (p - edge_a)) - Z(inv_w * (p - edge_b)); \
}

#define _PULSE_DEFINE_EXPLICIT(type) \
type pulse_gaussian(type edge_a, type edge_b, type p, type dpdx, type dpdy) { \
	type inv_w = SHARPNESS / DERIV_LENGTH(dpdx, dpdy); \
	return Z(inv_w * (p - edge_a)) - Z(inv_w * (p - edge_b)); \
}

// Pulsetrain: 1 when there exists an integer k such that |p - k| < duty/2, else 0

/* Since we cannot compute an infinite sum, we sum only 5 pulses (k = -2..2) and
   blend to the average value (duty) when the filter footprint becomes large. */
#define FALLBACK 1.5
#define BLEND_RANGE 0.01 // Does very little since error is small at fallback

#define _PULSETRAIN_DEFINE(type) \
type pulsetrain_gaussian(type duty, type p) { \
	type w = DERIV_LENGTH(dFdx(p), dFdy(p)) / SHARPNESS; \
	type inv_w = 1.0 / w; \
	type c = round(p); \
	type r = type(0.0); \
	for (int k = -2; k <= 2; k++) { \
		type pk = p - c + float(k); \
		r += Z(inv_w * (pk + duty * 0.5)) - Z(inv_w * (pk - duty * 0.5)); \
	} \
	return mix(r, duty, smoothstep(FALLBACK - BLEND_RANGE, FALLBACK, w)); \
}

#define _PULSETRAIN_DEFINE_EXPLICIT(type) \
type pulsetrain_gaussian(type duty, type p, type dpdx, type dpdy) { \
	type w = DERIV_LENGTH(dpdx, dpdy) / SHARPNESS; \
	type inv_w = 1.0 / w; \
	type c = round(p); \
	type r = type(0.0); \
	for (int k = -2; k <= 2; k++) { \
		type pk = p - c + float(k); \
		r += Z(inv_w * (pk + duty * 0.5)) - Z(inv_w * (pk - duty * 0.5)); \
	} \
	return mix(r, duty, smoothstep(FALLBACK - BLEND_RANGE, FALLBACK, w)); \
}

_STEP_DEFINE(float)
_STEP_DEFINE(vec2)
_STEP_DEFINE(vec3)
_STEP_DEFINE(vec4)

_STEP_DEFINE_EXPLICIT(float)
_STEP_DEFINE_EXPLICIT(vec2)
_STEP_DEFINE_EXPLICIT(vec3)
_STEP_DEFINE_EXPLICIT(vec4)

_PULSE_DEFINE(float)
_PULSE_DEFINE(vec2)
_PULSE_DEFINE(vec3)
_PULSE_DEFINE(vec4)

_PULSE_DEFINE_EXPLICIT(float)
_PULSE_DEFINE_EXPLICIT(vec2)
_PULSE_DEFINE_EXPLICIT(vec3)
_PULSE_DEFINE_EXPLICIT(vec4)

_PULSETRAIN_DEFINE(float)
_PULSETRAIN_DEFINE(vec2)
_PULSETRAIN_DEFINE(vec3)
_PULSETRAIN_DEFINE(vec4)

_PULSETRAIN_DEFINE_EXPLICIT(float)
_PULSETRAIN_DEFINE_EXPLICIT(vec2)
_PULSETRAIN_DEFINE_EXPLICIT(vec3)
_PULSETRAIN_DEFINE_EXPLICIT(vec4)
