Glass Shatter Impact Points

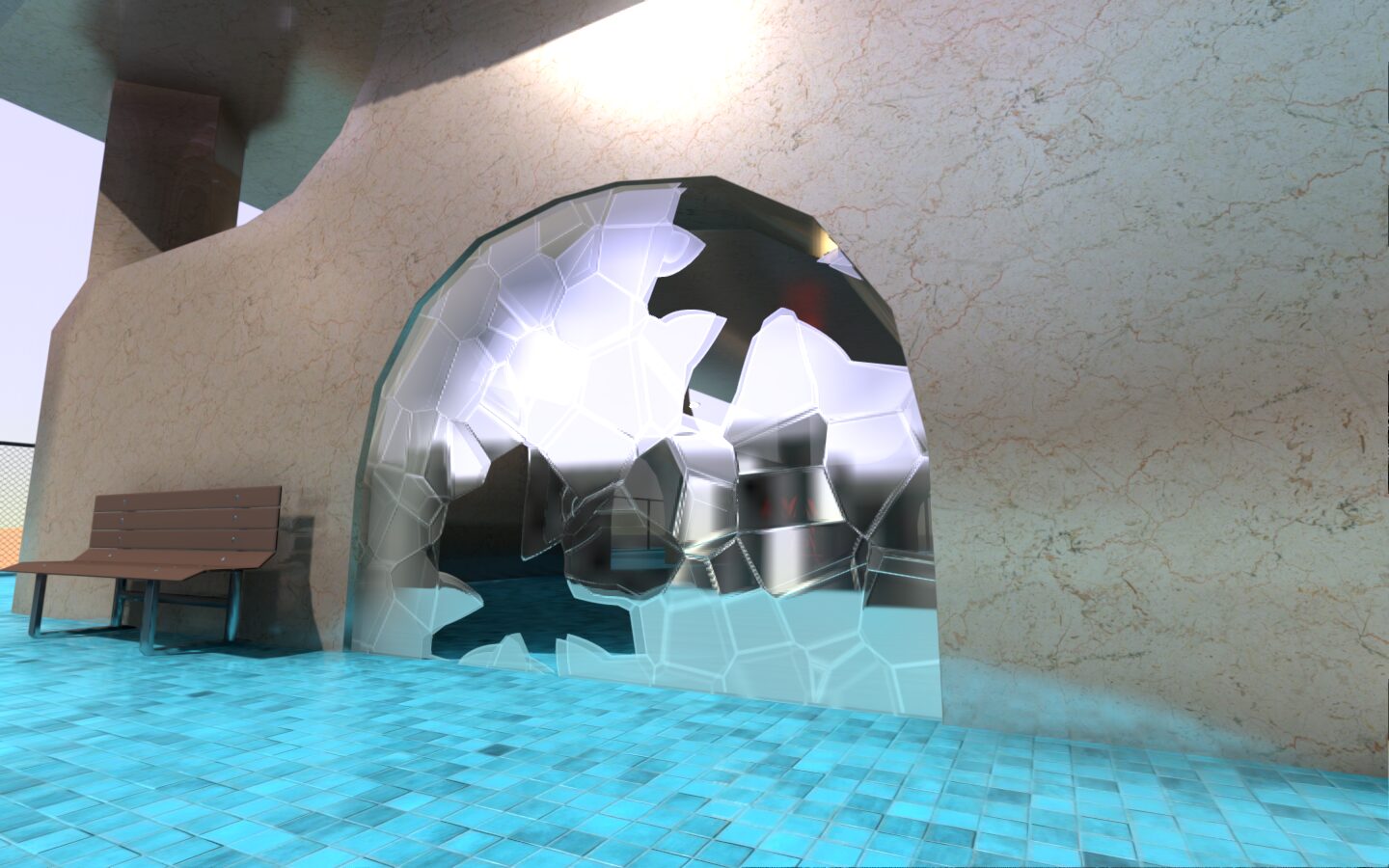

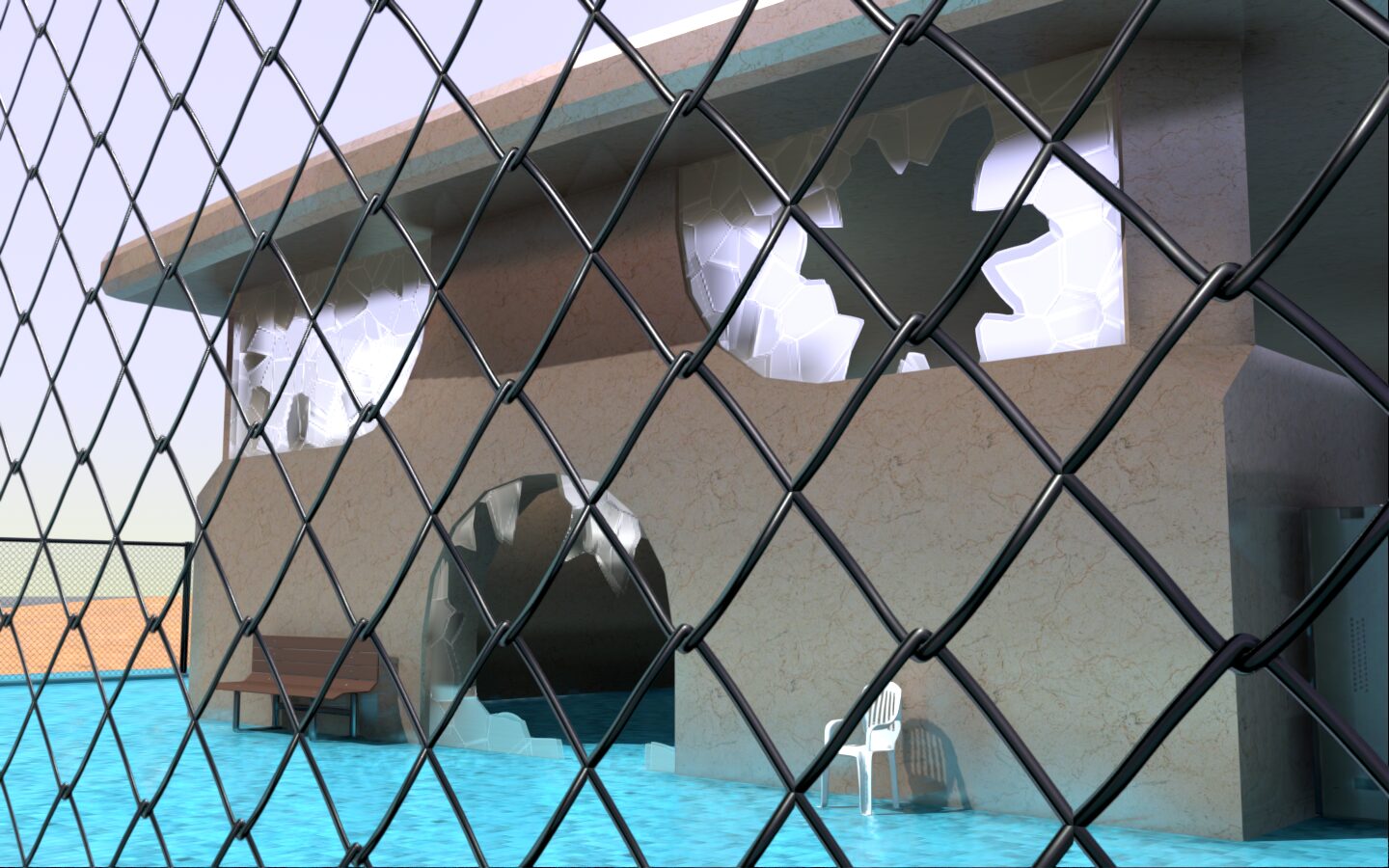

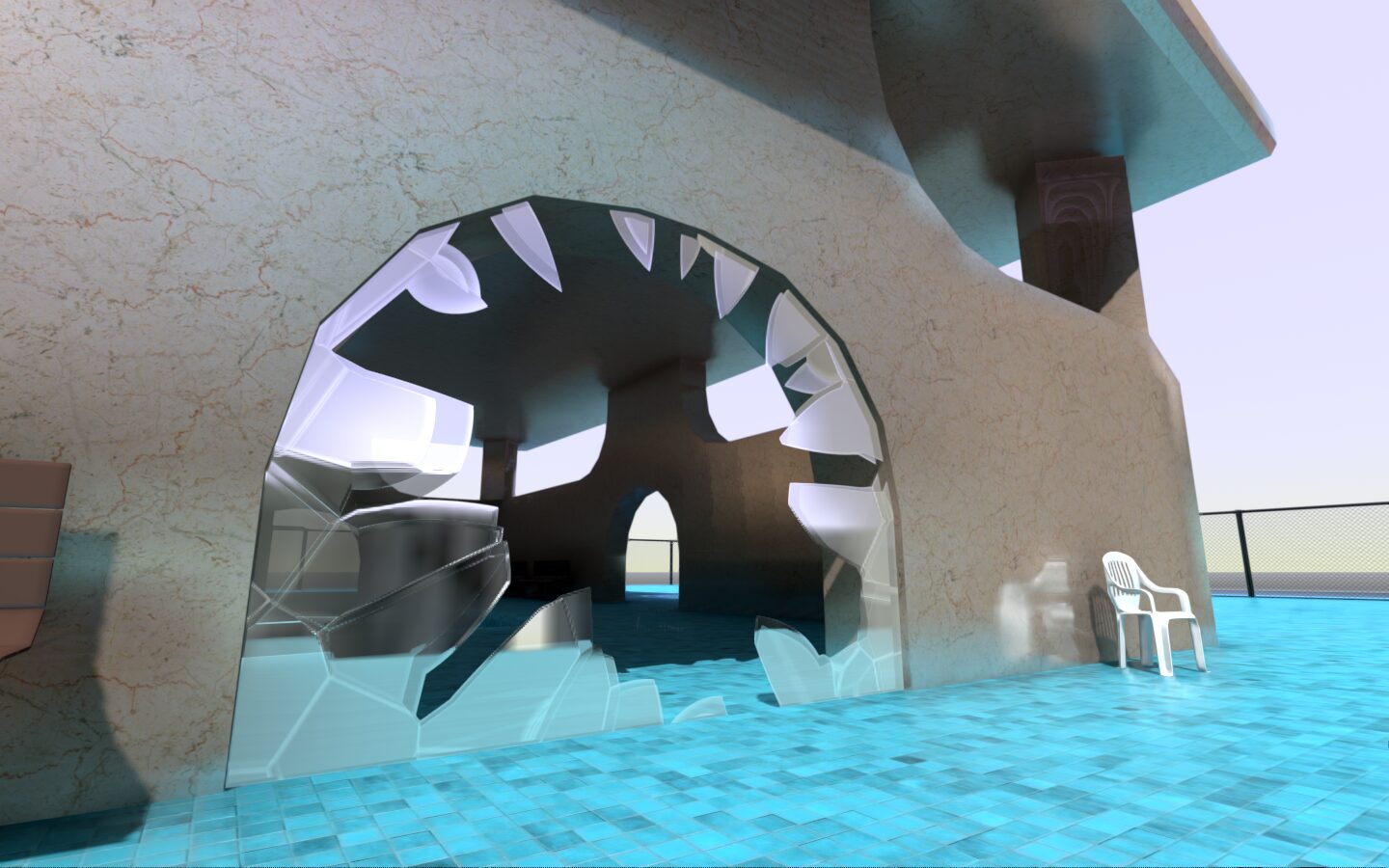

This is a procedural glass shattering shader, with customizable impact points.

Meant to be manipulated in GDScript by setting the impact points as GLOBAL SPACE COORDINATES, but can also be set manually by hand in the shader panel.

Can add a maximum of 3 IMPACT POINTS ONLY. (Can likely be increased, but has to be hard coded into the shader)

As an example, you can manually add an element to the array in the shader panel, and set the Vector3 to exactly where your glass object is located in global space (try a flat plane)

Works well with VoxelGI and Reflection Probes.

Made with the help and guidance (and lots of just straight up copy pasting) of ChatGPT. Please dont hate me.

Shader code

shader_type spatial;
render_mode blend_mix, depth_prepass_alpha, cull_disabled, diffuse_burley, specular_schlick_ggx;

// IMPACT POINTS CAN BE MANIPULATED WITH GDSCRIPT. (HIT POINTS, FOR EXAMPLE)
// TO HIDE ANY POINT, JUST MOVE IT FAR ENOUGH OUT OF THE WAY LOL
// MAKE UNIQUE MATERIALS TO HAVE SEPERATE POINTS PER GLASS OBJECT

//PARAMS
uniform bool shatter = true; //activate shatter
uniform float fracture_scale = 1.5; // Controls cell size
uniform float roughness : hint_range(0.0, 1.0) = 0.675;
uniform float transparency : hint_range(0.0, 1.0) = 0.675;
uniform float normal_offset_multiplier : hint_range(0.0, 1.0) = 0.375; // Multiplier to control normal intensity and angle
uniform float glass_tint : hint_range(0.0,1.0) = 0.675;

uniform float edge_thickness : hint_range(0.0675, 0.25);          // How thick the Fracture edges appear
uniform float impact_range : hint_range(0.0, 999.0) = 1.25; // How far the impact effect spreads (deletes cells)
uniform float compression_strength : hint_range(-1.125, 0.0) = -1.125;    // How much Voronoi scales down near impact

// Impact points: array of 3 world-space impact points
uniform vec3 impact_points[3]; //3 points MAX. no more, no less


// Hash function for randomness
float hash(vec3 p) {
	return fract(sin(dot(p, vec3(127.1, 311.7, 74.7))) * 43758.5453);
}

// Get deterministic feature point of a Voronoi cell
vec3 get_feature_point(vec3 cell) {
	vec3 f = cell + vec3(hash(cell.xyz), hash(cell.yzx), hash(cell.zxy));
	return f;
}

// Compute 3D Voronoi edges & mark cell for discard if any impact point is near.
// Also output the cell's "center" (nearest feature point) via out parameter.
vec3 voronoi_color(vec3 world_pos, out bool should_discard, out vec3 cell_feature) {
	vec3 cell = floor(world_pos);
	vec3 feature = get_feature_point(cell);

	float minDist2 = 1e10;
	float secondMinDist2 = 1e10;
	vec3 nearestFeature = vec3(0.0);

	// Search 3x3x3 neighborhood for nearest feature points
	for (int k = -1; k <= 1; k++) {
		for (int j = -1; j <= 1; j++) {
			for (int i = -1; i <= 1; i++) {
				vec3 neighbor = cell + vec3(float(i), float(j), float(k));
				vec3 f = get_feature_point(neighbor);
				vec3 diff = world_pos - f;
				float d2 = dot(diff, diff);

				if (d2 < minDist2) {
					secondMinDist2 = minDist2;
					minDist2 = d2;
					nearestFeature = f;
				} else if (d2 < secondMinDist2) {
					secondMinDist2 = d2;
				}
			}
		}
	}
	// Compute edge thickness value
	float edgeVal = smoothstep(0.0, edge_thickness, secondMinDist2 - minDist2);
	// Save the cell's center (feature)
	cell_feature = nearestFeature;
	// Loop over all impact points: if the cell's nearest feature is within range of any impact, mark for discard.
	should_discard = false;
	for (int i = 0; i < 3; i++) {
		if (length(nearestFeature - impact_points[i] * fracture_scale) < impact_range * fracture_scale) {
			should_discard = true;
			break;
		}
	}
	return should_discard ? vec3(0.0) : vec3(edgeVal);
}


// Bump-to-Normal function
vec3 bump_to_normal(vec3 voronoi_tex, float bump_strength) {
	// We need to perturb the normal based on the texture
	// First, calculate the texture's derivative (bump) in x and y directions
	vec2 dX = dFdx(voronoi_tex.xy);
	vec2 dY = dFdy(voronoi_tex.xy);
	// Convert these derivatives into a bump map
	float bump_x = dX.x * bump_strength;
	float bump_y = dY.y * bump_strength;
	// Use the derivatives to perturb the normal from the surface
	// We assume a flat surface with normal (0.0, 0.0, 1.0)
	vec3 normal = normalize(vec3(bump_x, bump_y, 1.0));
	// Normalize the resulting normal to ensure it's a unit vector
	return normalize(normal);
}



// Vertex Shader
varying vec3 world_vertex;

void vertex() {
	if (shatter){
		world_vertex = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
	}
}

// Fragment Shader
void fragment() {
	if (shatter){

		// Determine the nearest impact for compression
		int nearest_index = 0;
		float min_dist = 1e10;
		for (int i = 0; i < 3; i++) {
		float d = length(world_vertex - impact_points[i]);
		if (d < min_dist) {
			min_dist = d;
			nearest_index = i;
			}
		}
		vec3 nearestImpact = impact_points[nearest_index];

		// Calculate compression factor: cells closer to the impact compress more (i.e. become smaller)
		float scale_factor = 1.0 - clamp((impact_range - min_dist) / impact_range, 0.0, 1.0) * compression_strength;

		// Compress world space coordinates toward the nearest impact point
		vec3 compressed_pos = mix(world_vertex, nearestImpact, 1.0 - scale_factor);

		// Convert to Voronoi space by applying the global voronoi_scale
		vec3 scaled_world_pos = compressed_pos * fracture_scale;

		// Compute Voronoi color and retrieve the cell's feature point
		bool should_discard = true;
		vec3 cell_feature;
		vec3 voronoi_tex = voronoi_color(scaled_world_pos, should_discard, cell_feature);
		voronoi_tex*=pow(voronoi_tex,vec3(0.01));
		if (should_discard) {
			discard;
		}

		// --- Generate a flat normal per Voronoi cell based on its feature point ---
		vec3 random_normal = normalize(vec3(
			hash(cell_feature + vec3(1.0)),
			hash(cell_feature + vec3(2.0)),
			hash(cell_feature + vec3(3.0))
		));

		// --- Adjust the normal direction using the multiplier ---
		vec3 adjusted_normal = mix(vec3(0.0, 0.0, 1.0), random_normal, normal_offset_multiplier);

		// --- Normalize the result ---
		vec3 shattered_normal = normalize(adjusted_normal);

		// --- Calculate edge bump normal using Voronoi edge ---
		vec3 edge_normal = bump_to_normal(voronoi_tex,normal_offset_multiplier);
		vec3 final_normal = normalize(shattered_normal + edge_normal);

		//FINALIZING THE (SHATTERED) MATERIAL VALUES
		//MOST OF THIS IS A BUNCH OF DIARRHEA MATH. WASN'T EVEN TRYING.
		METALLIC = 1.0;
		ROUGHNESS = clamp((normal_offset_multiplier*0.375) / voronoi_tex.r*0.0125,0.0675,0.5);
		ROUGHNESS *= roughness;
		SPECULAR = 1.0;
		ALPHA = transparency;
		NORMAL_MAP += final_normal*NORMAL;
		ALBEDO = vec3(glass_tint)+1.0;
		ALBEDO -= voronoi_tex*0.5;
	}else{

		//FINALIZING THE PLAIN GLASS MATERIAL VALUES
		METALLIC = 1.0;
		ROUGHNESS = roughness*0.125;
		SPECULAR = 1.0;
		ALPHA = transparency;
		ALBEDO = vec3(glass_tint)+0.4;
	}
}
