Spatial Fire Raymarched v2.0

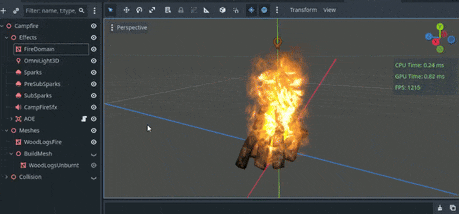

A decent looking Fire shader for things like Bonfires / Campfires / Torches etc. Using Raymarching and 3D noise.

This effect is fully spatial, meaning the fire will be volumetrically accurate from all angles, even from a top down view. (set the time scale to zero and see for yourself. Though, there is a visible perspective transition seam)

Can be applied to any mesh shape, but i strongly recommend using a PlaneMesh or a QuadMesh, at Orientation Face_Z, with the billboarding shader parameter enabled, for best results.

Basic Step By Step:

(Refer to the Hint Screenshots for a better overview)

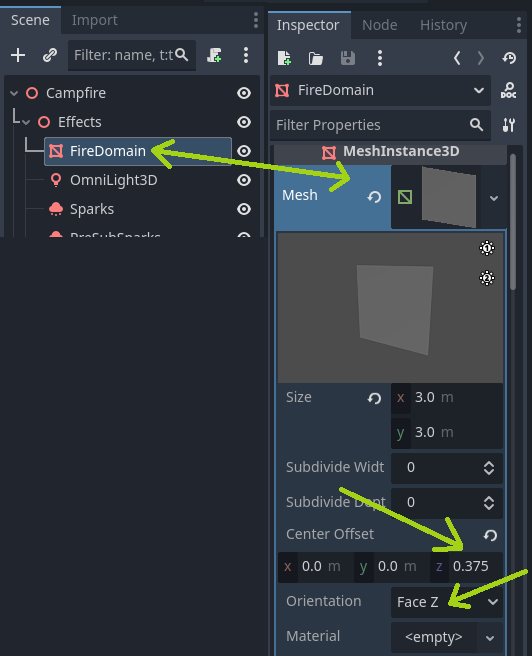

Add a MeshInstance3D to your scene. This will be the Container for the fire shader.
Set the MeshInstance3D Mesh to a QuadMesh or a PlaneMesh, With enough size to fit the fire shape.
Make sure that the Mesh Orientation is set to Face Z <(IMPORTANT FOR BILLBOARDING)
Create a ShaderMaterial on the mesh material or the material_override, and paste the shader script from this page.
Make sure to add a NoiseTexture3D Resource to the sample_noise shader parameter.

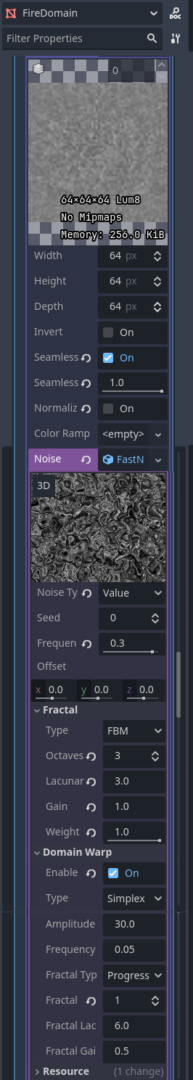

refer to the “Noise Hint” screenshot on this page for specific noise parameters for best results.

The effect uses Proximity fading to blend in with its surroundings to hide the “planar” look of its containing mesh, when billboarded. Be sure to tweak the Mesh center_offset Z parameter to accentuate this effect. (try setting it to -1.0 and then to 1.0, to see the difference)

PERFORMANCE CONSIDERATIONS:

This effect can be very GPU intensive, so consider working with minimal raymarch steps (4-6 can be plenty with the right visual parameter setup)
At the lowest possible raymarch steps (2 steps), It can have a somewhat stylized, flat look, at a huge performance benefit.

v2.0 UPDATE:

FEATURES:

SAMPLE JITTER: Drastically improves quality at low raymarch steps, at the cost of clarity (noise)
POTATO MODE: Maximizes performance by using the absolute lowest quality solutions (Does not work with Sample Jittering.)

BILLBOARD Z OFFSET: Controls the depth of the fire domain. (Equivallent to using Mesh.center_offset.z)

FIXES:

Fire height is now properly offset.
Box center offset adapted to fire height. The fire center is now the very bottom of the flame.
Fire height cutoff is now smoother and more natural looking.

Shader code

shader_type spatial;
render_mode unshaded, cull_disabled, blend_mix;
render_mode depth_draw_opaque;

group_uniforms quality_and_performance;
uniform int raymarch_steps : hint_range(2, 24) = 6;
uniform bool sample_jitter = true;
///Disables Jittering and Perspective seam solutions, in favor of a faster method.
uniform bool potato_mode = false;

group_uniforms general_parameters;
uniform sampler3D sample_noise;
uniform bool billboard = true;
uniform float billboard_z_offset = 0.675;
uniform sampler2D depth_texture : hint_depth_texture;
uniform float proximity_fade_distance = 0.375;
uniform float time_scale = 0.027;
uniform float noise_scale = 0.45;
uniform float noise_threshold = 0.43;

group_uniforms shape_composition;
uniform float fire_height = 2.45;
uniform float fire_width = 2.25;
uniform vec3 box_center = vec3(0.0, 0.0, 0.0);
uniform vec3 box_rotation = vec3(0.0);
uniform float taper_factor = 0.425;

uniform float wobble_strength = 2.0;
uniform float wobble_speed = 6.0;
uniform float wobble_noise_frequency : hint_range(0.1, 10.0) = 0.125;
uniform float sharpness_cutoff : hint_range(0.0, 20.0) = 4.5;

group_uniforms visual_composition;
uniform float emission_strength = 12.5;
uniform float core_glow_multiplier : hint_range(0.0, 20.0) = 16.0;

uniform vec3 color_core = vec3(1.0, 0.9, 0.5);
uniform vec3 color_mid = vec3(1.0, 0.625, 0.0);
uniform vec3 color_outer = vec3(0.8, 0.01, 0.0);
uniform vec3 color_smoke = vec3(-0.067, -0.067, -0.067);

group_uniforms experimental;
uniform float jitter_multiplier : hint_range(0.0, 20.0) = 1.0;

varying vec3 world_position;
varying vec3 world_camera;

vec3 get_box_center(vec3 npw){
	vec3 offset = vec3(0.0,fire_height*0.5,0.0);
    return box_center + npw+offset;
}

float get_animated_time(){
    return -TIME * time_scale;
}

mat3 rotation_matrix(vec3 angles) {
    float cx = cos(angles.x), sx = sin(angles.x);
    float cy = cos(angles.y), sy = sin(angles.y);
    float cz = cos(angles.z), sz = sin(angles.z);

    vec3 row0 = vec3(cy * cz, -cy * sz, sy);
    vec3 row1 = vec3(cx * sz + sx * sy * cz, cx * cz - sx * sy * sz, -sx * cy);
    vec3 row2 = vec3(sx * sz - cx * sy * cz, sx * cz + cx * sy * sz, cx * cy);

    return mat3(row0, row1, row2);
}

float get_noise_value(vec3 p_coord, float scale_factor, float time_offset_z) {
    vec3 tex_coords = p_coord * scale_factor + vec3(0.0, time_offset_z, 0.0);
    return texture(sample_noise, fract(tex_coords)).r;
}

float sdf_box(vec3 p, vec3 b) {
    vec3 q = abs(p) - b;
    return length(max(vec3(0.0), q)) + min(0.0, max(q.x, max(q.y, q.z)));
}

vec3 get_per_sample_wobble(vec3 p, float strength, float noise_freq, float speed) {
    float time_val = get_animated_time();

    float wobble_time_offset_x = time_val * speed;
    float wobble_time_offset_y = time_val * speed * 1.2;
    float wobble_time_offset_z = time_val * speed * 0.8;

    float wx = get_noise_value(p + vec3(100.0, 0.0, 0.0), noise_freq, wobble_time_offset_x);
    float wy = get_noise_value(p + vec3(0.0, 200.0, 0.0), noise_freq, wobble_time_offset_y);
    float wz = get_noise_value(p + vec3(0.0, 0.0, 300.0), noise_freq, wobble_time_offset_z);

    return vec3(wx - 0.5, wy - 0.5, wz - 0.5) * strength;
}

float fire_sdf(vec3 p, vec3 npw) {
    vec3 local_p = p - get_box_center(npw);
    local_p = transpose(rotation_matrix(box_rotation)) * local_p;
    vec3 box_size = vec3(fire_width, fire_height, fire_width);
    float normalized_height = (local_p.y + box_size.y * 0.5) / box_size.y;
    float current_taper = 1.0 - normalized_height * taper_factor;
    current_taper = max(0.01, current_taper);

    vec3 tapered_local_p = local_p;
    tapered_local_p.xz /= current_taper;

    vec3 per_sample_wobble_offset = get_per_sample_wobble(local_p, wobble_strength, wobble_noise_frequency, wobble_speed);

    float dist = sdf_box(tapered_local_p, box_size * 0.5);

    float sdf_noise_time_offset = get_animated_time() * 20.0;
    float distortion = get_noise_value(local_p + per_sample_wobble_offset, noise_scale * 0.5, sdf_noise_time_offset) * 0.3;
    dist += distortion;

    return dist;
}

void vertex() {
    if (billboard){
        mat3 cam_rotation = mat3(
            MAIN_CAM_INV_VIEW_MATRIX[0].xyz,
            MAIN_CAM_INV_VIEW_MATRIX[1].xyz,
            MAIN_CAM_INV_VIEW_MATRIX[2].xyz
        );
        VERTEX = cam_rotation * VERTEX;
        NORMAL = cam_rotation * NORMAL;

        // Apply the Z offset after billboard rotation to move the plane along the camera's Z axis.

		float post_offset = CAMERA_DIRECTION_WORLD.y+billboard_z_offset;


        VERTEX += MAIN_CAM_INV_VIEW_MATRIX[2].xyz * post_offset;
    }
    world_position = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
    world_camera = (inverse(VIEW_MATRIX) * vec4(0.0, 0.0, 0.0, 1.0)).xyz;
}

float hash(vec3 p) {
    p = fract(p * 0.3183099 + vec3(0.1, 0.3, 0.7));
    p = p * dot(p, p.yzx + 19.19);
    return fract((p.x + p.y) * p.z);
}


void fragment() {
    if (noise_threshold <= 0.001){
        discard;
    }

    vec3 ray_origin = world_camera;
    vec3 ray_direction = normalize(world_position - world_camera);

    vec3 fire_world_center = get_box_center(NODE_POSITION_WORLD);
    vec3 box_size = vec3(fire_width, fire_height, fire_width);
    float max_dim = max(box_size.x, max(box_size.y, box_size.z));
    vec3 rotated_box_half_extents = vec3(max_dim);

    vec3 box_min_world = fire_world_center - rotated_box_half_extents * 0.5;
    vec3 box_max_world = fire_world_center + rotated_box_half_extents * 0.5;

    float t_enter = 0.0;
    float t_exit = length(fire_world_center - ray_origin) + length(rotated_box_half_extents);

    vec3 inv_ray_direction = 1.0 / ray_direction;

    vec3 t0 = (box_min_world - ray_origin) * inv_ray_direction;
    vec3 t1 = (box_max_world - ray_origin) * inv_ray_direction;

    vec3 t_smaller = min(t0, t1);
    vec3 t_larger = max(t0, t1);

    t_enter = max(t_enter, max(t_smaller.x, max(t_smaller.y, t_smaller.z)));
    t_exit = min(t_exit, min(t_larger.x, min(t_larger.y, t_larger.z)));

    if (t_enter >= t_exit) {
        discard;
    }

    t_enter = max(0.0, t_enter);

    float total_distance = t_enter;
    float march_range = t_exit - t_enter;
    if (march_range <= 0.0001) {
        discard;
    }

    // --- ANGLE-BASED STEP COUNT FIX ---
    float angle_factor = dot(ray_direction, vec3(0.0, 1.0, 0.0));
    angle_factor = clamp(1.0 - abs(angle_factor), 0.0, 1.0);
    float step_multiplier = mix(1.0, 2.5, angle_factor);
    int adjusted_steps = int(float(raymarch_steps) * step_multiplier);
    adjusted_steps = clamp(adjusted_steps, raymarch_steps, 24);
	float step_size = march_range / float(raymarch_steps); // Distribute steps evenly over the intersection range

	bool potato_conditions = raymarch_steps<4 && !sample_jitter || potato_mode;



	if (!potato_conditions){
    	float step_size = march_range / float(adjusted_steps);
	}
    vec3 final_color = vec3(0.0);
    float current_alpha = 0.0;


if (potato_conditions){
	    for (int i = 0; i < raymarch_steps; i++) {
        vec3 current_position = ray_origin + ray_direction * total_distance;

        // Exit loop if current_position is outside the actual march_range or goes beyond t_exit
        if (total_distance >= t_exit) {
            break;
        }

        float sdf_dist = fire_sdf(current_position,NODE_POSITION_WORLD);

        float density_noise_time_offset = get_animated_time() * 30.0;
        vec3 per_sample_wobble_offset_density = get_per_sample_wobble(current_position, wobble_strength * 0.7, wobble_noise_frequency * 1.1, wobble_speed * 0.9);

        float density_noise_value = get_noise_value(current_position + per_sample_wobble_offset_density, noise_scale * 0.7, density_noise_time_offset);

        float density = 0.0;
        if (sdf_dist < 0.0) {
            float noise_shaping = 1.0 - smoothstep(noise_threshold * 0.8, noise_threshold * 1.2, density_noise_value);
            density = smoothstep(0.0, sharpness_cutoff, -sdf_dist * 0.5 + noise_shaping);
            density = clamp(density, 0.0, 1.0);

            vec3 local_fire_pos = current_position - get_box_center(NODE_POSITION_WORLD);
            local_fire_pos = transpose(rotation_matrix(box_rotation)) * local_fire_pos;
	        float height_alpha = smoothstep(0.5, 1.0, (local_fire_pos.y + box_size.y * 0.5) / box_size.y);
	        height_alpha = pow(height_alpha, 0.33);
	        density *= (1.0 - height_alpha);

            float dist_to_center = length(local_fire_pos.xz);
            density *= smoothstep(0.7, 0.0, dist_to_center / (box_size.x * 0.5));
        }

        float alpha_step = 1.0 - exp(-density * step_size * 25.0);

        vec3 current_color_rgb = mix(color_outer, color_mid, density_noise_value);

        current_color_rgb = mix(current_color_rgb, color_core, smoothstep(0.7, 1.0, density * core_glow_multiplier));

        vec3 local_fire_pos_for_color = current_position - get_box_center(NODE_POSITION_WORLD);
        local_fire_pos_for_color = transpose(rotation_matrix(box_rotation)) * local_fire_pos_for_color;
        float height_factor = (local_fire_pos_for_color.y + box_size.y * 0.5) / box_size.y;
        current_color_rgb = mix(current_color_rgb, color_smoke, smoothstep(0.6, 1.0, height_factor * (1.0 - density)));

        final_color += current_color_rgb * alpha_step * (1.0 - current_alpha);
        current_alpha += alpha_step * (1.0 - current_alpha);

        if (current_alpha > 0.99) {
            break;
        }

        total_distance += step_size;
    }
}else{
for (int i = 0; i < 48; i++) {
    if (i >= adjusted_steps) break;

    // Calculate the base position for this step.
    vec3 current_position = ray_origin + ray_direction * total_distance;
    if (total_distance >= t_exit) break;

    // Generate a truly random jitter offset.
    // The input to the hash function is now a more chaotic combination of
    // the current position, ray direction, and time.
    vec3 jitter_position = current_position + ray_direction;
	if (sample_jitter){
		vec3 hash_input = current_position * 1.25 + ray_direction * 33.333 + vec3(TIME*33.333);
    	float jitter = (hash(hash_input) - 0.5) * step_size;
		float jitter_power = pow(float(raymarch_steps),0.125);
		float jitter_scale = clamp(jitter_power,0.75,1.5);
		jitter_position = current_position + ray_direction * (jitter/jitter_scale*jitter_multiplier);
    }

    // --- All density and color calculations now use jitter_position ---
    float sdf_dist = fire_sdf(jitter_position, NODE_POSITION_WORLD);

    float density_noise_time_offset = get_animated_time() * 30.0;
    vec3 wobble = get_per_sample_wobble(jitter_position, wobble_strength * 0.7, wobble_noise_frequency * 1.1, wobble_speed * 0.9);

    float noise_val_density = get_noise_value(jitter_position + wobble, noise_scale * 0.7, density_noise_time_offset);

    float density = 0.0;
    if (sdf_dist < 0.0) {
        float noise_shaping = 1.0 - smoothstep(noise_threshold * 0.8, noise_threshold * 1.2, noise_val_density);
        density = smoothstep(0.0, sharpness_cutoff, -sdf_dist * 0.5 + noise_shaping);
        density = clamp(density, 0.0, 1.0);

        vec3 local_fire_pos = jitter_position - get_box_center(NODE_POSITION_WORLD);
        local_fire_pos = transpose(rotation_matrix(box_rotation)) * local_fire_pos;
        float height_alpha = smoothstep(0.5, 1.0, (local_fire_pos.y + box_size.y * 0.5) / box_size.y);
        height_alpha = pow(height_alpha, 0.333);
        density *= (1.0 - height_alpha);

        float dist_to_center = length(local_fire_pos.xz);
        density *= smoothstep(0.7, 0.0, dist_to_center / (box_size.x * 0.5));
    }

    float alpha_step = 1.0 - exp(-density * step_size * 25.0);

    vec3 current_color_rgb = mix(color_outer, color_mid, noise_val_density);
    current_color_rgb = mix(current_color_rgb, color_core, smoothstep(0.7, 1.0, density * core_glow_multiplier));

    vec3 local_fire_pos_for_color = jitter_position - get_box_center(NODE_POSITION_WORLD);
    local_fire_pos_for_color = transpose(rotation_matrix(box_rotation)) * local_fire_pos_for_color;
    float height_factor = (local_fire_pos_for_color.y + box_size.y * 0.5) / box_size.y;
    current_color_rgb = mix(current_color_rgb, color_smoke, smoothstep(0.6, 1.0, height_factor * (1.0 - density)));

    final_color += current_color_rgb * alpha_step * (1.0 - current_alpha);
    current_alpha += alpha_step * (1.0 - current_alpha);

    if (current_alpha > 0.99) break;

    total_distance += step_size;
}
}
    ALPHA = clamp(current_alpha, 0.0, 1.0);

    float proximity_depth_tex = textureLod(depth_texture, SCREEN_UV, 0.0).r;
    vec4 proximity_view_pos = INV_PROJECTION_MATRIX * vec4(SCREEN_UV * 2.0 - 1.0, proximity_depth_tex, 1.0);
    proximity_view_pos.xyz /= proximity_view_pos.w;
    ALPHA *= clamp(1.0 - smoothstep(proximity_view_pos.z + proximity_fade_distance, proximity_view_pos.z, VERTEX.z), 0.0, 1.0);

    ALBEDO = final_color * emission_strength;
    EMISSION = ALBEDO;
}
