GradientTexture Shader

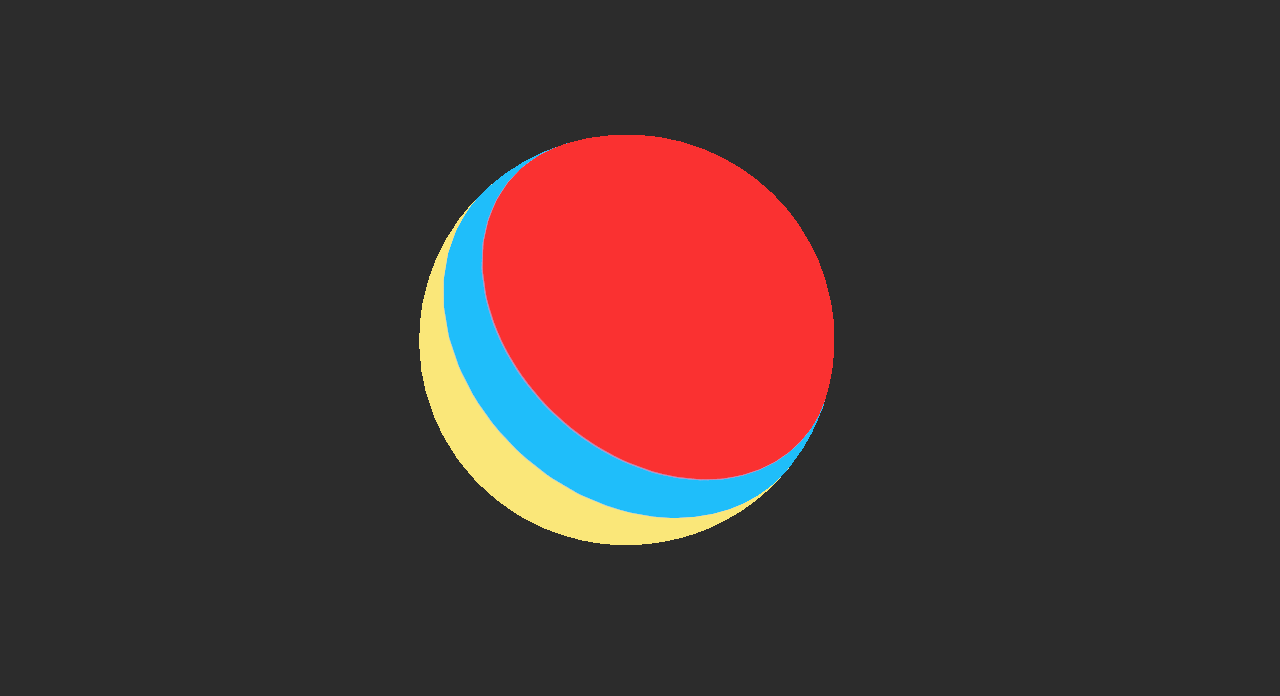

A simple shader that uses a GradientTexture1D to control the color of the mesh. Similar to Toon Shading or Cell Shading, but allows the developer to be flexible to make stylistic choices. If you desire to have outlines, you can add an outline shader in the “Next Pass” property.

Shader code
// Created by Ryan Remer
// https://godotshaders.com/shader/gradienttexture-shader/
shader_type spatial;

uniform sampler2D color_ramp;

void light() {
	float dotnl = dot(NORMAL, LIGHT);
	float sample_position = max((dotnl + 1.0) / 2.01, 0.01);
	vec4 ramp_light = texture(color_ramp, vec2(sample_position, 0.0));
	vec3 diffuse_light = ramp_light.rgb * clamp(LIGHT_COLOR * ATTENUATION, vec3(0,0,0), vec3(1,1,1));
	DIFFUSE_LIGHT = max(diffuse_light, DIFFUSE_LIGHT);
}
Tags
cell shading, gradient, toon
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
