[Auto control] Health(Mana) bar in ball container (sphere) (ver 2.3.2)

xcv145336

。Opening

This shader works in conjunction with the OrbUIController Class GDScript, enhancing the shader’s effectiveness.

此著色器與GDScript OrbUIController 類搭配增添更多效果。



。Change Log

-ver 2.3 add

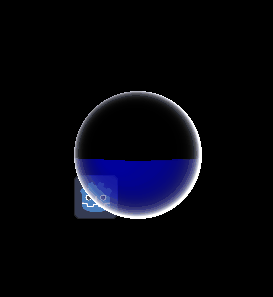

Add the refraction effect as in the Screenshot of number 3.



There is the OrbUIController Class GDScript version 1.3 as below.

##ver1.3
##This class will automatically control the "Health(Mana) bar in the ball container (ver 2.+)" shader.
##[br][br]此類別會自動控制"Health(Mana) bar in the ball container (ver 2.+)"著色器(shader)。
##
##The parameters for shader will be getting controlled by this class and show parameters on bellow:[br][br]
##	[code]1.light_effect[/code][br]
##	[code]2.vibration_effect[/code][br]
##	[code]3.ball_color[/code][br]
##	[code]4.vibration_effect_timelength[/code][br]
##	[code]5.vibration_time[/code][br]
##	[code]6.height[/code][br]
##	[code]7.oheight[/code][br]
##	[code]8.plane_inclined_effect[/code][br]
##	[code]9.plane_inclined_ratio[/code][br]
##[br]
##So, if you set the value on this shader and use this class to control, you can't get the setting you want.
##Because those parameters would be controlled by this class.[br]
##Set the attribution or use the method from this class to get the effect you want when you set those parameters.
##[br][br]這個類別控制這些著色器的參數，如下：[br][br]
##	[code]1.light_effect[/code][br]
##	[code]2.vibration_effect[/code][br]
##	[code]3.ball_color[/code][br]
##	[code]4.vibration_effect_timelength[/code][br]
##	[code]5.vibration_time[/code][br]
##	[code]6.height[/code][br]
##	[code]7.oheight[/code][br]
##	[code]8.plane_inclined_effect[/code][br]
##	[code]9.plane_inclined_ratio[/code][br]
##[br]
##所以如果你在這個著色器上設定這些參數，然後用這個類來控制，就無法得到你想要的效果。[br]
##因為那些參數會被這個類改變。如遇到上述參數，請在這個類操作。
extends Node

class_name OrbUIController

##[color=red](Don't change, if you know what I do.)[/color] Those Tween used for UI will bind for this node.[br]
##[color=red](不要改，除非你知道我在做什麼。)[/color] 用於 UI 的 Tween 物件將會綁定這個節點(node)。
var p_node : Node
## Control water height level (0(dry) to 1(full)).[br]
## 控制水位高度 (0(乾) 至 1(滿))。
var H : float = 1.
## Control water original height level (0(dry) to 1(full)). Used for consumption effect.[br]
## 控制原水位高度 (0(乾) 至 1(滿))。用於消耗效果。
var oH : float = 1.
#--------------------------------------------
## When you don't want to get a vibration effect for the shader when you get hit (used [code]GetHit[/code] method), set it to [code]false[/code].[br]
##如果不想在受到傷害時(使用[code]GetHit[/code]方法時)使用著色器的震動效果，請將它設定為[code]false[/code]。
var vibration_effect = true
## When you don't want to get a plane inclined effect for the shader when you are running or stop (used [code]GetHit[/code] method), set it to [code]false[/code].[br]
##如果不想在角色移動時(使用[code]GetHit[/code]方法時)使用著色器的搖動效果，請將它設定為[code]false[/code]。
var plane_inclined_effect = true
## When you don't want to get a alert effect for the shader when you get hit, set it to [code]false[/code].[br]
##如果不想在受到傷害時(使用[code]GetHit[/code]方法時)使用著色器的警報效果，請將它設定為[code]false[/code]。
var alert_effect = true
#--------------------------------------------
## Vibration time length, this effect will work when you get hit.[br]
## 震動時間長度，在被受到傷害時生效。
var vibration_effect_timelength = 5.
## Vibration transition type used for Tween object. [Tween] Reference.[br]
## 使用震動效果時 Tween 物件時間流逝的方式(線性或曲線等時間流逝)。詳情：[Tween]
var vibration_trans_type = Tween.TRANS_LINEAR
## Vibration ease type for Tween object. [Tween] Reference.[br]
## 使用震動效果時 Tween 物件時間前後流逝的方式。詳情：[Tween]
var vibration_ease_type = Tween.EASE_IN_OUT
#--------------------------------------------
## Delay time (means not working at a period) for consumption effect.[br]
## 消耗效果的延遲時間（指停一段時間）。
var consume_delay = 1.
## Effect time length for consumption effect, when Delay finished.[br]
## 延遲(Delay)結束時，消耗效果的作用時長。
var consume_timelength = 4.
## Effect time length for consumption effect, not wait for delay, and for water height equal 0.[br]
## 當水位高度等於0時，消耗效果的時長，不會有延遲。
var consume_timelength_fordeath = 1.
## Consume effect transition type for Tween object. [Tween] Reference.[br]
## 使用消耗效果時 Tween 物件時間流逝的方式(線性或曲線等時間流逝)。詳情：[Tween]
var consume_trans_type = Tween.TRANS_SPRING
## Consume effect ease type for Tween object. [Tween] Reference.[br]
## 使用消耗效果時 Tween 物件時間前後流逝的方式。詳情：[Tween]
var consume_ease_type = Tween.EASE_IN_OUT
#--------------------------------------------
## The value of the shader's parameter [code]plane_inclined_ratio[/code] would be this setting value when "SpeedDown" is finished.[br]
## 當「SpeedDown」完成時，著色器的參數[code]plane_inclined_ratio[/code]的值將是此設定值。
var plane_inclined_ratio_from = 0.
## The value of the shader's parameter [code]plane_inclined_ratio[/code] would be this setting value when "SpeedUp" is finished.[br]
## 當「SpeedUp」完成時，著色器的參數[code]plane_inclined_ratio[/code]的值將是此設定值。
var plane_inclined_ratio_to = 0.2
## This plane's inclined effect to gradual change uses the Tween object, and this value is set for the Tween's working time length.[br]
## 平面水面搖晃效果藉由Tween實現，此值用來設定Tween的工作時長。
var tween_raise_and_release_time = 2.
##[color=red](Don't change, if you know what I do.)[/color] A passing time for Tween is used for the plane's inclined effect.[br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]用於水面搖晃效果的Tween計時變數。
var inclined_t = 0.
## The plane's inclined effect transition type for Tween object. [Tween] Reference.[br]
## 使用水面搖晃效果時 Tween 物件時間流逝的方式(線性或曲線等時間流逝)。詳情：[Tween]
var plane_inclined_transition_type = Tween.TRANS_QUAD
## The plane's inclined effect ease type for Tween object. [Tween] Reference.[br]
## 使用水面搖晃效果時 Tween 物件時間前後流逝的方式。詳情：[Tween]
var plane_inclined_ease_type = Tween.EASE_IN
#--------------------------------------------
## When water height equals this value, will open the shader's [code]light_effect[/code].[br]
## (警報線)水位高度等於該值時，將開啟著色器的[code]light_effect[/code]。
var alert_height = 0.15
## Ball container (Border) color.[br]
## 球缸的邊界顏色。
var ball_color = Color(1.,1.,1.,1.)
## Ball container (Border) color is used when alerting a situation.[br]
## 球缸的邊界顏色，當水位高低於警報線時，使用此邊界顏色。
var alert_ball_color = Color(1.,0.3,0.1,1.)
## Ball container (Border) color when death situation.[br]
## 死亡情況下(水位等於0)球缸邊界顏色。
var death_ball_color = Color(0.1,0.1,0.1,0.5)
##[color=red](Don't change, if you know what I do.)[/color] A Tween object for vibration time.[br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]用於振動時的 Tween 物件。
var vibration_tween : Tween
##[color=red](Don't change, if you know what I do.)[/color] A Tween object for consuming UI time.[br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]用於消耗效果時的 Tween 物件。
var consume_tween : Tween
##[color=red](Don't change, if you know what I do.)[/color] A Tween object changes [code]plane_inclined_ratio[/code] shader's parameter.[br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]用於改變[code]plane_inclined_ratio[/code]shader參數的 Tween 物件。
var inclined_tween : Tween

##This class will control the shader from this material.[br]
##該類所控制該材質(要控制材質裡的著色器)。
var target_material : Material = null

##The water height level reset to 1 value, vibration effect, and light effect are closed.[br][br]
##使用時，水位高度重設為1，振動效果和燈光效果關閉
func Reset():

	H = 1.
	oH = 1.
	#vibration_tween = null
	#consume_tween = null
	target_material.set_shader_parameter('height', H)
	target_material.set_shader_parameter('oheight', H)
	target_material.set_shader_parameter("vibration_effect",false)
	target_material.set_shader_parameter('light_effect', false)
	target_material.set_shader_parameter('ball_color', ball_color)
##Directly change water level by health (or mana) input value, this method will calculate and set the shader's height value.[br][br]
##Attribution introduce:[br]
##	• [code]P[/code] : This value should represent the health (or mana) value.[br]
##	• [code]MAXP[/code] : This value should represent the maximum health (or maximum mana) value.[br][br]
##輸入生命值（或魔力）直接改變水位，該方法將依輸入值進行計算並設定著色器的高度值。[br][br]
##參數介紹：[br]
##	• [code]P[/code] ：此值應輸入生命（或魔力）值。[br]
##	• [code]MAXP[/code] ：此值應輸入最大生命值（或最大魔力值）。[br]
func SetH(P: float, MAXP: float):

	H = P/MAXP
	oH = H
	target_material.set_shader_parameter('height', H)
	target_material.set_shader_parameter('oheight', H)
	target_material.set_shader_parameter('light_effect', false)
	target_material.set_shader_parameter('ball_color', ball_color)

	if H >= alert_height and alert_effect:

		target_material.set_shader_parameter('light_effect', false)
		target_material.set_shader_parameter('ball_color', ball_color)
##To set [code]p_node[/code] attribution. Tween used for UI will bind for this node[br][br]
##Attribution introduce:[br]
##	• [code]node[/code] : This node will used to bind the Tween.[br][br]
##設定[code]p_node[/code]。用於 UI 的 Tween 物件將綁定到該節點[br][br]
##參數介紹：[br]
##	• [code]node[/code] ：該節點將用於綁定 Tween。[br]
func SetOwner(node: Node):

	p_node = node
##To set [code]target_material[/code] attribution. This class is used to control shader from this material.[br][br]
##Attribution introduce:[br]
##	• [code]mat[/code] : The shader in this material is controlled for this class.[br]
##設定[code]target_material[/code]。本類別需要控制著色器，而著色器在該材質中。 [br][br]
##參數介紹：[br]
##	• [code]mat[/code] ：此材質中的著色器由此類控制。 [br]
func SetShader(mat: Material):

	target_material = mat
##Change the water level when you get hit (or consume some mana) by health (or mana) input value,[br]
## this method will calculate and make the fx effect to the shader.[br][br]
##Attribution introduce:[br]
##	• [code]P[/code] : This value should represent the health (or mana) value.[br]
##	• [code]oP[/code] : This value should represent the health (or mana) value from the last time you were not hit or did not consume any mana.[br]
##	• [code]MAXP[/code] : This value should represent the maximum health (or maximum mana) value.[br]
##當你受到傷害時，改變水位，此方法將依輸入的生命值（或魔力）進行計算並操作著色器做出效果。 [br][br]
##屬性介紹：[br]
##	• [code]P[/code] ：此值應輸入生命（或魔力）值。[br]
##	• [code]oP[/code] ：此值應輸入擊中前的生命（或魔力）值。[br]
##	• [code]MAXP[/code] ：此值應輸入最大生命值（或最大魔力值）。[br]
func GetHit(P: float, oP: float, MAXP: float):

	H = max(P*1./MAXP*1.,0.)
	#oH = max(oP*1./MAXP*1.,0.)

	if P - oP > 0:

		oH = max(oP*1./MAXP*1.,0.)
		target_material.set_shader_parameter('oheight', oH)

	if H <= 0:

		target_material.set_shader_parameter('light_effect', false)
		target_material.set_shader_parameter('ball_color', death_ball_color)
	elif alert_effect:

		if H <= alert_height:

			target_material.set_shader_parameter('light_effect', true)
			target_material.set_shader_parameter('ball_color', alert_ball_color)
		else:

			target_material.set_shader_parameter('light_effect', false)
			target_material.set_shader_parameter('ball_color', ball_color)

	target_material.set_shader_parameter('height', H)
	target_material.set_shader_parameter('vibration_effect', vibration_effect)
	target_material.set_shader_parameter('vibration_effect_timelength', vibration_effect_timelength)

	if vibration_tween:

		vibration_tween.kill()
		vibration_tween = newtween()
		vibration_tween.tween_method(get_hit_vbm, 0.0, vibration_effect_timelength, vibration_effect_timelength).set_trans(vibration_trans_type).set_ease(vibration_ease_type)
	else:

		vibration_tween = newtween()
		vibration_tween.tween_method(get_hit_vbm, 0.0, vibration_effect_timelength, vibration_effect_timelength).set_trans(vibration_trans_type).set_ease(vibration_ease_type)

	if H <= 0:

		if consume_tween:

			consume_tween.kill()
			consume_tween = newtween()
			consume_tween.tween_method(get_hit_oHconsume, oH, H, 1).set_trans(consume_trans_type)
		else:

			consume_tween = newtween()
			consume_tween.tween_method(get_hit_oHconsume, oH, H, 1).set_trans(consume_trans_type)
	else:

		if consume_tween:

			consume_tween.kill()
			consume_tween = newtween()
			consume_tween.tween_method(get_hit_oHconsume, oH + consume_delay, H, consume_timelength + consume_delay).set_trans(consume_trans_type).set_ease(consume_ease_type)
		else:

			consume_tween = newtween()
			consume_tween.tween_method(get_hit_oHconsume, oH + consume_delay, H, consume_timelength + consume_delay).set_trans(consume_trans_type).set_ease(consume_ease_type)
##Used for the plane's inclined effect, this will gradually change the [code]plane_inclined_ratio[/code] parameter value to [code]plane_inclined_ratio_to[/code].[br]
##用於水面搖晃效果，逐漸將[code]plane_inclined_ratio[/code]參數值變更為[code]plane_inclined_ratio_to[/code]值。[br]
func SpeedUp() -> void:

	target_material.set_shader_parameter('plane_inclined_effect', plane_inclined_effect)

	if plane_inclined_effect:

		if inclined_tween:

			inclined_t = max(inclined_t - inclined_tween.get_total_elapsed_time(),0)
		else:

			inclined_t = 0

		var t = tween_raise_and_release_time - inclined_t

		var ci_11 = plane_inclined_ratio_from
		var ci_12 = plane_inclined_ratio_to

		var rao = (inclined_t/tween_raise_and_release_time)

		ci_11 = (ci_12 - ci_11)*rao + ci_11

		Transition(ci_11, ci_12, t, plane_inclined_transition_type, plane_inclined_ease_type)
##Used for the plane's inclined effect, this will gradually change the [code]plane_inclined_ratio[/code] parameter value to [code]plane_inclined_ratio_from[/code].[br]
##用於水面搖晃效果，逐漸將[code]plane_inclined_ratio[/code]參數值變更為[code]plane_inclined_ratio_from[/code]值。[br]
func SpeedDown():

	target_material.set_shader_parameter('plane_inclined_effect', plane_inclined_effect)

	if plane_inclined_effect:

		if inclined_tween:

			inclined_t = min(inclined_t + inclined_tween.get_total_elapsed_time(),tween_raise_and_release_time)
		else:

			inclined_t = 0

		var t = inclined_t

		var ci_11 = plane_inclined_ratio_from
		var ci_12 = plane_inclined_ratio_to

		var rao = 1 - (inclined_t/tween_raise_and_release_time)

		ci_12 = ci_12 - (ci_12 - ci_11)*rao

		Transition(ci_12, ci_11, t, plane_inclined_transition_type, plane_inclined_ease_type)
##[color=red](Don't used it by you self, if you know what I do.)[/color][br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]
func Transition(from: float, to: float, time_length: float, trans_type : Tween.TransitionType, ease_type : Tween.EaseType):

	if inclined_tween:

		inclined_tween.kill()

	inclined_tween = newtween()

	if from - to != 0:

		inclined_tween.tween_method(tween_inclined_ratio, from, to, time_length).set_trans(trans_type).set_ease(ease_type)

##[color=red](Don't used it by you self, if you know what I do.)[/color][br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]
func newtween():
	return p_node.create_tween()

##[color=red](Don't used it by you self, if you know what I do.)[/color][br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]
func get_hit_vbm(i: float):

	target_material.set_shader_parameter('vibration_time', i)

	if i >= vibration_effect_timelength - 0.0001: target_material.set_shader_parameter('vibration_effect', false)
##[color=red](Don't used it by you self, if you know what I do.)[/color][br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]
func get_hit_oHconsume(i: float):

	if i < oH:

		target_material.set_shader_parameter('oheight', i)
		oH = i

	if i <= H - 0.0001: oH = H
##[color=red](Don't used it by you self, if you know what I do.)[/color][br]
##[color=red](不要改，除非你知道我在做什麼。)[/color]
func tween_inclined_ratio(i: float):

	target_material.set_shader_parameter('plane_inclined_ratio', float("%10.2f" % i))
Shader code
shader_type canvas_item;
render_mode blend_mix;

uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;

uniform bool light_effect = false;
uniform bool border_exclusion_effect = false;
uniform bool wave_fix_on_border = false;

uniform vec4 water_color: source_color = vec4(1, 0, 0, 1);
uniform float water_wave_speed : hint_range(-100, 100, 0.01) = 2;
uniform float water_wave_ci: hint_range(0, 2, 0.01) = 0.05;
uniform float water_back_lightness: hint_range(0, 1, 0.01) = 0.8;
uniform vec4 ball_color: source_color = vec4(vec3(1), 1);
uniform float ball_border_ci : hint_range(0, 50, 1) = 5;
uniform float ball_light_speed : hint_range(-100, 100, 0.01) = 2;
uniform float wave_num : hint_range(0, 8, 1) = 2;

uniform bool plane_inclined_effect = false;
uniform float plane_inclined_ratio : hint_range(0., 0.5, 0.01) = 0.05;

uniform float iniTime = 0.;

uniform float height : hint_range(0, 1, 0.01) = 0.5;
uniform float oheight : hint_range(0, 1, 0.01) = 0.5;

uniform bool vibration_effect = false;
uniform float vibration_time = 0;
uniform float vibration_effect_timelength: hint_range(0, 10, 0.01) = 4;
uniform float vibration_speed : hint_range(-100, 100, 0.01) = 8;
uniform float vibration_magnitude : hint_range(0, 10, 0.01) = 0.25;
uniform float vibration_wave_ci: hint_range(0, 2, 0.01) = 0.3;

uniform float refraction_ratio_glass: hint_range(0, 10, 0.01) = 0.2;
uniform float refraction_ratio_water: hint_range(0, 10, 0.01) = 0.6;

vec4 ontop(vec4 base, vec4 blend){
	return mix(base,blend,blend.a);
}

vec4 reverse(vec4 base){
	return vec4(mod(base.rgb + 1. , 2.), base.a);
}

vec4 exclusion(vec4 base, vec4 blend){
	return base + blend - 2.0 * base * blend * base;
}

float easeOutExpo(float x){
	return x == 1. ? 1. : 1. - pow(2., -10. * x);
}//from https://easings.net/zh-cn#easeOutBounce
vec2 shiftuv(vec2 uv, float shiftratio) {

	vec2 suv = (uv - 0.5)*2.;

	return (suv + sign(suv)*suv*suv*-1.*shiftratio)*0.5 + 0.5;
}

vec2 UVtoSreenUV(vec2 uv, bool is_camera_center, vec2 texture_pixel_size, vec2 screen_pixel_size, vec4 fragcoord) {

	vec2 suv = (uv - 0.5)*2.;

	if (is_camera_center) {

		return (fragcoord.xy + suv/texture_pixel_size)*screen_pixel_size*0.5;
	} else {

		return (fragcoord.xy + suv/texture_pixel_size)*screen_pixel_size;
	}
}

void fragment() {

	float NTIME = vibration_effect ? TIME + vibration_time : TIME + vibration_effect_timelength;

	vec2 uv = (UV - 0.5)*0.5;
	vec2 suv = UV*0.5 - 0.5;

	float a = wave_fix_on_border ? 2. : 1.;
	float b = wave_fix_on_border ? 1. : 0.5;
	vec4 Cw = textureLod(screen_texture, UVtoSreenUV(shiftuv(UV, refraction_ratio_water), false, TEXTURE_PIXEL_SIZE, SCREEN_PIXEL_SIZE, FRAGCOORD), 0.0);//vec4(0.);
	vec4 Cg = textureLod(screen_texture, UVtoSreenUV(shiftuv(UV, refraction_ratio_glass), false, TEXTURE_PIXEL_SIZE, SCREEN_PIXEL_SIZE, FRAGCOORD), 0.0);//vec4(0.);

	if (distance(UV, vec2(0.5,0.5)) > 1.0/2.0) {

		COLOR = vec4(0.);
	} else {

		if (height == 1. || height == 0.) {

			COLOR = vec4(water_color.rgb,height);

			if (height == 0.) {

				float oH = oheight;

				if ((1. - oH) < UV.y) {

					COLOR = vec4(water_color)*0.5;
					COLOR.rgb += Cw.rgb;
				} else if ((1. - oH) < UV.y) {

					COLOR = vec4(water_color*water_back_lightness)*0.5;
					COLOR.rgb += Cw.rgb;
				} else {

					COLOR = vec4(water_color.rgb,height);
					COLOR.rgb += Cg.rgb;
				}
			} else {

				COLOR.rgb += Cw.rgb;
			}
		} else {

			float t = (NTIME - TIME)/vibration_effect_timelength;//(cos(NTIME - TIME)+1.)*0.5;//easeOutExpo(min(mod(NTIME, vibration_effect_timelength), vibration_effect_timelength)/vibration_effect_timelength);
			float dH = plane_inclined_effect ? sin(mod((UV.x + TIME*water_wave_speed)*PI, TAU))*plane_inclined_ratio : 0.;//sin(UV.x + TIME*water_wave_speed)*plane_inclined_ratio;
			float dHo = plane_inclined_effect ? sin(mod((UV.x + -TIME*water_wave_speed)*PI + PI, TAU))*plane_inclined_ratio : 0.;//-sin(UV.x + TIME*water_wave_speed)*plane_inclined_ratio;
			float H = vibration_effect ? mix(height - uv.x*sin(t*PI*vibration_speed), height, t) : height;//*vibration_magnitude
			float oH = vibration_effect ? oheight : oheight;//mix(oheight - uv.x*sin(t*PI*vibration_speed), oheight, t)
			float CI = vibration_effect ? mix((water_wave_ci + vibration_wave_ci)*vibration_magnitude, water_wave_ci, t) : water_wave_ci;

			if (sin((cos(suv.x*PI*a) + NTIME*water_wave_speed)*wave_num)*CI + (1. - H) < UV.y + dHo) {

				COLOR = vec4(water_color*water_back_lightness);
			} else {

				if (height - oheight != 0.) {

					if (sin((cos(suv.x*PI*a + PI*b) + NTIME*water_wave_speed)*wave_num)*CI + (1. - oH) < UV.y + dH) {

						COLOR = vec4(water_color)*0.5;
						COLOR.rgb += Cw.rgb;
					} else if (sin((cos(suv.x*PI*a) + NTIME*water_wave_speed)*wave_num)*CI + (1. - oH) < UV.y + dHo) {

						COLOR = vec4(water_color*water_back_lightness)*0.5;
						COLOR.rgb += Cw.rgb;
					} else {

						COLOR = vec4(0.);
						COLOR.rgb += Cg.rgb;
					}
				} else {

					COLOR = vec4(0.);
					COLOR.rgb += Cg.rgb;
				}
			}

			if (sin((cos(suv.x*PI*a + PI*b) + NTIME*water_wave_speed)*wave_num)*CI + (1. - H) < UV.y + dH) {

				COLOR = vec4(water_color);
				COLOR.rgb += Cw.rgb;
			}

			if (plane_inclined_effect && plane_inclined_ratio != 0. && UV.y <= 1. - height + 0.005 && UV.y >= 1. - height - 0.005) {

				COLOR = COLOR + (sin(UV.x + TIME) + 1.)*0.08;
				COLOR.rgb += Cw.rgb;
			}
		}

		float L = 0.;

		if (light_effect) {L = cos(distance(UV, sin(suv*suv) + NTIME*ball_light_speed))*0.25;}

		COLOR = border_exclusion_effect ? exclusion(COLOR, vec4(vec3(1.),pow(distance(UV, vec2(0.5,0.5))*2.,ball_border_ci) + L)*ball_color) : ontop(COLOR, vec4(vec3(1.),pow(distance(UV, vec2(0.5,0.5))*2.,ball_border_ci) + L)*ball_color);
	}
}

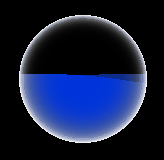

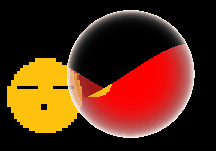

Live Preview
Tags
animation, Health Bar, liquid fill inside sphere
See more about this shader
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from xcv145336

Related shaders

guest

0 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
