Highly customizable circle

SadChocolate

🌟 Circle and Star Shader for Godot 4.4

This shader allows rendering animated circles and stars with multiple customizable visual effects. It’s ideal for wallpapers, but I suspect it could also be used for magical powers, stylized decorations, or HUD elements.

Be creative! :3



✨ Features

Circle or animated star shape

Fully adjustable parameters from the Inspector

Supports:

Size animations (heartbeat, breathing)

Rotation and ellipse movement

Dynamic colors with bounce and wave effects

Stripe pattern with controllable transparency

Compatible with ShaderMaterial, Sprite2D, ColorRect, and similar nodes



Note: It has its components in spanish, but you can edit them in the code :3

This is my first project shared with the community.

Shader code
shader_type canvas_item;

group_uniforms Basicos;
uniform float radio: hint_range(0.0, 2.0, 0.001) = 0.1;
uniform float blur: hint_range(-1.0, 1.0, 0.0001) = 0.0001;
uniform vec2 posicion;
uniform mediump float ratio = 1.7066;
uniform vec2 tiling = vec2(0.0, 0.0);

group_uniforms Animaciones.Elipsis;
uniform float radElipsis: hint_range(-1.0, 1.0, 0.001) = 0.0;
uniform mediump float radVelocidad = 1.0;

group_uniforms Animaciones.Size;
uniform mediump float encoger;
uniform mediump float agrandar;

group_uniforms Animaciones.Colores;
uniform mediump float colorRebote;
uniform mediump float colorGolpe;
uniform float radColor: hint_range(0.0, 1.0, 0.001) = 0.0;
uniform int reboteDe: hint_enum("Ninguna", "Rojo", "Verde", "Azul", "Transparencia") = 0;
uniform int desreboteDe: hint_enum("Ninguna", "Rojo", "Verde", "Azul", "Transparencia") = 0;
uniform int golpeDe: hint_enum("Ninguna", "Rojo", "Verde", "Azul", "Transparencia") = 0;
uniform int ColorRadial: hint_enum("Ninguna", "Rojo", "Verde", "Azul") = 0;

group_uniforms Animaciones.ColoresEnFranjas;
uniform float frecuencia = 5.0;
uniform float velocidad_seno = 5.0;
uniform bool colorIntermitente = false;
uniform vec4 color1: source_color = vec4(1.0);
uniform vec4 color2: source_color;
uniform float color_interior: hint_range(0.1, 10.0) = 1.0;

group_uniforms Animaciones.Movimiento;
uniform mediump float velocidadX;
uniform mediump float amplitudX = 0.1;
uniform mediump float velocidadY;
uniform mediump float amplitudY = 0.1;
uniform mediump float Wululu;
uniform mediump float tardanza;
uniform bool Droppeo;

group_uniforms Animaciones.Blur;
uniform mediump float respirar;
uniform mediump float latido;
uniform bool limite;

group_uniforms Estrella;
uniform bool usar_estrella = false;
uniform int cantidad_puntas : hint_range(3, 20) = 5;
uniform float rotacion_estrella = 0.95;
uniform float velocidad_rotacion = 0.0;
uniform float sharpness = 1.0;

//////////////////////////////////////////////////
// === FUNCIONES ===============================
//////////////////////////////////////////////////

float circulo(vec2 uv, float radioVar, float blurreado) {
	float distancia = length(uv);
	float circunferencia = smoothstep(
		radioVar,
		radioVar + clamp(blurreado, limite ? 0.0 : -1.0, 1.0),
		distancia
	);
	return 1.0 - circunferencia;
}

float polarStar(in vec2 p) {
	float pi_n = PI / float(cantidad_puntas);
	float m2 = mod(atan(p.y, p.x) / pi_n + 1.0, 2.0);
	float adjust = -sharpness;
	return length(p) * cos((pi_n * adjust) * (m2 - 4.0 * step(1.0, m2) + 1.0)) - 1.0;
}

//////////////////////////////////////////////////
// === FRAGMENT ================================
//////////////////////////////////////////////////

void fragment() {
	vec2 uv = (UV - 0.5) * (2.0 + tiling);
	uv.x *= ratio;
	vec2 p = posicion / 100.0;

	float ss = encoger == 0.0 ? 1.0 : sin(TIME * encoger);
	float ts = agrandar == 0.0 ? 1.0 : tan(TIME * agrandar);
	float sc = sin(TIME * colorRebote);
	float tc = tan(TIME * colorGolpe);
	float senB = respirar == 0.0 ? 0.0 : sin(TIME * respirar);
	float tanB = latido == 0.0 ? 1.0 : sin(TIME * latido);
	float sp2 = Wululu == 0.0 ? 1.0 : sin(TIME * Wululu);

	float radioAnimado = radio * ss * ts;
	float blurAnimado = (blur + senB) * tanB;

	float angulo = TIME * radVelocidad - tardanza;
	vec2 offset = vec2(cos(angulo), sin(angulo)) * radElipsis;
	vec2 offsetColor = vec2(cos(angulo), sin(angulo)) * radColor;

	vec2 AnimacionPosicion = vec2(
		sin(velocidadX * (TIME - tardanza)) * amplitudX,
		sin(velocidadY * (TIME - tardanza)) * amplitudY
	);
	if (Droppeo) {
		AnimacionPosicion = vec2(
			tan(velocidadX * (TIME - tardanza)) * amplitudX,
			tan(velocidadY * (TIME - tardanza)) * amplitudY
		);
	}

	vec2 base_uv = uv + offset + p + AnimacionPosicion * sp2;

	float rotacion_total = rotacion_estrella + TIME * velocidad_rotacion;
	mat2 rot = mat2(vec2(cos(rotacion_total), -sin(rotacion_total)), vec2(sin(rotacion_total), cos(rotacion_total)));

	float c03;
	if (usar_estrella) {
		vec2 rotated_uv = rot * base_uv / radioAnimado;
		c03 = 1.0 - smoothstep(
			1.0,
			1.0 + clamp(blurAnimado, limite ? 0.0 : -1.0, 1.0),
			abs(polarStar(rotated_uv))
		);
	} else {
		c03 = circulo(base_uv, radioAnimado, blurAnimado);
	}

	vec4 Seno[5] = {
		vec4(0.0),
		vec4(float(sc), 0.0, 0.0, 0.0),
		vec4(0.0, float(sc), 0.0, 0.0),
		vec4(0.0, 0.0, float(sc), 0.0),
		vec4(0.0, 0.0, 0.0, float(sc))
	};

	vec4 Coseno[5] = {
		vec4(0.0),
		vec4(float(-sc), 0.0, 0.0, 0.0),
		vec4(0.0, float(-sc), 0.0, 0.0),
		vec4(0.0, 0.0, float(-sc), 0.0),
		vec4(0.0, 0.0, 0.0, float(-sc))
	};

	vec4 Tangente[5] = {
		vec4(0.0),
		vec4(float(tc), 0.0, 0.0, 0.0),
		vec4(0.0, float(tc), 0.0, 0.0),
		vec4(0.0, 0.0, float(tc), 0.0),
		vec4(0.0, 0.0, 0.0, float(tc))
	};

	vec4 Radial[4] = {
		vec4(0.0),
		vec4(offsetColor, 0.0, 0.0),
		vec4(0.0, offsetColor, 0.0),
		vec4(0.0, 0.0, offsetColor)
	};

	vec3 ColoresLocos = Seno[reboteDe].rgb + Coseno[desreboteDe].rgb + Tangente[golpeDe].rgb + Radial[ColorRadial].rgb;
	float Transparencias = Seno[reboteDe].a + Coseno[desreboteDe].a + Tangente[golpeDe].a;

	// === PATRÓN INTERIOR CON ALFA DE COLOR1 y COLOR2 ===
	vec2 uv_pattern = rot * base_uv / radioAnimado;
	float pattern_value = usar_estrella ? polarStar(uv_pattern) : length(uv_pattern);
	float d = sin(pattern_value * frecuencia + TIME * velocidad_seno) / 10.0;
	d = smoothstep(0.0, 0.0, d);

	float clip = usar_estrella
		? polarStar(uv_pattern * color_interior)
		: length(uv_pattern * color_interior) - 1.0;

	clip = smoothstep(1.0, 1.0, clip);
	d -= clip;

	// 🎯 Aquí se usa color1.a y color2.a
	vec4 white_col = vec4(color1.rgb * d, color1.a * d);
	vec4 black_col = vec4(color2.rgb * (1.0 - (d + clip)), color2.a * (1.0 - (d + clip)));
	vec4 decorativo = colorIntermitente ? (white_col + black_col) : vec4(0.0);

	// === COLOR FINAL ===
	vec4 finalColor = vec4(COLOR.rgb + ColoresLocos, (COLOR.a + Transparencias) * c03);
	if (colorIntermitente) {
		finalColor.rgb = mix(finalColor.rgb, decorativo.rgb, c03);
		finalColor.a = mix(finalColor.a, decorativo.a, c03);
	} else {
		finalColor.a *= c03;
}


	COLOR = finalColor;
}

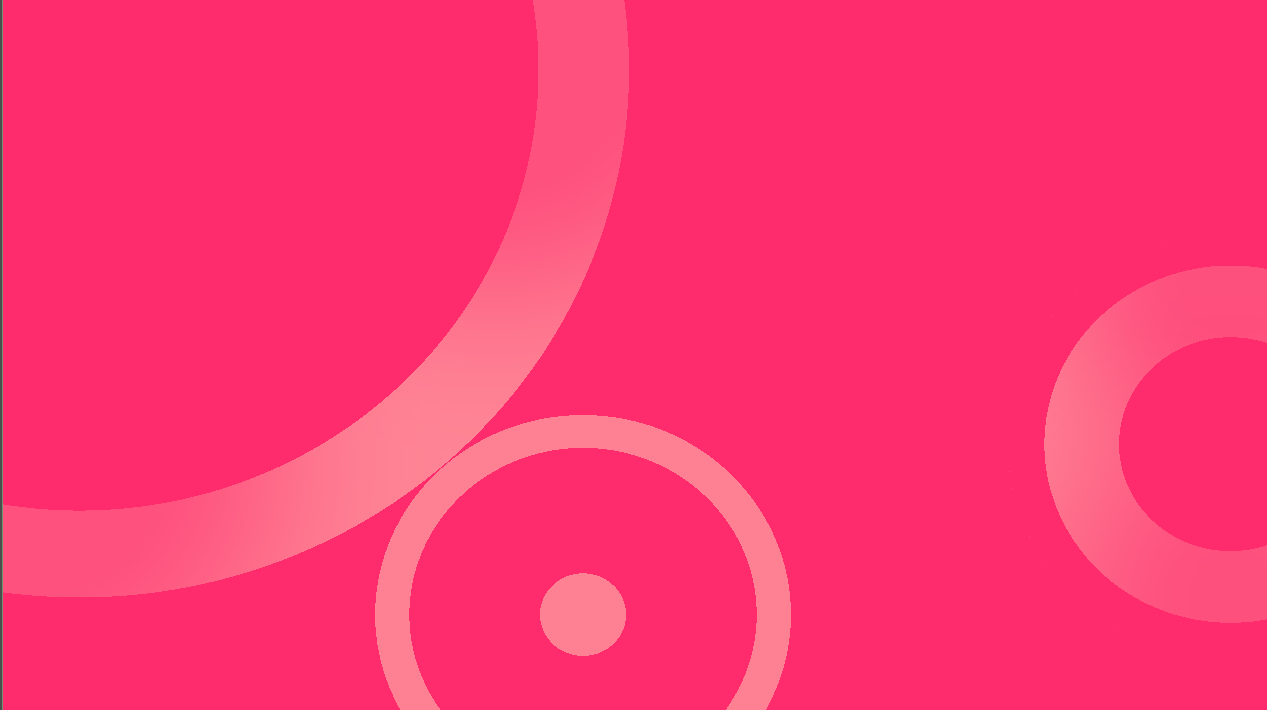

Live Preview
Tags
animation, circle, customizable, star
Get demo project
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
