Line Rendering Solution

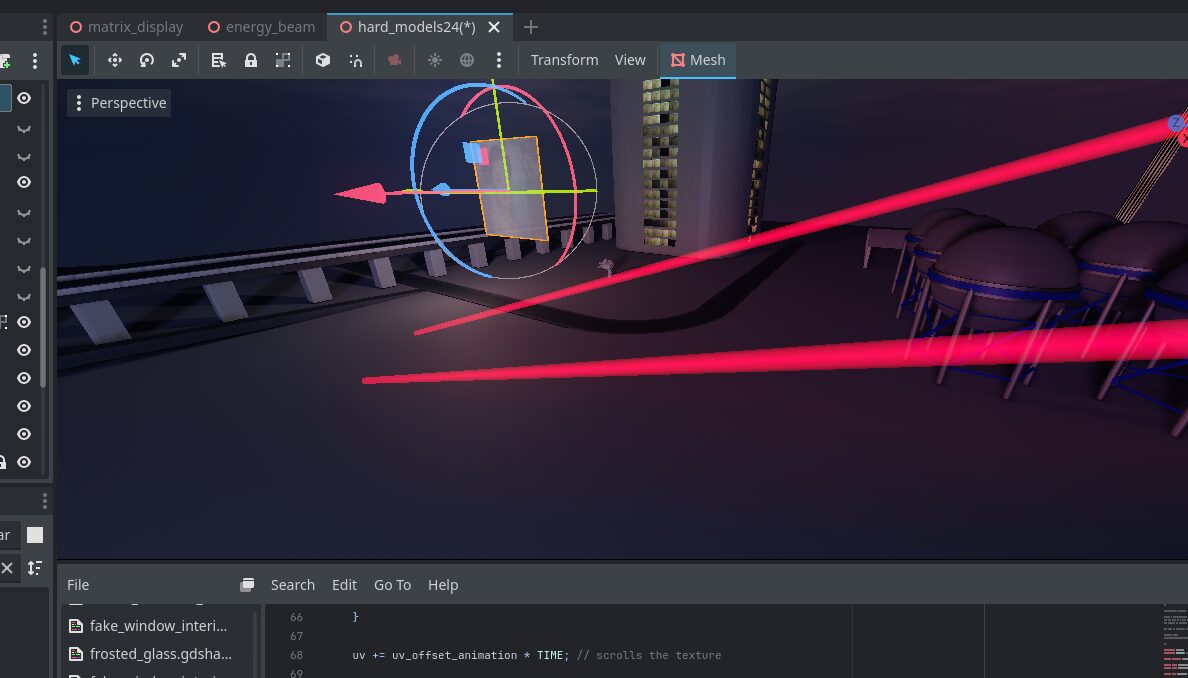

i wanted to make laser like lines, and realized modifying a y+billboard could work for a laser beam

i rember in Unity you could do this, i can’t find a solution quite like that where it could have multiple points on the line… also my solution may have a culling issue i’m working on i think it thinks all the line is behind the camera, i think this can be mitigated by making the quad actually longer

you could modify the fragment to add more stuff, i just have the basic example of scrolling our texture, the trick is done in the vertx

the main point of this vs say just making a cylinder, is you can have some sort of texture on the line, fading to alpha at the sides

Shader code

/*

LineRendering solution

create a MeshInstance3D
set the mesh as a quad (default settings)
set texture (a vertical gradient with alpha looks best)

the quad is stretched into position based on the parameters and rotation, you can also set the default axis (default +y)

modified from:
https://godotshaders.com/shader/billboard-sprite3d-hitflash-godot-4-x/

*/

shader_type spatial;
render_mode unshaded; // optional

uniform sampler2D albedo: hint_default_white; // the laser texture, a vertical gradient is suggested

uniform float line_width = 1.0;
uniform float line_length = 1.0; // set this larger to stretch the line

uniform bool correct_uv = true; // correct the uv stretching

uniform vec2 uv_offset_animation = vec2(0, 1); // (optional) scroll the texture, it could look like a moving beam

uniform vec3 default_axis = vec3(0.0, 1.0, 0.0); // default axis the line follows before rotation (rotate the nodes transform)

uniform vec4 color: source_color = vec4(1.0); // modulate the color

uniform float brightness = 1.0; // make extra bright, good for lasers


void vertex() {

    VERTEX += vec3(0,0.5,0); // correction for quad to make it stretch correctly

    VERTEX.y *= line_length; // stretch the lines length
    VERTEX.x *= line_width; // thin or fat line

    vec3 _target_position = normalize((MODEL_MATRIX * vec4(default_axis.x, default_axis.y, default_axis.z, 0.0)).xyz);

    // this is the same as a the y-billboard code but we can set any vector as the direction
    // as a consequence of the matrix, it also stretches the line!
    MODELVIEW_MATRIX = VIEW_MATRIX *
        mat4(
            vec4(normalize(cross(_target_position, INV_VIEW_MATRIX[2].xyz)), 0.0),
            vec4(_target_position.x, _target_position.y, _target_position.z, 0.0),
            vec4(normalize(cross(INV_VIEW_MATRIX[0].xyz, _target_position)),
            0.0
            ),
            MODEL_MATRIX[3]);

    //cargo code? i probabally don't need this unless we try to use normal maps
    //MODELVIEW_NORMAL_MATRIX = mat3(MODELVIEW_MATRIX);
}

void fragment() {

    vec2 uv = UV;

    if (correct_uv){
        uv.y *= line_length;
    }

    uv += uv_offset_animation * TIME; // scrolls the texture

    vec4 _color = texture(albedo, uv);
    _color *= color;
    _color.r *= brightness;
    _color.g *= brightness;
    _color.b *= brightness;


    ALBEDO = vec3(_color.r, _color.g, _color.b);
    ALPHA = _color.a;
}
