MemeHoloFoil – Parody Holographic Card Foil(全息卡片)

Parody holographic foil shader with time-flowing rainbow effect, designed for meme trading cards. Supports albedo + mask.

一款专为模因(meme)集换式卡牌设计的恶搞全息面膜染色器,具有随时间流动的彩虹效果,支持反光率(albedo)与遮罩(mask)贴图。

Shader code
/** MemeHoloFoil - 卡牌全息箔(带时间流动彩虹) */
shader_type spatial;
render_mode specular_schlick_ggx, blend_mix, depth_draw_opaque, cull_back;

// ========== 基础材质参数 ==========
/** 表面粗糙度,越低越像镜面镭射膜(推荐 0.02~0.08) */
uniform float roughness : hint_range(0.0, 1.0) = 0.04;

/** 金属度,全息箔建议保持 1.0 */
uniform float metallic : hint_range(0.0, 1.0) = 1.0;

/** 高光强度 */
uniform float specular : hint_range(0.0, 1.0) = 1.0;

// ========== 全息虹彩参数 ==========
/** 彩虹颜色条带密度,数值越大颜色切换越频繁 */
uniform float iridescence_scale : hint_range(0.5, 15.0) = 5.0;

/** 虹彩强度,0=无效果,1=完全彩虹 */
uniform float iridescence_intensity : hint_range(0.0, 1.0) = 0.9;

/** 边缘菲涅尔强度,控制边缘高光与彩虹的锐利程度 */
uniform float fresnel_power : hint_range(1.0, 8.0) = 2.8;

/** 自发光强度,让全息颜色在暗处也更醒目 */
uniform float emission_strength : hint_range(0.0, 2.0) = 0.35;

// ========== 时间流动参数 ==========
/** 彩虹流动速度,数值越大流动越快(建议 0.1~1.5) */
uniform float flow_speed : hint_range(0.0, 5.0) = 0.6;

/** 流动方向强度(影响 UV 与视角的混合权重) */
uniform float flow_direction : hint_range(0.0, 2.0) = 1.0;

// ========== 颜色与贴图 ==========
/** 基础金属底色(默认偏银色) */
uniform vec3 base_metal_color : source_color = vec3(0.82, 0.84, 0.9);

/** 卡牌基础贴图(可选,不填则使用纯色底) */
uniform sampler2D albedo_texture : source_color, hint_default_white;

/** 全息遮罩贴图(白色=全息区域,黑色=无全息。不填则整张卡都全息) */
uniform sampler2D holo_mask : source_color, hint_default_white;

/** 遮罩强度,控制遮罩影响程度 */
uniform float mask_strength : hint_range(0.0, 1.0) = 1.0;

// HSV 转 RGB
vec3 hsv2rgb(vec3 c) {
	vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
	vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
	return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void fragment() {
	// 采样基础贴图与遮罩
	vec4 tex = texture(albedo_texture, UV);
	float mask = texture(holo_mask, UV).r;
	mask = mix(1.0, mask, mask_strength);

	// 视角与法线夹角
	float NdotV = clamp(dot(NORMAL, VIEW), 0.0, 1.0);

	// 时间流动 + 视角 + UV 驱动的彩虹
	float flow = TIME * flow_speed;
	float hue = fract(
		(1.0 - NdotV) * iridescence_scale * 0.7 +
		UV.x * flow_direction +
		UV.y * flow_direction * 0.6 +
		flow
	);

	vec3 rainbow = hsv2rgb(vec3(hue, 0.92, 1.0));

	// Fresnel 边缘增强
	float fresnel = pow(1.0 - NdotV, fresnel_power);

	// 混合基础金属色与彩虹
	vec3 holo_color = mix(base_metal_color, rainbow, iridescence_intensity);
	holo_color = mix(holo_color, rainbow * 1.25, fresnel * 0.55);

	// 与卡牌贴图混合,并受遮罩控制
	vec3 final_albedo = mix(tex.rgb, holo_color, mask * iridescence_intensity);
	final_albedo = mix(final_albedo, holo_color, fresnel * mask * 0.4);

	ALBEDO = final_albedo;
	METALLIC = metallic * mask;
	ROUGHNESS = mix(0.6, roughness, mask);
	SPECULAR = specular;

	// 自发光让流动的彩虹更醒目
	EMISSION = holo_color * emission_strength * mask * (0.35 + fresnel * 0.65);
	ALPHA = tex.a;
}

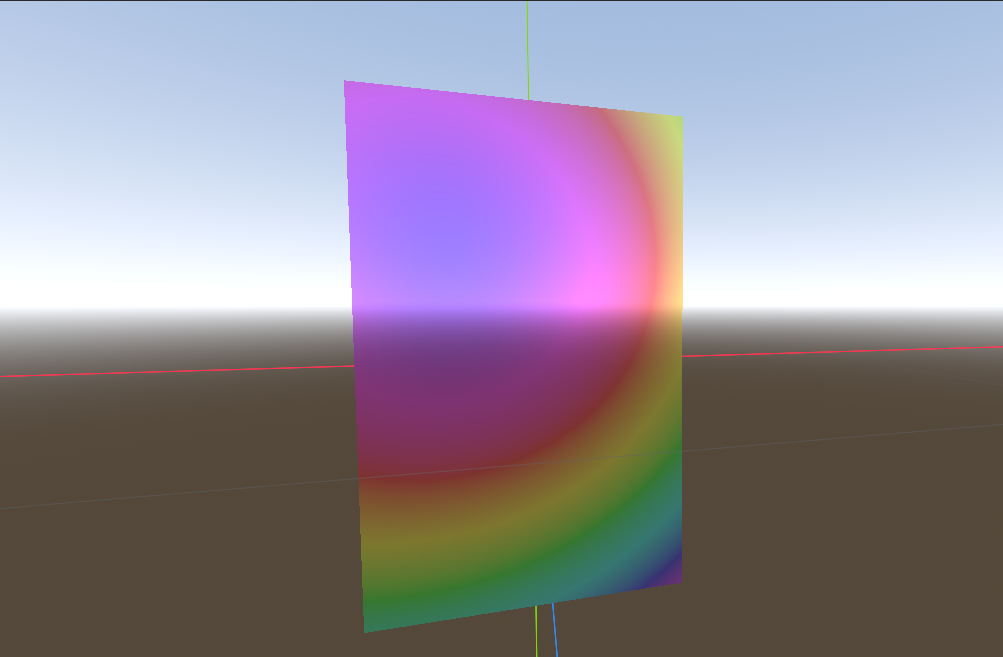

Live Preview
Tags
card, chrome, foil, godot4, holo, holographic, iridescent, laser, meme, parody, rainbow, sci-fi, Spatial, tradingcard
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
