Moon Shader 2D All Phases and Roughened Shadow

Uses faked distant point of illumination and dot product to determine shadows, enabling both crescent and gibbous shapes. Uses a noise texture to create a stippled shadow on the light/dark edge.

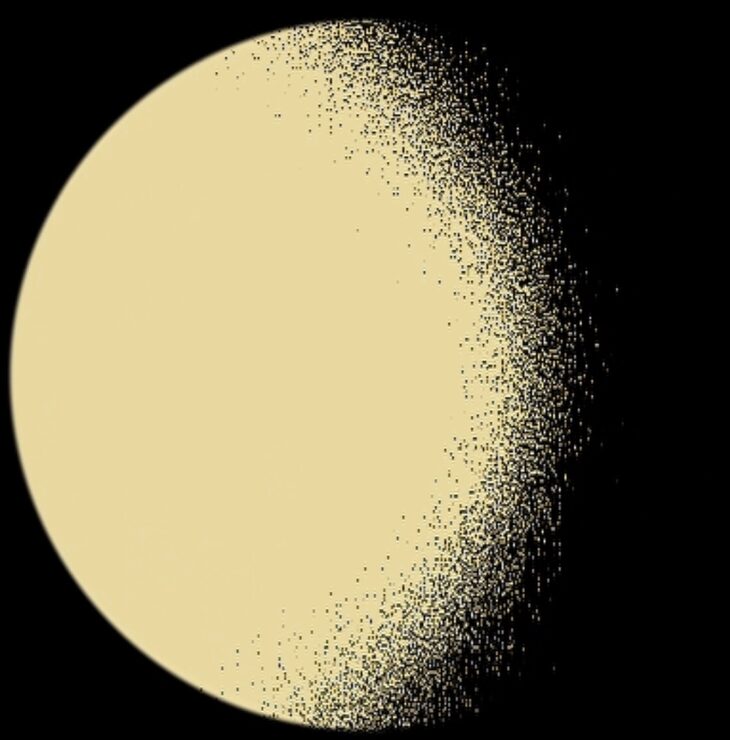

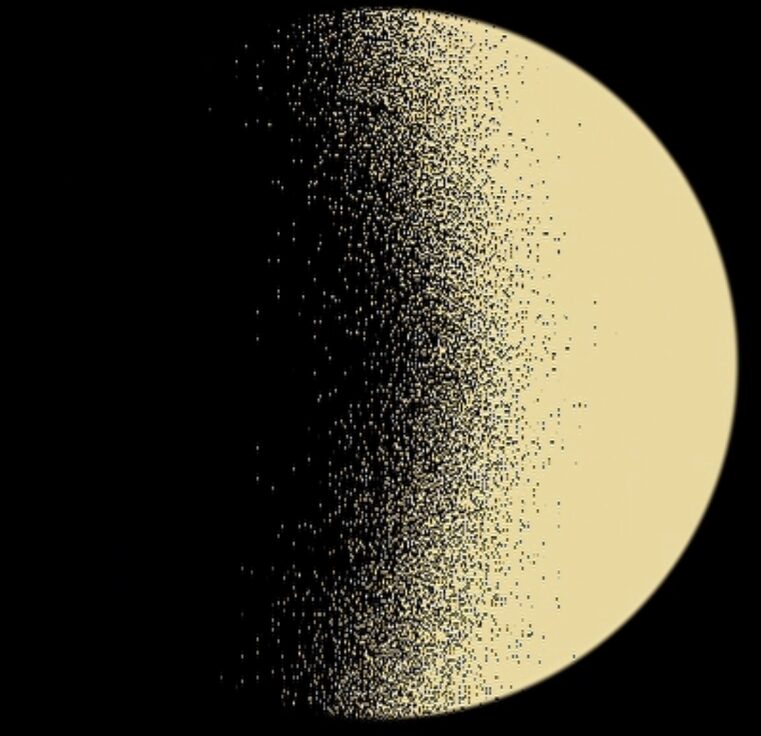

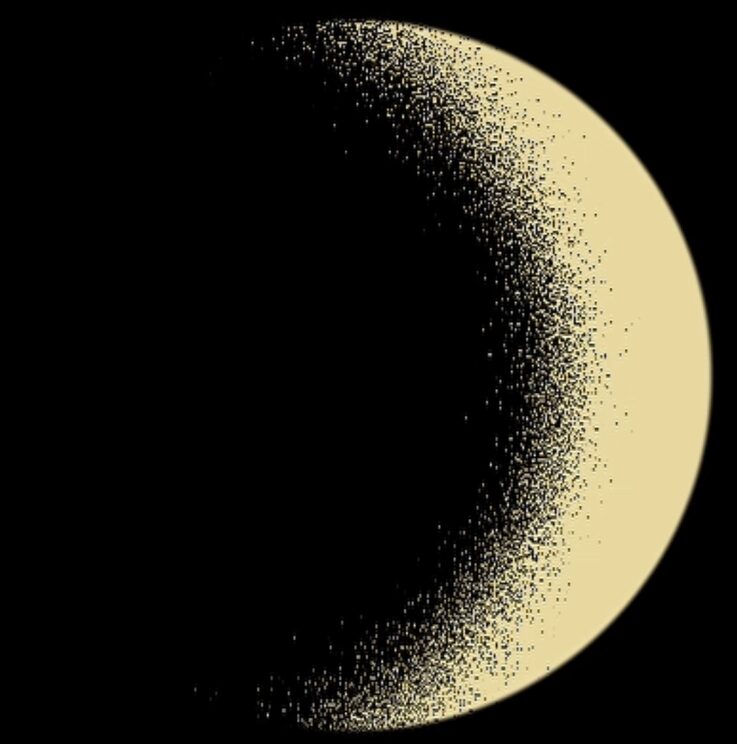

Sample image uses speed=0.5, distance=240, roughness=1.63.

The distance should be large, but beyond a certain point it doesn’t seem to matter much.

Shader code

shader_type canvas_item;

uniform vec4 color : source_color = vec4(1.);
uniform vec4 shaded_color: source_color = vec4(0., 0., 0., 1.);
uniform float speed : hint_range(0.0, 2.0, 0.01);
uniform float dist : hint_range(0., 240., .01);
uniform sampler2D noise_texture : source_color;
uniform float roughness : hint_range(0., 4., .01);

void fragment() {
  vec2 uv = 2.*(UV - vec2(.5));
  float height = (texture(noise_texture, UV).r-.5)*roughness;

  vec3 sphere_point = vec3(uv.x+height, uv.y, 1.-sqrt(uv.x*uv.x + uv.y*uv.y));
  vec3 light_point = dist*vec3(sin(PI*-TIME*.25*speed), uv.y/dist, cos(-TIME*.25*speed*PI));
  float dot_val = dot(sphere_point, (light_point-sphere_point)/length(light_point-sphere_point));
  float val  = smoothstep(-.05, 0., dot_val);

  COLOR = mix(color, shaded_color, val);
  COLOR.a *= smoothstep(1., .98, length(uv));
}
