Obstructing Wall Dissolve

You need to set the dissolve and hue noise as well as object’s GlobalPosition in your code or update it every frame if your object is moving and want to see it through the walls that have this shader.
This is the code written in C# from my demo project:
https://github.com/6ajmon/ObstructingWallDissolveShader/blob/master/Src/Level/ShaderUpdater.cs

using System;
using Godot;

public partial class ShaderUpdater : Node3D
{
    private ShaderMaterial material;
    [Export] Node3D cubeNode;
    [Export] MeshInstance3D meshNode;
    [Export] public int dissolveSeed = 0;
    [Export] public int hueSeed = 0;

    public override void _Ready()
    {
        material = (ShaderMaterial)meshNode.GetSurfaceOverrideMaterial(0);

        if (dissolveSeed != 0)
        {
            dissolveSeed = new Random().Next();
        }
        if (hueSeed != 0)
        {
            hueSeed = new Random().Next();
        }

        CreateNoiseTextures();
    }

    private void CreateNoiseTextures()
    {
        // dissolve noise
        var dissolveNoise = new FastNoiseLite();
        dissolveNoise.Seed = dissolveSeed;
        dissolveNoise.Frequency = 0.1f;
        dissolveNoise.NoiseType = FastNoiseLite.NoiseTypeEnum.Simplex;

        var dissolveNoiseTexture3D = new NoiseTexture3D();
        dissolveNoiseTexture3D.Noise = dissolveNoise;
        dissolveNoiseTexture3D.Width = 64;
        dissolveNoiseTexture3D.Height = 64;
        dissolveNoiseTexture3D.Depth = 64;

        // hue noise
        var hueNoise = new FastNoiseLite();
        hueNoise.Seed = hueSeed;
        hueNoise.Frequency = 0.05f;
        hueNoise.NoiseType = FastNoiseLite.NoiseTypeEnum.Perlin;

        var hueNoiseTexture3D = new NoiseTexture3D();
        hueNoiseTexture3D.Noise = hueNoise;
        hueNoiseTexture3D.Width = 32;
        hueNoiseTexture3D.Height = 32;
        hueNoiseTexture3D.Depth = 32;

        material.SetShaderParameter("dissolve_noise_texture", dissolveNoiseTexture3D);
        material.SetShaderParameter("hue_noise_texture", hueNoiseTexture3D);
    }

    public override void _Process(double delta)
    {
        material.SetShaderParameter("cube_position", cubeNode.GlobalPosition);
    }
}

This code also generates noise textures.

Shader code

// Dissolve effect shader that creates a line-of-sight dissolve effect between camera and target
// Objects dissolve with animated noise when they obstruct the view to the target cube
shader_type spatial;
render_mode blend_mix, cull_disabled;

// Position of the target cube we want to see through obstacles
uniform vec3 cube_position;
// Radius of the dissolve line effect
uniform float line_radius = 1.0;
// Start point of the dissolve transition (lower values = more dissolved)
uniform float transition_in : hint_range(-1.0, 1.0) = -0.5;
// End point of the dissolve transition (higher values = less dissolved)
uniform float transition_out : hint_range(-1.0, 1.0) = 0.5;

// 3D noise textures for dissolve and color effects (set in code)
uniform sampler3D dissolve_noise_texture;
uniform sampler3D hue_noise_texture;

// Animation parameters
uniform float animation_speed : hint_range(0.1, 5.0) = 0.6;
uniform float wave_amplitude : hint_range(0.0, 2.0) = 0.5;
uniform float rotation_speed : hint_range(0.0, 2.0) = 0.2;

// Rotates a 3D position around the Y-axis by the given angle
vec3 rotate_y(vec3 pos, float angle) {
    float cos_a = cos(angle);
    float sin_a = sin(angle);
    return vec3(
        pos.x * cos_a - pos.z * sin_a,
        pos.y,
        pos.x * sin_a + pos.z * cos_a
    );
}

// Converts HSV color to RGB color space
vec3 hsv2rgb(vec3 c) {
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void fragment() {
    // Get world position of current fragment and camera position
    vec3 world_pos = (INV_VIEW_MATRIX * vec4(VERTEX, 1.0)).xyz;
    vec3 camera_pos = INV_VIEW_MATRIX[3].xyz;

    // Calculate the line from camera to target cube
    vec3 line_dir = normalize(cube_position - camera_pos);
    vec3 line_start = camera_pos;

    // Find the closest point on the camera-to-cube line to this fragment
    vec3 to_fragment = world_pos - line_start;
    float proj_length = dot(to_fragment, line_dir);
    vec3 closest_point = line_start + line_dir * proj_length;

    // Calculate distance from fragment to the line of sight
    float dist_to_line = distance(world_pos, closest_point);

    // Check if fragment is between camera and cube (blocking the view)
    float dist_camera_to_cube = distance(camera_pos, cube_position);
    float dist_camera_to_fragment = distance(camera_pos, world_pos);
    bool is_between_camera_and_cube = dist_camera_to_fragment < dist_camera_to_cube;

    // Animated time for dynamic effects
    float time = TIME * animation_speed;

    // Create animated position with rotation and wave distortion
    vec3 animated_pos = rotate_y(world_pos, time * rotation_speed);

    // Add wave distortion to create more organic movement
    animated_pos.x += sin(time + world_pos.y * 2.0) * wave_amplitude;
    animated_pos.z += cos(time + world_pos.x * 2.0) * wave_amplitude;

    // Sample dissolve noise with animated coordinates
    vec3 noise_coords = animated_pos * 0.1 + vec3(time * 0.1, 0.0, 0.0);
    float dissolve_noise = texture(dissolve_noise_texture, noise_coords).r;

    // Calculate dissolve cutoff based on distance to line of sight
    float cutoff = 1.0 - smoothstep(transition_in, transition_out, dist_to_line - line_radius);

    // Discard fragments that are blocking the view and below the dissolve threshold
    if (is_between_camera_and_cube && dissolve_noise < cutoff) {
        discard;
    }

    // Apply different rendering for back faces vs front faces
    if (FRONT_FACING == false) {
        // Back faces get animated hue-shifted emission color
        vec3 hue_coords = animated_pos * 0.05 + vec3(0.0, time * 0.05, 0.0);
        float hue_offset = texture(hue_noise_texture, hue_coords).r;
        vec3 hsv = vec3(hue_offset, 0.85, 0.75);
        vec3 rgb = hsv2rgb(hsv);
        EMISSION = rgb;
        ALBEDO = vec3(0);
    } else {
        // Front faces are white
        ALBEDO = vec3(1.0, 1.0, 1.0);
    }
}

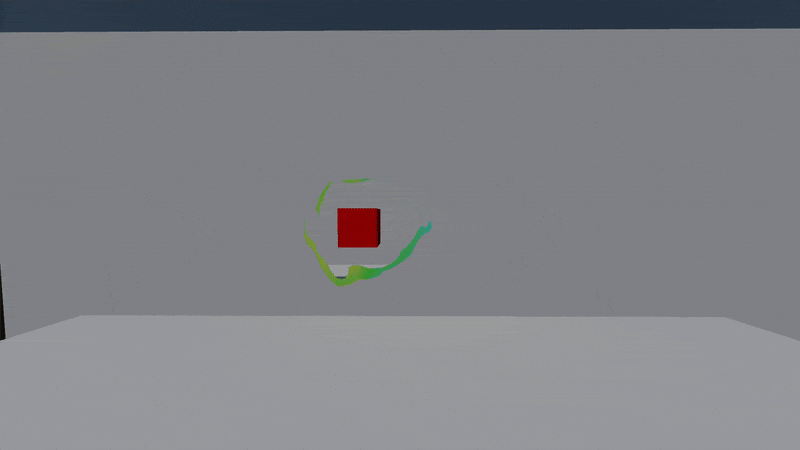

Live Preview
