Panorama Perspective (FNaF fake 3D)

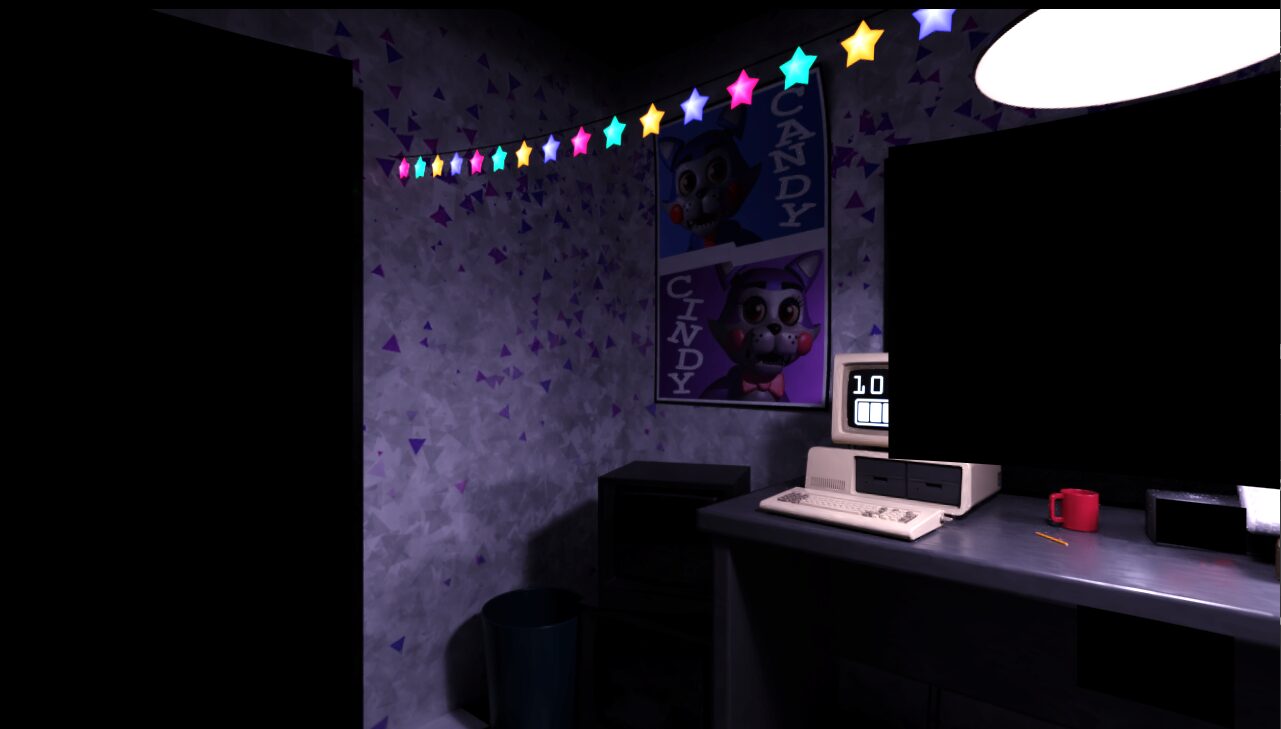

Credit to Emil “Ace” Macko for the cover image render.

Port of the PanoramaPerspective.fx Direct3D shader used by Emil Macko in FNaC Remastered. Perfect for faux-3D room scrolling as seen in FNaF fangames and other panoramic images. It currently only emulates horizontal warping.

To use, overlay a ColorRect or similar node with the material over the nodes you want affected by the shader. Edit the horizontal FOV hfov uniform to your settings. The shader will mess with your hitboxes and scrolling entirely so you’ll have to readjust formulas and positions.

Shader code

//PanoramaPerpective by Emil "Ace" Macko as seen in Five Nights at Candy's Remastered
//Ported from Direct3D to GDShader by Bixqa
shader_type canvas_item;

uniform sampler2D SCREEN_TEX : hint_screen_texture, filter_linear_mipmap;

uniform float hr: hint_range(0.0, 1.0) = 0.5;
uniform float vr: hint_range(0.0, 1.0) = 1.0;
uniform float hfov: hint_range(0.0, 360.0) = 180.0;
uniform float vfov: hint_range(0.0, 360.0) = 60;
uniform float z = 1.0;
uniform float ho: hint_range(0.0, 1.0) = 0.5;
uniform float vo: hint_range(0.0, 1.0) = 0.5;
uniform float to = 1.0;
uniform float to2 = 1.0;

void fragment()
{
    vec2 texCoord = SCREEN_UV;
    vec2 newCoord;

    texCoord = (texCoord - 0.5) * z + 0.5;

    vec2 o;
    o.x = radians(hfov);
    o.y = radians(vfov);

    float aspect = 0.5625;

    vec2 fov;
    fov.y = o.y * vr;
    fov.x = atan(1.0 / (aspect / tan(fov.y * 0.5))) * 2.0;

    vec3 v;

    v.x = texCoord.x - 0.5 - (ho - 0.5);
    v.y = (texCoord.y - 0.5) * aspect - to2 * (vo - 0.5);
    v.z = 0.5 / tan(fov.x * 0.5);

    float ta = (0.5 - vo) * (1.0 - vr) * o.y * 2.0;

    float c = cos(ta);
    float s = sin(ta);

    float tz = v.z * c - v.y * s;
    float ty = v.z * s + v.y * c;

    v.z = tz;
    v.y = ty;

    v = normalize(v);

    float lon = atan(v.x, v.z);

    float vz2 = v.x * sin(lon) + v.z * cos(lon);

    float lat = atan(v.y, vz2);

    newCoord.x = lon / (o.x * hr) + 0.5;
    newCoord.y = lat / (o.y * vr) + to * tan((1.0 - vr) * (vo - 0.5)) + 0.5;

    if (any(lessThan(newCoord, vec2(0.0))) ||
        any(greaterThan(newCoord, vec2(1.0))))
    {
        COLOR = vec4(0.0);
    }
    else
    {
        COLOR = texture(SCREEN_TEX, newCoord);
    }
}
