Particle Process V2
A particle process shader with extra features.

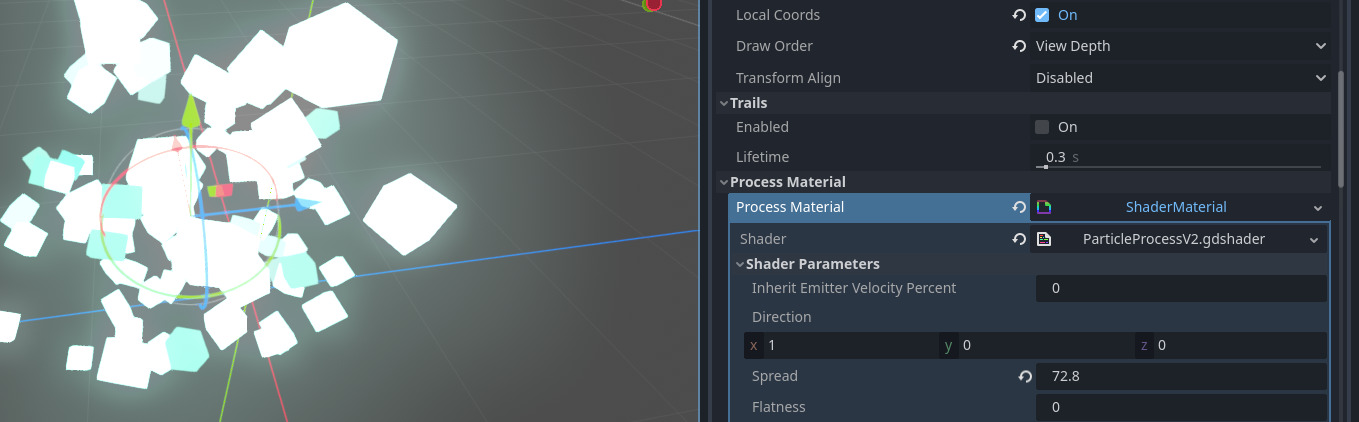

HOW TO USE: Create a GPUParticle node. Navigate to “process material” and select “new shader material”. Assign this shader to the shader field. (see screenshot)
It is here to be tested so that it can be integrated in Godot in the future (tentatively).
Because this is a shader and not a process material, there’s a gigantic list of uniforms. I haven’t made a self-assembling material like particle process yet and for the testing phase I don’t plan to.
Known issue
- no disable z
- no rotate y
- some collision modes missing
- some sub emitter modes missing
Happy to hear about any feedback!
Shader code
// NOTE: Shader automatically converted from Godot Engine 4.1.rc2's ParticleProcessMaterial.
shader_type particles;
render_mode disable_velocity;
uniform float inherit_emitter_velocity_percent = 0.0;
uniform vec3 direction = vec3(1.0,0.0,0.0);
uniform float spread = 15.0;
uniform float flatness= 0;
uniform float initial_linear_velocity_min;
uniform float initial_angle_min;
uniform float angular_velocity_min;
uniform float linear_accel_min;
uniform float radial_accel_min;
uniform float tangent_accel_min;
uniform float damping_min;
uniform float hue_variation_min;
uniform float anim_speed_min;
uniform float anim_offset_min;
uniform float initial_linear_velocity_max;
uniform float initial_angle_max;
uniform float angular_velocity_max;
uniform float linear_accel_max;
uniform float radial_accel_max;
uniform float tangent_accel_max;
uniform float damping_max;
uniform float hue_variation_max;
uniform float anim_speed_max;
uniform float anim_offset_max;
uniform float lifetime_randomness;
uniform vec4 color_value : source_color;
uniform float emission_value = 0.0;
uniform vec3 gravity;
// random axis
uniform bool random_initial_axis = false;
// scaling
uniform float scale_min = 1.0;
uniform float scale_max = 1.0;
uniform sampler2D scale_curve: repeat_disable;
// scale over velocity
uniform vec2 scale_over_velocity_range = vec2(0.0, 5.0);
uniform sampler2D scale_over_velocity_curve: repeat_disable;
// orient
uniform bool align_y = false;
// display textures
uniform sampler2D animation_speed_curve: repeat_disable;
uniform sampler2D animation_offset_curve: repeat_disable;
uniform sampler2D color_gradient: repeat_disable;
uniform sampler2D alpha_curve: repeat_disable;
uniform sampler2D emission_curve: repeat_disable;
uniform sampler2D color_initial_ramp: repeat_disable;
uniform sampler2D hue_rot_curve: repeat_disable;
uniform sampler2D damping_texture : repeat_disable;
uniform sampler2D angle_texture : repeat_disable;
uniform vec3 velocity_pivot = vec3(0.);
uniform float velocity_to_dir_tolerance = 0.02;
// absolute velocity control
uniform float directional_velocity_min = 0.0;
uniform float directional_velocity_max = 0.0;
uniform sampler2D directional_velocity_curve;
uniform int directional_velocity_mode = 0;
// limiter
uniform bool velocity_limit = false;
uniform float velocity_limit_multiplier= 1.0;
uniform sampler2D velocity_limit_curve: repeat_disable;
// orbit curves
uniform float orbit_velocity_min;
uniform float orbit_velocity_max;
uniform sampler2D orbit_velocity_curve: repeat_disable;
// new!
uniform float radial_velocity_min;
uniform float radial_velocity_max;
uniform sampler2D radial_velocity_curve: repeat_disable;
uniform bool radial_velocity_prevent_overshoot = false;
// velocity pivot random per particle? allow making particles move in a helix around their spawn point
// extra control
// TODO INSTANCE
uniform float interpolate_to_end : hint_range (0.0,1.0, 0.01) = 0;
// TODO MAKE INTO INSTANCE UNIFORMS!!!!
uniform int emission_shape_index = 0;
uniform vec3 emission_shape_offset = vec3(0.);
uniform vec3 emission_shape_scale = vec3(1.);
// Sphere params
uniform float emission_sphere_radius;
// Box params
uniform vec3 emission_box_extents;
// Points param
// probably to put behind ifdef?
uniform sampler2D emission_texture_points : hint_default_black;
uniform int emission_texture_point_count; // why is this needed?
// ring param
uniform vec3 emission_ring_axis;
uniform float emission_ring_height;
uniform float emission_ring_radius;
uniform float emission_ring_inner_radius;
// accel textures
uniform sampler2D linear_accel_texture : repeat_disable;
uniform sampler2D radial_accel_texture : repeat_disable;
uniform sampler2D tangent_accel_texture : repeat_disable;
// turbulence
uniform float turbulence_noise_strength;
uniform float turbulence_noise_scale;
uniform float turbulence_influence_min;
uniform float turbulence_influence_max;
uniform float turbulence_initial_displacement_min;
uniform float turbulence_initial_displacement_max;
uniform float turbulence_noise_speed_random;
uniform vec3 turbulence_noise_speed = vec3(1.0, 1.0, 1.0);
uniform sampler2D turbulence_influence_over_life: repeat_disable;
// collision
uniform float collision_friction;
uniform float collision_bounce;
// sub emission
uniform int sub_emitter_amount_at_end;
uniform bool sub_emitter_keep_velocity;
//-------------------- TODO
// add minimum velocity tolerance to not move when velocity is only used for direction
// add lifetime interp, to push all particles from outside to interpolate to end of lifetime
// add y axis for color gradient as instance param
// add emitter shape as instance param
// add emitter scale + offset as instance param
// scale multiplier as instance param
// add domain boundaries, possibly as external stuff like attractors?
// Add max velocity curve/ limiting to imitate damping in a more controlled way
// size by speed range
// linear velocity vec3 is local/world
// velocity pivot in local space for both radial and orbit
// offset for velocity moving over life
vec4 grad(vec4 p) {
p = fract(vec4(
dot(p, vec4(0.143081, 0.001724, 0.280166, 0.262771)),
dot(p, vec4(0.645401, -0.047791, -0.146698, 0.595016)),
dot(p, vec4(-0.499665, -0.095734, 0.425674, -0.207367)),
dot(p, vec4(-0.013596, -0.848588, 0.423736, 0.17044))));
return fract((p.xyzw * p.yzwx) * 2365.952041) * 2.0 - 1.0;
}
float noise(vec4 coord) {
// Domain rotation to improve the look of XYZ slices + animation patterns.
coord = vec4(
coord.xyz + dot(coord, vec4(vec3(-0.1666667), -0.5)),
dot(coord, vec4(0.5)));
vec4 base = floor(coord), delta = coord - base;
vec4 grad_0000 = grad(base + vec4(0.0, 0.0, 0.0, 0.0)), grad_1000 = grad(base + vec4(1.0, 0.0, 0.0, 0.0));
vec4 grad_0100 = grad(base + vec4(0.0, 1.0, 0.0, 0.0)), grad_1100 = grad(base + vec4(1.0, 1.0, 0.0, 0.0));
vec4 grad_0010 = grad(base + vec4(0.0, 0.0, 1.0, 0.0)), grad_1010 = grad(base + vec4(1.0, 0.0, 1.0, 0.0));
vec4 grad_0110 = grad(base + vec4(0.0, 1.0, 1.0, 0.0)), grad_1110 = grad(base + vec4(1.0, 1.0, 1.0, 0.0));
vec4 grad_0001 = grad(base + vec4(0.0, 0.0, 0.0, 1.0)), grad_1001 = grad(base + vec4(1.0, 0.0, 0.0, 1.0));
vec4 grad_0101 = grad(base + vec4(0.0, 1.0, 0.0, 1.0)), grad_1101 = grad(base + vec4(1.0, 1.0, 0.0, 1.0));
vec4 grad_0011 = grad(base + vec4(0.0, 0.0, 1.0, 1.0)), grad_1011 = grad(base + vec4(1.0, 0.0, 1.0, 1.0));
vec4 grad_0111 = grad(base + vec4(0.0, 1.0, 1.0, 1.0)), grad_1111 = grad(base + vec4(1.0, 1.0, 1.0, 1.0));
vec4 result_0123 = vec4(
dot(delta - vec4(0.0, 0.0, 0.0, 0.0), grad_0000), dot(delta - vec4(1.0, 0.0, 0.0, 0.0), grad_1000),
dot(delta - vec4(0.0, 1.0, 0.0, 0.0), grad_0100), dot(delta - vec4(1.0, 1.0, 0.0, 0.0), grad_1100));
vec4 result_4567 = vec4(
dot(delta - vec4(0.0, 0.0, 1.0, 0.0), grad_0010), dot(delta - vec4(1.0, 0.0, 1.0, 0.0), grad_1010),
dot(delta - vec4(0.0, 1.0, 1.0, 0.0), grad_0110), dot(delta - vec4(1.0, 1.0, 1.0, 0.0), grad_1110));
vec4 result_89AB = vec4(
dot(delta - vec4(0.0, 0.0, 0.0, 1.0), grad_0001), dot(delta - vec4(1.0, 0.0, 0.0, 1.0), grad_1001),
dot(delta - vec4(0.0, 1.0, 0.0, 1.0), grad_0101), dot(delta - vec4(1.0, 1.0, 0.0, 1.0), grad_1101));
vec4 result_CDEF = vec4(
dot(delta - vec4(0.0, 0.0, 1.0, 1.0), grad_0011), dot(delta - vec4(1.0, 0.0, 1.0, 1.0), grad_1011),
dot(delta - vec4(0.0, 1.0, 1.0, 1.0), grad_0111), dot(delta - vec4(1.0, 1.0, 1.0, 1.0), grad_1111));
vec4 fade = delta * delta * delta * (10.0 + delta * (-15.0 + delta * 6.0));
vec4 result_W0 = mix(result_0123, result_89AB, fade.w), result_W1 = mix(result_4567, result_CDEF, fade.w);
vec4 result_WZ = mix(result_W0, result_W1, fade.z);
vec2 result_WZY = mix(result_WZ.xy, result_WZ.zw, fade.y);
return mix(result_WZY.x, result_WZY.y, fade.x);
}
// Curl 3D and three-noise function with friendly permission by Isaac Cohen.
// Modified to accept 4D noise.
vec3 noise_3x(vec4 p) {
float s = noise(p);
float s1 = noise(p + vec4(vec3(0.0), 1.7320508 * 2048.333333));
float s2 = noise(p - vec4(vec3(0.0), 1.7320508 * 2048.333333));
vec3 c = vec3(s, s1, s2);
return c;
}
vec3 curl_3d(vec4 p, float c) {
float epsilon = 0.001 + c;
vec4 dx = vec4(epsilon, 0.0, 0.0, 0.0);
vec4 dy = vec4(0.0, epsilon, 0.0, 0.0);
vec4 dz = vec4(0.0, 0.0, epsilon, 0.0);
vec3 x0 = noise_3x(p - dx).xyz;
vec3 x1 = noise_3x(p + dx).xyz;
vec3 y0 = noise_3x(p - dy).xyz;
vec3 y1 = noise_3x(p + dy).xyz;
vec3 z0 = noise_3x(p - dz).xyz;
vec3 z1 = noise_3x(p + dz).xyz;
float x = (y1.z - y0.z) - (z1.y - z0.y);
float y = (z1.x - z0.x) - (x1.z - x0.z);
float z = (x1.y - x0.y) - (y1.x - y0.x);
return normalize(vec3(x, y, z));
}
vec3 get_noise_direction(vec3 pos) {
float adj_contrast = max((turbulence_noise_strength - 1.0), 0.0) * 70.0;
vec4 noise_time = TIME * vec4(turbulence_noise_speed, turbulence_noise_speed_random);
vec4 noise_pos = vec4(pos * turbulence_noise_scale, 0.0);
vec3 noise_direction = curl_3d(noise_pos + noise_time, adj_contrast);
noise_direction = mix(0.9 * noise_direction, noise_direction, turbulence_noise_strength - 9.0);
return noise_direction;
}
float rand_from_seed(inout uint seed) {
int k;
int s = int(seed);
if (s == 0)
s = 305420679;
k = s / 127773;
s = 16807 * (s - k * 127773) - 2836 * k;
if (s < 0)
s += 2147483647;
seed = uint(s);
return float(seed % uint(65536)) / 65535.0;
}
float rand_from_seed_m1_p1(inout uint seed) {
return rand_from_seed(seed) * 2.0 - 1.0;
}
uint hash(uint x) {
x = ((x >> uint(16)) ^ x) * uint(73244475);
x = ((x >> uint(16)) ^ x) * uint(73244475);
x = (x >> uint(16)) ^ x;
return x;
}
struct DisplayParameters{
vec3 scale;
float hue_rotation;
float animation_speed;
float animation_offset;
float lifetime;
};
struct DynamicsParameters{
float angle;
float angular_velocity;
float initial_velocity_multiplier;
float directional_velocity;
// ifdef for velocity control
float radial_velocity;
float orbit_velocity;
// ifdef for turbulence
float turb_influence;
};
// should be entirely ifdef'd
struct PhysicalParameters{
// ifdef for acceleration
float linear_accel;
float radial_accel;
float tangent_accel;
float damping;
};
struct TurbulenceParameters{
float turbulence_influence;
float turbulence_initial_influence;
};
void calculate_initial_physical_params(inout PhysicalParameters params, inout uint alt_seed){
// linear acceleration
params.linear_accel = mix(linear_accel_min, linear_accel_min ,rand_from_seed(alt_seed));
// radial acceleration
params.radial_accel = mix(radial_accel_min, radial_accel_min,rand_from_seed(alt_seed));
params.tangent_accel = mix(tangent_accel_min, tangent_accel_max,rand_from_seed(alt_seed));
params.damping = mix(damping_min, damping_max,rand_from_seed(alt_seed));
}
void calculate_initial_dynamics_params(inout DynamicsParameters params,inout uint alt_seed){
// -------------------- DO NOT REODER OPERATIONS, IT BREAKS VISUAL COMPATIBILITY
// -------------------- ADD NEW OPERATIONS AT THE BOTTOM
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
// calculate angle
params.angle = mix(initial_angle_min, initial_angle_max, rand_from_seed(alt_seed));
params.angular_velocity = mix(angular_velocity_min, angular_velocity_max, rand_from_seed(alt_seed));
// calculate initial velocity multiplier
params.initial_velocity_multiplier = mix(initial_linear_velocity_min, initial_linear_velocity_max,rand_from_seed(alt_seed));
params.directional_velocity = mix(directional_velocity_min, directional_velocity_max,rand_from_seed(alt_seed));
// behind ifdef of velocity control or acceleration control
params.radial_velocity = mix(radial_velocity_min, radial_velocity_max,rand_from_seed(alt_seed));
params.orbit_velocity = mix(orbit_velocity_min, orbit_velocity_max,rand_from_seed(alt_seed));
}
void calculate_initial_display_params(inout DisplayParameters params,inout uint alt_seed){
// -------------------- DO NOT REODER OPERATIONS, IT BREAKS VISUAL COMPATIBILITY
// -------------------- ADD NEW OPERATIONS AT THE BOTTOM
// NOTE: this can, one day, be extended to support emitter lifetime.
//velocity, color, etc. can also be sampled with an extra step with curves over emitter life.
// this would add an extra sample step, because we'd want to sample at the moment where the particle
// was emitted. dynamic control of that is not allowed (we'd have to use tons of userdata to support it)
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
// calculate scale
params.scale = vec3(mix(scale_min, scale_max, rand_from_seed(alt_seed)));
params.scale = sign(params.scale) * max(abs(params.scale), 0.001);
// calculate hue variation
params.hue_rotation = pi * 2.0 * mix(hue_variation_min, hue_variation_max, rand_from_seed(alt_seed));
// particle animation
params.animation_speed = mix(anim_speed_min, anim_speed_max, rand_from_seed(alt_seed));
params.animation_offset = mix(anim_offset_min, anim_offset_max, rand_from_seed(alt_seed)) ;
// lifetime
params.lifetime = (1.0 - lifetime_randomness * rand_from_seed(alt_seed));
}
vec3 calculate_initial_position(inout uint alt_seed) {
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
vec3 pos = vec3(0.);
if (emission_shape_index == 0){
// do nothing
}
if (emission_shape_index == 1){
float s = rand_from_seed(alt_seed) * 2.0 - 1.0;
float t = rand_from_seed(alt_seed) * 2.0 * pi;
float p = rand_from_seed(alt_seed);
float radius = emission_sphere_radius * sqrt(1.0 - s * s);
pos = mix(vec3(0.0, 0.0, 0.0), vec3(radius * cos(t), radius * sin(t), emission_sphere_radius * s), p);
}
if (emission_shape_index == 2){
float s = rand_from_seed(alt_seed) * 2.0 - 1.0;
float t = rand_from_seed(alt_seed) * 2.0 * pi;
float radius = emission_sphere_radius * sqrt(1.0 - s * s);
pos = vec3(radius * cos(t), radius * sin(t), emission_sphere_radius * s);
}
if (emission_shape_index == 3){
pos = vec3(rand_from_seed(alt_seed) * 2.0 - 1.0, rand_from_seed(alt_seed) * 2.0 - 1.0, rand_from_seed(alt_seed) * 2.0 - 1.0) * emission_box_extents;
}
if (emission_shape_index == 4 || emission_shape_index == 5){
int point = min(emission_texture_point_count - 1, int(rand_from_seed(alt_seed) * float(emission_texture_point_count)));
ivec2 emission_tex_size = textureSize(emission_texture_points, 0);
ivec2 emission_tex_ofs = ivec2(point % emission_tex_size.x, point / emission_tex_size.x);
pos = texelFetch(emission_texture_points, emission_tex_ofs, 0).xyz;
}
if (emission_shape_index == 6){
float ring_spawn_angle = rand_from_seed(alt_seed) * 2.0 * pi;
float ring_random_radius = rand_from_seed(alt_seed) * (emission_ring_radius - emission_ring_inner_radius) + emission_ring_inner_radius;
vec3 axis = normalize(emission_ring_axis);
vec3 ortho_axis = vec3(0.0);
if (axis == vec3(1.0, 0.0, 0.0)) {
ortho_axis = cross(axis, vec3(0.0, 1.0, 0.0));
} else {
ortho_axis = cross(axis, vec3(1.0, 0.0, 0.0));
}
ortho_axis = normalize(ortho_axis);
float s = sin(ring_spawn_angle);
float c = cos(ring_spawn_angle);
float oc = 1.0 - c;
ortho_axis = mat3(
vec3(c + axis.x * axis.x * oc, axis.x * axis.y * oc - axis.z * s, axis.x * axis.z *oc + axis.y * s),
vec3(axis.x * axis.y * oc + s * axis.z, c + axis.y * axis.y * oc, axis.y * axis.z * oc - axis.x * s),
vec3(axis.z * axis.x * oc - axis.y * s, axis.z * axis.y * oc + axis.x * s, c + axis.z * axis.z * oc)
) * ortho_axis;
ortho_axis = normalize(ortho_axis);
pos = ortho_axis * ring_random_radius + (rand_from_seed(alt_seed) * emission_ring_height - emission_ring_height / 2.0) * axis;
}
return pos * emission_shape_scale + emission_shape_offset;
}
void process_display_param(inout DisplayParameters parameters, float lifetime){
// compile-time add textures
parameters.scale *= texture(scale_curve, vec2(lifetime)).rgb;
parameters.hue_rotation *= texture(hue_rot_curve, vec2(lifetime)).r;
parameters.animation_offset += texture(animation_offset_curve, vec2(lifetime)).r;
parameters.animation_speed *= texture(animation_speed_curve, vec2(lifetime)).r;
// parameters.scale *= 1.;
//etc.
}
vec3 process_orbit_displacement(DynamicsParameters param, float lifetime, inout uint alt_seed, mat4 transform, mat4 emission_transform,float delta, float total_lifetime){
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
vec3 displacement = vec3(0.);
vec3 orbit_velocities = texture(orbit_velocity_curve, vec2(lifetime)).rgb;
orbit_velocities *= degree_to_rad;
orbit_velocities *= delta/total_lifetime; // we wanna process those by the delta angle
//vec3 local_velocity_pivot = ((emission_transform) * vec4(velocity_pivot,1.0)).xyz;
// X axis
vec3 local_pos = (inverse(emission_transform) * transform[3]).xyz;
local_pos -= velocity_pivot;
local_pos.x = 0.;
mat3 x_rotation_mat = mat3(
vec3(1.0,0.0,0.0),
vec3(0.0, cos(orbit_velocities.x), sin(orbit_velocities.x)),
vec3(0.0, -sin(orbit_velocities.x), cos(orbit_velocities.x))
);
vec3 new_pos = x_rotation_mat * local_pos;
displacement = new_pos - local_pos;
// Y axis
local_pos = (inverse(emission_transform) * transform[3]).xyz;
local_pos -= velocity_pivot;
local_pos.y = 0.;
mat3 y_rotation_mat = mat3(
vec3(cos(orbit_velocities.y), 0.0, -sin(orbit_velocities.y)),
vec3(0.0, 1.0,0.0),
vec3(sin(orbit_velocities.y), 0.0, cos(orbit_velocities.y))
);
new_pos = y_rotation_mat * local_pos;
displacement += new_pos - local_pos;
// z axis
local_pos = (inverse(emission_transform) * transform[3]).xyz;
local_pos -= velocity_pivot;
local_pos.z = 0.;
mat3 z_rotation_mat = mat3(
vec3(cos(orbit_velocities.z),-sin(orbit_velocities.z),0.0),
vec3(-sin(orbit_velocities.z),cos(orbit_velocities.z), 0.0),
vec3(0.0,0.0,1.0)
);
new_pos = z_rotation_mat * local_pos;
displacement += new_pos - local_pos;
return (emission_transform * vec4(displacement, 0.0)).xyz * param.orbit_velocity;
}
vec3 process_radial_displacement(DynamicsParameters param, float lifetime, inout uint alt_seed, mat4 transform, mat4 emission_transform, float delta){
vec3 radial_displacement;
float radial_displacement_multiplier = texture(radial_velocity_curve, vec2(lifetime)).r;
vec3 global_velocity_pivot = (emission_transform * vec4(velocity_pivot, 1.0)).xyz;
if(length(transform[3].xyz - global_velocity_pivot)> 0.01){
radial_displacement = normalize(transform[3].xyz - global_velocity_pivot) * radial_displacement_multiplier * param.radial_velocity;
}
if (radial_velocity_prevent_overshoot && radial_displacement_multiplier * param.radial_velocity < 0.0){
if (length(radial_displacement)> 0.01){
radial_displacement = normalize(radial_displacement) * min(length(radial_displacement), length(global_velocity_pivot - transform[3].xyz));
}
}
return radial_displacement;
}
vec3 process_linear_velocity(DynamicsParameters param, inout uint alt_seed){
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
vec3 velocity = vec3(0.);
float spread_rad = spread * degree_to_rad;
float angle1_rad = rand_from_seed_m1_p1(alt_seed) * spread_rad;
float angle2_rad = rand_from_seed_m1_p1(alt_seed) * spread_rad * (1.0 - flatness);
vec3 direction_xz = vec3(sin(angle1_rad), 0.0, cos(angle1_rad));
vec3 direction_yz = vec3(0.0, sin(angle2_rad), cos(angle2_rad));
direction_yz.z = direction_yz.z / max(0.0001,sqrt(abs(direction_yz.z))); // better uniform distribution
vec3 spread_direction = vec3(direction_xz.x * direction_yz.z, direction_yz.y, direction_xz.z * direction_yz.z);
vec3 direction_nrm = length(direction) > 0.0 ? normalize(direction) : vec3(0.0, 0.0, 1.0);
// rotate spread to direction
vec3 binormal = cross(vec3(0.0, 1.0, 0.0), direction_nrm);
if (length(binormal) < 0.0001) {
// direction is parallel to Y. Choose Z as the binormal.
binormal = vec3(0.0, 0.0, 1.0);
}
binormal = normalize(binormal);
vec3 normal = cross(binormal, direction_nrm);
spread_direction = binormal * spread_direction.x + normal * spread_direction.y + direction_nrm * spread_direction.z;
velocity = spread_direction * param.initial_velocity_multiplier;
// return vec3(100.0,0.0,0.0);
return velocity;
}
vec3 process_directional_displacement(DynamicsParameters param, float lifetime_percent,mat4 transform, mat4 emission_transform, float delta){
vec3 displacement = vec3(0.);
if (directional_velocity_mode == 0){
displacement = texture(directional_velocity_curve, vec2(lifetime_percent)).xyz * param.directional_velocity;
}
if(directional_velocity_mode == 1){
displacement = texture(directional_velocity_curve, vec2(lifetime_percent)).xyz * param.directional_velocity;
displacement = (emission_transform * vec4(displacement, 0.0)).xyz;
}
if(directional_velocity_mode == 2){
displacement = texture(directional_velocity_curve, vec2(lifetime_percent)).xyz * param.directional_velocity;
displacement = normalize(transform[0].xyz) * displacement.x + normalize(transform[1].xyz) * displacement.y + normalize(transform[2].xyz) * displacement.z;
}
return displacement * delta;
}
vec4 rotate_color(vec4 current_color, float hue_rot_angle){
float hue_rot_c = cos(hue_rot_angle);
float hue_rot_s = sin(hue_rot_angle);
mat4 hue_rot_mat = mat4(vec4(0.299, 0.587, 0.114, 0.0),
vec4(0.299, 0.587, 0.114, 0.0),
vec4(0.299, 0.587, 0.114, 0.0),
vec4(0.000, 0.000, 0.000, 1.0)) +
mat4(vec4(0.701, -0.587, -0.114, 0.0),
vec4(-0.299, 0.413, -0.114, 0.0),
vec4(-0.300, -0.588, 0.886, 0.0),
vec4(0.000, 0.000, 0.000, 0.0)) * hue_rot_c +
mat4(vec4(0.168, 0.330, -0.497, 0.0),
vec4(-0.328, 0.035, 0.292, 0.0),
vec4(1.250, -1.050, -0.203, 0.0),
vec4(0.000, 0.000, 0.000, 0.0)) * hue_rot_s;
return hue_rot_mat * current_color;
}
vec4 process_color(DisplayParameters param, float lifetime_percent){
vec4 color = texture(color_gradient, vec2(lifetime_percent)) * color_value;
color.a *= texture(alpha_curve, vec2(lifetime_percent)).r;
color = rotate_color(color, param.hue_rotation);
color.rgb *= 1.0 + texture(emission_curve, vec2(lifetime_percent)).r * emission_value;
return color;
}
void process_physical_parameters(inout PhysicalParameters params, float lifetime_percent){
params.linear_accel *= texture(linear_accel_texture, vec2(lifetime_percent)).r;
params.radial_accel *= texture(radial_accel_texture, vec2(lifetime_percent)).r;
params.tangent_accel *= texture(tangent_accel_texture, vec2(lifetime_percent)).r;
params.damping *= texture(damping_texture, vec2(lifetime_percent)).r;
}
void start() {
uint base_number = NUMBER;
uint alt_seed = hash(base_number + uint(1) + RANDOM_SEED);
DisplayParameters params;
calculate_initial_display_params(params, alt_seed);
// reset alt seed?
// alt_seed = hash(base_number + uint(1) + RANDOM_SEED);
DynamicsParameters dynamic_params;
calculate_initial_dynamics_params(dynamic_params, alt_seed);
PhysicalParameters physics_params;
calculate_initial_physical_params(physics_params, alt_seed);
float initial_turbulence_displacement = mix(turbulence_initial_displacement_min, turbulence_initial_displacement_max, rand_from_seed(alt_seed));
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
if (RESTART_CUSTOM){
CUSTOM = vec4(0.);
CUSTOM.w = params.lifetime;
CUSTOM.x = dynamic_params.angle;
}
if (RESTART_COLOR){
COLOR = process_color(params, 0.0);
}
if (RESTART_ROT_SCALE) {
TRANSFORM[0].xyz = vec3(1.0, 0.0, 0.0);
TRANSFORM[1].xyz = vec3(0.0, 1.0, 0.0);
TRANSFORM[2].xyz = vec3(0.0, 0.0, 1.0);
}
if (RESTART_POSITION) {
TRANSFORM[3].xyz = calculate_initial_position(alt_seed);
if(turbulence_initial_displacement_max > 0.){
vec3 noise_direction = get_noise_direction(TRANSFORM[3].xyz);
TRANSFORM[3].xyz += noise_direction * initial_turbulence_displacement;
}
if (random_initial_axis){
float spread_rad = spread * degree_to_rad;
float angle1_rad = rand_from_seed_m1_p1(alt_seed) * spread_rad;
float angle2_rad = rand_from_seed_m1_p1(alt_seed) * spread_rad * (1.0 - flatness);
vec3 direction_xz = vec3(sin(angle1_rad), 0.0, cos(angle1_rad));
vec3 direction_yz = vec3(0.0, sin(angle2_rad), cos(angle2_rad));
direction_yz.z = direction_yz.z / max(0.0001,sqrt(abs(direction_yz.z))); // better uniform distribution
vec3 spread_direction = vec3(direction_xz.x * direction_yz.z, direction_yz.y, direction_xz.z * direction_yz.z);
vec3 direction_nrm = length(direction) > 0.0 ? normalize(direction) : vec3(0.0, 0.0, 1.0);
// rotate spread to direction
vec3 binormal = cross(vec3(0.0, 1.0, 0.0), direction_nrm);
if (length(binormal) < 0.0001) {
// direction is parallel to Y. Choose Z as the binormal.
binormal = vec3(0.0, 0.0, 1.0);
}
binormal = normalize(binormal);
vec3 normal = cross(binormal, direction_nrm);
spread_direction = binormal * spread_direction.x + normal * spread_direction.y + direction_nrm * spread_direction.z;
TRANSFORM[0] = vec4(binormal, 0.);
TRANSFORM[1] = vec4(normal, 0.);
TRANSFORM[2] = vec4(direction_nrm, 0.);
}
TRANSFORM = EMISSION_TRANSFORM * TRANSFORM;
}
if (RESTART_VELOCITY) {
VELOCITY = process_linear_velocity(dynamic_params, alt_seed);
}
process_display_param(params, 0.);
// process_dynamic_parameters(dynamic_params, 0., alt_seed, TRANSFORM, EMISSION_TRANSFORM, DELTA);
VELOCITY = (EMISSION_TRANSFORM * vec4(VELOCITY, 0.0)).xyz;
}
void process() {
uint base_number = NUMBER;
uint alt_seed = hash(base_number + uint(1) + RANDOM_SEED);
DisplayParameters params;
calculate_initial_display_params(params, alt_seed);
// reset alt seed?
// alt_seed = hash(base_number + uint(1) + RANDOM_SEED);
DynamicsParameters dynamic_params;
calculate_initial_dynamics_params(dynamic_params, alt_seed);
PhysicalParameters physics_params;
calculate_initial_physical_params(physics_params, alt_seed);
float pi = 3.14159;
float degree_to_rad = pi / 180.0;
CUSTOM.y += DELTA / LIFETIME;
CUSTOM.y = mix(CUSTOM.y, 1.0, interpolate_to_end);
float lifetime_percent = CUSTOM.y/ params.lifetime;
if (CUSTOM.y > CUSTOM.w) {
ACTIVE = false;
}
// will use this later to calculate final displacement and orient the particle.
vec3 starting_position = TRANSFORM[3].xyz;
vec3 controlled_displacement;
// FIXME use instance uniform!!!!!
controlled_displacement += (EMISSION_TRANSFORM[3].xyz - USERDATA1.xyz) * inherit_emitter_velocity_percent;
// VELOCITY += process_physics_parameters(dynamic_params, lifetime_percent, alt_seed, TRANSFORM, EMISSION_TRANSFORM, DELTA);
controlled_displacement += process_orbit_displacement(dynamic_params, lifetime_percent, alt_seed, TRANSFORM, EMISSION_TRANSFORM, DELTA, params.lifetime * LIFETIME);
// calculate all velocity
controlled_displacement += process_radial_displacement(dynamic_params, lifetime_percent, alt_seed, TRANSFORM, EMISSION_TRANSFORM, DELTA);
controlled_displacement += process_directional_displacement(dynamic_params, lifetime_percent, TRANSFORM, EMISSION_TRANSFORM, DELTA);
process_physical_parameters(physics_params, lifetime_percent);
vec3 force;
{
// copied from previous version
vec3 pos = TRANSFORM[3].xyz;
force = gravity;
// apply linear acceleration
force += length(VELOCITY) > 0.0 ? normalize(VELOCITY) * physics_params.linear_accel : vec3(0.0);
// apply radial acceleration
vec3 org = EMISSION_TRANSFORM[3].xyz;
vec3 diff = pos - org;
force += length(diff) > 0.0 ? normalize(diff) * physics_params.radial_accel : vec3(0.0);
// apply tangential acceleration;
float tangent_accel_val = physics_params.tangent_accel;
vec3 crossDiff = cross(normalize(diff), normalize(gravity));
force += length(crossDiff) > 0.0 ? normalize(crossDiff) * tangent_accel_val : vec3(0.0);
force += ATTRACTOR_FORCE;
// apply attractor forces
VELOCITY += force * DELTA;
//
}
{
// copied from previous version
if (physics_params.damping > 0.0) {
float v = length(VELOCITY);
v -= physics_params.damping * DELTA;
if (v < 0.0) {
VELOCITY = vec3(0.0);
} else {
VELOCITY = normalize(VELOCITY) * v;
}
}
}
vec3 final_velocity = controlled_displacement + VELOCITY;
// turbulence before limiting
if (turbulence_influence_max > 0.0){
float turbulence_influence = textureLod(turbulence_influence_over_life, vec2(lifetime_randomness, 0.0), 0.0).r;
vec3 noise_direction = get_noise_direction(TRANSFORM[3].xyz);
if (!COLLIDED) {
float vel_mag = length(final_velocity);
float vel_infl = clamp(mix(turbulence_influence_min, turbulence_influence_max, rand_from_seed(alt_seed)) * turbulence_influence, 0.0, 1.0);
final_velocity = mix(final_velocity, normalize(noise_direction) * vel_mag * (1.0 + (1.0 - vel_infl) * 0.2), vel_infl);
}
}
// limit velocity
if (length(final_velocity)> 0.001 && velocity_limit){
final_velocity = normalize(final_velocity) * min(abs(length(final_velocity)), abs(velocity_limit_multiplier * texture(velocity_limit_curve, vec2(lifetime_percent)).r));
}
TRANSFORM[3].xyz += final_velocity * DELTA;
if (align_y){
if (length(final_velocity) > 0.0) {
TRANSFORM[1].xyz = normalize(final_velocity);
} else {
TRANSFORM[1].xyz = normalize(TRANSFORM[1].xyz);
}
if (TRANSFORM[1].xyz == normalize(TRANSFORM[0].xyz)) {
TRANSFORM[0].xyz = normalize(cross(normalize(TRANSFORM[1].xyz), normalize(TRANSFORM[2].xyz)));
TRANSFORM[2].xyz = normalize(cross(normalize(TRANSFORM[0].xyz), normalize(TRANSFORM[1].xyz)));
} else {
TRANSFORM[2].xyz = normalize(cross(normalize(TRANSFORM[0].xyz), normalize(TRANSFORM[1].xyz)));
TRANSFORM[0].xyz = normalize(cross(normalize(TRANSFORM[1].xyz), normalize(TRANSFORM[2].xyz)));
}
}
process_display_param(params, lifetime_percent);
// if scale over velocity
if(length(final_velocity)> 0.001){
params.scale *= texture(scale_over_velocity_curve, vec2(clamp(length(final_velocity)/(scale_over_velocity_range.y - scale_over_velocity_range.x), 0.0,1.0), 0.0)).rgb;
}
// params.scale *= length(final_velocity)/100.0;
TRANSFORM[0].xyz = normalize(TRANSFORM[0].xyz);
TRANSFORM[1].xyz = normalize(TRANSFORM[1].xyz);
TRANSFORM[2].xyz = normalize(TRANSFORM[2].xyz);
TRANSFORM[0].xyz *= sign(params.scale.x) * max(abs(params.scale.x), 0.001);
TRANSFORM[1].xyz *= sign(params.scale.y) * max(abs(params.scale.y), 0.001);
TRANSFORM[2].xyz *= sign(params.scale.z) * max(abs(params.scale.z), 0.001);
// angle
float base_angle = dynamic_params.angle;
base_angle += CUSTOM.y * LIFETIME * dynamic_params.angular_velocity;
CUSTOM.x = base_angle * degree_to_rad;
//
CUSTOM.z = params.animation_offset + lifetime_percent * params.animation_speed;
COLOR = process_color(params, lifetime_percent);
if (COLLIDED) {
if (length(VELOCITY) > 3.0) {
TRANSFORM[3].xyz += COLLISION_NORMAL * COLLISION_DEPTH;
VELOCITY -= COLLISION_NORMAL * dot(COLLISION_NORMAL, VELOCITY) * (1.0 + collision_bounce);
VELOCITY = mix(VELOCITY,vec3(0.0),clamp(collision_friction, 0.0, 1.0));
} else {
VELOCITY = vec3(0.0);
}
}
int emit_count = 0;
float unit_delta = DELTA/LIFETIME;
float end_time = CUSTOM.w * 0.95;
if (CUSTOM.y < end_time && (CUSTOM.y + unit_delta) >= end_time) emit_count = sub_emitter_amount_at_end;
for(int i=0;i<emit_count;i++) {
uint flags = FLAG_EMIT_POSITION|FLAG_EMIT_ROT_SCALE;
if (sub_emitter_keep_velocity) flags|=FLAG_EMIT_VELOCITY;
emit_subparticle(TRANSFORM,VELOCITY,vec4(0.0),vec4(0.0),flags);
} if (CUSTOM.y > CUSTOM.w) {
ACTIVE = false;
}
USERDATA1.xyz = EMISSION_TRANSFORM[3].xyz;
}
Not sure how i should use it
Hey! This is a process shader, it goes in the “process_material” part of GPUParticles. I’ll add instructions to the post.
so how exactly do I make it work
