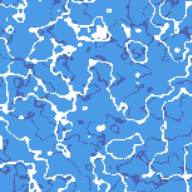

2D Procedural Water

This shader is based off Legend of Zelda’s Wind Waker. It uses fractal brownian motion on perlin noise to create a complex texture whose values can be mapped to different colors.

Shader code
shader_type canvas_item;
uniform int OCTAVE = 6;
uniform float mulscale = 5.0;
uniform float height = 0.6;
uniform float tide = 0.1;
uniform float foamthickness = 0.1;
uniform float timescale = 1.0;
uniform float waterdeep = 0.3;
uniform vec4 WATER_COL : hint_color =  vec4(0.04, 0.38, 0.88, 1.0);
uniform vec4 WATER2_COL : hint_color =  vec4(0.04, 0.35, 0.78, 1.0);
uniform vec4 FOAM_COL : hint_color = vec4(0.8125, 0.9609, 0.9648, 1.0);


float rand(vec2 input){
	return fract(sin(dot(input,vec2(23.53,44.0)))*42350.45);
}

float perlin(vec2 input){
	vec2 i = floor(input);
	vec2 j = fract(input);
	vec2 coord = smoothstep(0.,1.,j);

	float a = rand(i);
	float b = rand(i+vec2(1.0,0.0));
	float c = rand(i+vec2(0.0,1.0));
	float d = rand(i+vec2(1.0,1.0));

	return mix(mix(a,b,coord.x),mix(c,d,coord.x),coord.y);
}

float fbm(vec2 input){
	float value = 0.0;
	float scale = 0.5;

	for(int i = 0; i < OCTAVE; i++){
		value += perlin(input)*scale;
		input*=2.0;
		scale*=0.5;
	}
	return value;
}

void fragment(){
	float newtime = TIME*timescale;
	float fbmval = fbm(vec2(UV.x*mulscale+0.2*sin(0.3*newtime)+0.15*newtime,-0.05*newtime+UV.y*mulscale+0.1*cos(0.68*newtime)));
	float fbmvalshadow = fbm(vec2(UV.x*mulscale+0.2*sin(-0.6*newtime + 25.0 * UV.y)+0.15*newtime+3.0,-0.05*newtime+UV.y*mulscale+0.13*cos(-0.68*newtime))-7.0+0.1*sin(0.43*newtime));
	float myheight = height+tide*sin(newtime+5.0*UV.x-8.0*UV.y);
	float shadowheight = height+tide*1.3*cos(newtime+2.0*UV.x-2.0*UV.y);
	float withinFoam = step(myheight, fbmval)*step(fbmval, myheight + foamthickness);
	float shadow = (1.0-withinFoam)*step(shadowheight, fbmvalshadow)*step(fbmvalshadow, shadowheight + foamthickness * 0.7);
	COLOR = withinFoam*FOAM_COL + shadow*WATER2_COL + ((1.0-withinFoam)*(1.0-shadow))*WATER_COL;
	//COLOR = vec4(1.0,1.0,1.0,fbmval);
}
Tags
2d, water
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
