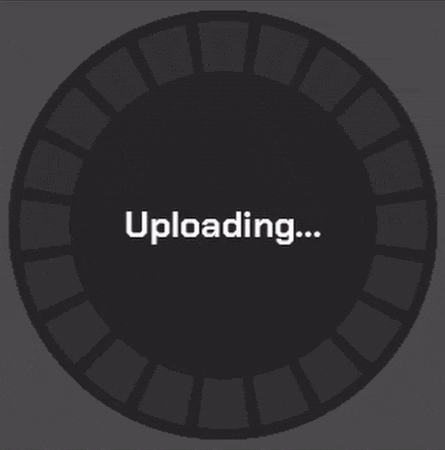

Procedural Circular Progress Bar

Flexible procedural circular progress bar. Support customizing segments, radius, hollow radius, rotation, gradients, etc.

Shader code

shader_type canvas_item;

uniform float value : hint_range(0.0, 1.0) = 1.0;
uniform int segments = 1;
uniform float radius = 0.475;
uniform float hollow_radius = 0.0;
uniform float margin : hint_range(0.0, 1.0) = 0.0;
uniform float rotation : hint_range(-1.0, 1.0);
uniform float progress_rotation : hint_range(-1.0, 1.0);
uniform sampler2D gradient : source_color;
uniform bool use_value_gradient = false;
uniform sampler2D radius_curve;


vec4 get_gradient_color(sampler2D src, float position) {
	position = clamp(position, 0.01, 0.99); // Color at 0.0 and 1.0 get interpolated by both end
    return texture(src, vec2(position, 0.5));
}

float map_range(float min1, float max1, float min2, float max2, float v) {
	float p = (v - min1) / (max1 - min1);
	return p * (max2 - min2) + min2;
}

vec2 rotate_uv(vec2 uv, float p_rotation){
    float mid = 0.5;
    return vec2(
        cos(p_rotation) * (uv.x - mid) + sin(p_rotation) * (uv.y - mid) + mid,
        cos(p_rotation) * (uv.y - mid) - sin(p_rotation) * (uv.x - mid) + mid
    );
}

float circle_shape(vec2 uv, float p_radius) {
	vec2 center = vec2(0.5, 0.5);
	return 1.0 - step(p_radius, distance(center, uv));
}

float radial_shape(vec2 uv, int p_segments) {
	float radial = 0.0;
	uv -= 0.5;
	radial = atan(uv.y, uv.x);
	radial = map_range(-PI, PI, 0.0, float(p_segments), radial);
	radial = mod(radial, 1.0);

	return radial;
}

void fragment() {
	vec2 uv = UV;
	uv = rotate_uv(uv, PI/2.0); // Rotate 90 degrees, so origin pointing at north be default
	uv = rotate_uv(uv, rotation * PI);

	float t = radial_shape(uv, 1);
	if (use_value_gradient) {
		t = value;
	}
	float radius_t = get_gradient_color(radius_curve, radial_shape(uv, 1)).r;

	float shape = radial_shape(uv, segments);
	float border_size = (1.0-margin)/2.0;
	shape *= step(border_size, shape);
	shape *= step(shape, 1.0 - border_size);
	shape = step(shape, 0.0);

	uv = rotate_uv(uv, progress_rotation * PI);
	float arc = radial_shape(uv, 1);
	arc = step(arc, value);

	float bounds = circle_shape(uv, radius * radius_t);
	float hollow = 1.0-circle_shape(uv, hollow_radius * radius_t);

	shape = shape * arc * bounds * hollow;

	vec4 gradient_color = get_gradient_color(gradient, t);
	COLOR = vec4(gradient_color.rgb, shape);
}
