Center Grow Bar (Progress Bar)

A progress bar shader with symmetric fill from the center to the edges. Supports smooth value transitions and transparency masking.

How to use? Set a ShaderMaterial on any Control node (preferably Panel or ColorRect), create a new gdshader, and paste the code

Shader code

shader_type canvas_item;

uniform float progress : hint_range(0.0, 1.0) = 1.0;
uniform vec4 background_color : source_color = vec4(0.1, 0.1, 0.1, 0.6);
uniform vec4 progress_color : source_color = vec4(1.0, 1.0, 1.0, 0.6);

void fragment() {
	float alpha = COLOR.a;

	float dist = abs(UV.x - 0.5);

	float t = step(dist, progress * 0.5);

	COLOR = mix(background_color, progress_color, t);
	COLOR.a *= alpha;
}

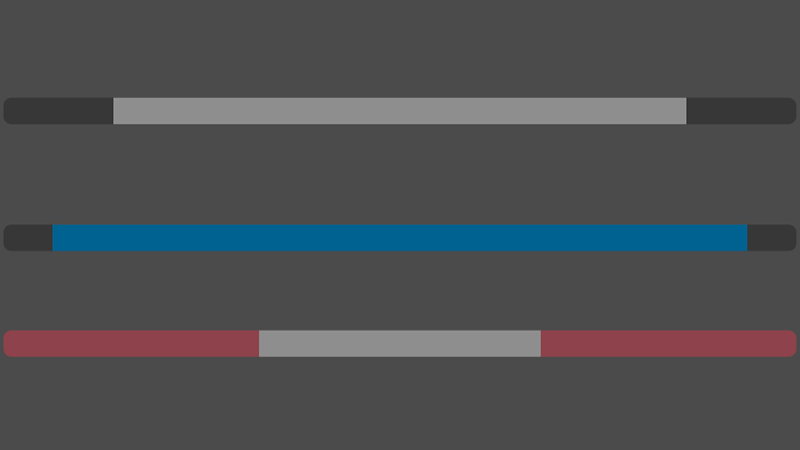

Live Preview
