Radar with trace blip

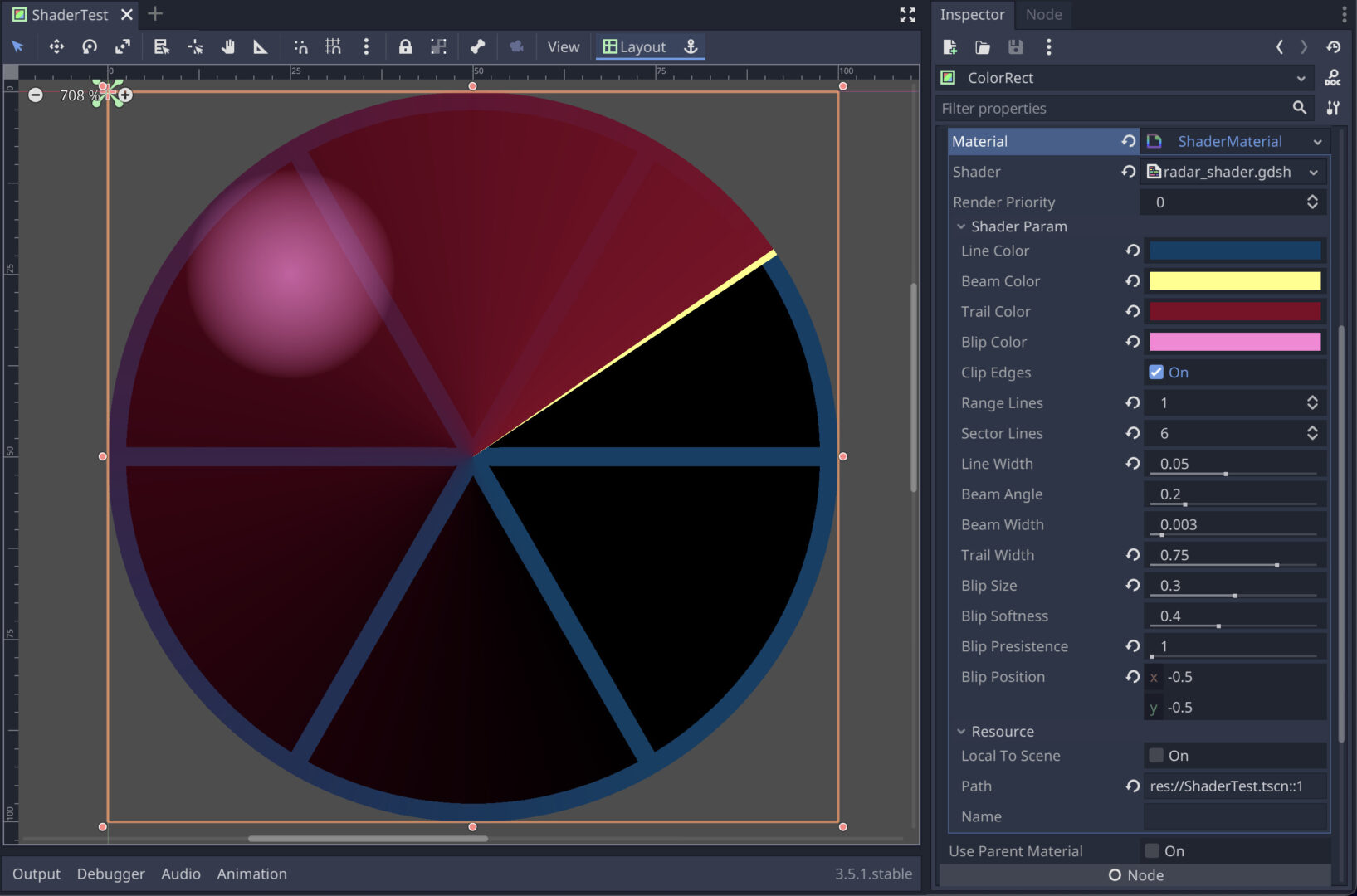

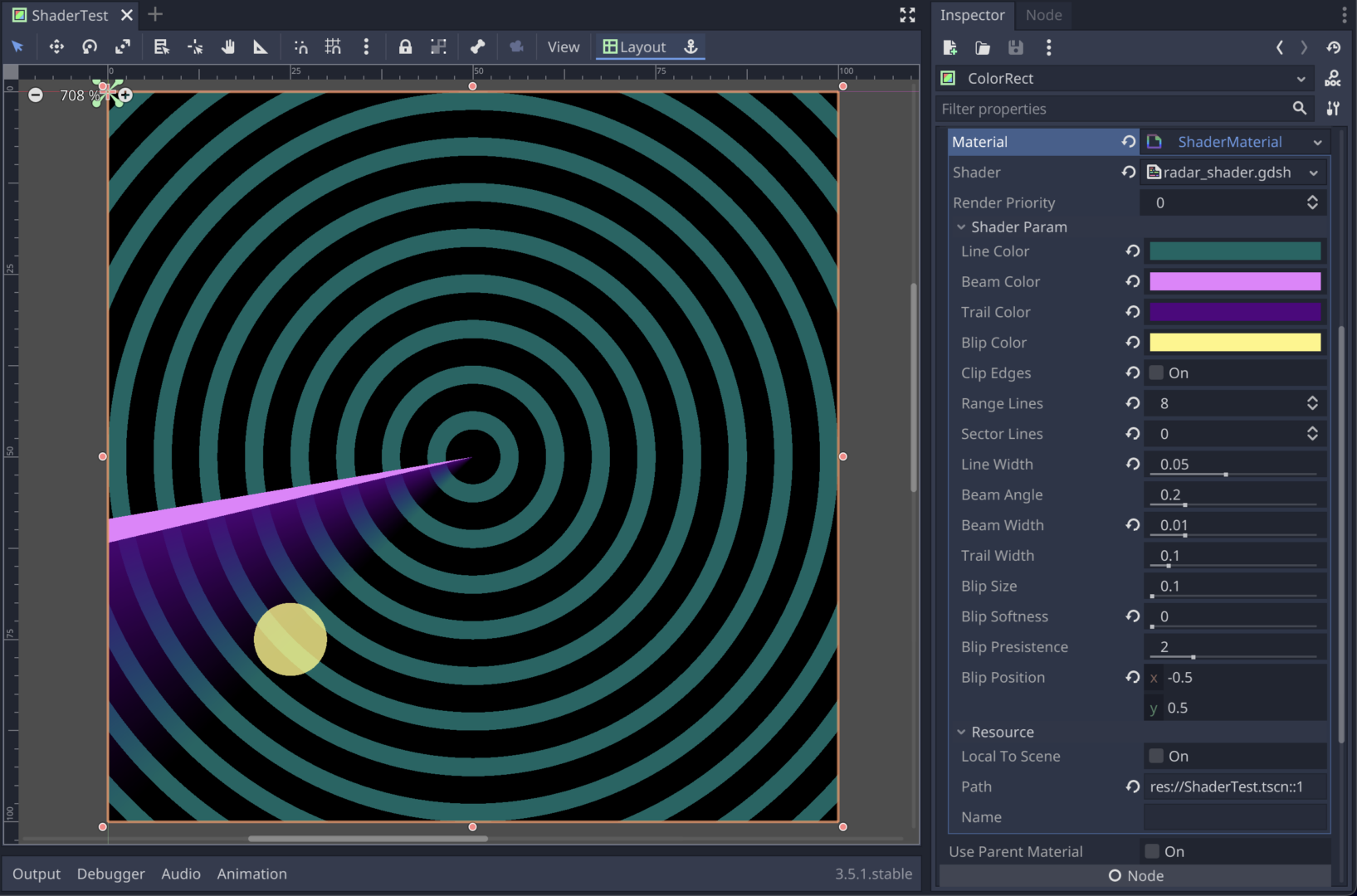

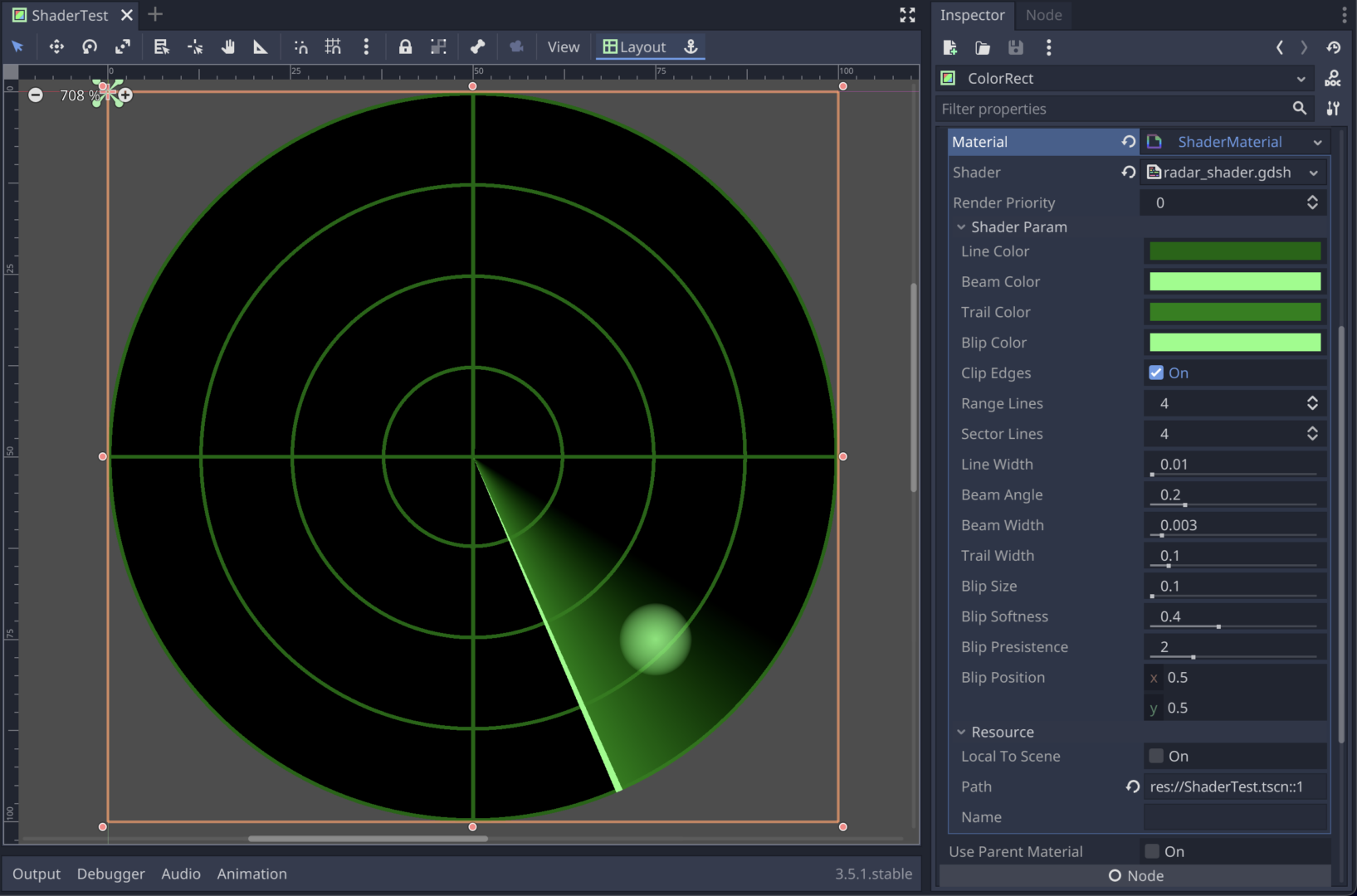

Configurable radar screen with trace blip.

15-1-2023: I have optimised the code by removing explicit if statements. I used some of the code snippets provided by nonunknown here: https://godotshaders.com/shader/optimize-your-shaders/

Shader code
//	Radar shader by Brian Smith (steampunkdemon.itch.io)
//	MIT Licence

shader_type canvas_item;

uniform vec4 line_color : hint_color = vec4(0.0, 0.4, 0.0, 1.0);
uniform vec4 beam_color : hint_color = vec4(0.5, 1.0, 0.5, 1.0);
uniform vec4 trail_color : hint_color = vec4(0.0, 0.5, 0.0, 1.0);
uniform vec4 blip_color : hint_color = vec4(0.5, 1.0, 0.5, 1.0);
uniform bool show_edges = false;
uniform float range_lines : hint_range(0.0, 10.0, 1.0) = 4.0;
uniform float sector_lines : hint_range(0.0, 10.0, 1.0) = 4.0;
uniform float line_width : hint_range(0.01, 0.1) = 0.01;
uniform float beam_angle : hint_range(0.0, 1.0) = 0.2;
uniform float beam_width : hint_range(0.0, 0.05) = 0.003;
uniform float trail_width : hint_range(0.0, 1.0) = 0.5;
uniform float blip_size : hint_range(0.1, 0.5) = 0.1;
uniform float blip_softness : hint_range(0.0, 1.0) = 0.4;
uniform float blip_presistence : hint_range(1.0, 5.0) = 2.0;
uniform vec2 blip_position = vec2(0.5, 0.5);

float greater_than(float x, float y) {
  return max(sign(x - y), 0.0);
}

void fragment() {
	vec2 uv = UV * 2.0 - 1.0;
	float a = (atan(uv.y, uv.x) + 3.141592656) / 6.283185312;
	float l = length(uv);

//	Uncomment the following line if you are applying the shader to a TextureRect.
//	COLOR = texture(TEXTURE,UV);

//	If you do not want to render the range and sector lines remove the following line of code.
//	If you want to only render the range lines replace the following line of code with:
//	COLOR.rgb = mix(COLOR.rgb, line_color.rgb, line_color.a * greater_than(mod(l, 1.0 / range_lines) * range_lines, 1.0 - line_width * range_lines));
//	If you only want to render the sector lines replace the following line of code with:
//	COLOR.rgb = mix(COLOR.rgb, line_color.rgb, line_color.a * greater_than(abs(mod(a, 1.0 / sector_lines) * sector_lines * 2.0 - 1.0), 1.0 - (line_width / 6.283185312 / l) * sector_lines));
	COLOR.rgb = mix(COLOR.rgb, line_color.rgb, line_color.a * max(greater_than(mod(l, 1.0 / range_lines) * range_lines, 1.0 - line_width * range_lines), greater_than(abs(mod(a, 1.0 / sector_lines) * sector_lines * 2.0 - 1.0), 1.0 - (line_width / 6.283185312 / l) * sector_lines)));

//	When using this shader in a game I suggest removing the following line of code and
//	replacing all occurrences of 'current_beam_angle' with 'beam_angle'.
//	You should then manually set the shader's beam_angle parameter so you know where the beam is
//	and therefore when the blip is not visible and its position can be updated.
	float current_beam_angle = mod(beam_angle * TIME, 1.0);

	a = a - 1.0 * greater_than(a, current_beam_angle);

//	If you do not want to render the trail remove the following line of code.
	COLOR.rgb = mix(COLOR.rgb, trail_color.rgb, trail_color.a * max(0.0, (1.0 - (current_beam_angle - a) / trail_width)));

//	If you do not want to render the beam remove the following line of code.
	COLOR.rgb = mix(COLOR.rgb, beam_color.rgb, beam_color.a * greater_than(a, current_beam_angle - beam_width));

//	If you do not want to render the blip remove the following code block.
//	The blip's x and y coordinates should be within the range -1.0 to 1.0.
//	The blip will not be displayed if it is exactly in the centre at 0.0, 0.0.
	float bl = length(blip_position - uv);
	float blip_angle = (atan(blip_position.y, blip_position.x) + 3.141592656) / 6.283185312;
	blip_angle = blip_angle - 1.0 * greater_than(blip_angle, current_beam_angle);
	COLOR.rgb = mix(COLOR.rgb, blip_color.rgb, blip_color.a * max(0.0, pow((blip_size - bl) / blip_size, blip_softness) - min(1.0, (current_beam_angle - blip_angle) * blip_presistence)));

//	If you do not want the edges to be transparent remove the following line of code.
//	If you always want the edges to be transparent replace the following line of code with:
//	COLOR.a = COLOR.a * greater_than(1.0, l);
	COLOR.a = COLOR.a * max(sign(1.0 - l), float(show_edges));
}
Tags
blip, radar
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
