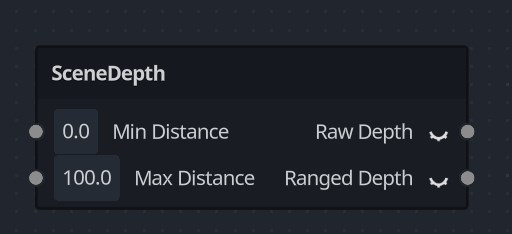

SceneDepth VisualShaderNode 4.4

Visual shader node that retrieves the pixel depth buffer from Godot. Equivalent of UE’s SceneDepth node. Captured in the texture is the depth of the opaque objects; translucency is not written to depth buffer

Use raw depth if you just want world units, ranged depth returns a clamped (0-1) depth gradient whose min / max distance values are defined by the input pins.

To install: Copypaste this into a new .gd file. The node will show up under /Addons/Utility

Shader code

@tool
class_name VSNode_SceneDepth
extends VisualShaderNodeCustom

###################
## Base Props
###################
func _get_name() -> String:
	return "SceneDepth"

func _get_category() -> String:
	return "Utility"

func _get_description() -> String:
	return "Returns the scene depth buffer with raw depth and ranged depth outputs"

func _get_return_icon_type() -> PortType:
	return VisualShaderNode.PORT_TYPE_SCALAR

#################
## Input props
#################
func _get_input_port_count() -> int:
	return 2

func _get_input_port_name(port: int) -> String:
	match port:
		0: return "Min Distance"
		1: return "Max Distance"
	return ""

func _get_input_port_type(port: int) -> PortType:
	match port:
		0: return VisualShaderNode.PORT_TYPE_SCALAR
		1: return VisualShaderNode.PORT_TYPE_SCALAR
	return VisualShaderNode.PORT_TYPE_SCALAR

func _get_input_port_default_value(port: int) -> Variant:
	match port:
		0: return 0.0  # Default min distance
		1: return 100.0  # Default max distance
	return 0.0

#################
## Output props
#################
func _get_output_port_count() -> int:
	return 2

func _get_output_port_name(port: int) -> String:
	match port:
		0: return "Raw Depth"
		1: return "Ranged Depth"
	return ""

func _get_output_port_type(port: int) -> PortType:
	return VisualShaderNode.PORT_TYPE_SCALAR

#################
## Global code
#################
func _get_global_code(mode: Shader.Mode) -> String:
	return """
uniform sampler2D depth_texture : hint_depth_texture, filter_nearest;
"""

#################
## Main shader code
#################
func _get_code(input_vars: Array[String], output_vars: Array[String],
		mode: Shader.Mode, type: VisualShader.Type) -> String:

	var code_template = """
	{{
		// Sample the depth texture
		float depth = texture(depth_texture, SCREEN_UV).x;

		// Convert to normalized device coordinates based on renderer
		vec3 ndc;
		#if CURRENT_RENDERER == RENDERER_COMPATIBILITY
			ndc = vec3(SCREEN_UV, depth) * 2.0 - 1.0;
		#else
			ndc = vec3(SCREEN_UV * 2.0 - 1.0, depth);
		#endif

		// Convert to view space
		vec4 view = INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
		view.xyz /= view.w;
		float linear_depth = -view.z;

		// Output raw depth
		{raw_output} = linear_depth;

		// Calculate ranged depth (normalized between min and max)
		float min_dist = {min_input};
		float max_dist = {max_input};
		float ranged_depth = clamp((linear_depth - min_dist) / (max_dist - min_dist), 0.0, 1.0);
		{ranged_output} = ranged_depth;
	}}
	"""

	return code_template.format({
		"min_input": input_vars[0] if input_vars[0] != "" else "0.0",
		"max_input": input_vars[1] if input_vars[1] != "" else "100.0",
		"raw_output": output_vars[0],
		"ranged_output": output_vars[1]
	})

func _is_available(mode: Shader.Mode, type: VisualShader.Type) -> bool:
	return mode == Shader.MODE_SPATIAL && type == VisualShader.TYPE_FRAGMENT
