Shield Shader with Intersection Highlight

Made for Godot 4.3

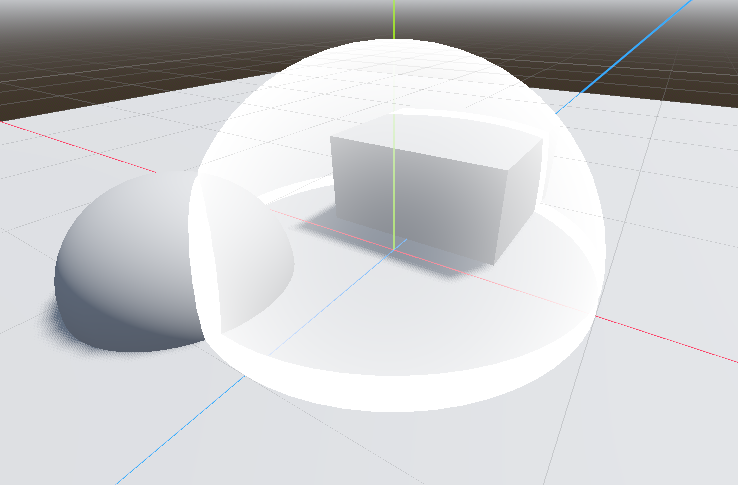

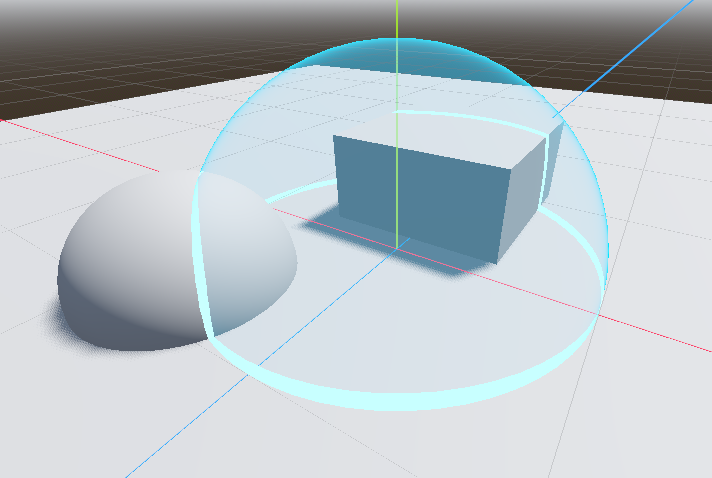

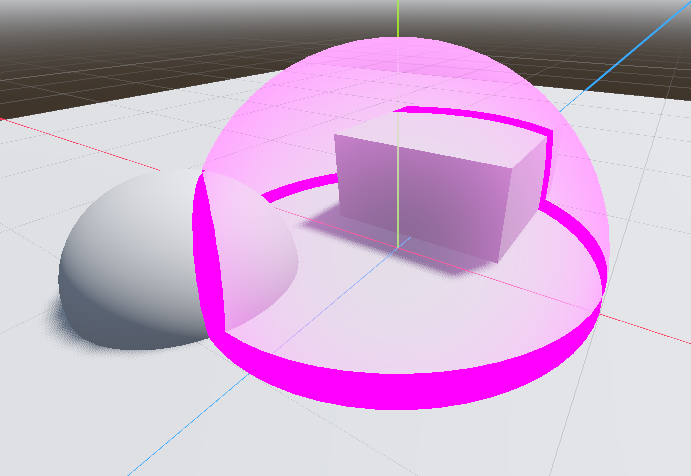

This shader creates a shield effect that highlights intersections with other objects by using depth comparisons.
I’m not really sure if this is the most optimized solution, but it works well for small projects.

Instruction:

• Add a MeshInstance3D
• Set its mesh
• Apply the shader
• Use the commented ndc if you use the compatibility renderer

Tutorial Used:

• https://docs.godotengine.org/en/stable/tutorials/shaders/advanced_postprocessing.html
• https://youtu.be/SiCNFMhDZ1o?si=8da5Gtspdf2R_H17

Shader code

shader_type spatial;

render_mode unshaded, cull_disabled;

uniform sampler2D depth_texture : source_color, hint_depth_texture;
uniform vec4 color1: source_color = vec4(1,1,1,.1);
uniform vec4 color2: source_color = vec4(1,1,1,1);
uniform float threshold = .2;
uniform float fresnel_sharpness = 1.0;


void fragment() {
	float depth = texture(depth_texture, SCREEN_UV).x;
	//vec3 ndc = vec3(SCREEN_UV, depth) * 2.0 - 1.0;
	vec3 ndc = vec3(SCREEN_UV * 2.0 - 1.0, depth);
	vec4 view = INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
	view.xyz /= view.w;
	float linear_depth = -view.z;

	float object_depth = FRAGCOORD.z;
	//vec3 object_ndc = vec3(SCREEN_UV, object_depth) * 2.0 - 1.0;
	vec3 object_ndc = vec3(SCREEN_UV * 2.0 - 1.0, object_depth);
	vec4 object_view = INV_PROJECTION_MATRIX * vec4(object_ndc, 1.0);
	object_view.xyz /= object_view.w;
	float linear_object_depth = -object_view.z;

	float fresnel = pow(1.0 - dot(VIEW, NORMAL), fresnel_sharpness);

	if (linear_depth - linear_object_depth > threshold) {
		ALBEDO = color1.rgb;
		ALPHA = color1.a+fresnel;
	}
	else {
		ALBEDO = color2.rgb;
		ALPHA = color2.a+fresnel;
	}
}
