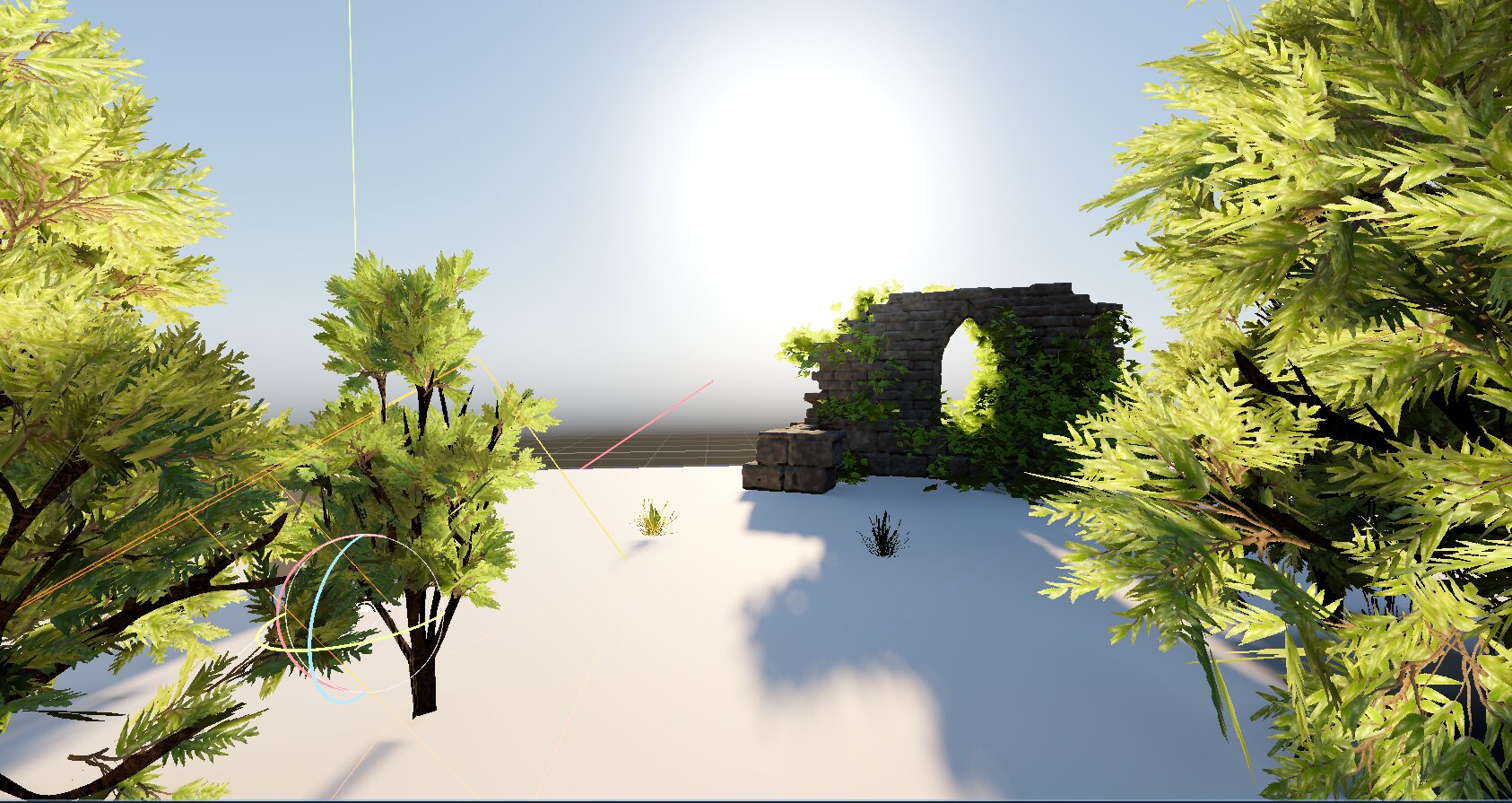

Simple Foliage/Subsurface Scattering Shader

NOTE: Assets used here are not mine. You can find links to each in the description.

This is just an experimental shader I made to see if I could make a handmade foliage shader using the method of subsurface scattering described in this article by Alex Zucconi: Fast Subsurface Scattering in Unity (Part 1) – Alan Zucconi

I recommend keeping the normal bias (sigma) small, like .02, and keep the attenuation influence close to 1 (like .98). Also I had it marked as Vulkan only, but I’d recommend trying in compatibility. Not sure if it’ll work, but try it.

Assets I used:

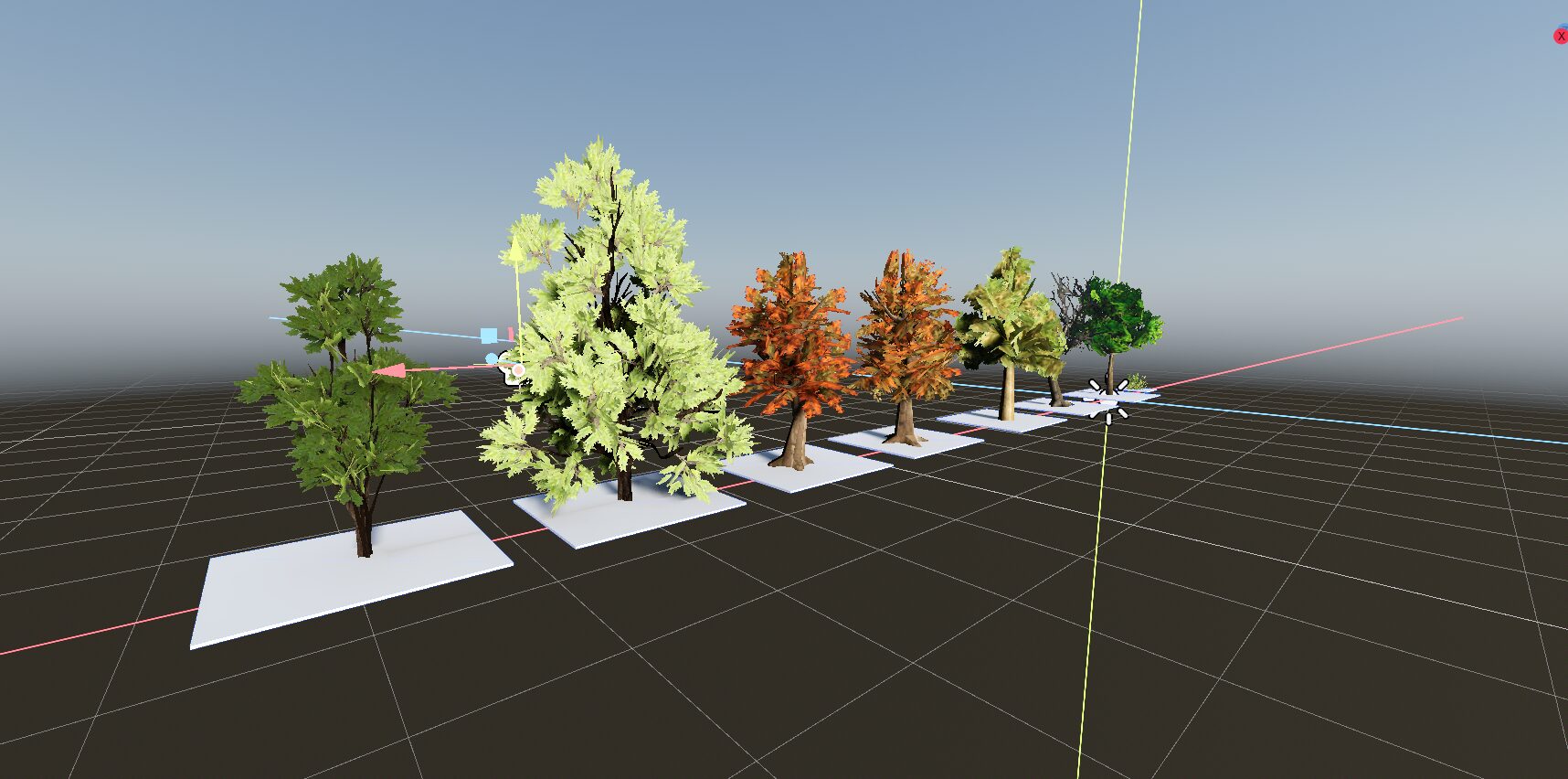

Low poly trees: https://www.fab.com/listings/cb071600-85b3-4888-b4d7-bc7c7f644e8e

Low poly trees scene: https://www.fab.com/listings/38e872cc-bb49-4f70-b063-68bc92bbb57e

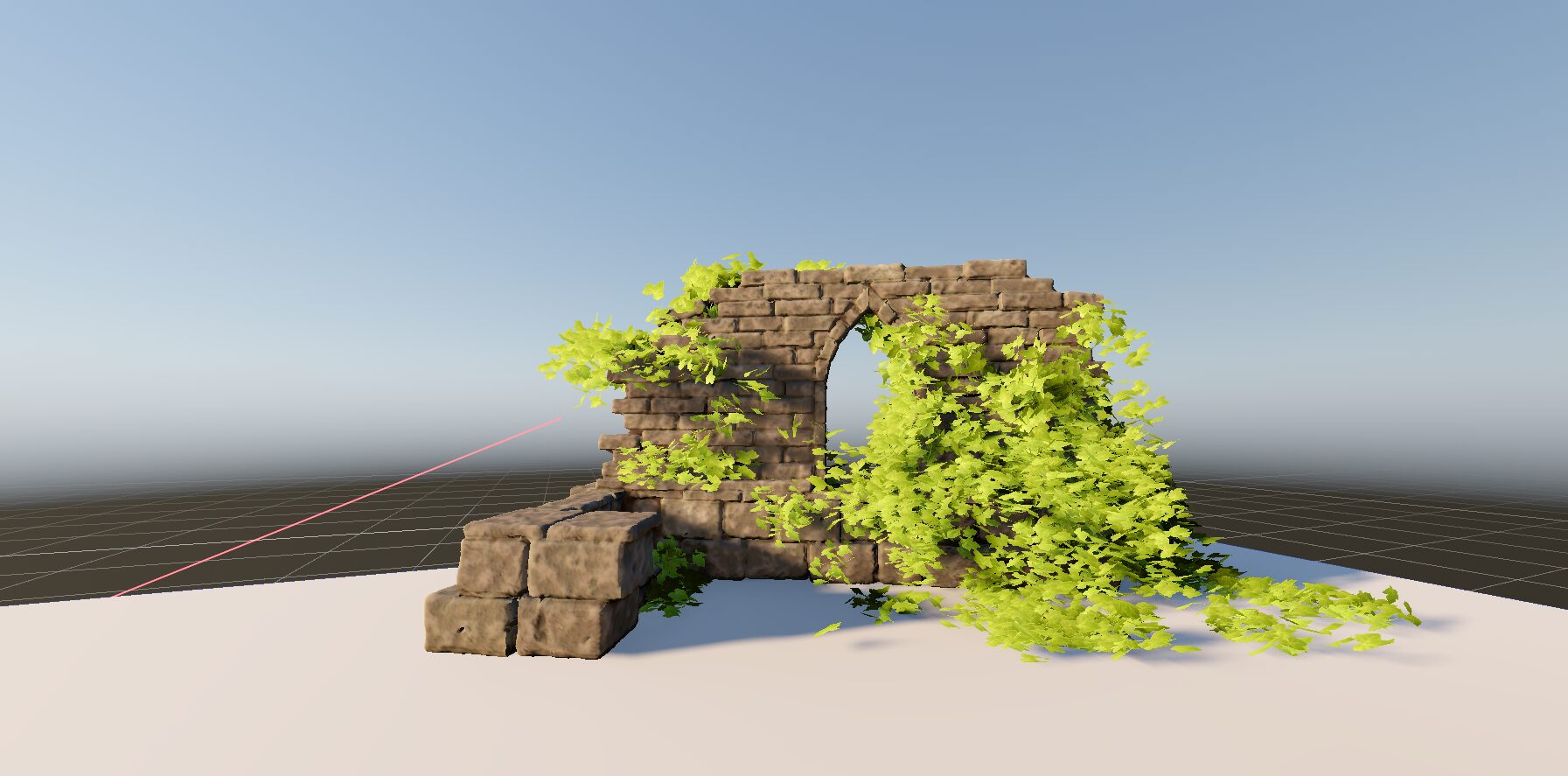

Creeper vines: https://www.fab.com/listings/4e28a9e4-9a9b-4d1f-b245-39a3dcd7469f

Wall: https://www.fab.com/listings/70c20598-4acd-43c7-925c-fbe02bb98902

Grass: https://www.fab.com/listings/50d9a417-73ed-4132-9421-6be3d4f7432e

Shader code

shader_type spatial;
render_mode cull_disabled;

uniform sampler2D _tex: source_color;
uniform sampler2D _normal_tex: hint_normal;
uniform sampler2D _opacity;

uniform sampler2D _thickness;
uniform bool use_thickness_map = false;

uniform float sigma: hint_range(0.,1.,.01) = .5;
uniform float power: hint_range(0.,100.,.25) = 5.;
uniform float scale: hint_range(0.,50.,.1) = 3.3;

uniform bool use_opacity = true;
uniform float alpha_cutoff: hint_range(0.,1.,.01) = .1;
uniform float attenuation_influence: hint_range(0.,1.,.01) = 1.;

uniform float albedo_influence: hint_range(0.,1.,.01) = .7;
uniform float light_color_influence: hint_range(0.,1.,.01) = .3;

uniform bool do_vertex_sway = false;
uniform float vertex_sway_intensity: hint_range(0.0, 10.0, 0.01) = .3;

float get_sss(vec3 n, vec3 v, vec3 l, float s)
{
	l = normalize(l);
	float kSSS = pow(clamp(dot((-l+n*s), v),0.,1.),power);
	return kSSS;
}

varying vec4 vtxColor;
varying vec3 normal;
varying mat3 tbn;
void vertex()
{
	vtxColor = CUSTOM0;
	tbn = mat3(TANGENT, BINORMAL, NORMAL);

	if (do_vertex_sway)
	{
		vec4 wp = MODEL_MATRIX * vec4(VERTEX,1.);
		vec3 wind_plane = vec3(wp.x, wp.y, wp.z);
		wind_plane = vtxColor.y*(sin(wind_plane+TIME));// + .05*sin(wind_plane+TIME*8. + 3.4));
		vec3 offset = (vtxColor.y*.1*(.5+.5*sin(wind_plane.zyx + TIME * 4.)));

		VERTEX += vertex_sway_intensity*wind_plane+offset;
	}
}

void fragment()
{
	vec4 c = texture(_tex, UV);
	float o = (use_opacity) ? texture(_opacity, UV).r : c.a;
	if (o < alpha_cutoff)
		discard;

	ALBEDO = c.rgb;

	vec3 n = (1.-texture(_normal_tex, UV).rgb)*2.-1.;
	n = normalize(tbn * n);
	normal = n;
}

void light()
{
	// Called for every pixel for every light affecting the material.
	// Uncomment to replace the default light processing function with this one.
	vec3 n2 = normalize(vec3(0,1,0)+.5*normal);
	float kD = max(dot(normalize(LIGHT), n2),0.0);
	float s = (use_thickness_map) ? 1.-texture(_thickness, UV).r : sigma;
	float kSSS = get_sss(normal, VIEW, LIGHT, s);

	vec3 SSS_color = albedo_influence*ALBEDO+light_color_influence*LIGHT_COLOR;

	DIFFUSE_LIGHT += (SSS_color)*(max(mix(1.,ATTENUATION,attenuation_influence),0.001)*(.3+max(kD*scale,kSSS*scale)));
}
