Simple frame outline box

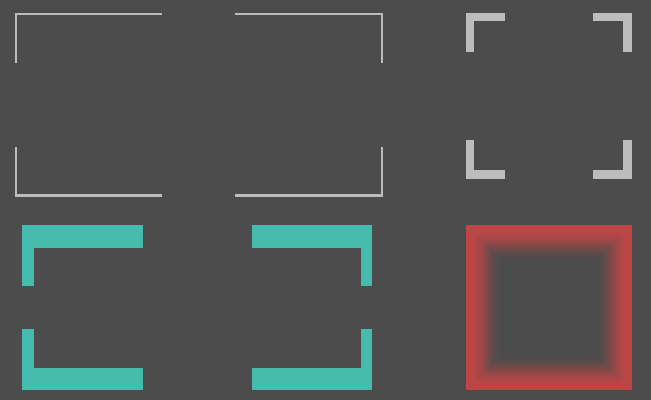

Simple shader for a frame with corners. For selection frame or crosshair.
To use just add shader material to a ColorRect
Shader code
shader_type canvas_item;
uniform vec4 border_color : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform vec2 rect_size_px = vec2(40.0, 40.0);
uniform float border_thickness_px = 2.0;
uniform float gap_between_corners_px = 14.0;
uniform float min_corner_px = 4.0;
uniform float feather_px = 0.0;
void fragment() {
vec2 px = UV * rect_size_px;
float w = rect_size_px.x;
float h = rect_size_px.y;
float t = border_thickness_px;
float f = feather_px;
float corner_len_x = max((w - gap_between_corners_px) * 0.5, min_corner_px);
float corner_len_y = max((h - gap_between_corners_px) * 0.5, min_corner_px);
corner_len_x = min(corner_len_x, w * 0.5);
corner_len_y = min(corner_len_y, h * 0.5);
float left = 1.0 - smoothstep(t, t + f + 0.0001, px.x);
float right = 1.0 - smoothstep(t, t + f + 0.0001, w - px.x);
float top = 1.0 - smoothstep(t, t + f + 0.0001, px.y);
float bottom = 1.0 - smoothstep(t, t + f + 0.0001, h - px.y);
float top_allowed = step(px.x, corner_len_x) + step(w - corner_len_x, px.x);
float bottom_allowed = top_allowed;
float left_allowed = step(px.y, corner_len_y) + step(h - corner_len_y, px.y);
float right_allowed = left_allowed;
top_allowed = clamp(top_allowed, 0.0, 1.0);
bottom_allowed = clamp(bottom_allowed, 0.0, 1.0);
left_allowed = clamp(left_allowed, 0.0, 1.0);
right_allowed = clamp(right_allowed, 0.0, 1.0);
float alpha = 0.0;
alpha = max(alpha, top * top_allowed);
alpha = max(alpha, bottom * bottom_allowed);
alpha = max(alpha, left * left_allowed);
alpha = max(alpha, right * right_allowed);
COLOR = vec4(border_color.rgb, border_color.a * alpha);
}
