Squiggle Pen – Canvas Post-process

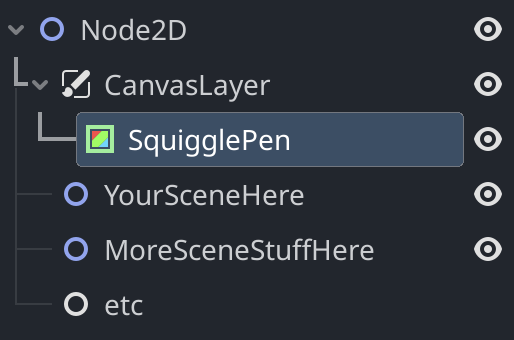

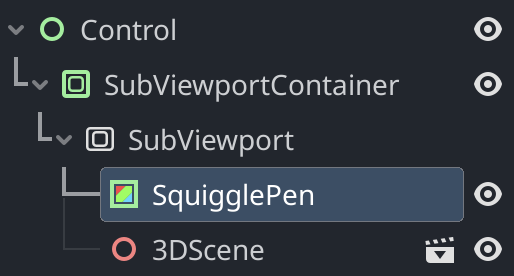

This post-process shader helps emulate a hand-drawn look. I added a few examples on how to set up 2D and 3D scenes below.

These two shaders were modified to achieve the final effect:

Squigglevision

Line art

Shader code

shader_type canvas_item;
render_mode world_vertex_coords;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

group_uniforms Lines;
uniform float weight = 0.07;
uniform float line_thickness : hint_range(0.0, 6.0, 1.0) = 1.0;
uniform vec3 color : source_color;
uniform float opacity : hint_range(0.0, 1.0, 0.01) = 1.0;
uniform sampler2D background_texture : hint_default_transparent;

group_uniforms Squiggle;
/**
 * Noise texture scale
 * By default, the noise texture's size in world coordinates is set by its resolution
*/
uniform vec2 scale = vec2(10.0, 10.0);
uniform float strength = 0.5;

uniform float fps = 6.0; // Number of squiggle frames per second
uniform sampler2D noise : filter_linear, repeat_enable;
group_uniforms;

varying vec4 modulate;
varying vec2 noise_uv;

void vertex() {
	modulate = COLOR;

	// Use world coordinates for scale-independent squiggles, offset by position to keep pattern attached to object
	noise_uv = (VERTEX - MODEL_MATRIX[3].xy) / (vec2(textureSize(noise, 0)) * scale);
}

// Use irrational constants for unique squiggles every frame
#define offset_multiplier vec2(PI, E)

void fragment() {
	vec2 noise_offset = vec2(floor(TIME * fps)) * offset_multiplier;
	float noise_sample = texture(noise, noise_uv + noise_offset).r * 4.0 * PI;
	vec2 direction = vec2(cos(noise_sample), sin(noise_sample));
	vec2 squiggle_uv = SCREEN_UV + direction * strength * 0.005;

	vec3 current_color = texture(SCREEN_TEXTURE, squiggle_uv).rgb;
	vec3 right_color = texture(SCREEN_TEXTURE, squiggle_uv + vec2(SCREEN_PIXEL_SIZE.x * line_thickness, 0)).rgb;
	vec3 bottom_color = texture(SCREEN_TEXTURE, squiggle_uv - vec2(0, SCREEN_PIXEL_SIZE.y * line_thickness)).rgb;
	float r_distance = length(current_color - right_color);
	float b_distance = length(current_color - bottom_color);

	vec4 background_color = texture(background_texture, UV);
	vec4 solid_line = vec4(color.rgb, 1.0);
	vec4 line_texture = (r_distance > weight || b_distance > weight) ? mix(background_color, solid_line, opacity) : background_color;

	COLOR = line_texture;
}
