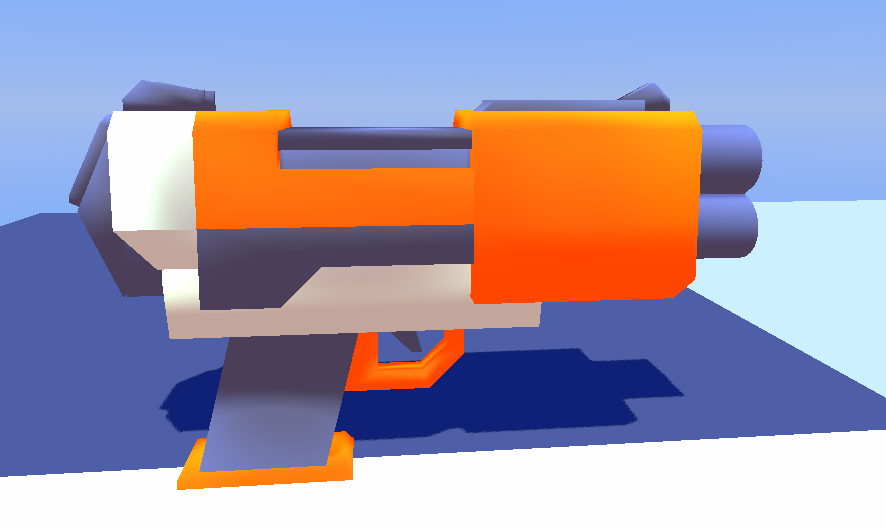

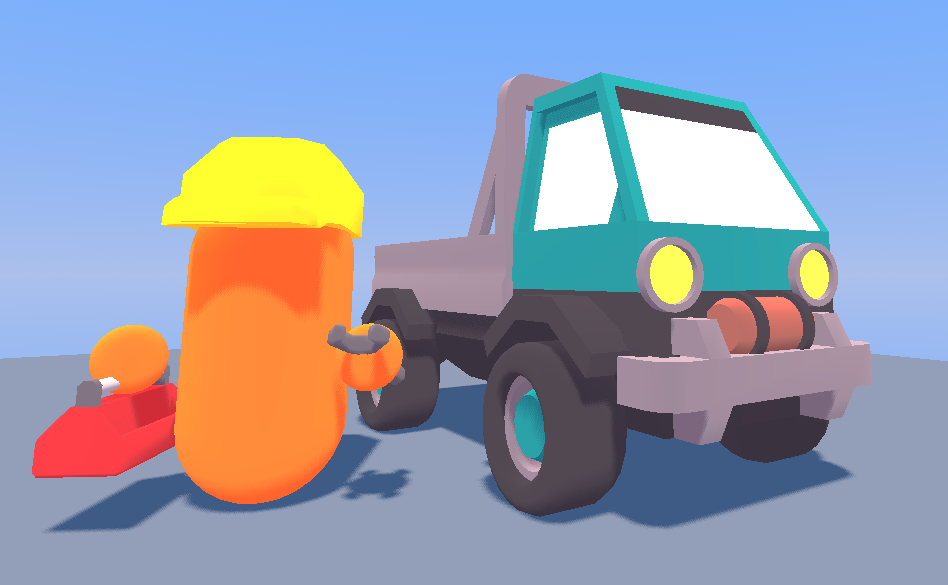

Toon Shader for Godot 4

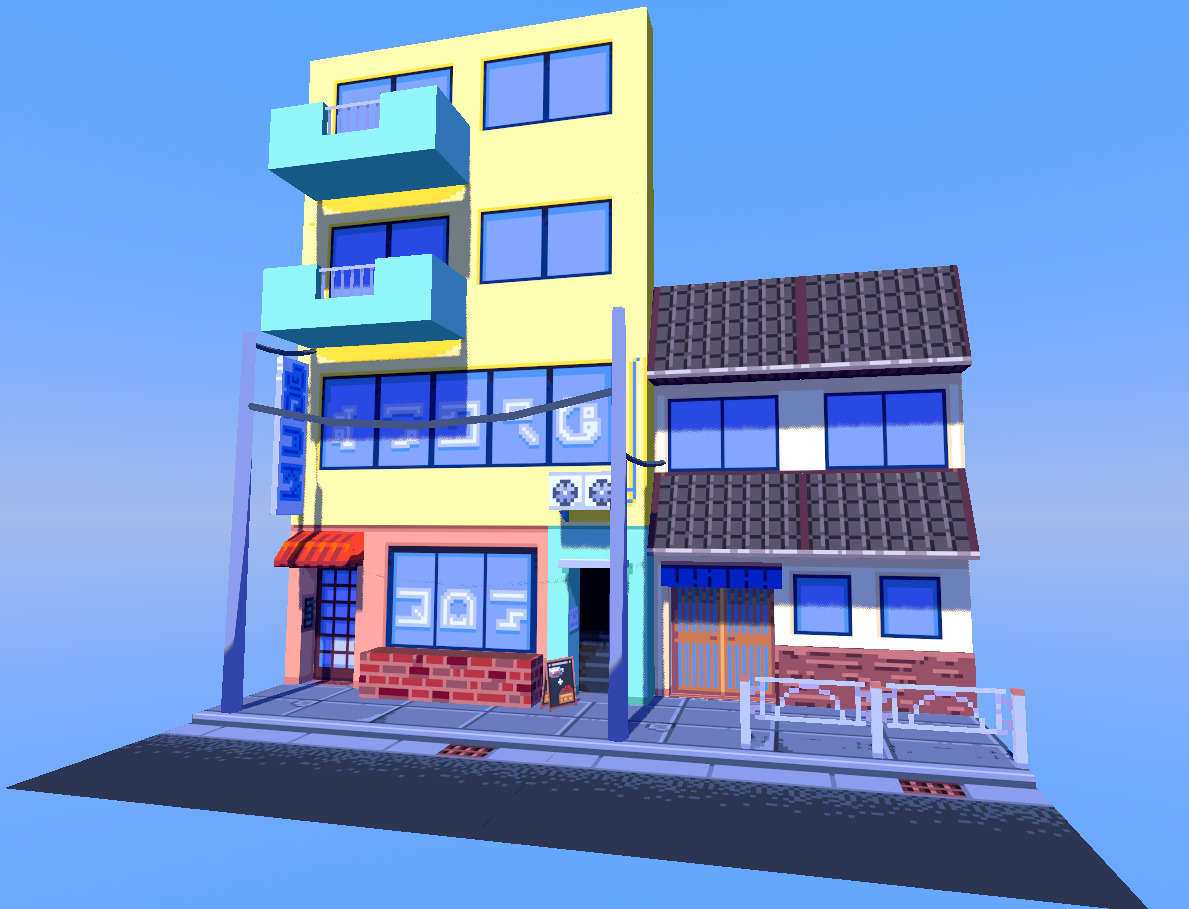

Toon Shader for Godot 4 (https://www.youtube.com/watch?v=FIP6I1x6lMA by MinionsArt) with support for anti alaising pixel art (https://godotshaders.com/shader/smooth-3d-pixel-filtering/ by Calinou)

Enable feature:

#define USE_RIM 1

Disable feature:

#define USE_RIM 0

Supported features:

It is only possible to enable and disable features in the editor not during run time.

Shader code
shader_type spatial;

#define USE_RIM 1

#define USE_PIXELART 1
#define USE_SMOOTH_PIXELART 1

#define USE_ALPHA 1
#define USE_DISABLE_CULL 1

#define USE_SUBSURFACESCATTERING 1

render_mode
	#if USE_DISABLE_CULL
		cull_disabled;
	#else
		cull_back;
	#endif

group_uniforms Toon;
uniform float     ToonRampOffset:     hint_range(0.0, 1.0) = 0.5;
uniform float     ToonRampSmoothness: hint_range(0.0, 1.0) = 0.05;
uniform vec3      ToonRampTinting:    source_color;

#if USE_RIM
	group_uniforms Rim;
	uniform float     RimPower:           hint_range(0.0, 10.0) = 1.0;
	uniform float     RimCutOff:          hint_range(0.0, 1.0) = 0.5;
	uniform float     RimSmoothness:      hint_range(0.0, 1.0) = 0.05;
	uniform float     RimLightBrightness: hint_range(0.0, 50.0) = 20.0;
#endif

#if USE_SUBSURFACESCATTERING
	group_uniforms SubsurfaceScattering;
	uniform float     SubSurfDistortion:  hint_range(0.0, 5.0) = 1.0;
	uniform vec3      SubSurfTint:        source_color;
	uniform float     SubSurfBrightness:  hint_range(0.0, 10.0) = 3.0;
	uniform float     SubSurfCutoff:      hint_range(0.0, 1.0) = 0.5;
	uniform float     SubSurfSmoothness:  hint_range(0.0, 1.0) = 0.05;
	uniform sampler2D SubSurfTexture:  source_color, hint_default_white;

#endif

group_uniforms Texture;
#if (USE_SMOOTH_PIXELART || !USE_PIXELART)
	uniform sampler2D Texture:            source_color, filter_linear_mipmap_anisotropic;
#else
	uniform sampler2D Texture:            source_color, filter_nearest_mipmap_anisotropic;
#endif

#if USE_RIM
	float fresnel(float amount, vec3 normal, vec3 view) {
		return pow((1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0 )), amount);
	}
#endif

#if USE_SMOOTH_PIXELART
	vec4 texture_point_smooth(sampler2D smp, vec2 uv, vec2 pixel_size) {
		vec2 ddx = dFdx(uv);
		vec2 ddy = dFdy(uv);
		vec2 lxy = sqrt(ddx * ddx + ddy * ddy);

		vec2 uv_pixels = uv / pixel_size;

		vec2 uv_pixels_floor = round(uv_pixels) - vec2(0.5f);
		vec2 uv_dxy_pixels = uv_pixels - uv_pixels_floor;

		uv_dxy_pixels = clamp((uv_dxy_pixels - vec2(0.5f)) * pixel_size / lxy + vec2(0.5f), 0.0f, 1.0f);

		uv = uv_pixels_floor * pixel_size;

		return textureGrad(smp, uv + uv_dxy_pixels * pixel_size, ddx, ddy);
	}
#endif

void fragment() {
	vec4 textureColor;

	#if USE_SMOOTH_PIXELART
		vec2 tex_size = 1.0f / vec2(textureSize(Texture, 0));
		textureColor = texture_point_smooth(Texture, UV, tex_size);
	#else
		textureColor = texture(Texture, UV);
	#endif
		ALBEDO = textureColor.rgb;

	#if USE_ALPHA
		ALPHA = textureColor.a;
		ALPHA_SCISSOR_THRESHOLD = 0.5;
	#endif
}

void light() {
	// Diffuse Shading
	float d =  dot(NORMAL,LIGHT) * 0.5 + 0.5;
	float toonRamp = smoothstep(ToonRampOffset, ToonRampOffset + ToonRampSmoothness, d);

	// Shadows
	toonRamp *= ATTENUATION;

	vec3 toonRampOutput = LIGHT_COLOR * toonRamp;
	vec3 ambientLightOutput = ALBEDO * ToonRampTinting;
	DIFFUSE_LIGHT += clamp((toonRampOutput - ambientLightOutput), vec3(0.0), vec3(1.0));


	#if USE_RIM
		float fresnel = fresnel(RimPower, NORMAL, VIEW);
		float d2 = dot(NORMAL, LIGHT);
		d2 *= fresnel;
		d2 = smoothstep(RimCutOff, RimCutOff + RimSmoothness, d2);

		vec3 rimOutput =  d2 * RimLightBrightness * ALBEDO;

		DIFFUSE_LIGHT += rimOutput;
	#endif



	#if USE_SUBSURFACESCATTERING
		float subSurfBack = dot(VIEW, -(LIGHT + NORMAL * SubSurfDistortion));
		float subSurfFront = dot(VIEW, LIGHT - NORMAL * SubSurfDistortion);
		subSurfBack = max(subSurfBack, 0.0);
		subSurfFront = max(subSurfFront, 0.0);

		float subSurfScattering = smoothstep(SubSurfCutoff, SubSurfCutoff + SubSurfSmoothness, subSurfBack + subSurfFront);

		vec3 subSurfColor = SubSurfTint * texture(SubSurfTexture, UV).rgb;
		DIFFUSE_LIGHT += subSurfScattering * SubSurfBrightness * subSurfColor;
	#endif


	SPECULAR_LIGHT = ambientLightOutput;
}
Tags
npr, pixel, stylized, toon
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
