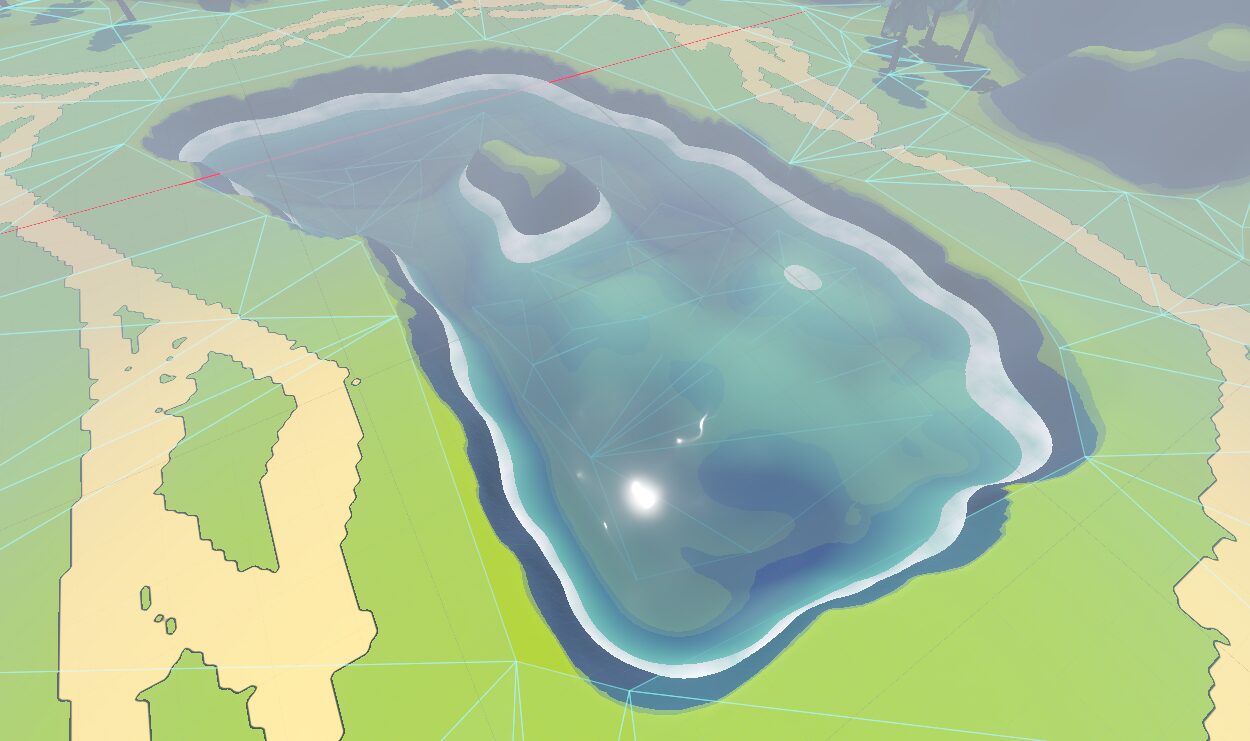

Water Shader Toon Like (godot 4.4+)
norRand1 norRand2 need normal noise texture.
Other parameters try yourself.
It is good 🙂
Forgive my terrible naming.
Shader code
shader_type spatial;
render_mode world_vertex_coords;
uniform sampler2D norRand1 :repeat_enable;
uniform sampler2D norRand2 :repeat_enable;
uniform vec2 dir = vec2(-0.2,1.);
uniform float alpha:hint_range(0.1, 1.0) = 0.65f;
uniform float distScaler:hint_range(0.01, 1.0) = 0.1f;
uniform vec4 baseCol :source_color;
uniform vec3 deepCol : source_color;
uniform float deepColOffset = 0.0;
uniform float noiseScaler = 0.001;
uniform float waveSpeedScaler = 1.0;
uniform float vertexSpeedScaler = 1.0;
uniform vec4 fresnelColor : source_color;
uniform vec4 edgeColor : source_color;
uniform float edgeThreshold = 0.1f;
uniform sampler2D depthTex : hint_depth_texture;
uniform sampler2D edgeNoise : repeat_enable;
uniform float windRippleDegScaler = 1.0f;
varying vec2 worldXZ;
float fresnel_schlick(vec3 view_dir, vec3 normal) {
float F0 = 0.02;
float cos_theta = clamp(dot(normalize(view_dir), normalize(normal)), 0.0, 1.0);
return F0 + (1.0 - F0) * pow(1.0 - cos_theta, 5.0);
}
void vertex() {
// Called for every vertex the material is visible on.
worldXZ = VERTEX.xz;
VERTEX.y += windRippleDegScaler* 0.5f * (texture(norRand1,(dir *vertexSpeedScaler* TIME + VERTEX.xz)*0.01).r - 0.5f);
}
void fragment() {
vec2 offSet = dir * TIME*waveSpeedScaler;
NORMAL_MAP = mix(texture(norRand1,(worldXZ + offSet) * noiseScaler),
texture(norRand2,(worldXZ + offSet)* noiseScaler),0.5).rgb;
ALBEDO = baseCol.rgb;
ALBEDO = mix(ALBEDO,fresnelColor.rgb,fresnel_schlick(VIEW,NORMAL));
float depth = texture(depthTex,SCREEN_UV).x;
vec3 ndc = vec3(SCREEN_UV * 2.0 - 1.0, depth);
vec4 world = INV_VIEW_MATRIX * INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
vec3 world_position = world.xyz / world.w;
float nodeY = NODE_POSITION_WORLD.y;
float dis = (nodeY - world_position.y) * distScaler;
float mixEdge = step(dis,edgeThreshold);
float rand = texture(edgeNoise,(-dir * TIME + worldXZ)*0.02).x;
float mixAmount = clamp(rand+0.2, 0 , 1);
ALBEDO = mix(ALBEDO,edgeColor.rgb,mixAmount * mixEdge);
float mixDeepAmount = clamp(dis *(deepColOffset + 1.)* 0.6f,0.,1.);
mixDeepAmount = pow(mixDeepAmount ,0.85);
ALBEDO = mix(ALBEDO,deepCol,mixDeepAmount);
ROUGHNESS = 0.02;
ALPHA = alpha;
}
