Transparent Window Shader in Godot for 2D Games

Overview:
Ever wanted a transperent window in godot?

This guide explains how to implement a basic transparent window in Godot and still interact with buttons, images, animations, and more.

I KNOW THIS IS NOT REALY A SHADER BUT I THINK IT STILL FITS TO GODOTSHADERS

Step-by-Step Instructions:

1. Create a New Scene:

   • Start by creating a new scene in Godot.

   • Add a Node2D to the scene as the root node. This “Shader” only works on 2D Spaces

2. Add Shader to the Node:

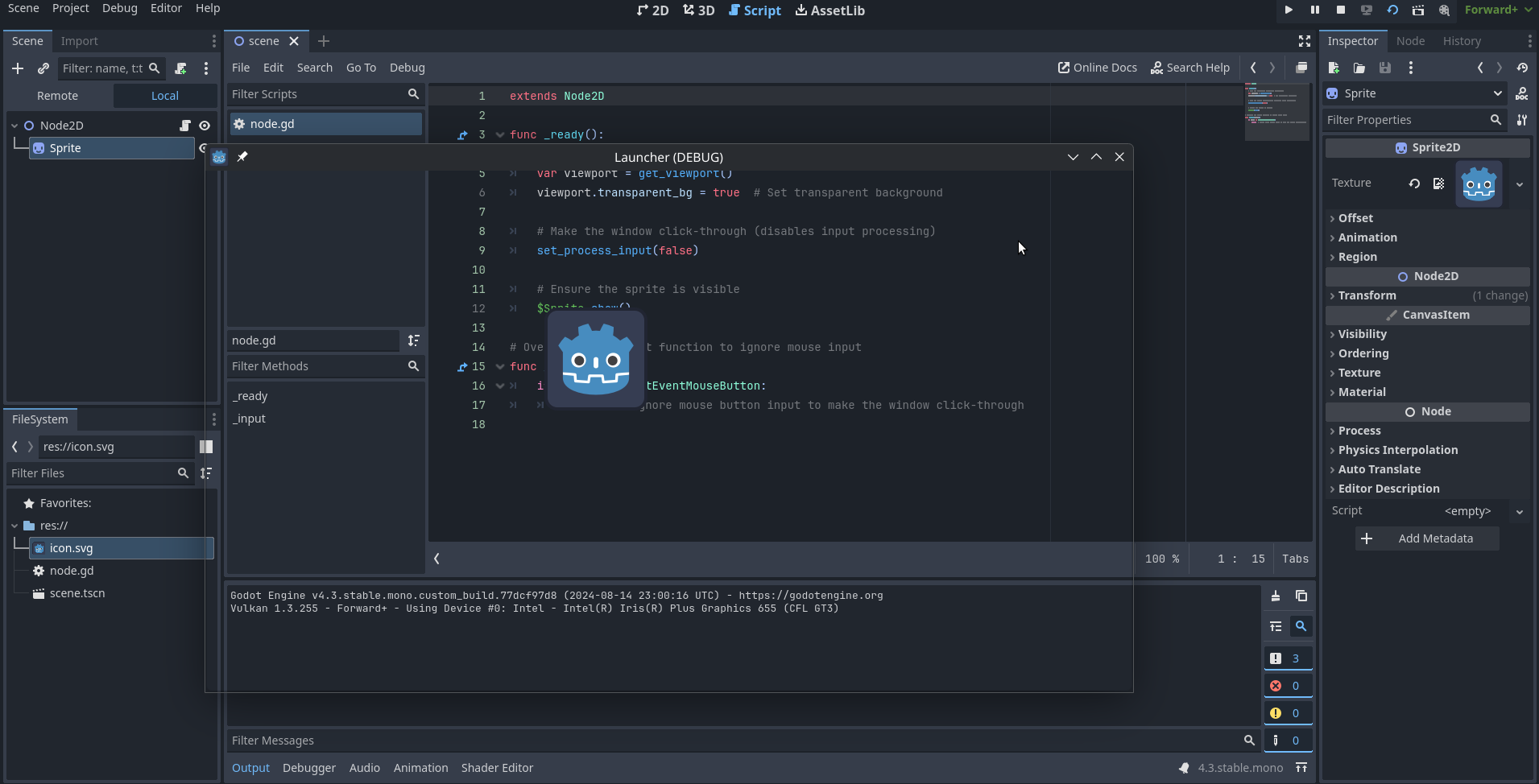

   • Attach the provided shader script to your Node2D. This will make the window transparent and enable other required features.

3. Adjust Project Settings:

   • Go to Project > Project Settings.

   • Under the Window section, enable the following options:

     • Per Pixel Transparency

     • Transparent

4. Resizeable Window:

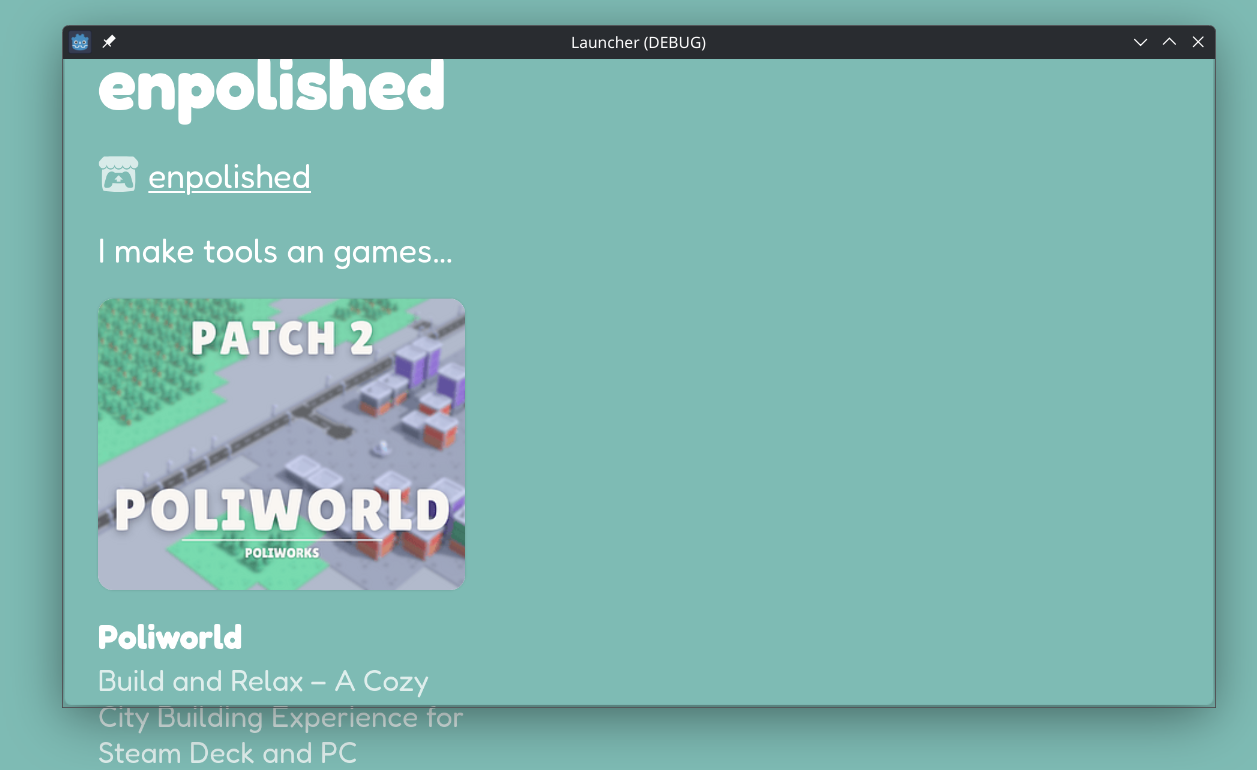

   • Once the above steps are complete, you now have a fully resizeable transparent window.

   • The window can resize as you want, but it won’t be clickable by default (no click-through effect). However, we will ensure interactions work correctly for UI elements inside the window.

5. Add Interactive Elements (Images, Buttons, Animations, Scripts):

   • You can now add various elements like images, buttons, and animations on top of the transparent window.

   • These elements will still be fully interactive and clickable, despite the transparency, allowing the user to interact with them as usual.

TESTED ON KDE PLASMA KUBUNTU , GODOT 4.3

Shader code

extends Node2D

func _ready():
	# Make the viewport's background transparent
	var viewport = get_viewport()
	viewport.transparent_bg = true  # Set transparent background

	# Ensure the sprite is visible
	$Godot.show() # Add all visible sprites
