Triangle Wave

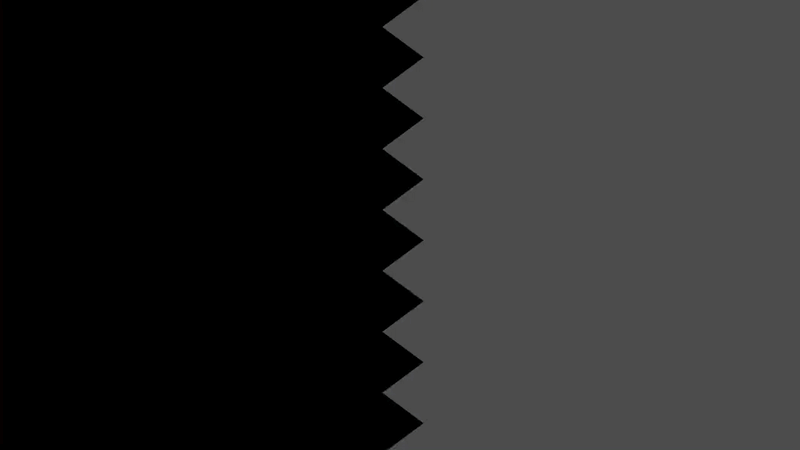

Simple triangle wave shader for transitions.
I believe the part that calculates the aspect ratio doesn’t work with the compatibility renderer, but I haven’t tested. If not, you can just:
1) delete “deriv” variable (line 16)
2) delete “aspect” variable (line 17)
3) add “uniform float aspect = 1.0” at the top (around line 8 with the other shader parameters)
4) set the new “aspect” variable in gdscript with node.size.y / node.size.x (the node being whatever node has the shader applied)
Shader code
shader_type canvas_item;
uniform bool horizontal = true;
uniform bool reverse = false;
uniform float wave_size : hint_range(0.0, 1.0) = 0.09;
uniform float wave_freq : hint_range(0.01, 0.2) = 0.075;
uniform float cutoff : hint_range(0.0, 1.0) = 0.5;
void fragment() {
vec2 uv = UV;
float dir_uv = horizontal ? uv.x : uv.y;
float opp_dir_uv = horizontal ? uv.y : uv.x;
float prim_uv = reverse ? 1.0 - dir_uv : dir_uv;
float sec_uv = reverse ? 1.0 - opp_dir_uv : opp_dir_uv;
vec2 deriv = fwidthFine(UV);
float aspect = deriv.x / deriv.y;
float aspect_wave_size = horizontal ? wave_size * aspect : wave_size;
float aspect_wave_freq = horizontal ? wave_freq / aspect : wave_freq;
float t = fract(sec_uv / aspect_wave_freq);
t = 1.0 - abs(2.0 * t - 1.0);
float adj_cutoff = cutoff * (1.0 + aspect_wave_size);
float c = (adj_cutoff - prim_uv) / aspect_wave_size;
float smooth_c = smoothstep(t - .02, t + 0.02, c);
float alpha = 1.0 - smooth_c;
COLOR.a = alpha;
}
