Triangle Border

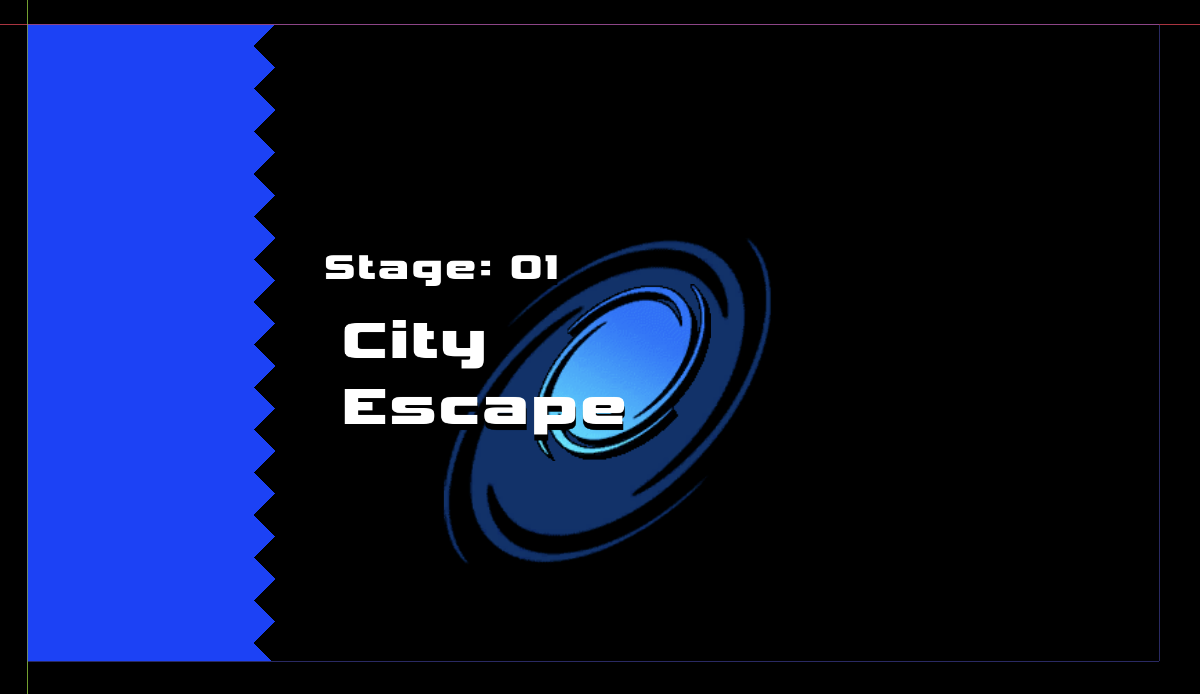

Sonic-style triangle border for use in UI.

Shader code
shader_type canvas_item;

uniform vec4 block_color : source_color; // Solid block color
uniform float block_width : hint_range(0.0, 1.0); // Block width (0 to 1, relative to the canvas)
uniform float triangle_size_pixels : hint_range(1.0, 100.0); // Frequency of the triangle pattern along the border
uniform float wave_offset : hint_range(0.0, 1.0); // Offset for the wave period (0 to 1, relative to the period)

void fragment() {
	float triangle_size_uv = triangle_size_pixels * SCREEN_PIXEL_SIZE.y;

    // Check if the pixel is inside the solid block area
    if (UV.x < block_width) {
        // Set the pixel to the block color
        COLOR = block_color;
    } else {
        // Calculate the triangle pattern along the right edge
        float distance_from_edge = UV.x - block_width;

        // Calculate the Y position within the triangle pattern cycle
        float vertical_cycle = mod(UV.y + wave_offset * triangle_size_uv, triangle_size_uv);

        // Map the vertical position to the triangle's shape
        float triangle_base = abs(triangle_size_uv / 2.0 - vertical_cycle); // Creates a triangular wave

        // Check if the fragment is within the triangle area
        if (distance_from_edge < triangle_base) {
            COLOR = block_color; // Color inside the triangle border
        } else {
            discard; // Transparent outside the triangle
        }
    }
}
Tags
border, sonic, ui
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
