Triplanar Stochastic Terrain Shader

Inspired by several terrain shaders, as they often did not meet my needs.

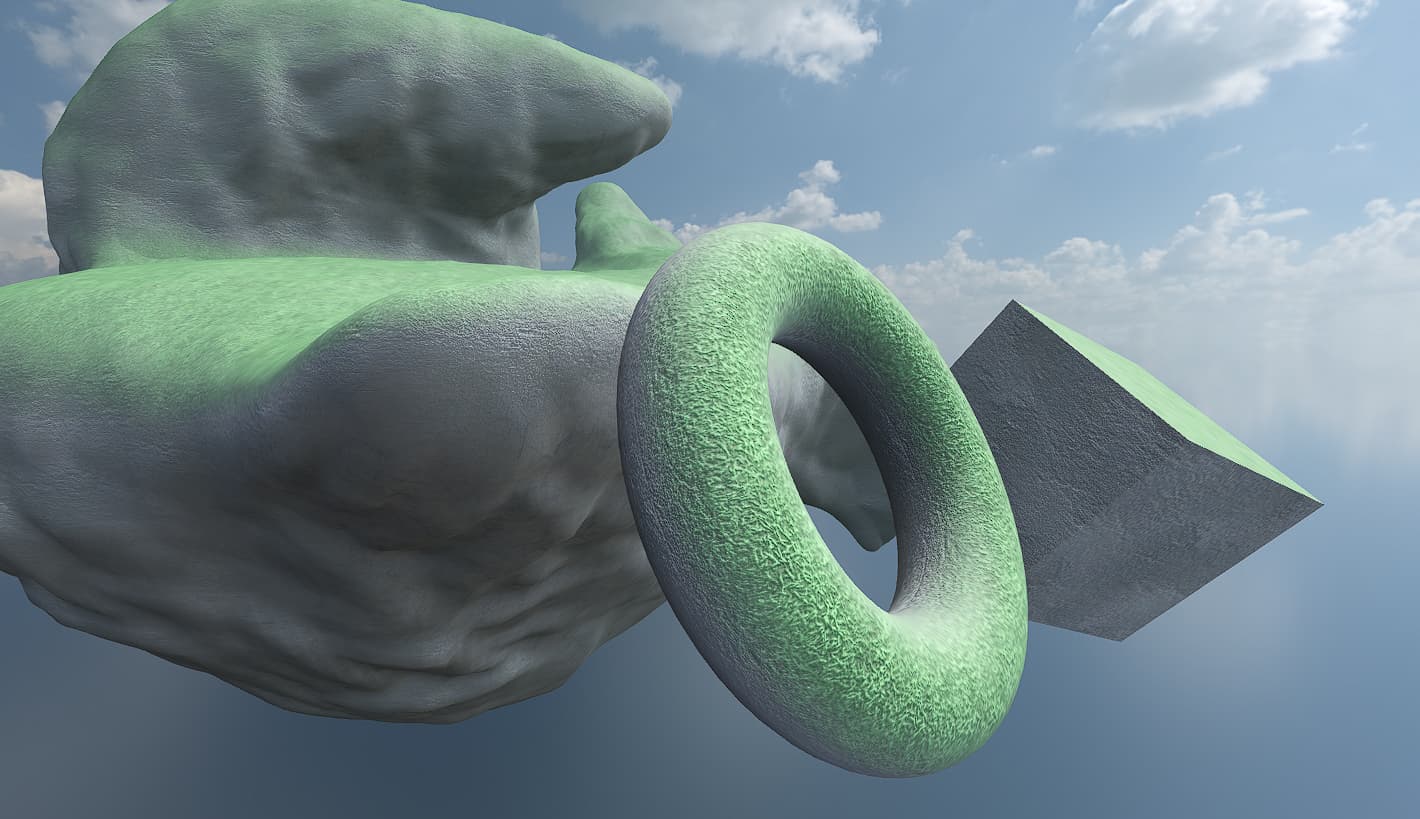

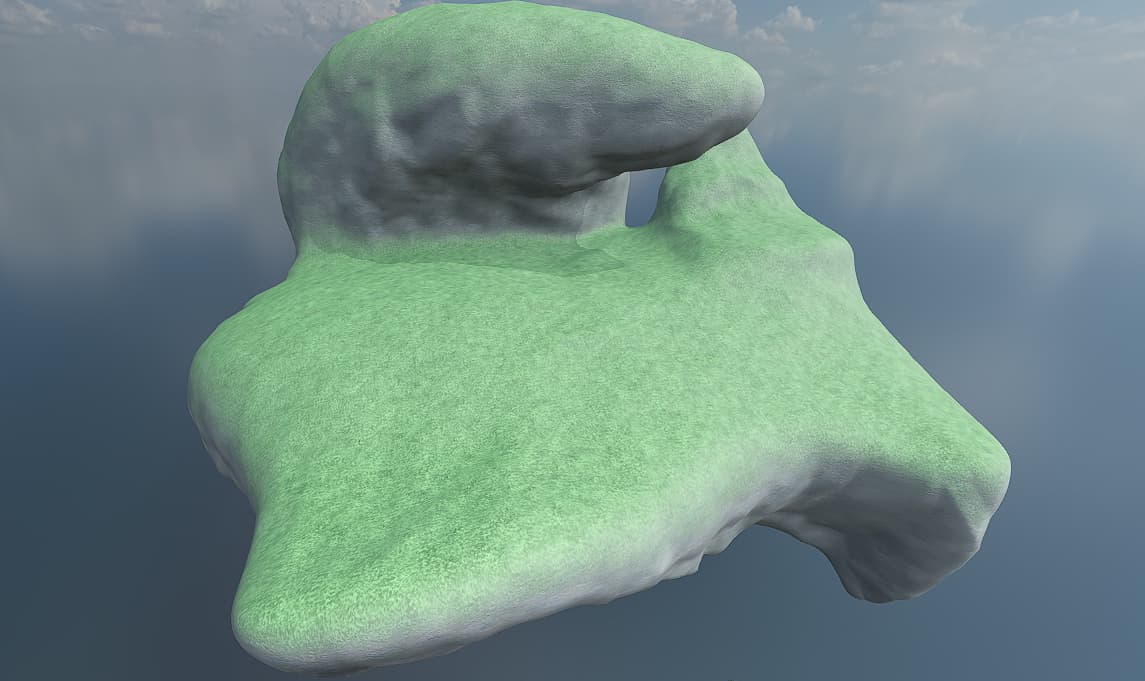

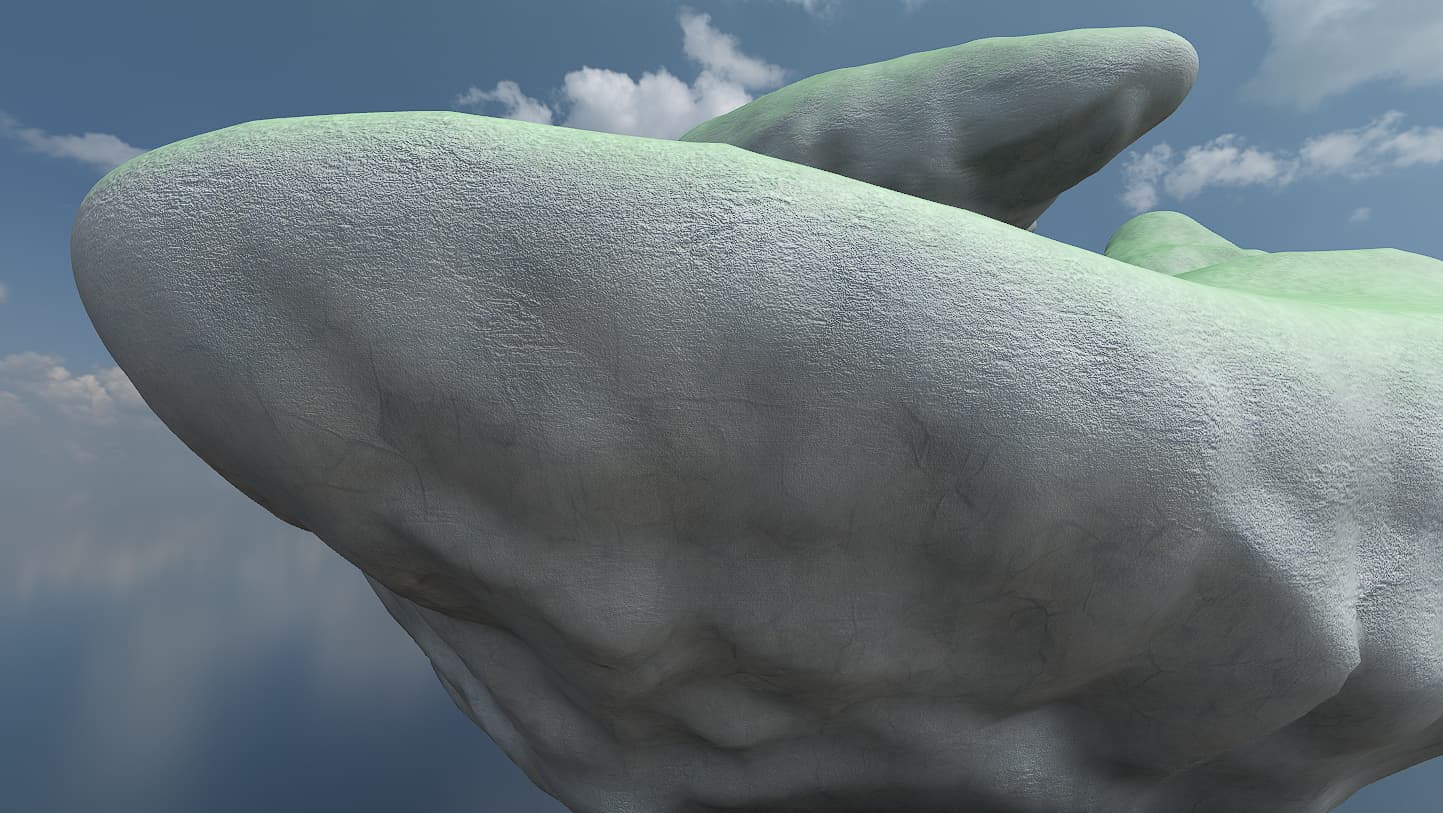

This is a shader that automatically textures the terrain using three textures. A surface texture (for example grass), a middle texture (for example rock) and a bottom texture (for example rough rock).

The shader also uses world normals by default. Therefore, the terrain can be rotated in the editor if desired. Cool to make statues with moss, for example. But this can be deactivated.

The objects do not need UV’s, as these are applied to the object triplanar. To prevent the obvious tiling, I use Stochastic Texture Sampling.

Shader code

shader_type spatial;

group_uniforms textures;
uniform sampler2D top_texture: source_color;
uniform sampler2D top_normal: hint_normal;
uniform sampler2D top_roughness: hint_roughness_r;
uniform sampler2D center_texture: source_color;
uniform sampler2D center_normal: hint_normal;
uniform sampler2D center_roughness: hint_roughness_r;
uniform sampler2D bottom_texture: source_color;
uniform sampler2D bottom_normal: hint_normal;
uniform sampler2D bottom_roughness: hint_roughness_r;

group_uniforms slopes;
uniform float center_slope: hint_range(0.0, 1.0, 0.01) = 0.05;
uniform float bottom_slope: hint_range(0.0, 1.0, 0.01) = 0.1;
uniform bool use_world_normal = true;

varying float world_normal_y;
varying float normal_y;

group_uniforms uv;
varying vec3 uv_top_triplanar_pos;
uniform float uv_top_blend_sharpness = 1.0;
varying vec3 uv_top_power_normal;
uniform vec3 uv_top_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv_top_offset = vec3(0.0, 0.0, 0.0);

varying vec3 uv_center_triplanar_pos;
uniform float uv_center_blend_sharpness = 1.0;
varying vec3 uv_center_power_normal;
uniform vec3 uv_center_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv_center_offset = vec3(0.0, 0.0, 0.0);

varying vec3 uv_bottom_triplanar_pos;
uniform float uv_bottom_blend_sharpness = 1.0;
varying vec3 uv_bottom_power_normal;
uniform vec3 uv_bottom_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv_bottom_offset = vec3(0.0, 0.0, 0.0);


void vertex() {
	normal_y = NORMAL.y;
	vec3 world_normal = normalize((MODEL_MATRIX * vec4(NORMAL, 0.0)).xyz);
	world_normal_y = world_normal.y;

	vec3 normal = NORMAL;
	TANGENT = vec3(0.0,0.0,-1.0) * abs(normal.x);
	TANGENT+= vec3(1.0,0.0,0.0) * abs(normal.y);
	TANGENT+= vec3(1.0,0.0,0.0) * abs(normal.z);
	TANGENT = normalize(TANGENT);
	BINORMAL = vec3(0.0,1.0,0.0) * abs(normal.x);
	BINORMAL+= vec3(0.0,0.0,-1.0) * abs(normal.y);
	BINORMAL+= vec3(0.0,1.0,0.0) * abs(normal.z);
	BINORMAL = normalize(BINORMAL);

	uv_top_power_normal=pow(abs(NORMAL),vec3(uv_top_blend_sharpness));
	uv_top_triplanar_pos = VERTEX * uv_top_scale + uv_top_offset;
	uv_top_power_normal/=dot(uv_top_power_normal,vec3(1.0));
	uv_top_triplanar_pos *= vec3(1.0,-1.0, 1.0);

	uv_center_power_normal=pow(abs(NORMAL),vec3(uv_center_blend_sharpness));
	uv_center_triplanar_pos = VERTEX * uv_center_scale + uv_center_offset;
	uv_center_power_normal/=dot(uv_center_power_normal,vec3(1.0));
	uv_center_triplanar_pos *= vec3(1.0,-1.0, 1.0);

	uv_bottom_power_normal=pow(abs(NORMAL),vec3(uv_bottom_blend_sharpness));
	uv_bottom_triplanar_pos = VERTEX * uv_bottom_scale + uv_bottom_offset;
	uv_bottom_power_normal/=dot(uv_bottom_power_normal,vec3(1.0));
	uv_bottom_triplanar_pos *= vec3(1.0,-1.0, 1.0);
}

vec2 hash( vec2 p ) {
	return fract( sin( p * mat2( vec2( 127.1, 311.7 ), vec2( 269.5, 183.3 ) ) ) * 43758.5453 );
}

vec4 stochastic_sample(sampler2D tex, vec2 uv) {
	vec2 skewV = mat2(vec2(1.0,1.0),vec2(-0.57735027 , 1.15470054))*uv * 3.464;

	vec2 vxID = floor(skewV);
	vec2 fracV = fract(skewV);
	vec3 barry = vec3(fracV.x,fracV.y,1.0-fracV.x-fracV.y);

	mat4 bw_vx = barry.z>0.0?
		mat4(vec4(vxID,0.0,0.0),vec4((vxID+vec2(0.0,1.0)),0.0,0.0),vec4(vxID+vec2(1.0,0.0),0,0),vec4(barry.zyx,0)):
		mat4(vec4(vxID+vec2(1.0,1.0),0.0,0.0),vec4((vxID+vec2(1.0,0.0)),0.0,0.0),vec4(vxID+vec2(0.0,1.0),0,0),vec4(-barry.z,1.0-barry.y,1.0-barry.x,0));

	vec2 ddx = dFdx(uv);
	vec2 ddy = dFdy(uv);

	return (textureGrad(tex,uv+hash(bw_vx[0].xy),ddx,ddy)*bw_vx[3].x) +
	(textureGrad(tex,uv+hash(bw_vx[1].xy),ddx,ddy)*bw_vx[3].y) +
	(textureGrad(tex,uv+hash(bw_vx[2].xy),ddx,ddy)*bw_vx[3].z);
}

vec4 triplanar_stochastic_texture(sampler2D p_sampler,vec3 p_weights,vec3 p_triplanar_pos) {
	vec4 samp=vec4(0.0);
	samp+= stochastic_sample(p_sampler,p_triplanar_pos.xy) * p_weights.z;
	samp+= stochastic_sample(p_sampler,p_triplanar_pos.xz) * p_weights.y;
	samp+= stochastic_sample(p_sampler,p_triplanar_pos.zy * vec2(-1.0,1.0)) * p_weights.x;
	return samp;
}

void fragment() {
	// Albedo values
	vec3 top_albedo = triplanar_stochastic_texture(top_texture,uv_top_power_normal,uv_top_triplanar_pos).xyz;
	vec3 center_albedo = triplanar_stochastic_texture(center_texture,uv_center_power_normal,uv_center_triplanar_pos).xyz;
	vec3 bottom_albedo = triplanar_stochastic_texture(bottom_texture,uv_bottom_power_normal,uv_bottom_triplanar_pos).xyz;

	// Normal values
	vec3 top_normal_map = triplanar_stochastic_texture(top_normal,uv_top_power_normal,uv_top_triplanar_pos).xyz;
	vec3 center_normal_map = triplanar_stochastic_texture(center_normal,uv_center_power_normal,uv_center_triplanar_pos).xyz;
	vec3 bottom_normal_map = triplanar_stochastic_texture(bottom_normal,uv_bottom_power_normal,uv_bottom_triplanar_pos).xyz;

	// Rougness values
	vec4 top_roughness_map = triplanar_stochastic_texture(top_roughness,uv_top_power_normal,uv_top_triplanar_pos);
	vec4 center_roughness_map = triplanar_stochastic_texture(center_roughness,uv_center_power_normal,uv_center_triplanar_pos);
	vec4 bottom_roughness_map = triplanar_stochastic_texture(bottom_roughness,uv_bottom_power_normal,uv_bottom_triplanar_pos);

	// Wheights
	float center_top_weight = world_normal_y;
	float bottom_weight = -world_normal_y;

	if (!use_world_normal) {
		center_top_weight = normal_y;
		bottom_weight = -normal_y;
	}

	// Calculate weights
	center_top_weight = max(center_slope, center_top_weight);
	bottom_weight = max(bottom_slope, bottom_weight);

	// Mix
	vec4 roughness_texture_channel = vec4(1.0,0.0,0.0,0.0);

	ALBEDO = mix(mix(center_albedo, top_albedo, center_top_weight), bottom_albedo, bottom_weight);
	NORMAL_MAP = mix(mix(center_normal_map, top_normal_map, center_top_weight), bottom_normal_map, bottom_weight);
	ROUGHNESS = dot(mix(mix(center_roughness_map, top_roughness_map, center_top_weight), bottom_roughness_map, bottom_weight), roughness_texture_channel);
}
