Variable Blur – Works with parallax layers

Modified blur shader that can be used inside parallax background, just add a texture rect with the shader and ajust the values.

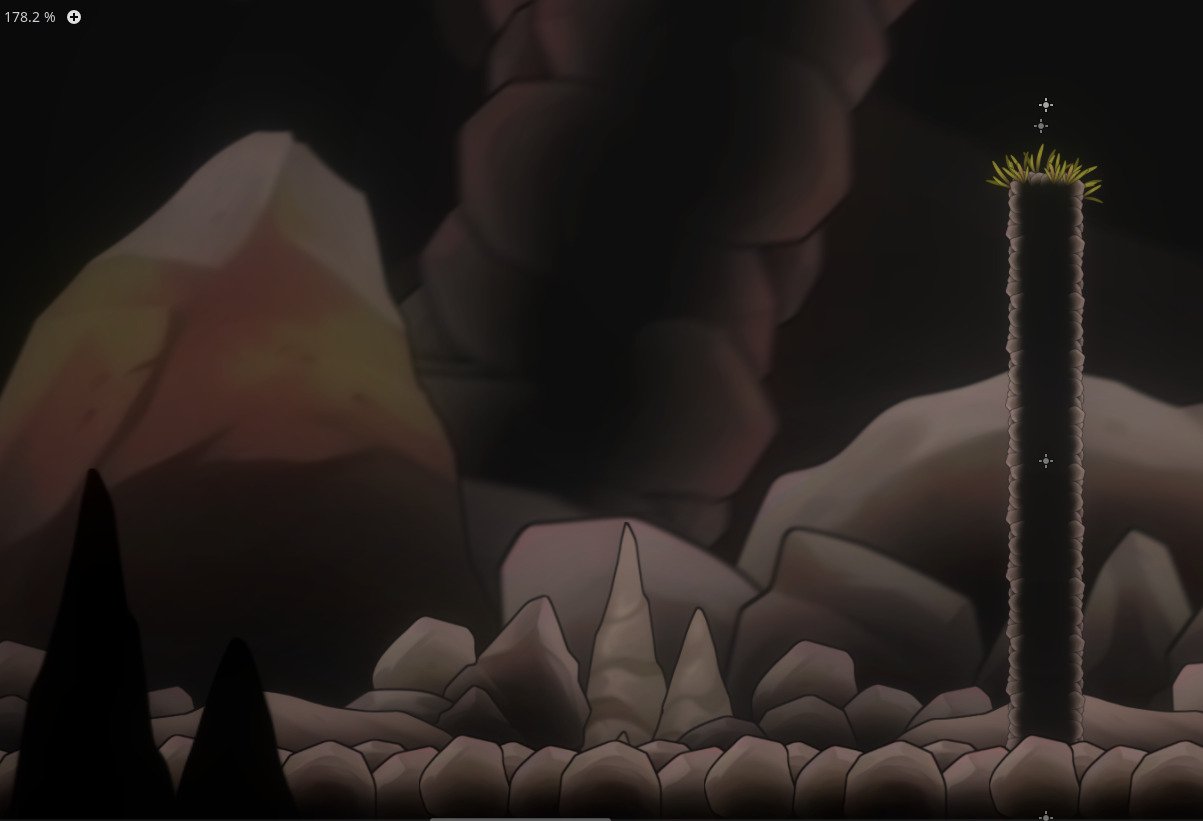

You can add more than one layer of blur to make a 2D depth of field.

Shader code
shader_type canvas_item;

uniform float SAMPLES = 11.0;
const float WIDTH = 0.04734573810584494679397346954847;

uniform vec2 blur_scale = vec2(1, 0);

float gaussian(float x) {
    float x_squared = x*x;

    return WIDTH * exp((x_squared / (2.0 * SAMPLES)) * -1.0);
}

void fragment() {
	vec2 scale = TEXTURE_PIXEL_SIZE * blur_scale;

	float weight = 0.0;
	float total_weight = 0.0;
	vec4 color = vec4(0.0);

	for(int i=-int(SAMPLES)/2; i < int(SAMPLES)/2; ++i) {
		weight = gaussian(float(i));
		color.rgb += texture(SCREEN_TEXTURE, SCREEN_UV + scale * vec2(float(i))).rgb * weight;
		total_weight += weight;
	}

	COLOR.rgb = color.rgb / total_weight;
}
Tags
blur, depth, parallax
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

Variable Dot Pattern

Parallax Ice | Depth effect

Artsy Circle blur type thingy

guest

2 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Pixelipy
Pixelipy
1 year ago

Hi!! I Tried Stacking the blur effects but for some reason if I put more than one of the blur textureRects my background vanishes?? I don’t know what is happening

Luis
Luis
7 months ago

Hello, this shader crashes Godot 3.4.2. Anyone could confirm?
