Very simple CRT shader

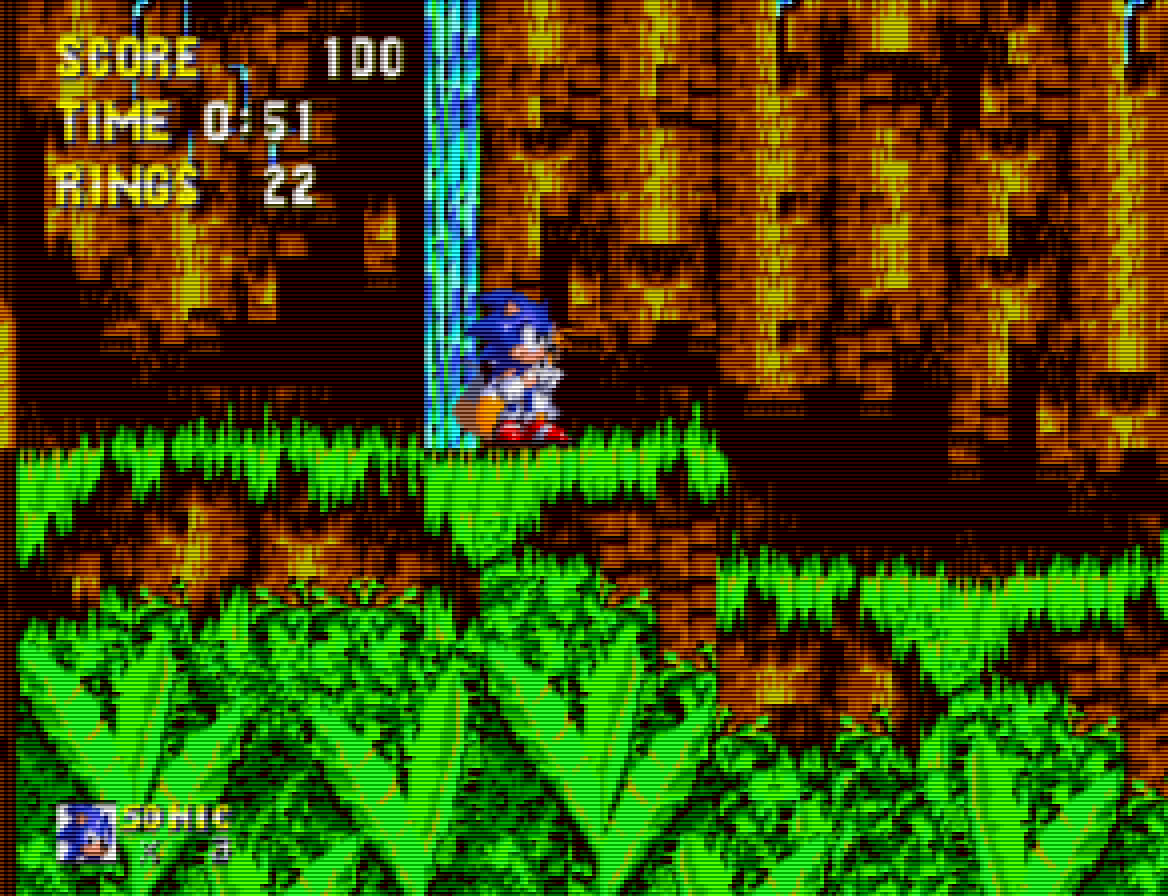

This isn’t based on anything special or scientific, it just recreates the look of a CRT display by darkening the top half of pixels and blending pixels with the pixels left and above them.

I set this up by rendering everything to a rendertexture and overlaying a ColorRect over that, but anything should work as long as the resolution is set correctly and the stretch mode is set to canvas_items in the project settings or your window resolution is at least twice the resolution of your game so the darkened and not darkened half of pixels can both be displayed

Shader code
shader_type canvas_item;

uniform vec2 screen_resolution = vec2(480, 270);
uniform float scanline_intensity : hint_range(0.0, 1.0) = 0.3;
uniform float color_bleed_weight : hint_range(0.0, 1.0) = 0.35;

uniform sampler2D screen_texture : hint_screen_texture, filter_nearest;

void fragment() {
	// Darken top halves of pixels
	float color_dark_offset = 0.0;
	int y_pos = int(floor(SCREEN_UV.y * screen_resolution.y * 2.0));
	if (int(floor((float(y_pos) / 2.0))) * 2 == y_pos)
		color_dark_offset = scanline_intensity;

	// Blend pixel with left and top pixel to simulate color bleeding
	vec4 adjacent_pixel_color_average = texture(screen_texture, SCREEN_UV - vec2(1.0 / screen_resolution.x, 0)) * 0.5 + texture(screen_texture, SCREEN_UV - vec2(0, 1.0 / screen_resolution.y)) * 0.5;
	vec4 this_pixel_color = texture(screen_texture, SCREEN_UV);

	COLOR = adjacent_pixel_color_average * color_bleed_weight + this_pixel_color * (1.0 - color_bleed_weight) - vec4(vec3(color_dark_offset), 0);
}
Tags
2d, canvas_item, CRT, pixel-art, retro
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
