Simple CRT/VHS

A really simple CRT shader with some noise, some scanline, and a vinette. Nothing crazy, but I ended up liking how this one looks a lot

Shader code
shader_type canvas_item;

uniform sampler2D screen_tex: hint_screen_texture;
uniform float scanlines_1 = 500.;
uniform float scanlines_2 = 25.;
uniform float scan_reduction = .1;

uniform float vinnette_alpla: hint_range(0.0, 1.0, 0.01) = 1.0;
uniform float vinnette_inner_radius = 0.;
uniform float vinnette_outer_radius = 1.;


float random (vec2 uv) {
    return fract(sin(dot(uv.xy,
        vec2(12.9898,78.233))) * 43758.5453123);
}

void vertex() {
	// Called for every vertex the material is visible on.
}

void fragment() {
	vec2 uv_noise = UV * TIME;
	vec2 uv_scan1 = vec2(UV.x, UV.y + TIME);
	vec2 uv_scan2 = vec2(UV.x, UV.y + TIME * .4);



	vec4 screen = texture(screen_tex, UV);

	float scanlines1 = sin(uv_scan1.y * scanlines_1) * scan_reduction - scan_reduction;
	float scanlines2 = sin(uv_scan2.y * scanlines_2) * scan_reduction - scan_reduction;

	vec4 noise = vec4(random(uv_noise), random(uv_noise), random(uv_noise), .2);

	float vinnette_x = abs(UV.r-.5)*2.0;
	float vinnette_y = abs(UV.g-.5)*2.0;
	float vinnette_q = 1.0-(1.0-sqrt(vinnette_x*vinnette_x+vinnette_y*vinnette_y)/vinnette_outer_radius)/(1.0-vinnette_inner_radius);
	screen += vec4(0, 0, 0, vinnette_q * vinnette_alpla);


	COLOR = screen * noise;

	COLOR.rgb += vec3(scanlines1);
	COLOR.rgb += vec3(scanlines2);

	COLOR.rgb *= vec3(5, 5, 5);

}

//void light() {
//	// Called for every pixel for every light affecting the CanvasItem.
//	// Uncomment to replace the default light processing function with this one.
//}

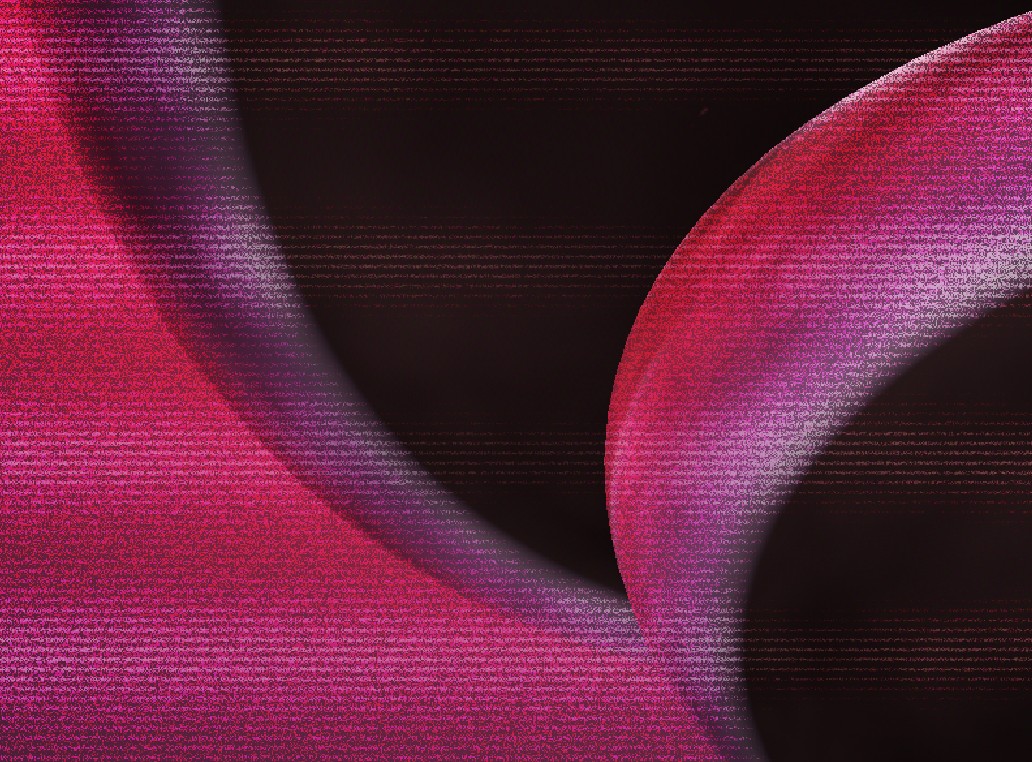

Live Preview
Tags
80s, 90s, CRT, film, found footage, Grain, noise, nostalgia, nostalgic, old, retro, scanlines, tape, tv, VHS, video
The shader code and all code snippets in this post are under GNU GPL v.3 license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
