VHS CRT Broadcast
A full-screen CRT / VHS post-process made with CanvasItem
test shader for godot (im learning shaders so feedback is welcome)
Wibezzzzz
CRT-style curvature, vignette, and rounded screen corners
Scanlines with an optional RGB triad / shadow mask look
VHS-style artifacts like chroma shift, horizontal smear, per-line jitter, tracking lines, and roll bar distortion
Simple bright-pixel glow / bloom-ish effect
Built-in color grading controls for brightness, contrast, saturation, and gamma
Y for use it?
retro horror idk
liminal analog environments like front outdoors lol
VHS dream sequences yerrppppp
surveillance camera looks (rembot did a tutorial check it out)
old TV menu screens (remember dvds!!!!)
What goin on in the code?
This shader is designed as a fullscreen post-process.
It reads from hint_screen_texture using SCREEN_UV, so it affects whatever has already been drawn behind it.
Setup
Create a CanvasLayer
Add a ColorRect as a child
Set the ColorRect to Full Rect
Create a ShaderMaterial on the ColorRect
Paste the shader into a new Shader resource
Optional: set Mouse > Filter to Ignore so it does not block UI input
Notes
If you want your UI to stay clean, place the UI on a higher CanvasLayer than the effect.
The shader is meant to be tweakable, so you can dial in:
subtle CRT softness
dirty VHS tracking noise
unstable glitchy tape playback
or a blend of both
Shader code
shader_type canvas_item;
render_mode unshaded;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_linear_mipmap;
// overall image
uniform float pixel_size : hint_range(1.0, 4.0) = 2.0;
uniform float lod_blur : hint_range(0.0, 2.0) = 0.7;
uniform float chroma_offset_px : hint_range(0.0, 3.0) = 0.8;
uniform float saturation : hint_range(0.0, 2.0) = 0.78;
uniform float contrast : hint_range(0.5, 1.5) = 0.90;
uniform float shadow_lift : hint_range(0.0, 0.25) = 0.06;
uniform float scanline_strength : hint_range(0.0, 0.20) = 0.04;
uniform float vignette_strength : hint_range(0.0, 0.5) = 0.10;
// animated noise
uniform float noise_strength : hint_range(0.0, 0.12) = 0.025;
uniform float noise_speed : hint_range(0.0, 60.0) = 18.0;
// subtle always-on line wobble (in PIXELS, not UV)
uniform float base_jitter_px : hint_range(0.0, 0.50) = 0.08;
uniform float base_jitter_speed : hint_range(0.0, 40.0) = 12.0;
// glitch bursts
uniform float glitchiness : hint_range(0.0, 1.0) = 0.18;
uniform float glitch_rate : hint_range(0.0, 20.0) = 6.0;
uniform float glitch_shift_px : hint_range(0.0, 8.0) = 1.8;
uniform float glitch_window_min : hint_range(0.0, 0.20) = 0.03;
uniform float glitch_window_max : hint_range(0.0, 0.35) = 0.10;
// moving blue tracking band
uniform float blue_band_start_y : hint_range(0.0, 1.0) = 0.45;
uniform float blue_band_speed : hint_range(-1.5, 1.5) = 0.06;
uniform float blue_band_width : hint_range(0.002, 0.20) = 0.035;
uniform float blue_band_strength : hint_range(0.0, 0.30) = 0.10;
uniform float blue_band_glitch : hint_range(0.0, 1.0) = 0.25;
uniform float blue_band_distort_px : hint_range(0.0, 6.0) = 1.2;
float hash11(float p) {
return fract(sin(p * 127.1) * 43758.5453123);
}
float hash21(vec2 p) {
return fract(sin(dot(p, vec2(127.1, 311.7))) * 43758.5453123);
}
vec3 sat_adjust(vec3 c, float s) {
float l = dot(c, vec3(0.299, 0.587, 0.114));
return mix(vec3(l), c, s);
}
vec3 sample_screen(vec2 uv, float lod) {
return textureLod(screen_texture, clamp(uv, vec2(0.0), vec2(1.0)), lod).rgb;
}
void fragment() {
vec2 px = SCREEN_PIXEL_SIZE;
vec2 uv = SCREEN_UV;
float t = TIME;
float line_id = floor(FRAGCOORD.y);
// mild blocky grouping to kill digital sharpness
vec2 block = px * pixel_size;
uv = floor(uv / block) * block;
// subtle per-line wobble that updates over time
float line_wobble = hash21(vec2(line_id, floor(t * base_jitter_speed)));
uv.x += (line_wobble - 0.5) * base_jitter_px * px.x;
// occasional glitch burst window
float burst_id = floor(t * glitch_rate);
float burst_rand = hash11(burst_id + 3.17);
float burst_on = step(1.0 - glitchiness, burst_rand);
float glitch_center = hash11(burst_id + 8.41);
float glitch_half_height = mix(glitch_window_min, glitch_window_max, hash11(burst_id + 11.72));
float glitch_mask = burst_on * (1.0 - smoothstep(0.0, glitch_half_height, abs(SCREEN_UV.y - glitch_center)));
float glitch_line = hash21(vec2(line_id, burst_id + 31.3));
uv.x += (glitch_line - 0.5) * glitch_shift_px * px.x * glitch_mask;
// moving blue band with occasional jumpiness
float band_tick = floor(t * 10.0);
float band_jump = (hash11(band_tick + 55.2) - 0.5) * blue_band_glitch * 0.25;
float band_center = fract(blue_band_start_y + t * blue_band_speed + band_jump);
float band_dist = abs(SCREEN_UV.y - band_center);
band_dist = min(band_dist, 1.0 - band_dist); // wrap nicely at top/bottom
float band_mask = exp(
-(band_dist * band_dist) /
max(blue_band_width * blue_band_width, 0.000001)
);
float band_line = hash21(vec2(line_id, floor(t * 22.0) + 77.0));
uv.x += (band_line - 0.5) * blue_band_distort_px * px.x * band_mask;
// chroma split
vec2 chroma_off = vec2(chroma_offset_px * px.x, 0.0);
float r = sample_screen(uv + chroma_off, lod_blur).r;
float g = sample_screen(uv, lod_blur).g;
float b = sample_screen(uv - chroma_off, lod_blur).b;
vec3 col = vec3(r, g, b);
// overall VHS grade
col = sat_adjust(col, saturation);
col = (col - vec3(0.5)) * contrast + vec3(0.5);
col += shadow_lift;
// blue tracking tint
col += vec3(0.02, 0.07, 0.18) * band_mask * blue_band_strength;
// animated grain + line snow
float grain = hash21(
floor(FRAGCOORD.xy * 0.75) +
vec2(floor(t * noise_speed), floor(t * noise_speed * 0.73))
);
float line_snow = hash21(vec2(line_id, floor(t * noise_speed * 0.5) + 100.0));
col += ((grain - 0.5) * 0.7 + (line_snow - 0.5) * 0.3) * noise_strength;
// scanlines
float scan = sin((FRAGCOORD.y + t * 8.0) * 1.1) * 0.5 + 0.5;
col *= 1.0 - scan * scanline_strength;
// vignette
vec2 centered = SCREEN_UV * 2.0 - 1.0;
float vig = dot(centered, centered);
col *= 1.0 - vig * vignette_strength;
COLOR = vec4(clamp(col, vec3(0.0), vec3(1.0)), 1.0);

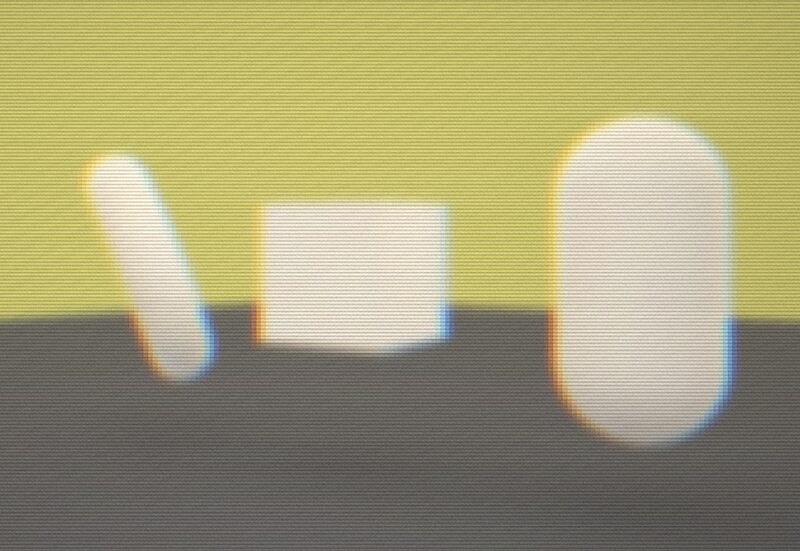

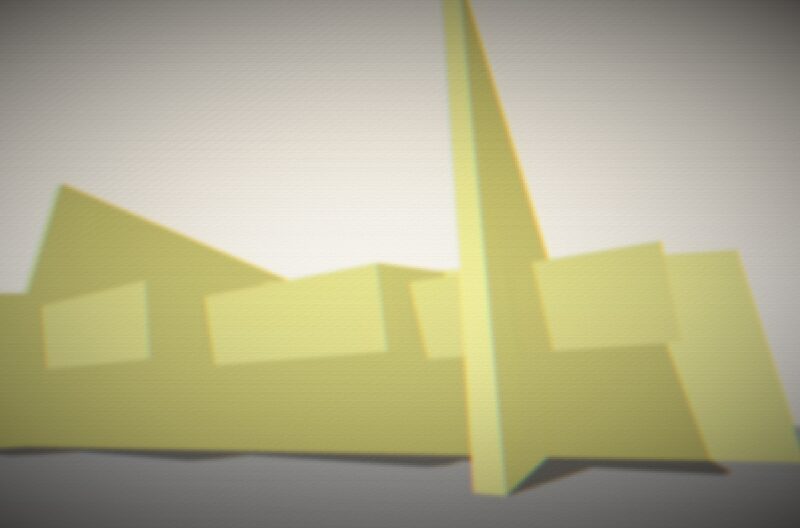

}Live Preview
