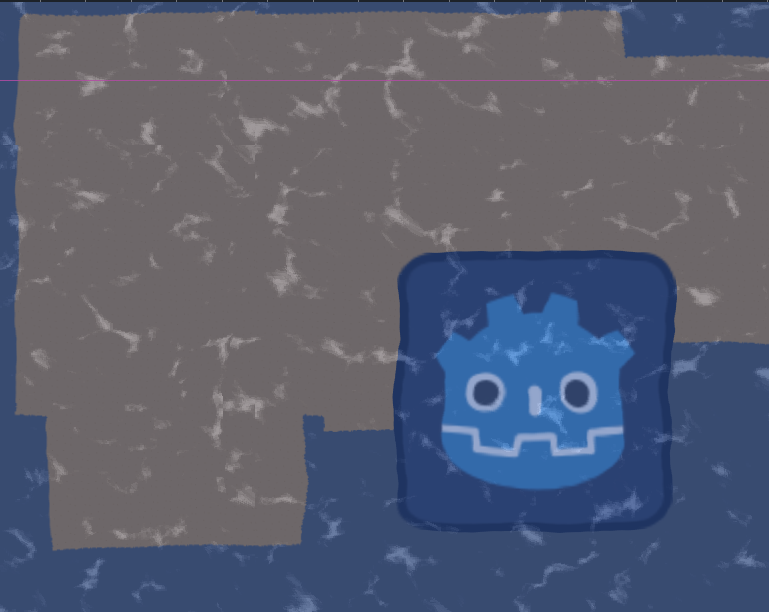

Water 2D + Distortion 4.x

If you want a shader with reflection, check out this one: link -> https://godotshaders.com/profile-page/?saved_post=10640

How to Use:

1. Add the shader to a node with a texture, such as a ColorRect or Sprite2D.

2. Assign two TextureNoise resources to the water_noise and water_distortion variables.

3. Adjust the variables to achieve the look you want.

4. Important: The water only distorts the background of what is already rendered. Adjust the Z Index accordingly to get the desired effect.

Credits / What Helped Me Create This:

This video helped me create the water distortion effect:

🎥 Water Distortion Tutorial: https://www.youtube.com/watch?v=N9ilhL8JFes&ab_channel=onetupthree

PS: There is a small visual bug I couldn’t fix. Occasionally, a transition line appears across the image when the water is moving. I believe it’s caused by the edge of the noise texture. If anyone figures out how to fix it, I’d really appreciate it!

Shader code

shader_type canvas_item;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, repeat_enable, filter_nearest;

group_uniforms water;
uniform sampler2D waterNoise : repeat_enable, filter_nearest;
uniform sampler2D waterDistortionNoise : repeat_enable, filter_nearest;
uniform vec4 waterColor : source_color = vec4(0.117, 0.27, 0.58, 1);
uniform float colorCorection : hint_range(0.0, 1.0, 0.01) = 0.35;

group_uniforms water_waves;
uniform float distortionForce : hint_range(0.00, .1, 0.001) = .01;
uniform float WDBrightness : hint_range(0, 3, 0.05) = 1.5;
uniform float WDFreq : hint_range(0.2, .9, 0.05) = 0.6;
uniform float WDSize : hint_range(0.6, 1.2, 0.05) = .9;
uniform float WDSpeed : hint_range(1, 20, 0.05) = 4;
uniform vec2 tiling = vec2(1);
uniform vec2 offSetSpeed = vec2(.1);

group_uniforms BG_distortion;
uniform float backGroundDirX : hint_range(-0.1, 0.1) = 0.01;
uniform float backGroundDirY : hint_range(-0.1, 0.1) = 0.01;




void fragment() {
	vec4 color = vec4(waterColor.rgb , 1);

	vec2 noiseUV = UV * tiling + offSetSpeed * TIME;
	float noiseValue = texture(waterDistortionNoise, noiseUV).r;

	vec2 waterUV = UV * tiling;
	waterUV.x += offSetSpeed.x * TIME;
	waterUV.y += cos(TIME * min(1., offSetSpeed.y)) * 0.01;
	waterUV = waterUV + noiseValue * distortionForce * WDSpeed;


	vec4 noiseColor = texture(waterNoise, waterUV);
	float intensity = smoothstep(WDFreq, WDSize, noiseColor.r);
	color.rgb += intensity * vec3(WDBrightness);

	vec2 backGroundUV = SCREEN_UV;
	backGroundUV.x += noiseValue * backGroundDirX;
	backGroundUV.y += noiseValue * backGroundDirY;


	color = mix(texture(SCREEN_TEXTURE, backGroundUV),color, 0.2);

	COLOR = mix(color, waterColor, colorCorection);

}
