2D Water distortion effect (Godot 4)

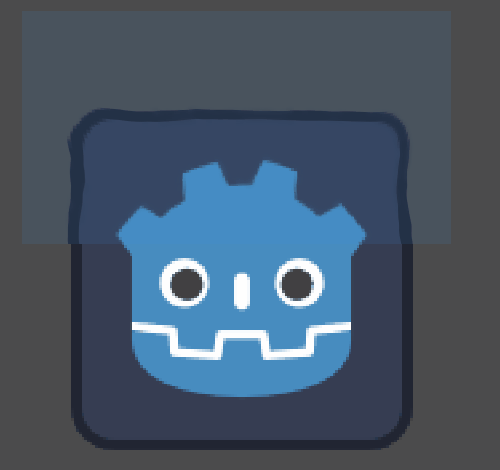

Create simple wavy effects on top of object with a tint. Based on this shader but highly modified.

Refraction Map: Noise texture for the refraction effect. Use the built-in SimplexNoise with default parameters.

Shader code
shader_type canvas_item;

uniform sampler2D refraction_map;

uniform vec2 refraction_stretch = vec2(1.0, 1.0);
uniform float refraction_strength : hint_range(0.0, 0.1) = 0.02;

uniform vec4 water_tint : source_color = vec4(0.2, 0.6, 1.0, 0.1);
uniform float speed : hint_range(0.0, 1.0) = 0.1;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

varying vec2 globalposition;
void vertex(){
	globalposition = (MODEL_MATRIX * vec4(VERTEX, 0.0, 1.0)).xy;
}


void fragment()
{
	vec2 uv = globalposition / 512.0;

	vec2 refraction_offset = texture(
		refraction_map,
		vec2(
			mod(uv.x * refraction_stretch.x + TIME * speed, 1.0),
			mod(uv.y * refraction_stretch.y + TIME * speed, 1.0))).xy;
	// Set values between -0.5 and 0.5 (instead of 0 and 1). Otherwise the reflection will move whith increased refraction_strength
	refraction_offset -= 0.5;

	// Get the screen texture and distort it
	vec4 refraction = texture(SCREEN_TEXTURE, SCREEN_UV - refraction_offset * refraction_strength);

	vec4 color = vec4(1.0);

	color.rgb = mix(refraction.rgb, water_tint.rgb, water_tint.a);
	COLOR = color;
}
Tags
Water;Godot4;2D
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
