Water shader 3D (Godot 4.3)

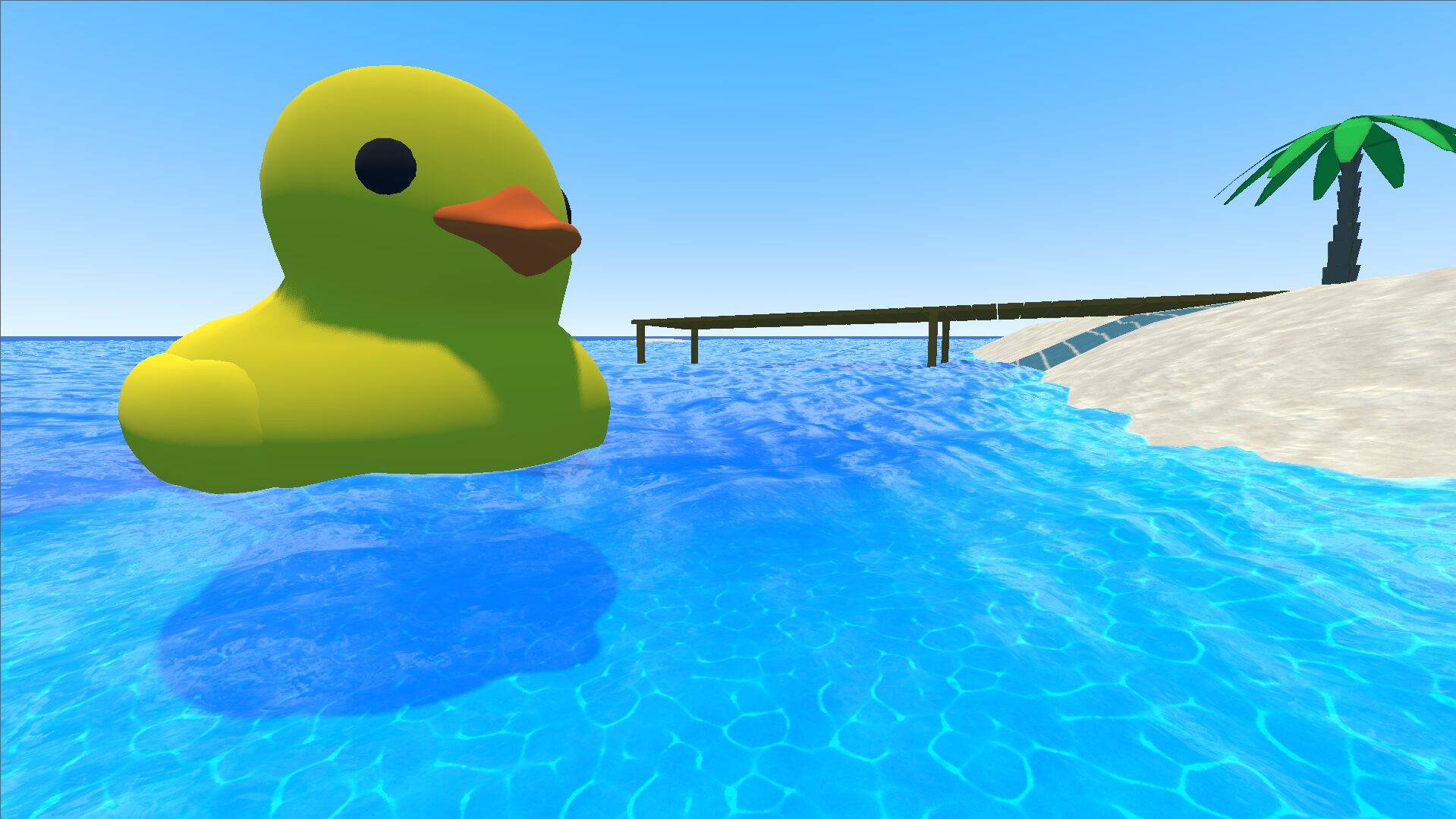

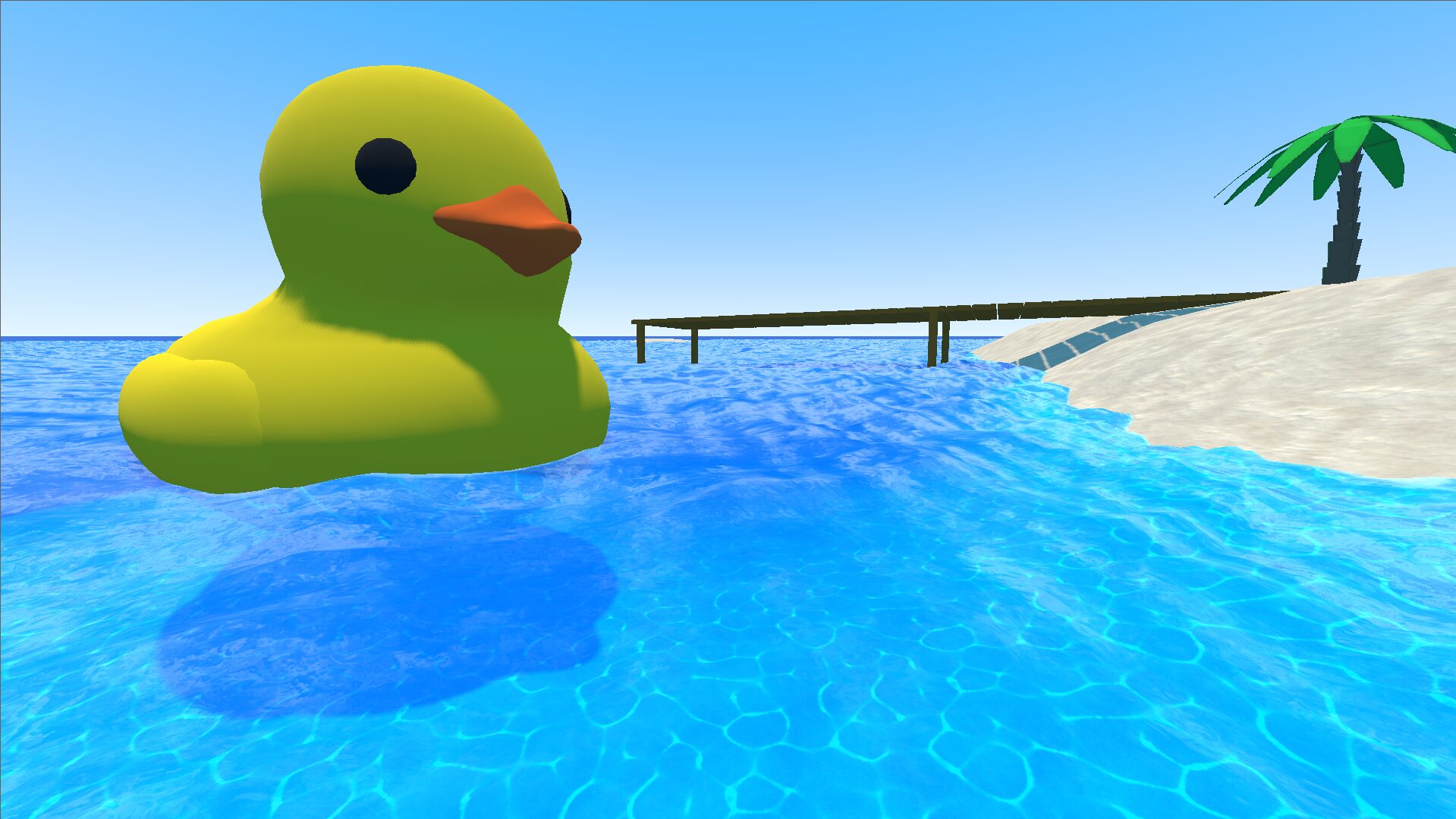

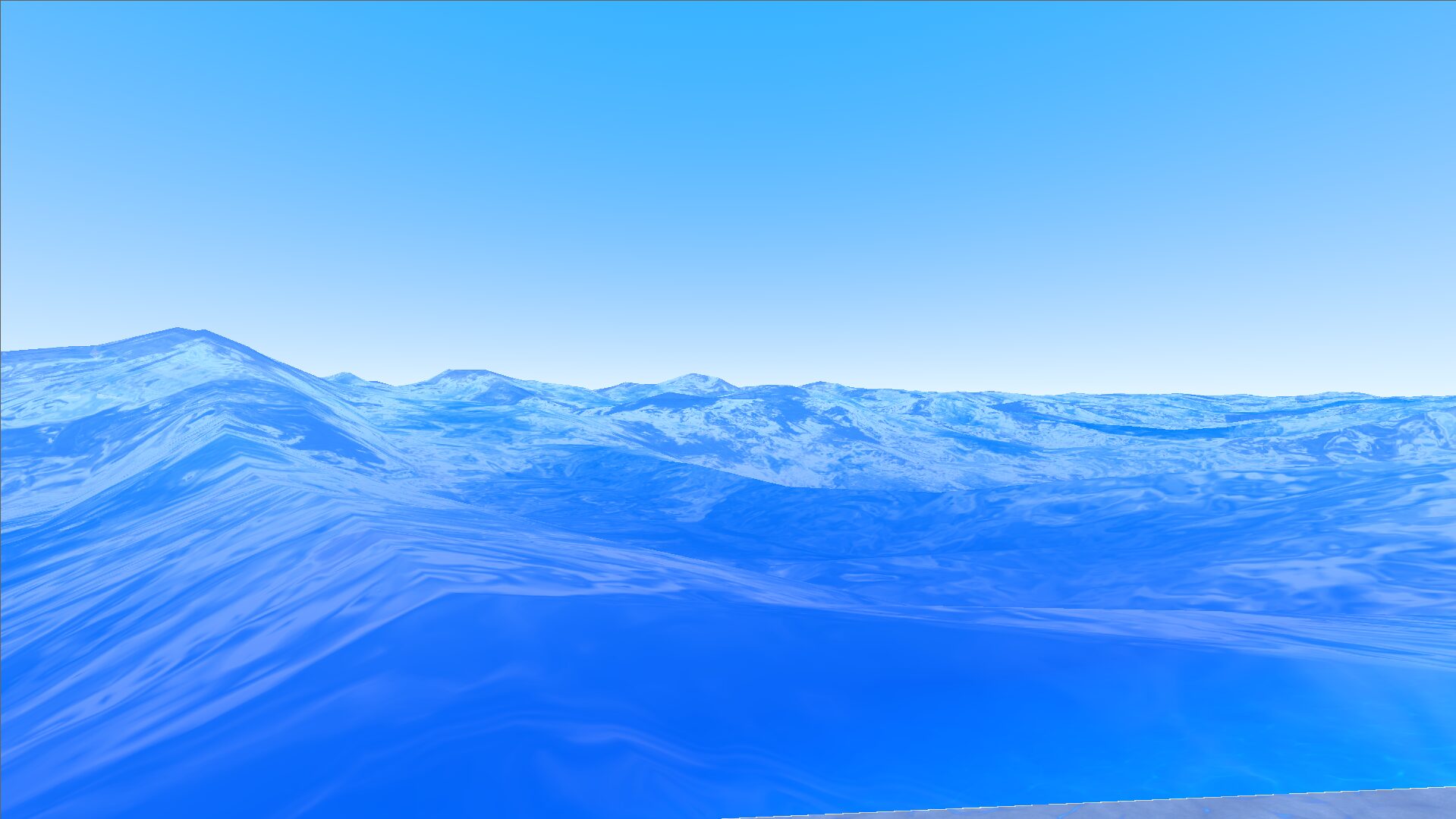

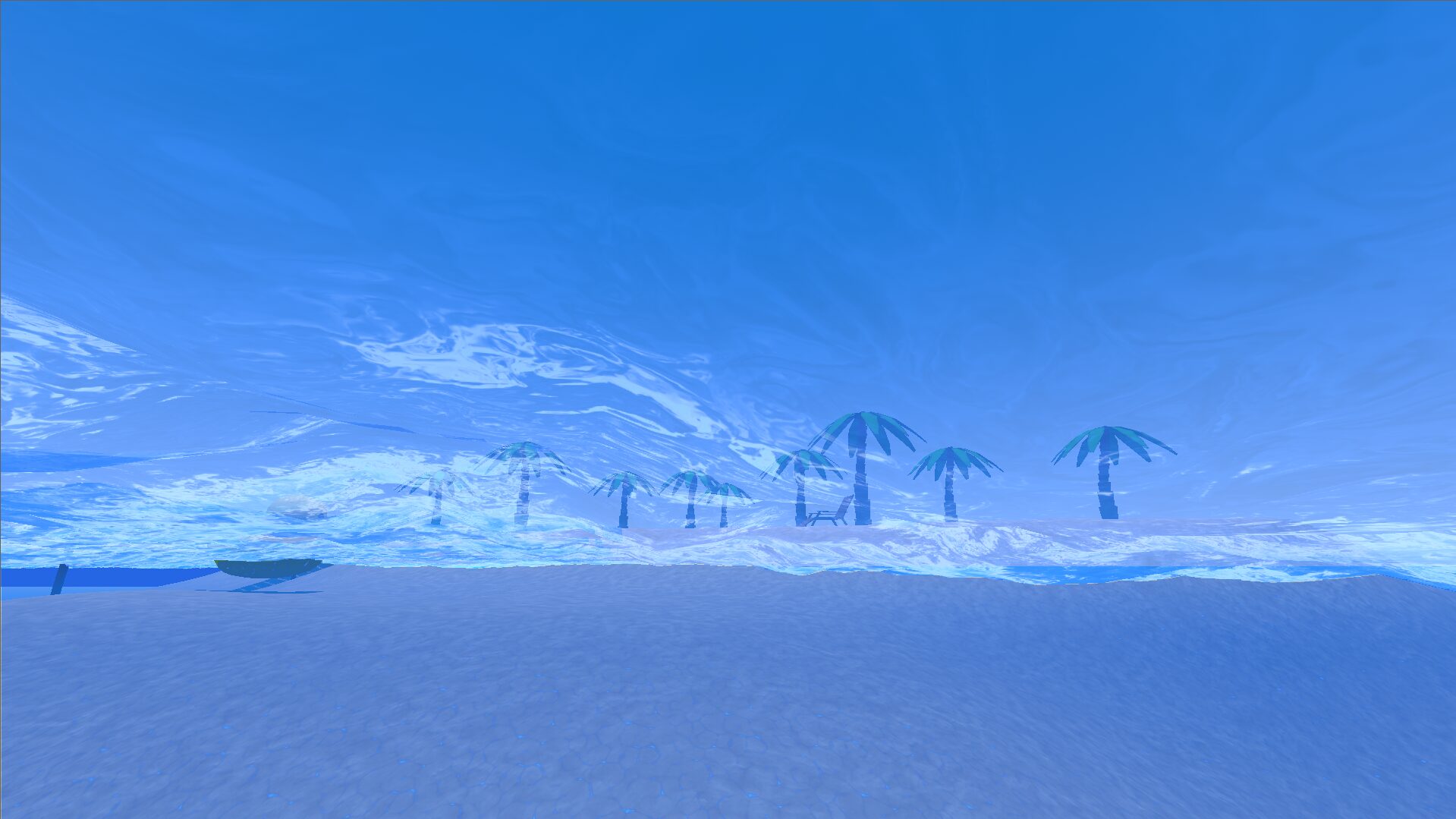

Hello everyone! This shader creates Gerstner waves, shows caustics, foam and more. Its nothing too fancy but does its job well. Its quite customisable and reasonably performant.
To use it create a plane mesh, set the size you like and subdivide it. The higher the subdivision the more details you will see. Of course that come at a performance cost. For more details check the short video I made to see how to further use and customise it.
Shader code
// The following shader is used in order to simulate a simple ocean using Gerstner waves.
// This shader can be added in a plane mesh. For a more detailed ocean, increase the width and depth subdivision.
// Note: On larger planes ex. 500x500, increasing the subdivision above 1000 comes at great performance cost
shader_type spatial;
// Set render modes: always draw depth and disable backface culling
render_mode depth_draw_always, cull_disabled;
// Uniforms for screen and depth textures
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap;
// Group uniforms for wave parameters
group_uniforms Waves;
// Each wave is defined by a vec4: direction (x,y), amplitude, frequency
uniform vec4 wave_1 = vec4(0.3, 4.0, 0.2, 0.6);
uniform vec4 wave_2 = vec4(-0.26, -0.19, 0.01, 0.47);
uniform vec4 wave_3 = vec4(-7.67, 5.63, 0.1, 0.38);
uniform vec4 wave_4 = vec4(-0.42, -1.63, 0.1, 0.28);
uniform vec4 wave_5 = vec4(1.66, 0.07, 0.15, 1.81);
uniform vec4 wave_6 = vec4(1.20, 1.14, 0.01, 0.33);
uniform vec4 wave_7 = vec4(-1.6, 7.3, 0.11, 0.73);
uniform vec4 wave_8 = vec4(-0.42, -1.63, 0.15, 1.52);
// Uniforms for time factor, noise zoom, and noise amplitude
uniform float time_factor = 2.5;
uniform float noise_zoom = 2.0;
uniform float noise_amp = 1.0;
// Group uniforms for water colors
group_uniforms Water_colours;
uniform vec3 base_water_color:source_color;
uniform vec3 fresnel_water_color:source_color;
uniform vec4 deep_water_color : source_color;
uniform vec4 shallow_water_color : source_color;
// Group uniforms for depth-related parameters
group_uniforms Depth;
uniform float beers_law = 0.5;
uniform float depth_offset = -1.2;
uniform float near = 7.0;
uniform float far = 10000.0;
// Group uniforms for edge detection and foam effects
group_uniforms Edge_Detection;
uniform float edge_texture_scale = 3.5;
uniform float edge_texture_offset = 1.0;
uniform float edge_texture_speed = 0.1;
uniform float edge_foam_intensity = 2.0;
uniform float edge_fade_start = -3.0;
uniform float edge_fade_end = 6.6;
uniform sampler2D edge_foam_texture;
// Group uniforms for wave peak effects
group_uniforms WavePeakEffect;
uniform float peak_height_threshold = 1.0;
uniform vec3 peak_color = vec3(1.0, 1.0, 1.0);
uniform float peak_intensity = 1.0;
uniform sampler2D foam_texture;
uniform float foam_intensity = 1.0;
uniform float foam_scale = 1.0;
// Group uniforms for surface details
group_uniforms Surface_details;
uniform float metallic = 0.6;
uniform float roughness = 0.045;
uniform float uv_scale_text_a = 0.1;
uniform vec2 uv_speed_text_a = vec2(0.42, 0.3);
uniform float uv_scale_text_b = 0.6;
uniform vec2 uv_speed_text_b = vec2(0.15, 0.1);
uniform float normal_strength = 1.0;
uniform float uv_sampler_scale = 0.3;
uniform float blend_factor = 0.28;
uniform sampler2D normalmap_a;
uniform sampler2D normalmap_b;
uniform sampler2D uv_sampler;
uniform sampler2DArray caustic_sampler : hint_default_black;
// Fresnel function to calculate the reflection/refraction effect
float fresnel(float amount, vec3 normal, vec3 view) {
return pow((1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0)), amount);
}
// Function to calculate edge depth
float edge(float depth) {
depth = 2.0 * depth - 1.0;
return near * far / (far - depth * (near - far));
}
// Function to calculate dynamic amplitude based on position and time
float dynamic_amplitude(vec2 pos, float time) {
return 1.0 + 0.5 * sin(time + length(pos) * 0.1);
}
// Hash function for noise generation
float hash(vec2 p) {
return fract(sin(dot(p * 17.17, vec2(14.91, 67.31))) * 4791.9511);
}
// 2D noise function
float noise(vec2 x) {
vec2 p = floor(x);
vec2 f = fract(x);
f = f * f * (3.0 - 2.0 * f);
vec2 a = vec2(1.0, 0.0);
return mix(mix(hash(p + a.yy), hash(p + a.xy), f.x),
mix(hash(p + a.yx), hash(p + a.xx), f.x), f.y);
}
// Fractional Brownian Motion (fBM) function for generating complex noise
float fbm(vec2 x) {
float height = 0.0;
float amplitude = 0.5;
float frequency = 3.0;
for (int i = 0; i < 6; i++) {
height += noise(x * frequency) * amplitude;
amplitude *= 0.5;
frequency *= 2.0;
}
return height;
}
// Structure to hold wave results: displacement, tangent, binormal, and normal
struct WaveResult {
vec3 displacement;
vec3 tangent;
vec3 binormal;
vec3 normal;
};
// Gerstner wave function to calculate wave displacement and normals
WaveResult gerstner_wave(vec4 params, vec2 pos, float time) {
float steepness = params.z * dynamic_amplitude(pos, time);
float wavelength = params.w;
float k = 2.0 * PI / wavelength;
float c = sqrt(9.81 / k);
vec2 d = normalize(params.xy);
float f = k * (dot(d, pos.xy) - c * time);
float a = steepness / k;
vec3 displacement = vec3(d.x * (a * cos(f)), a * sin(f), d.y * (a * cos(f)));
vec3 tangent = vec3(1.0 - d.x * d.x * steepness * sin(f), steepness * cos(f), -d.x * d.y * steepness * sin(f));
vec3 binormal = vec3(-d.x * d.y * steepness * sin(f), steepness * cos(f), 1.0 - d.y * d.y * steepness * sin(f));
vec3 normal = normalize(cross(tangent, binormal));
return WaveResult(displacement, tangent, binormal, normal);
}
// Function to combine multiple Gerstner waves
WaveResult wave(vec2 pos, float time) {
WaveResult waveResult;
waveResult.displacement = vec3(0.0);
waveResult.tangent = vec3(1.0, 0.0, 0.0);
waveResult.binormal = vec3(0.0, 0.0, 1.0);
waveResult.normal = vec3(0.0, 1.0, 0.0);
WaveResult wr;
wr = gerstner_wave(wave_1, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_2, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_3, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_4, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_5, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_6, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_7, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
wr = gerstner_wave(wave_8, pos, time);
waveResult.displacement += wr.displacement;
waveResult.tangent += wr.tangent;
waveResult.binormal += wr.binormal;
waveResult.normal += wr.normal;
// Add noise to the wave displacement for more natural look
waveResult.displacement.y += fbm(pos.xy * (noise_zoom / 50.0)) * noise_amp;
return waveResult;
}
// Varying variables to pass data from vertex to fragment shader
varying float height;
varying vec3 world_position;
varying mat3 tbn_matrix;
varying mat4 inv_mvp;
// Vertex shader function
void vertex() {
// Calculate time based on the global TIME variable and time_factor
float time = TIME / time_factor;
// Calculate wave displacement and normals
WaveResult waveResult = wave(VERTEX.xz, time);
// Apply wave displacement to the vertex position
VERTEX += waveResult.displacement;
// Store the height of the wave displacement
height = waveResult.displacement.y;
// Transform normals, tangents, and binormals to world space
vec3 n = normalize((MODELVIEW_MATRIX * vec4(waveResult.normal, 0.0)).xyz);
vec3 t = normalize((MODELVIEW_MATRIX * vec4(waveResult.tangent.xyz, 0.0)).xyz);
vec3 b = normalize((MODELVIEW_MATRIX * vec4((cross(waveResult.normal, waveResult.tangent.xyz)), 0.0)).xyz);
// Calculate world position of the vertex
world_position = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
// Create TBN matrix for normal mapping
tbn_matrix = mat3(t, b, n);
// Calculate inverse MVP matrix for screen space transformations
inv_mvp = inverse(PROJECTION_MATRIX * MODELVIEW_MATRIX);
}
// 2D Random hash function
float random(vec2 p) {
return fract(sin(dot(p, vec2(127.1, 311.7))) * 43758.5453123);
}
// Smooth noise function
float smooth_noise(vec2 p) {
vec2 i = floor(p);
vec2 f = fract(p);
vec2 u = f * f * (3.0 - 2.0 * f);
return mix(
mix(random(i + vec2(0.0, 0.0)), random(i + vec2(1.0, 0.0)), u.x),
mix(random(i + vec2(0.0, 1.0)), random(i + vec2(1.0, 1.0)), u.x),
u.y
);
}
// Layered noise for detiling
float layered_noise(vec2 p, float scale) {
float n = 0.0;
n += smooth_noise(p * scale) * 0.5;
n += smooth_noise(p * scale * 2.0) * 0.25;
n += smooth_noise(p * scale * 4.0) * 0.125;
return n;
}
// Perturb UV coordinates for detiling
vec2 perturb_uv(vec2 uv, vec2 world_pos, float time, float strength) {
// Use world position to generate unique noise patterns
vec2 noise_offset = vec2(
layered_noise(world_pos * 0.3 + time * 0.06, 1.0),
layered_noise(world_pos * 0.3 + time * 0.06 + vec2(10.0), 1.0)
);
// Apply subtle distortion to UVs
return uv + noise_offset * strength;
}
// Fragment shader function
void fragment() {
// Calculate UV coordinates based on world position
vec2 uv = world_position.xz;
// Sample UV offset texture
vec2 uv_offset = texture(uv_sampler, uv * uv_sampler_scale).rg;
// Calculate base UV coordinates for normal maps
vec2 base_uv_a = (uv + uv_speed_text_a * TIME + uv_offset) * uv_scale_text_a;
vec2 base_uv_b = (uv + uv_speed_text_b * TIME + uv_offset) * uv_scale_text_b;
// Apply noise-based perturbation to UVs
vec2 animated_uv_a = perturb_uv(base_uv_a, world_position.xz, TIME, 1.5); // Adjust 0.1 for perturbation strength
vec2 animated_uv_b = perturb_uv(base_uv_b, world_position.xz, TIME + 10.0, 0.1); // Offset time for variation
// Sample normal maps
vec3 normal_sample_a = texture(normalmap_a, animated_uv_a).rgb;
vec3 normal_sample_b = texture(normalmap_b, animated_uv_b).rgb;
// Normalize normal samples and combine them
normal_sample_a = normalize(normal_sample_a * 2.0 - 1.0);
normal_sample_b = normalize(normal_sample_b * 2.0 - 1.0);
vec3 combined_normal = normalize(mix(normal_sample_a, normal_sample_b, blend_factor));
// Perturb the normal using the TBN matrix
vec3 perturbed_normal = normalize(tbn_matrix * (combined_normal * normal_strength));
// Sample depth texture
float depth_raw = texture(DEPTH_TEXTURE, SCREEN_UV).r;
float depth = PROJECTION_MATRIX[3][2] / (depth_raw + PROJECTION_MATRIX[2][2]);
// Calculate the distance from the camera to the water surface
float camera_depth = INV_VIEW_MATRIX[3].y - world_position.y;
if (camera_depth < 0.0) { // Camera is underwater
// Map the depth to a range where deeper = positive beers_law, closer = negative beers_law
float depth_factor = smoothstep(-10.0, 0.0, camera_depth); // Adjust -10.0 for the depth range
ALPHA -= depth_factor * 0.3;
}
// Calculate depth blend factor using Beer's law
float depth_blend = exp((depth + VERTEX.z + depth_offset) * -beers_law);
depth_blend = clamp(1.0 - depth_blend, 0.0, 1.0);
float depth_blend_power = clamp(pow(depth_blend, 2.5), 0.0, 1.0);
// Sample screen color and blend it with depth color
vec3 screen_color = textureLod(SCREEN_TEXTURE, SCREEN_UV, depth_blend_power * 2.5).rgb;
vec3 depth_color = mix(shallow_water_color.rgb, deep_water_color.rgb, depth_blend_power);
vec3 color = mix(screen_color * depth_color, depth_color * 0.25, depth_blend_power * 0.5);
// Calculate depth difference for edge detection
float z_depth = edge(texture(DEPTH_TEXTURE, SCREEN_UV).x);
float z_pos = edge(FRAGCOORD.z);
float z_dif = z_depth - z_pos;
// Calculate caustic effect
vec4 caustic_screenPos = vec4(SCREEN_UV * 2.0 - 1.0, depth_raw, 1.0);
vec4 caustic_localPos = inv_mvp * caustic_screenPos;
caustic_localPos = vec4(caustic_localPos.xyz / caustic_localPos.w, caustic_localPos.w);
vec2 caustic_Uv = caustic_localPos.xz / vec2(1024.0) + 0.5;
vec4 caustic_color = texture(caustic_sampler, vec3(caustic_Uv * 660.0, mod(TIME * 26.0, 15.0)));
color *= 1.0 + pow(caustic_color.r, 1.50) * (1.0 - depth_blend) * 6.0;
// Calculate fresnel effect
float fresnel = fresnel(5.0, NORMAL, VIEW);
vec3 surface_color = mix(base_water_color, fresnel_water_color, fresnel);
// Calculate edge foam effect
vec2 edge_uv = world_position.xz * edge_texture_scale + edge_texture_offset + TIME * edge_texture_speed;
float edge_fade = smoothstep(edge_fade_start, edge_fade_end, z_dif);
vec3 depth_color_adj = mix(texture(edge_foam_texture, edge_uv).rgb * edge_foam_intensity, color, edge_fade);
// Apply peak color effect based on height with noise
float peak_factor = smoothstep(peak_height_threshold, peak_height_threshold + 0.2, height);
float noise_factor = fbm(world_position.xz * 0.1 + TIME * 0.1);
peak_factor = peak_factor * noise_factor;
vec3 final_color = mix(surface_color, peak_color * peak_intensity, peak_factor);
// Sample the foam texture and blend it with the final color
vec2 foam_uv = world_position.xz * foam_scale + TIME * 0.1;
float foam_sample = texture(foam_texture, foam_uv).r;
float foam_blend_factor = smoothstep(0.0, 1.0, peak_factor) * foam_sample * foam_intensity;
final_color = mix(final_color, vec3(1.0), foam_blend_factor);
// Set the final color, metallic, roughness, and normal
ALBEDO = clamp(final_color + depth_color_adj, vec3(0.0), vec3(1.0));
METALLIC = metallic;
ROUGHNESS = roughness;
NORMAL = perturbed_normal;
}
