Wind Area Effect

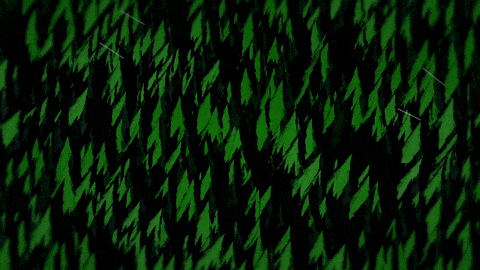

Adds a wind effect to a field of trees, given a direction, strength, speed, and wind mask. The wind mask used with a noise texture allows for waves to ripple through the tree line. Trees nearby eachother can share a rhythm in their sway. It can blend multiple (4) wind directions together, as well as respond to the mouse position.

Instructions:

1. Add a `ShaderMaterial` to your mesh, either to the base or as a surface material override.
2. Add a new `Shader` script to the `ShaderMaterial`. Open up the shader editor.
3. Paste the Shader code.
4. Open up the `ShaderMaterial` `Shader Parameters` group in the inspector.
5. Set the `albedo` and other desired values of your mesh.
6. Set the `wind_mask` to a new `NoiseTexture2D`.
7. Set the `NoiseTexture2D` `color_ramp` to a new `Gradient`.
8. Set the `NoiseTexture2D` `noise` to a new `FastNoiseLite`.
9. Test and adjust the shader parameters to your desired settings.
   1. Many fields contain four parameters instead of one. This is to handle the four different wind directions and allow smooth blending in between them.
   2. You can blend wind directions by raising the strength of one while lowering the strength of another.
   3. Before changing a wind direction, set the strength to zero. Changing an active wind direction will result in sudden and jarring changes to the scene.

Shader code

// NOTE: Shader automatically converted from Godot Engine 4.4.stable's StandardMaterial3D.

shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back, diffuse_burley, specular_schlick_ggx, world_vertex_coords;

uniform vec4 albedo : source_color;
uniform sampler2D texture_albedo : source_color, filter_linear_mipmap, repeat_enable;
uniform ivec2 albedo_texture_size;
uniform float point_size : hint_range(0.1, 128.0, 0.1);

uniform float roughness : hint_range(0.0, 1.0);
uniform sampler2D texture_metallic : hint_default_white, filter_linear_mipmap, repeat_enable;
uniform vec4 metallic_texture_channel;
uniform sampler2D texture_roughness : hint_roughness_r, filter_linear_mipmap, repeat_enable;

uniform float specular : hint_range(0.0, 1.0, 0.01);
uniform float metallic : hint_range(0.0, 1.0, 0.01);

uniform vec3 uv1_scale;
uniform vec3 uv1_offset;
uniform vec3 uv2_scale;
uniform vec3 uv2_offset;

uniform vec4 wind_strengths = vec4(10.0, 0.0, 0.0, 0.0);
uniform vec4 wind_speeds = vec4(6.0);
uniform mat4 wind_directions = mat4(vec4(1.0, 0.0, 0.0, 0.0), vec4(0.0, 1.0, 0.0, 0.0), vec4(-1.0, 0.0, 0.0, 0.0) , vec4(0.0, -1.0, 0.0, 0.0));
uniform vec4 wind_mask_scales = vec4(200.0);
uniform mat4 wind_albedos = mat4(vec4(1.0),vec4(1.0),vec4(1.0),vec4(1.0));
uniform vec4 wind_albedo_scales = vec4(0.01);

uniform sampler2D wind_mask : source_color, filter_linear_mipmap, repeat_enable; // Grayscale texture to control sway

uniform float height_start = 0.0; // Height at which wind starts affecting the object
uniform float height_end = 25.0;

uniform vec3 force_point;
uniform float force_strength : hint_range(-20.0, 20.0) = 5.0;
uniform float force_area : hint_range(0.0, 50.0) = 16.0;

varying float wind_samples[4];

float sample_wind(vec3 tree_vertex, float _wind_speed, vec2 _wind_direction, float _wind_mask_scale, sampler2D _wind_mask) {
	vec2 _sample_position = (tree_vertex.xz - (TIME * _wind_speed * normalize(_wind_direction))) / _wind_mask_scale;
	return texture(_wind_mask, _sample_position).r;
}

vec3 get_total_wind_offset(vec3 tree_vertex, float wind_local_force, float _wind_strength, vec2 _wind_direction)
{
	float height_factor = smoothstep(height_start, height_start + height_end, tree_vertex.y);
	float total_offset = sin(wind_local_force) * _wind_strength * height_factor;
	vec2 horizontal_wind =  normalize(_wind_direction) * total_offset;
	return vec3(horizontal_wind.x, 0, horizontal_wind.y);
}

vec3 get_force_point_offset(vec3 tree_vertex)
{
	float height_factor = smoothstep(height_start, height_start + height_end, tree_vertex.y);
	float force_distance = distance(tree_vertex.xz, force_point.xz);
	float distance_factor = 1.0 - smoothstep(0, force_area, force_distance);
	vec2 diff_vector = tree_vertex.xz - force_point.xz;
	diff_vector = normalize(diff_vector);
	vec2 final_offset = diff_vector * force_strength * distance_factor * height_factor;
	return vec3(final_offset.x, 0, final_offset.y);
}

void vertex() {
	float _wind_strengths[4] = float[4](wind_strengths.x, wind_strengths.y, wind_strengths.z, wind_strengths.w);
	float _wind_speeds[4] = float[4](wind_speeds.x, wind_speeds.y, wind_speeds.z, wind_speeds.w);
	float _wind_mask_scales[4] = float[4](wind_mask_scales.x, wind_mask_scales.y, wind_mask_scales.z, wind_mask_scales.w);
	vec3 total_offset = vec3(0.0);
	for (int i = 0; i < _wind_strengths.length(); i++) {
		if (_wind_strengths[i] == 0.0) {
			continue;
		}
		wind_samples[i] = sample_wind(VERTEX, _wind_speeds[i], wind_directions[i].xy, _wind_mask_scales[i], wind_mask);
		total_offset += get_total_wind_offset(VERTEX, wind_samples[i], _wind_strengths[i], wind_directions[i].xy);
	}
	VERTEX += total_offset;
	VERTEX += get_force_point_offset(VERTEX);
	UV = UV * uv1_scale.xy + uv1_offset.xy;
}

void fragment() {
	vec2 base_uv = UV;

	vec4 albedo_tex = texture(texture_albedo, base_uv);
	float _wind_strengths[4] = float[4](wind_strengths.x, wind_strengths.y, wind_strengths.z, wind_strengths.w);
	float _wind_albedo_scales[4] = float[4](wind_albedo_scales.x, wind_albedo_scales.y, wind_albedo_scales.z, wind_albedo_scales.w);
	vec3 added_albedo = vec3(0.0);
	for (int i = 0; i < wind_samples.length(); i++) {
		added_albedo += wind_samples[i] * wind_albedos[i].rgb * _wind_albedo_scales[i] * _wind_strengths[i];
	}
	ALBEDO = (albedo.rgb * albedo_tex.rgb) + added_albedo;

	float metallic_tex = dot(texture(texture_metallic, base_uv), metallic_texture_channel);
	METALLIC = metallic_tex * metallic;
	SPECULAR = specular;

	vec4 roughness_texture_channel = vec4(1.0, 0.0, 0.0, 0.0);
	float roughness_tex = dot(texture(texture_roughness, base_uv), roughness_texture_channel);
	ROUGHNESS = roughness_tex * roughness;
}
