Wind Waker Style Eyes Over Hair Shader

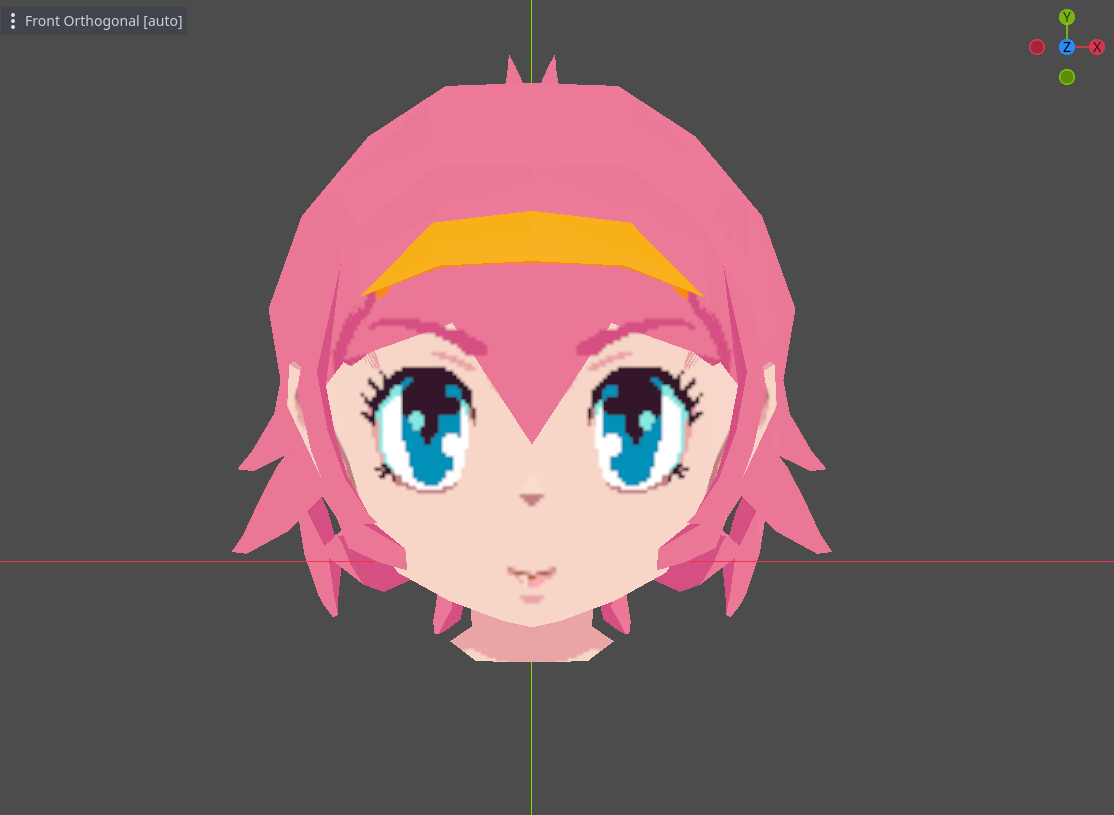

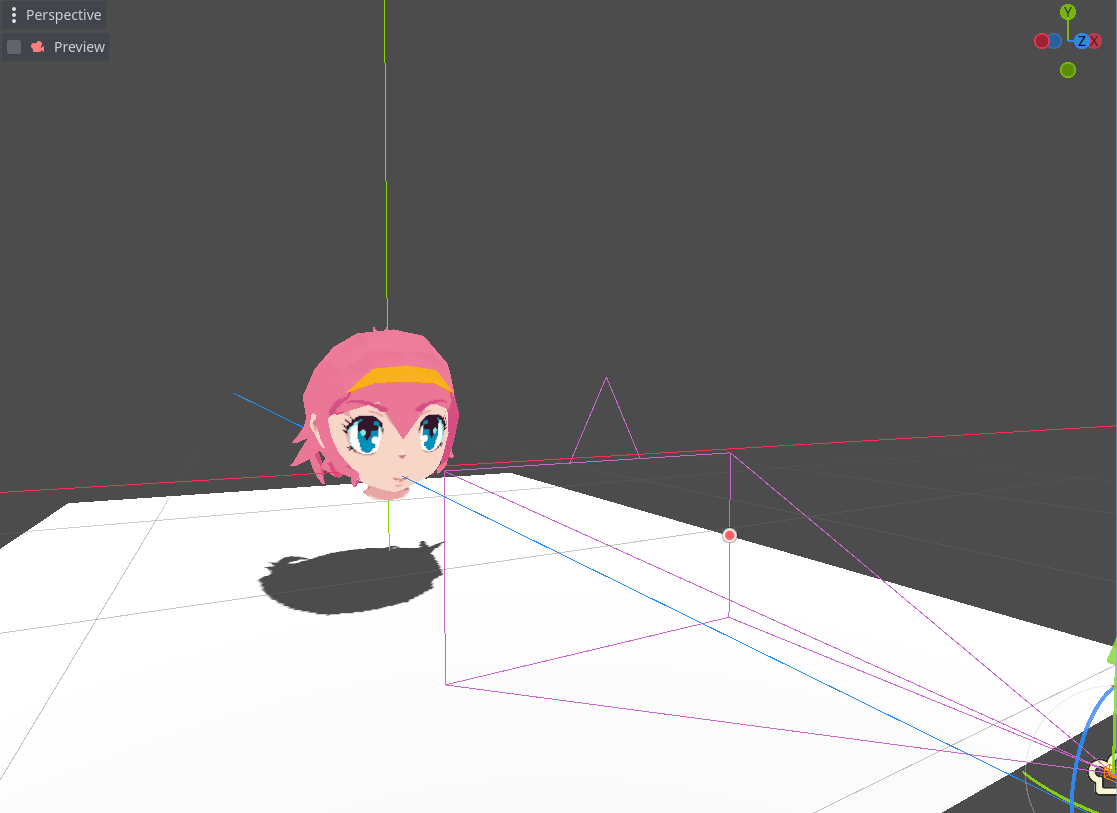

This shader will draw one material over another, specifically replicating the way Link’s eyes and eyebrows are rendered in The Legend of Zelda: Wind Waker. As I mentioned in the video, I just put everything together. All the credit goes to Midrule and CattreesDev.

Shader code

// Wind Waker Style Eyes Over Hair Shader - Megalukes
// All credit goes to Midrule from Godot Forums and CattreesDev from Reddit

shader_type spatial;
render_mode blend_mix, depth_draw_always, cull_disabled, unshaded;

uniform float depth_offset = 0.1;

uniform sampler2D albedo_texture : source_color;
uniform vec4 albedo_color : source_color = vec4(1.0, 1.0, 1.0, 1.0);

uniform vec3 uv1_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv1_offset = vec3(0.0, 0.0, 0.0);

void vertex() {
	UV=UV*uv1_scale.xy+uv1_offset.xy;
}

void fragment() {
	vec4 tex = texture(albedo_texture, UV);
	ALBEDO = tex.rgb * albedo_color.rgb;
	ALPHA = tex.a * albedo_color.a;
	//view to world(global) fragment position set to world_position
	vec3 world_position = vec4(INV_VIEW_MATRIX * vec4(VERTEX,1)).xyz;
	//set direction from fragment to camera in world space
	vec3 dir2cam  = normalize(CAMERA_POSITION_WORLD - world_position);
	//move fragment towards camera in world(global) space
	world_position += dir2cam * depth_offset;
	//transform world_position from world(global) to view space
	//then transform world_position from view to clip(ndc) space
	vec4 ndc_offset = PROJECTION_MATRIX * VIEW_MATRIX * vec4(world_position,1);
	//normalize ndc_offset.z and set depth
	DEPTH = ndc_offset.z/ndc_offset.w;
}
