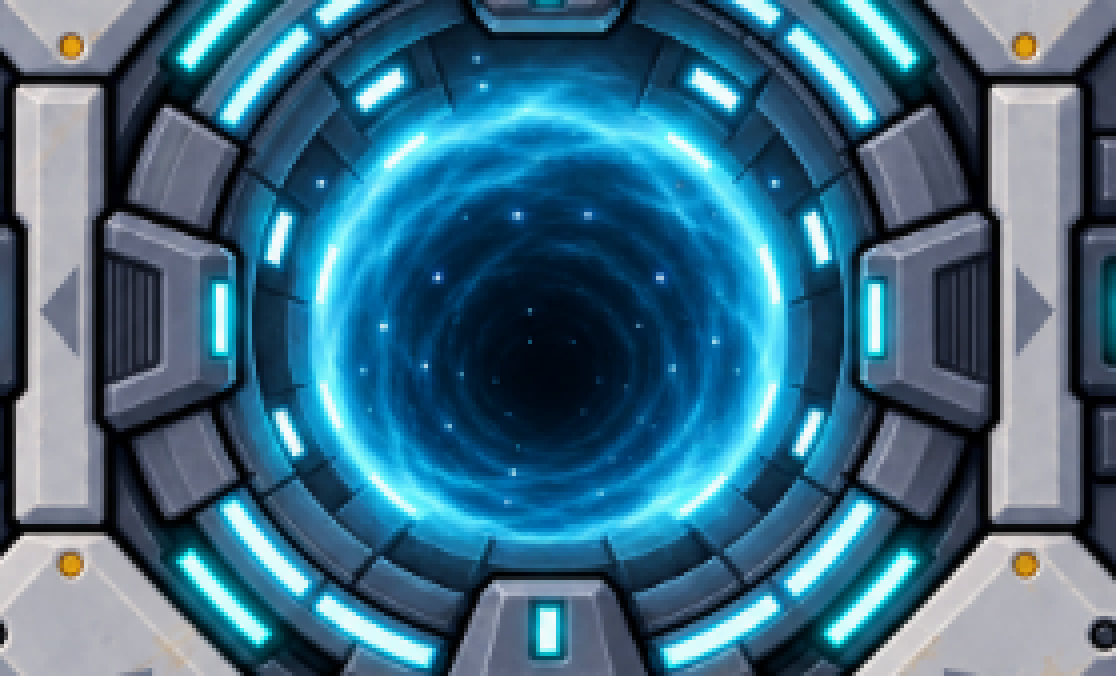

Wormhole / Blackhole
Shader will continuously rotate, churn, pulse, and become more intense when a object enters.
Place a ColorRect or Sprite2D with this canvas_item shader:
Shader code
shader_type canvas_item;
render_mode unshaded;
// ----------------------------------------------------
// WORMHOLE SHAPE
// ----------------------------------------------------
uniform float radius : hint_range(0.1, 0.5) = 0.485;
uniform float black_core : hint_range(0.05, 0.45) = 0.19;
uniform float inner_ring : hint_range(0.05, 0.45) = 0.27;
uniform float edge_softness : hint_range(0.001, 0.1) = 0.025;
// ----------------------------------------------------
// ANIMATION
// ----------------------------------------------------
uniform float rotation_speed : hint_range(-5.0, 5.0) = 0.22;
uniform float turbulence_speed : hint_range(0.0, 5.0) = 0.32;
uniform float swirl_strength : hint_range(0.0, 10.0) = 4.2;
uniform float turbulence_scale : hint_range(1.0, 30.0) = 9.0;
uniform float turbulence_amount : hint_range(0.0, 1.0) = 0.62;
// ----------------------------------------------------
// APPEARANCE
// ----------------------------------------------------
uniform vec4 center_color : source_color = vec4(
0.001,
0.005,
0.012,
1.0
);
uniform vec4 deep_blue : source_color = vec4(
0.005,
0.055,
0.12,
1.0
);
uniform vec4 blue : source_color = vec4(
0.0,
0.28,
0.58,
1.0
);
uniform vec4 bright_blue : source_color = vec4(
0.05,
0.72,
1.0,
1.0
);
uniform vec4 cyan : source_color = vec4(
0.25,
0.94,
1.0,
1.0
);
uniform float glow_strength : hint_range(0.0, 5.0) = 1.65;
uniform float cloud_brightness : hint_range(0.0, 3.0) = 1.15;
// ----------------------------------------------------
// EXTRA DETAIL
// ----------------------------------------------------
uniform float star_density : hint_range(0.0, 1.0) = 0.12;
uniform float star_brightness : hint_range(0.0, 5.0) = 1.6;
uniform float pulse_strength : hint_range(0.0, 0.5) = 0.055;
uniform float pulse_speed : hint_range(0.0, 10.0) = 1.15;
// ----------------------------------------------------
// GAMEPLAY CONTROL
//
// 0 = idle
// 1 = fully activated / travelling
// ----------------------------------------------------
uniform float activity : hint_range(0.0, 1.0) = 0.0;
// ----------------------------------------------------
// RANDOM / NOISE
// ----------------------------------------------------
float hash21(vec2 p) {
p = fract(p * vec2(123.34, 456.21));
p += dot(p, p + 45.32);
return fract(p.x * p.y);
}
float noise(vec2 p) {
vec2 i = floor(p);
vec2 f = fract(p);
f = f * f * (3.0 - 2.0 * f);
float a = hash21(i);
float b = hash21(i + vec2(1.0, 0.0));
float c = hash21(i + vec2(0.0, 1.0));
float d = hash21(i + vec2(1.0, 1.0));
return mix(
mix(a, b, f.x),
mix(c, d, f.x),
f.y
);
}
float fbm(vec2 p) {
float value = 0.0;
float amplitude = 0.5;
value += noise(p) * amplitude;
p = p * 2.03 + vec2(17.1, 9.2);
amplitude *= 0.5;
value += noise(p) * amplitude;
p = p * 2.01 + vec2(7.7, 21.6);
amplitude *= 0.5;
value += noise(p) * amplitude;
p = p * 2.04 + vec2(13.5, 4.4);
amplitude *= 0.5;
value += noise(p) * amplitude;
return value;
}
// ----------------------------------------------------
// MAIN
// ----------------------------------------------------
void fragment() {
// Convert UV to centered coordinates.
vec2 p = UV - vec2(0.5);
float dist = length(p);
float angle = atan(p.y, p.x);
float t = TIME;
// ------------------------------------------------
// Slight breathing / energy pulse
// ------------------------------------------------
float pulse =
sin(t * pulse_speed) *
pulse_strength *
(0.35 + activity * 0.65);
float portal_radius = radius + pulse;
// ------------------------------------------------
// Circular mask
// ------------------------------------------------
float portal_mask =
1.0 -
smoothstep(
portal_radius - edge_softness,
portal_radius,
dist
);
// ------------------------------------------------
// Polar vortex coordinates
//
// More rotation toward center creates the spiral.
// ------------------------------------------------
float normalized_radius =
dist / max(portal_radius, 0.001);
float center_pull =
1.0 - clamp(normalized_radius, 0.0, 1.0);
float spiral_angle =
angle
+ t * rotation_speed
+ center_pull * swirl_strength;
vec2 vortex_uv = vec2(
cos(spiral_angle),
sin(spiral_angle)
);
vortex_uv *=
normalized_radius *
turbulence_scale;
// Pull the noise around the circle over time.
vortex_uv += vec2(
t * turbulence_speed,
-t * turbulence_speed * 0.47
);
// ------------------------------------------------
// Two turbulence layers
// ------------------------------------------------
float n1 = fbm(vortex_uv);
float n2 = fbm(
vortex_uv * 1.75
+ vec2(
t * -0.18,
t * 0.27
)
);
float turbulence =
mix(n1, n2, 0.42);
// Stronger variation nearer the bright ring.
float warped_radius =
normalized_radius
+ (
turbulence - 0.5
) *
turbulence_amount *
0.15;
// ------------------------------------------------
// BLACK CENTRAL VOID
// ------------------------------------------------
float core =
1.0 -
smoothstep(
black_core,
black_core + 0.15,
warped_radius
);
// ------------------------------------------------
// INNER BLUE CLOUD
// ------------------------------------------------
float cloud_inner =
smoothstep(
black_core * 0.65,
inner_ring,
warped_radius
);
float cloud_outer =
1.0 -
smoothstep(
0.77,
1.0,
warped_radius
);
float cloud =
cloud_inner *
cloud_outer;
cloud *=
mix(
0.35,
1.25,
turbulence
);
// ------------------------------------------------
// BRIGHT EVENT-HORIZON STYLE RING
// ------------------------------------------------
float ring_center =
mix(
0.66,
0.72,
turbulence
);
float ring_distance =
abs(
warped_radius -
ring_center
);
float ring =
1.0 -
smoothstep(
0.015,
0.105,
ring_distance
);
// Thin hot inner filament.
float hot_ring =
1.0 -
smoothstep(
0.008,
0.037,
abs(warped_radius - 0.67)
);
// ------------------------------------------------
// OUTER BLUE ENERGY
// ------------------------------------------------
float outer_energy =
smoothstep(
0.68,
0.84,
warped_radius
);
outer_energy *=
1.0 -
smoothstep(
0.84,
1.0,
warped_radius
);
outer_energy *=
0.4 + turbulence * 0.9;
// ------------------------------------------------
// STAR / ENERGY PARTICLES
// ------------------------------------------------
vec2 star_grid =
floor(
vortex_uv * 3.0
);
float star_random =
hash21(star_grid);
float star =
step(
1.0 - star_density,
star_random
);
star *=
step(
0.57,
turbulence
);
star *= cloud;
// flicker
star *=
0.45 +
0.55 *
sin(
t * 4.0 +
star_random * 20.0
);
// ------------------------------------------------
// BUILD COLOR
// ------------------------------------------------
vec3 color =
center_color.rgb;
// Dark blue around the void.
color =
mix(
color,
deep_blue.rgb,
cloud * 0.8
);
// Turbulent blue clouds.
color +=
blue.rgb *
cloud *
turbulence *
cloud_brightness;
// Cyan event-horizon ring.
color +=
bright_blue.rgb *
ring *
glow_strength;
color +=
cyan.rgb *
hot_ring *
glow_strength *
0.75;
// Outer rotating energy.
color +=
blue.rgb *
outer_energy *
0.85;
// Small luminous points.
color +=
cyan.rgb *
star *
star_brightness;
// Keep center genuinely black.
color =
mix(
color,
center_color.rgb,
core * 0.92
);
// ------------------------------------------------
// ACTIVATED STATE
// ------------------------------------------------
float activation =
activity *
(
ring * 0.5 +
outer_energy * 0.4
);
color +=
cyan.rgb *
activation *
1.4;
COLOR = vec4(
color,
portal_mask
);
}
