2D Vertical Deform Shader (3 sections)
A canvas shader that deforms the sprites vertically upon an object position.

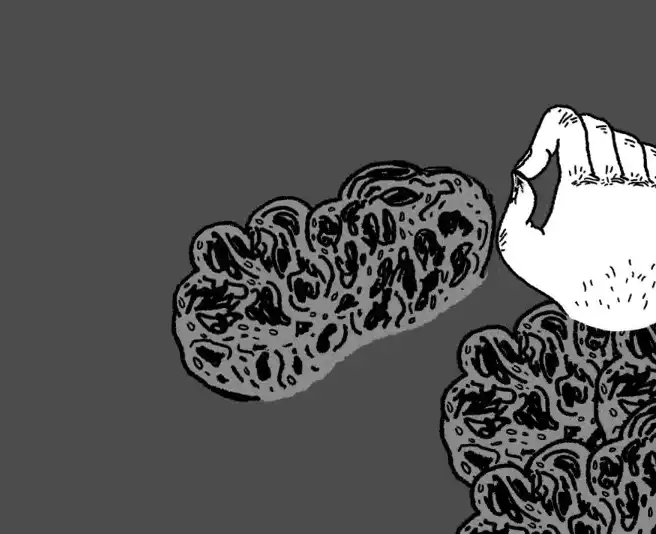

Art drawn by Murray Summerwolf with permission of Pattatie Games.
Shader code
shader_type canvas_item;
// A needed global uniform to get the position of the effector (rename accordingly).
global uniform vec2 object_position;
/** Mask with RGB channels used to divide in three deformation sections (one for each channel) */
uniform sampler2D deform_mask_texture;
/** Strengh of the deform */
uniform float deform_strength = 0.25;
varying vec2 pivot_world_pos;
varying vec3 deform_map_strength;
void vertex() {
vec2 texture_size = 1.0 / TEXTURE_PIXEL_SIZE;
// Obtain pivot point of texture
pivot_world_pos = MODEL_MATRIX[3].xy;
// Divide the deform sections in three
deform_map_strength.x = distance((pivot_world_pos - vec2(texture_size.x/6.0, 0.0)), object_position) * 0.007;
deform_map_strength.y = distance(pivot_world_pos, object_position) * 0.007;
deform_map_strength.z = distance((pivot_world_pos + vec2(texture_size.x/6.0, 0.0)), object_position) * 0.007;
deform_map_strength = clamp(deform_map_strength, 0.0, 1.0);
deform_map_strength = deform_map_strength/2.0 + 0.5;
deform_map_strength = 1.0 - deform_map_strength;
// Move the sprite in a simple way
VERTEX.y += length(deform_map_strength) * texture_size.y * deform_strength * 0.32;
}
void fragment() {
vec2 uv = UV;
// Get the deform mask texture
vec3 deform_mask = texture(deform_mask_texture, UV).rgb;
// Offset horizontally so each section responds accordingly to the position
uv.y -= deform_mask.r * deform_strength * deform_map_strength.x;
uv.y -= deform_mask.g * deform_strength * deform_map_strength.y;
uv.y -= deform_mask.b * deform_strength * deform_map_strength.z;
// Retexture the deformation done on the fragment shader
COLOR = texture(TEXTURE, uv);
}
//void light() {
// // Called for every pixel for every light affecting the material.
// // Uncomment to replace the default light processing function with this one.
//}
