3D Camera Smooth Motion Blur

Hey guys! I made a shader script to make a smooth camera motion blur. You do not need to make anything except for a camera, a script inside the camera, and a shader named motionblur.gdshader. Your camera script should be the following.

extends Camera3D
@export_range(0.0, 1.0) var strength: float = .3
@export_range(4, 32) var blur_samples: int = 16
@export_range(0.0, 1.0) var smoothing: float = .9
var prev_pos := Vector3.ZERO
var prev_basis := Basis()
var current_blur := Vector2.ZERO
var blur_overlay: ColorRect

func _ready() -> void:
	blur_overlay = ColorRect.new()
	blur_overlay.set_anchors_and_offsets_preset(Control.PRESET_FULL_RECT)
	blur_overlay.mouse_filter = Control.MOUSE_FILTER_IGNORE

	var mat = ShaderMaterial.new()
	mat.shader = load("res://motionblur.gdshader")
	mat.set_shader_parameter("samples", blur_samples)
	blur_overlay.material = mat

	var canvas = CanvasLayer.new()
	add_child(canvas)
	canvas.add_child(blur_overlay)

	prev_pos = global_position
	prev_basis = global_transform.basis

func _physics_process(delta) -> void:
	if delta <= 0: return

	var linear_vel = (global_position - prev_pos) / delta

	var delta_basis = prev_basis.inverse() * global_transform.basis
	var delta_quat = Quaternion(delta_basis)

	var angular_vel := Vector3.ZERO
	if abs(delta_quat.w) < 1.0:
		var half_angle = acos(clamp(delta_quat.w, -1.0, 1.0))
		if half_angle > 0.0001:
			var sin_half = sin(half_angle)
			angular_vel = Vector3(delta_quat.x, delta_quat.y, delta_quat.z) / sin_half * (2.0 * half_angle / delta)

	var local_vel = global_transform.basis.inverse() * linear_vel

	var raw_blur = Vector2(
		-angular_vel.y - local_vel.x,
		angular_vel.x + local_vel.y
	) * strength * delta


	var t = 1.0 - pow(smoothing, delta * 60.0)
	current_blur = current_blur.lerp(raw_blur, t)

	var mat = blur_overlay.material as ShaderMaterial
	mat.set_shader_parameter("blur_direction", current_blur)

	prev_pos = global_position
	prev_basis = global_transform.basis

Shader code

shader_type canvas_item;


uniform sampler2D screen_texture : hint_screen_texture, filter_linear_mipmap;

uniform vec2 blur_direction = vec2(0.0, 0.0);

uniform int samples : hint_range(4, 32) = 32;

void fragment() {
    vec4 color = vec4(0.0);
    float total_weight = 0.0;

    for (int i = 0; i < samples; i++) {
        // Offset samples along the direction of movement
        float offset = float(i) / float(samples - 1) - 0.5;
        vec2 uv_offset = blur_direction * offset;
        color += texture(screen_texture, SCREEN_UV + uv_offset);
        total_weight += 1.0;
    }

    COLOR = color / total_weight;
}

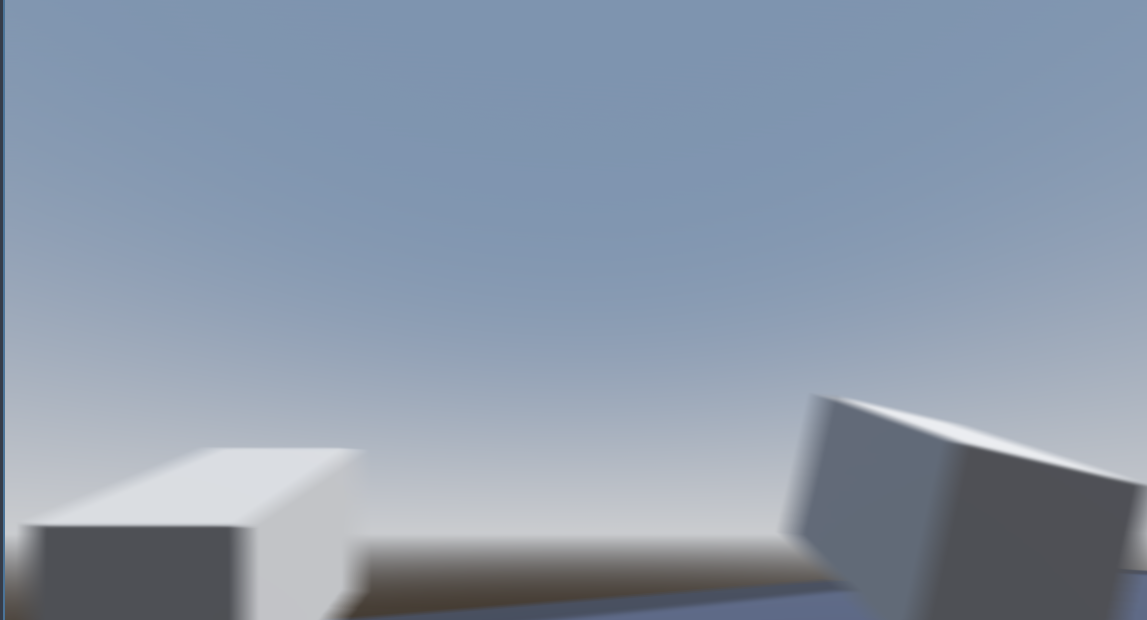

Live Preview
