Adapt To Palette

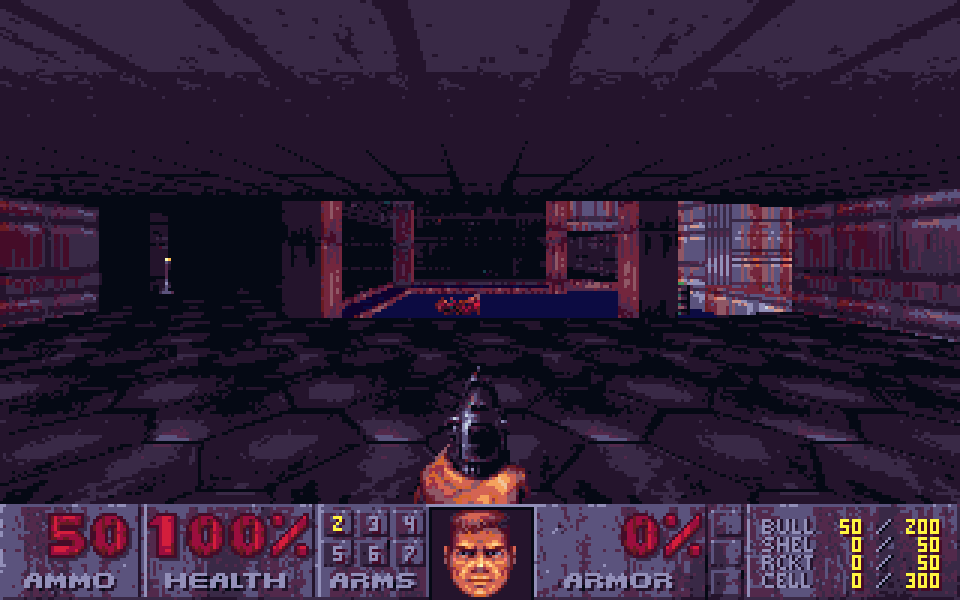

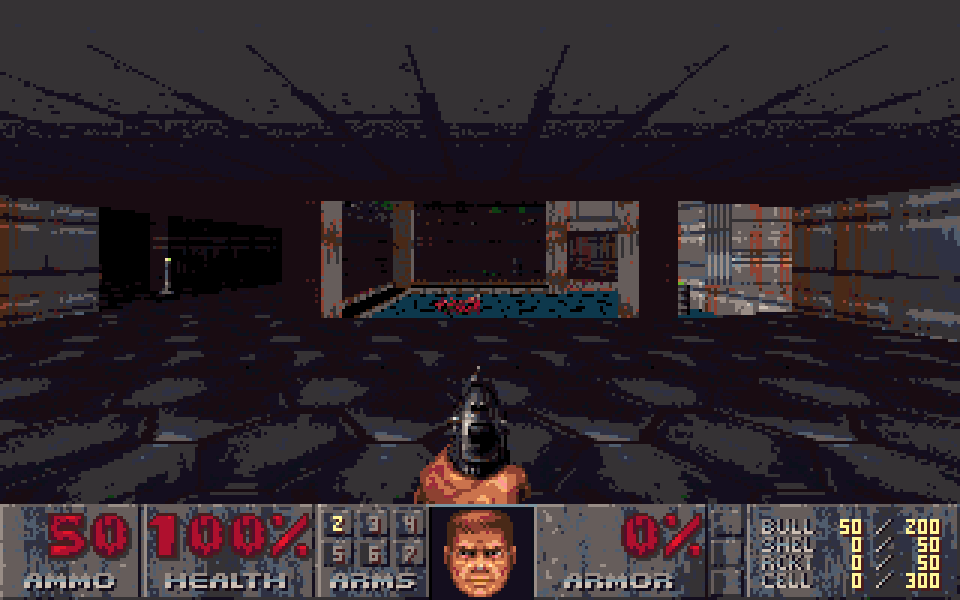

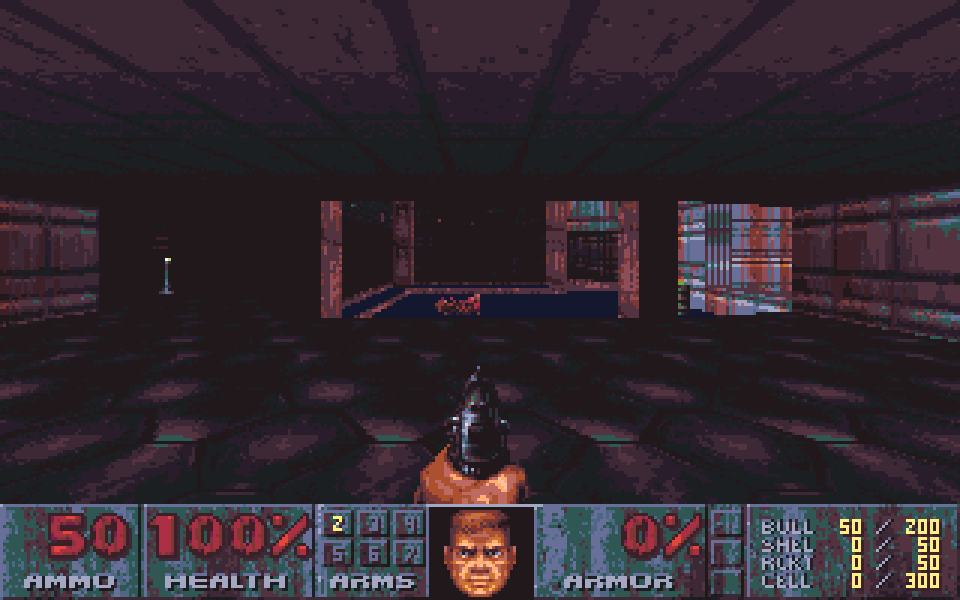

A rather rudimentary shader that adapts the image behind a ColorRect to a given palette.
Performance will decrease with larger ColorRects and palettes.

To use, place a ColorRect in your scene covering the area you want to palettize. Assign to it the shader, and to the shader, a PNG containing the palette. As this runs for every pixel in the palette, try to avoid including repeated colors, transparent colors, and free space. Lower resolution games will also suffer less of a performance hit from this effect.

Shader code

//	Godot 4 Adapt To Palette Shader
shader_type canvas_item;

uniform sampler2D palette: filter_nearest;
uniform sampler2D screen_texture: hint_screen_texture, filter_nearest;

void fragment() {
	float best_diff = 4.00;
	ivec2 pal_size = textureSize(palette, 0);

	// Palette row scan
	for (int y = 0; y < pal_size.y; y += 1)
	{
		// Palette column scan
		for (int x = 0; x < pal_size.x; x += 1)
		{
			vec3 scr_pix = texture(screen_texture, SCREEN_UV).rgb;
			vec3 pal_pix = texelFetch(palette, ivec2(x, y), 0).rgb;

			// Slightly faster than distance()
			float this_diff = (
				abs(scr_pix.r - pal_pix.r) +
				abs(scr_pix.g - pal_pix.g) +
				abs(scr_pix.b - pal_pix.b));

			if (this_diff < best_diff)
			{
				best_diff = this_diff;
				COLOR.rgb = pal_pix.rgb;
			}
		}
	}
}
