Anamorphic Lens Flare

blitpxl

Great, now your game looks like a J.J Abrams movie.



Usage:



Apply this shader on a full screen quad: https://docs.godotengine.org/en/stable/tutorials/shaders/advanced_postprocessing.html#full-screen-quad



Support me: https://www.paypal.me/vinrato

Shader code
shader_type spatial;
render_mode unshaded, blend_add;

#define SAMPLES 10

uniform sampler2D ST : hint_screen_texture, filter_nearest, repeat_enable;
uniform float threshold = 1.0;
uniform float lower_threshold = 0.75;
uniform float intensity = 0.08;
uniform vec4 flare_color : source_color = vec4(0.482, 0.003, 0.917, 1.0);
uniform float width : hint_range(0.0, 0.1, 0.001) = 0.04;

const float weights[20] = {
	.3, .45, .53, .65, .78, .87, .90, .93, .96, 1.0,
	1.0, .96, .93, .90, .87, .78, .65, .53, .45, .3
};

float rand(vec2 n) {
	return fract(sin(dot(n, vec2(12.9898, 4.1414)) * TIME) * 43758.5453);
}

void vertex() {
	POSITION = vec4(VERTEX.xy, 1.0, 1.0);
}

void fragment() {
	vec4 screen;
	vec4 sum = vec4(0.0);
	float lum;
	float mask;
	int idx = 0;
	for (int i = -SAMPLES; i < SAMPLES; i ++) {
		screen = texture(ST, SCREEN_UV + vec2(float(i) * width * rand(SCREEN_UV), 0.0));
		lum = dot(vec3(0.30, 0.59, 0.11), screen.rgb);
		mask = smoothstep(lower_threshold, threshold, lum);
		sum += flare_color * mask * weights[idx];
		idx++;
	}
	ALBEDO = sum.rgb * intensity;
}

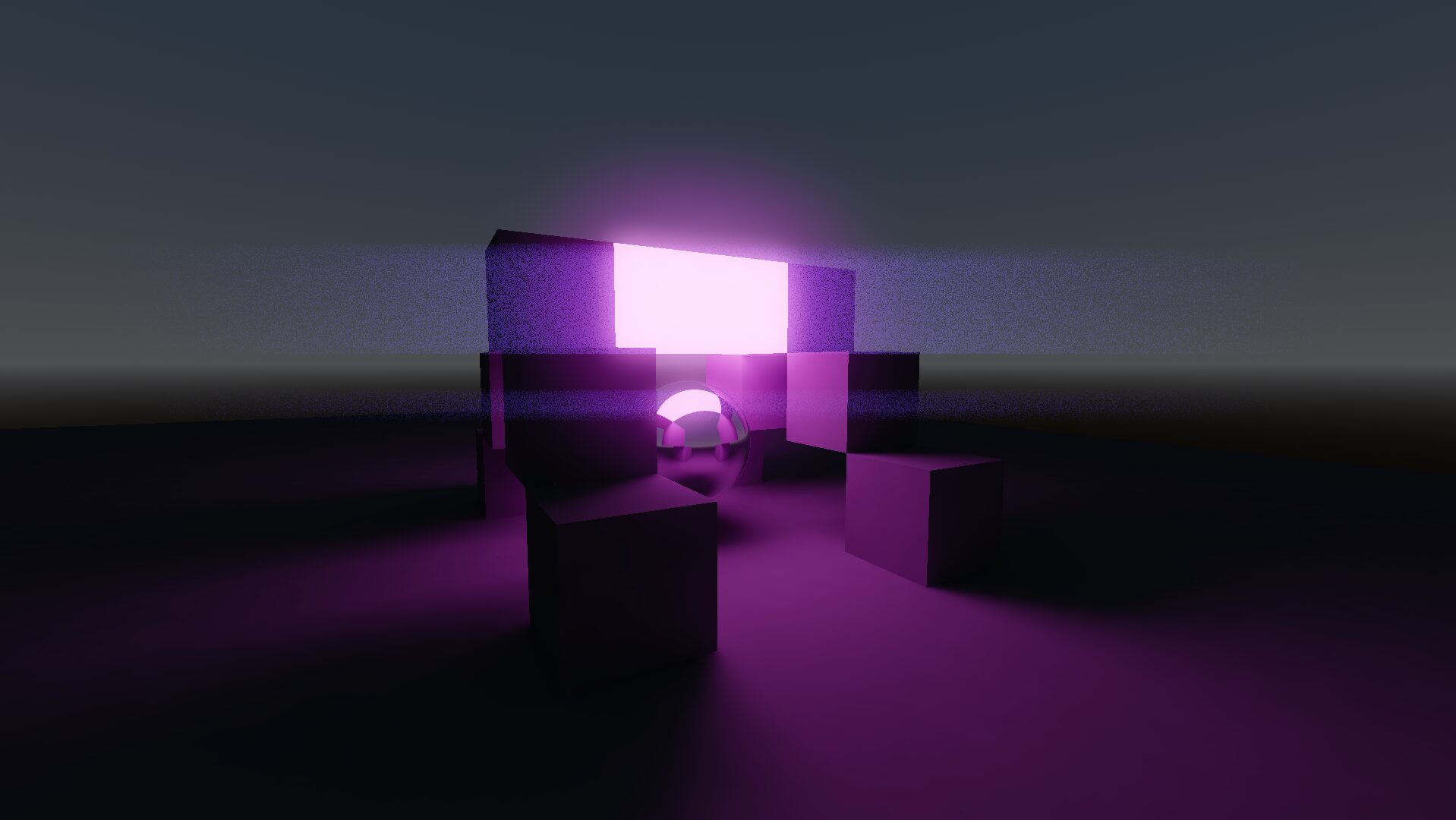

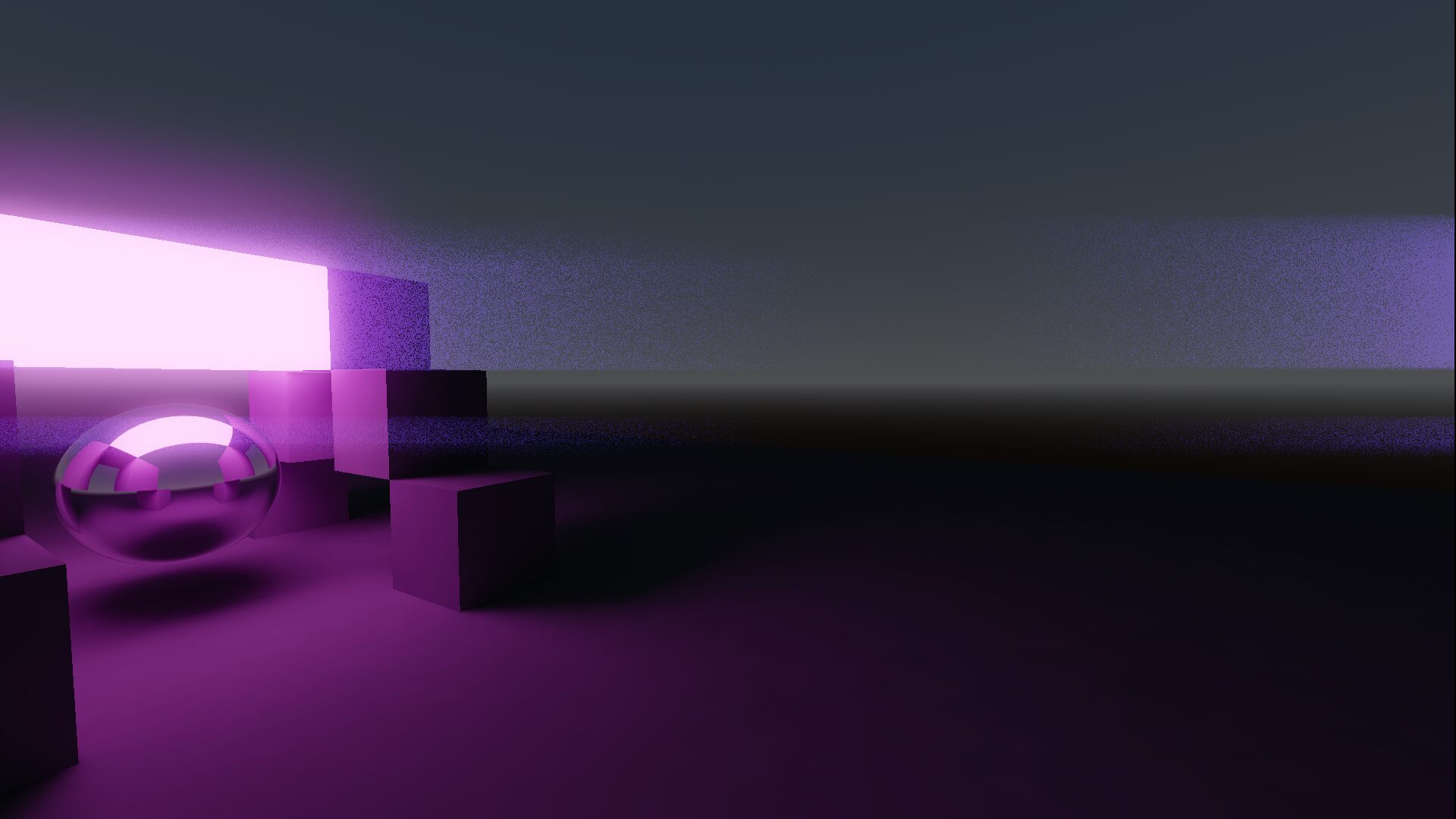

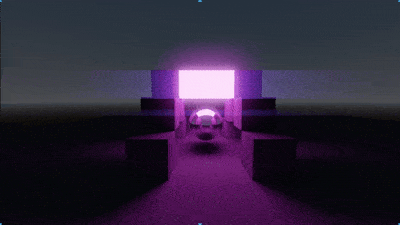

Live Preview
Tags
anamorphic, cinematic, filmic, flare, glare, scifi
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from blitpxl

Related shaders

Comments 8

    1. which renderer? and don't forget to tick "flip faces" on the quad mesh.

      1
      2. HGamesStudio

        Oh thanks I flipped faces and it works

        1
  2. HGamesStudio

    Hey can you recreate the lens flare effect like in unity's postprocessing shaders?

    0

    1. like the sun lens flare? didn't someone made that for godot already?

      0

      2. And I can't do a sun because I dont have a sun. I just need it for bright lights/objects

        0
