Animated and Gradient Outlines

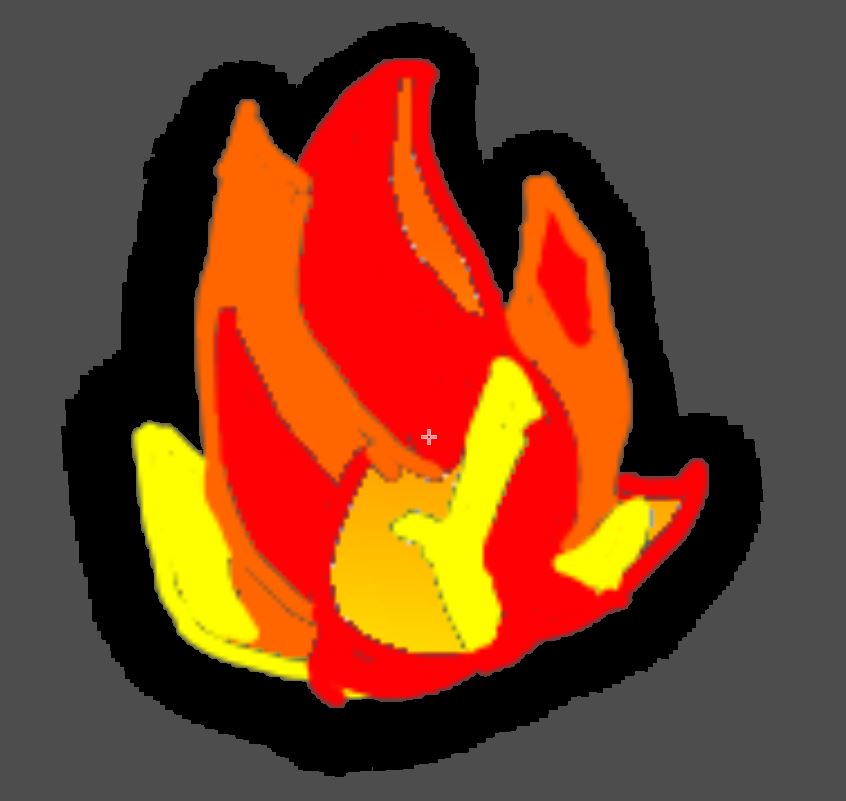

It’s alot like

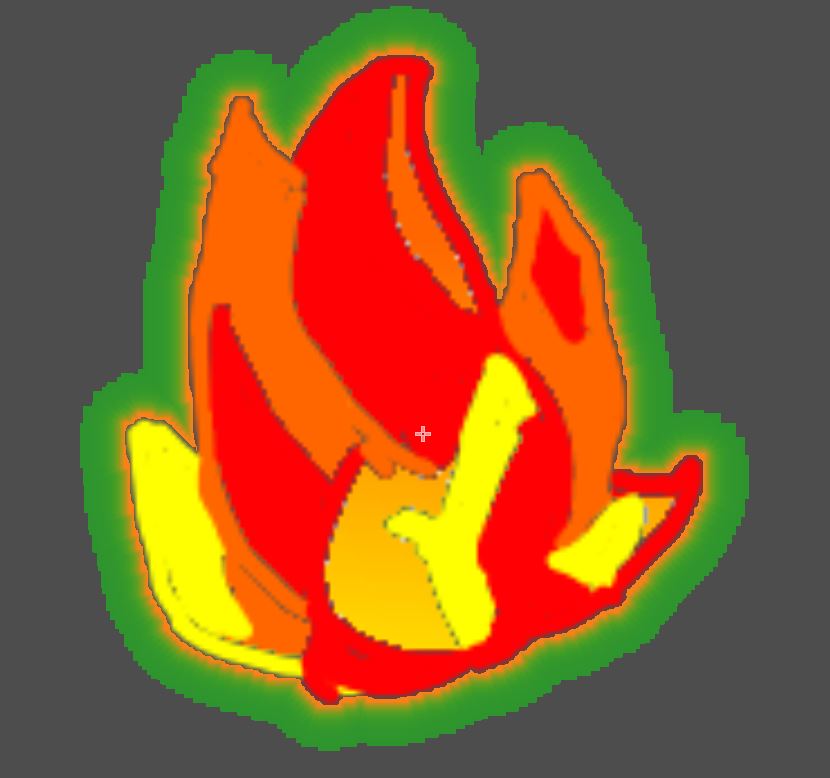

Third one is both!
Most uniforms are pretty self explanatory, otherwise
block_size <- size of segmentation for line width variation in animated outline
shader_type canvas_item;
uniform float max_line_width = 10.0;
uniform float min_line_width = 5.0;
uniform float freq = 1.0;
uniform float block_size = 20.0;
uniform vec4 outline_colour = vec4(0,0,0,1);
const float pi = 3.1415;
const int ang_res = 16;
float hash(vec2 p, float s) {
return fract(35.1 * sin(dot(vec3(112.3, 459.2, 753.2), vec3(p, s))));
}
float noise(vec2 p, float s) {
vec2 d = vec2(0, 1);
vec2 b = floor(p);
vec2 f = fract(p);
return mix(
mix(hash(b + d.xx, s), hash(b + d.yx, s), f.x),
mix(hash(b + d.xy, s), hash(b + d.yy, s), f.x), f.y);
}
float get_line_width(vec2 p, float s) {
p /= block_size;
float w = 0.0;
float intensity = 1.0;
for (int i = 0; i < 3; i++) {
w = mix(w, noise(p, s), intensity);
p /= 2.0;
intensity /= 2.0;
}
return mix(max_line_width, min_line_width, w);
}
void fragment() {
float alpha = 0.0;
float timeStep = floor(TIME * freq);
vec2 scale = TEXTURE_PIXEL_SIZE;
scale *= get_line_width(UV / TEXTURE_PIXEL_SIZE, timeStep);
for (int i = 0; i < ang_res; i++) {
float angle = 2.0 * pi * float(i) / float(ang_res);
vec2 disp = scale * vec2(cos(angle), sin(angle));
alpha += texture(TEXTURE, UV + disp).a;
}
if ((alpha > 0.0) && (texture(TEXTURE, UV).a < 0.1)) {
COLOR = outline_colour;
}
else {
COLOR = texture(TEXTURE, UV);
}
}
if (pixelInRange(text, uv, curr * maxDist)) {
hi = curr;
}
else {
lo = curr;
}
}
return hi;
}
void fragment() {
vec2 scaledDist = TEXTURE_PIXEL_SIZE * line_width;
float w = getClosestDistance(TEXTURE, UV, scaledDist);
if (( w > 0.0) && (texture(TEXTURE, UV).a < 0.1)) {
COLOR = mix(starting_colour, ending_colour, tanh(3.0*w));
}
else {
COLOR = texture(TEXTURE, UV);
}
}
Shader code
shader_type canvas_item;
uniform float max_line_width = 10.0;
uniform float min_line_width = 5.0;
uniform float freq = 1.0;
uniform float block_size = 20.0;
uniform vec4 starting_colour = vec4(0,0,0,1);
uniform vec4 ending_colour = vec4(1);
const float pi = 3.1415;
const int ang_res = 16;
const int grad_res = 8;
float hash(vec2 p, float s) {
return fract(35.1 * sin(dot(vec3(112.3, 459.2, 753.2), vec3(p, s))));
}
float noise(vec2 p, float s) {
vec2 d = vec2(0, 1);
vec2 b = floor(p);
vec2 f = fract(p);
return mix(
mix(hash(b + d.xx, s), hash(b + d.yx, s), f.x),
mix(hash(b + d.xy, s), hash(b + d.yy, s), f.x), f.y);
}
float getLineWidth(vec2 p, float s) {
p /= block_size;
float w = 0.0;
float intensity = 1.0;
for (int i = 0; i < 3; i++) {
w = mix(w, noise(p, s), intensity);
p /= 2.0;
intensity /= 2.0;
}
return mix(max_line_width, min_line_width, w);
}
bool pixelInRange(sampler2D text, vec2 uv, vec2 dist) {
float alpha = 0.0;
for (int i = 0; i < ang_res; i++) {
float angle = 2.0 * pi * float(i) / float(ang_res);
vec2 disp = dist * vec2(cos(angle), sin(angle));
if (texture(text, uv + disp).a > 0.0) return true;
}
return false;
}
float getClosestDistance(sampler2D text, vec2 uv, vec2 maxDist) {
if (!pixelInRange(text, uv, maxDist)) return -1.0;
float hi = 1.0; float lo = 0.0;
for (int i = 1; i <= grad_res; i++) {
float curr = (hi + lo) / 2.0;
if (pixelInRange(text, uv, curr * maxDist)) {
hi = curr;
}
else {
lo = curr;
}
}
return hi;
}
void fragment() {
float timeStep = floor(freq * TIME);
vec2 scaledDist = TEXTURE_PIXEL_SIZE;
scaledDist *= getLineWidth(UV / TEXTURE_PIXEL_SIZE, timeStep);
float w = getClosestDistance(TEXTURE, UV, scaledDist);
if (( w > 0.0) && (texture(TEXTURE, UV).a < 0.2)) {
COLOR = mix(starting_colour, ending_colour, tanh(3.0*w));
}
else {
COLOR = texture(TEXTURE, UV);
}
}
