Anime Style Metal (Metallic Toon)

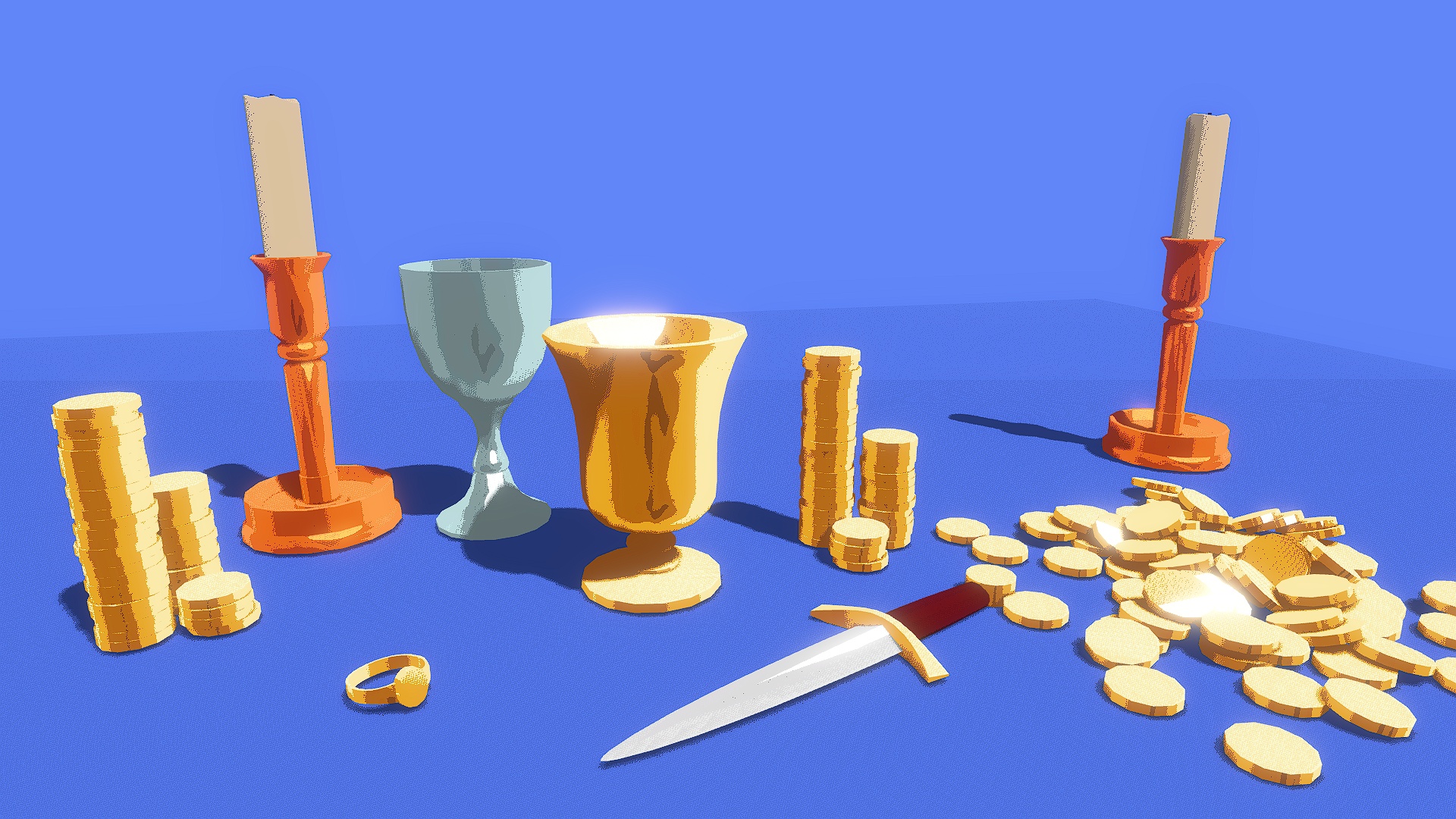

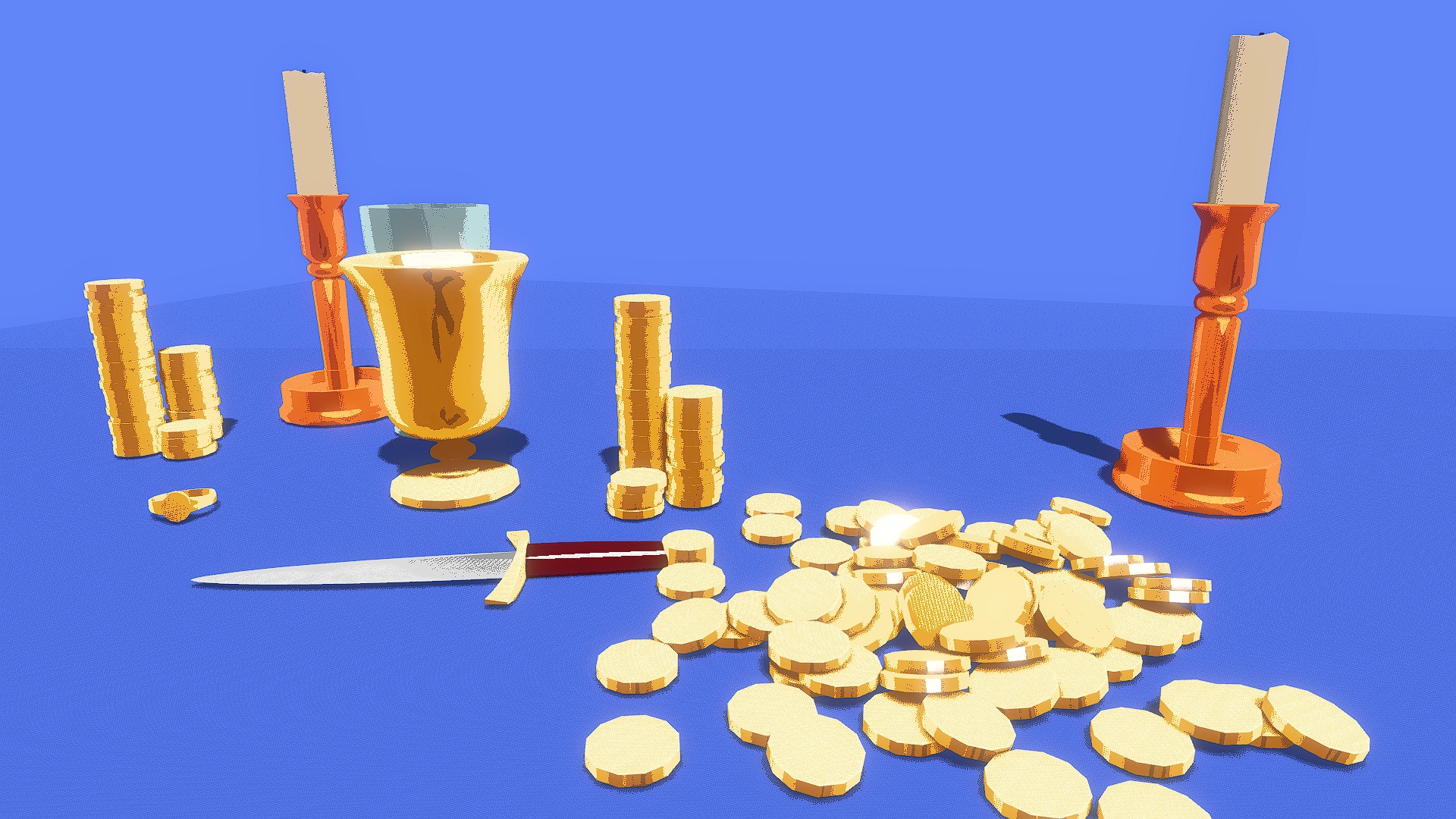

This shader was inspired by the golden armours of saint seiya‘s gold saints. I’ve tried to replicate the same anime metal style from the tv series. Of course, this can be aplied to any kind of metal, not just gold.

For more details, please take a look to the sample/demo project on my github (it also includes a conventional toon shader) and/or watch my youtube video for a detailed explanation of this shader (its in spanish).

Hope you’ll like 🙂

Shader code

shader_type spatial;

uniform vec4 base_color : source_color = vec4(1.0);
uniform sampler2D color_ramp : source_color, repeat_disable, filter_nearest;

uniform vec3 specular_color : source_color = vec3(1.0);
uniform float specular_size : hint_range(1.0, 256.0) = 8.0;
uniform float specular_threshold : hint_range(0.0, 1.0) = 0.5;
uniform float specular_strength : hint_range(0.0, 4.0) = 1.0;

uniform sampler2D noise_tex;
uniform float noise_pow = 2.0;
uniform float noise_scl = 0.1;
uniform float rim_pow = 4.0;
uniform float rim_str = 1.0;

void fragment() {
	ALBEDO = base_color.rgb;
	METALLIC = 0.0;
	ROUGHNESS = 1.0;
	AO = 0.0;
}

void light() {
	vec3 n = normalize(NORMAL);
	vec3 l = normalize(LIGHT);
	vec3 v = normalize(VIEW);

	// toon diffuse (half lambert)
	float ndotl = (dot(n, l) + 1.0) * 0.5;

	// diffuse + attenuation
	float difsdw = ndotl * ATTENUATION;

	// reflection between view and normal
	vec3 r = reflect(v, n);

	// sample noise (using reflection .xy)
	float noise = pow( texture(noise_tex, vec2(r.x, r.y) * noise_scl).r, noise_pow);

	// compute rim (using reflection .z)
	float rim = pow( clamp((r.z + 1.0) * 0.5, 0.0, 1.0), rim_pow);

	// rim + reflection
	float rim_and_reflection = clamp(noise + rim * rim_str, 0.0, 1.0);

	// diffuse + shadow + rim + reflection
	float final_diffuse = difsdw * rim_and_reflection;

	// get color form color ramp
	vec3 toon = texture(
		color_ramp,
		vec2(final_diffuse, 0.5)
		).rgb;

	// half vector
	vec3 h = normalize(v + l);

	// specular
	float spec = pow(
		max(dot(n, h), 0.0),
		specular_size
		);

	// sharp specular
	spec = step(specular_threshold, spec);

	// output diffuse and specular
	DIFFUSE_LIGHT =  toon;
	SPECULAR_LIGHT = (
		specular_color *
		spec *
		specular_strength *
		ATTENUATION
		);

}
