Anti-alias Color Swapper

There are quite a few color swapping shaders but mine works with higher res drawings that aren’t pixel art.

Every color key should have a matching replacement color to work properly. Adjust the threshold until the desired color is matched.

There is by default a max of 8 colors, but you can increase this in the code if need be.

Shader code

shader_type canvas_item;
uniform vec3[8] color_keys : source_color;
uniform vec3[8] replacement_colors : source_color;
uniform float threshold : hint_range(0.0, 1.0, 0.01) = 0.14;

vec3 rgb_to_hsv(vec3 col) {
	float cmax = max(col.r, max(col.g, col.b));
	float cmin = min(col.r, min(col.g, col.b));
	float diff = cmax - cmin;
	float h = 0.0;
	float s = 0.0;

	if (cmax != cmin) {
		if (cmax == col.r)      h = mod(60.0 * ((col.g - col.b) / diff) + 360.0, 360.0);
		else if (cmax == col.g) h = mod(60.0 * ((col.b - col.r) / diff) + 120.0, 360.0);
		else if (cmax == col.b) h = mod(60.0 * ((col.r - col.g) / diff) + 240.0, 360.0);
	}

	if (cmax > 0.0) s = (diff / cmax) * 100.0;
	float v = cmax * 100.0;

	return vec3(h, s, v);
}

void fragment() {
	vec4 original_color = texture(TEXTURE, UV);
	vec3 col = original_color.rgb;
	vec3 oc = rgb_to_hsv(col);

	for (int i = 0; i < color_keys.length(); i++) {
		if (color_keys[i] == replacement_colors[i]) continue;

		vec3 rc = rgb_to_hsv(color_keys[i]);
		float hue_diff = rc.r - oc.r;
		float sat_diff = rc.g - oc.g;
		float val_diff = rc.b - oc.b;

		// Check if we have a match
		if (hue_diff > -100.0 * threshold && hue_diff < 100.0 * threshold && sat_diff > -100.0 * threshold && sat_diff < 100.0 * threshold) {
			// Calculate how dark the original pixel is (0 = black, 1 = full brightness)
			float brightness = oc.z / 100.0;
			// Replace color and keep brightness
			col = replacement_colors[i].rgb * brightness;
			break;
		}

	}

	COLOR = vec4(col, original_color.a) * COLOR;
}

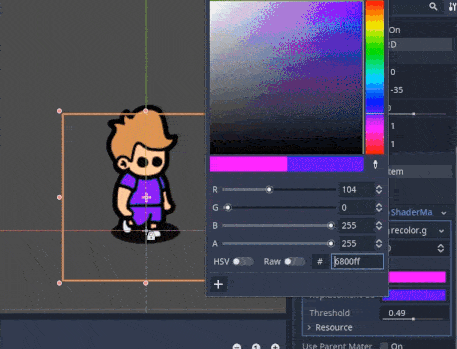

Live Preview
